Abstract
一种新型玻璃钢化炉，主要由上片台、炉体、风栅、下片台四个部件依次连接组成，上述部件中均设有辊道，辊道的上表面在一个水平面上，上述四个部件之间用传动轴和圆形皮带连接，每个部件配有传动电机和变频器，其特征在于：所述的炉体由上下两部分组成，炉体上设有燃气加热系统和烟气回收对流系统。与传统的电加热的玻璃钢化炉相比，节约了能源并降低了运营成本，使得操作人员的生产生活更加规律。
A new type of glass tempering furnace, which is mainly composed of four parts connected in sequence, the upper table, the furnace body, the air grid, and the lower table. The above-mentioned parts are equipped with roller tables. The upper surface of the roller table is on a horizontal plane. The above four The two components are connected by transmission shafts and circular belts, and each component is equipped with a transmission motor and a frequency converter. It is characterized in that: the furnace body is composed of upper and lower parts. Recovery convection system. Compared with the traditional electric heating glass tempering furnace, it saves energy and reduces operating costs, making the production and life of operators more regular.
Description
Technical field
The utility model relates to a kind of glass tempering processing units, or rather, relates to a kind of novel glass tempering stove.
Background technology
At present, have only electrically heated glass tempering furnace in the market, its shortcoming is:
1, power consumption is very big, the operation cost height.
2, need to install high-power transformer.
3, because electricity price adopts peak valley square formula, consider running cost, glass tempering factory moves at night and produces mostly, and the operation personnel live irregular.
The utility model content
The utility model provides a kind of novel glass tempering stove, adopts the Sweet natural gas heating, and heating furnace body is divided into two parts up and down, be evenly distributed with efficient burner, warm area of each efficient burner control makes air current flow in the body of heater, more uniform temperature in the control body of heater, efficient.Gas energy reclaims convection system can reclaim the heat that runs off from chimney, turns back to carry out convection current in the stove and heat save energy.
The utility model provides a kind of novel glass tempering stove, mainly by last slice platform, body of heater, air grid, four parts of sheet platform connect to form successively down, be equipped with roller-way in the above-mentioned parts, the upper surface of roller-way is on a horizontal plane, be connected with circular belt with transmission shaft between above-mentioned four parts, each parts is furnished with driving motor and frequency transformer, it is characterized in that: described body of heater is made up of two portions up and down, and body of heater is provided with gas heating system and flue gas recovery convection system.
Preferred scheme is that gas heating system comprises efficient burner, and efficient burner is evenly distributed in the lower furnace body by area.
Preferred scheme is that flue gas recovery convection system mainly partly is made up of heat exchange section, thermal circulation fan, convection tubes, and wherein convection tubes is made up of the many stainless-steel pipes that have aperture, and convection tubes evenly is arranged in the upper furnace body.
Wherein frequency transformer act as the speed unanimity of adjusting between each parts, each efficient burner is controlled about 0.36 square metre area, so that temperature reaches even in the body of heater.
We adopt the Sweet natural gas heating the utility model, compare conventional electric heating glass tempering furnace product on the market, because electricity price adopts peak valley square formula, a lot of factories just produce at electricity rates minimum night, do not meet people's work and rest rule like this, there is not the flat price schema of peak valley in Sweet natural gas, and running cost daytime and night are more or less the same, and can solve the erratic problem of work and rest.The combustion gas glass tempering furnace can round-the-clock running under the situation that control running cost is more or less the same.Flue gas reclaims the dress convection system, and the heat that distributes is reclaimed, and is blown into and carries out the convection current Hybrid Heating in the body of heater, not only makes the interior temperature of stove more even, and conserve energy.
Description of drawings

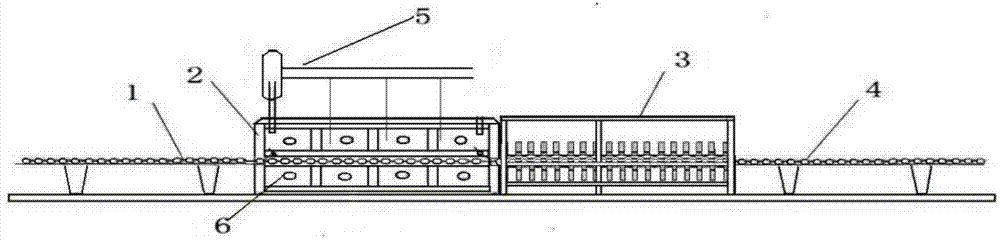

Fig. 1 is structural representation of the present utility model;
Embodiment
Below in conjunction with Fig. 1 and embodiment, the utility model is described in further detail, but this embodiment and be not used in and limit protection domain of the present utility model.
Embodiment 1:
The utility model provides a kind of novel glass tempering stove, mainly by last slice platform 1, body of heater 2, air grid 3,4 four parts of following sheet platform connect to form successively, be equipped with roller-way in the above-mentioned parts, the upper surface of roller-way is on a horizontal plane, be connected with circular belt with transmission shaft between above-mentioned four parts, each parts is furnished with driving motor and frequency transformer, body of heater 2 is made up of two portions up and down, body of heater 2 is provided with gas heating system and flue gas reclaims convection system 5, gas heating system comprises efficient burner 6, efficient burner 6 is evenly distributed in the lower furnace body by area, flue gas reclaims convection system 5 mainly by heat exchange section, thermal circulation fan, convection tubes is partly formed, wherein convection tubes is made up of the many stainless-steel pipes that have aperture, and convection tubes evenly is arranged in the upper furnace body.
During work, sheet glass transmits heating furnace body 2 through last slice platform 1 and heats, and body of heater 2 is divided into two parts up and down, and upper furnace body utilizes jacking equipment to raise, in order to open body of heater 2.Flue gas on the body of heater 2 reclaims convection system 5 and utilizes heat exchange principle to absorb the heat that chimney is discharged, and again hot blast is evenly sent back to body of heater 2, forms thermal convection, thus temperature in the energy-conservation and even body of heater 2.Sheet glass is through after the heating of certain hour, is sent to air grid 3 tempering of drying from body of heater 2, behind the tempering certain hour, is sent to down sheet platform 4, becomes qualified toughened glass product.
Above content be in conjunction with structure of the present utility model and working process to further describing that it is done, can not assert that concrete enforcement of the present utility model is confined to these explanations.For the utility model person of an ordinary skill in the technical field, under the prerequisite that does not break away from the utility model design, can also make some simple deduction or replace, all should be considered as belonging to protection domain of the present utility model.
Claims (3)
1. novel glass tempering stove, mainly by last slice platform, body of heater, air grid, four parts of sheet platform connect to form successively down, be equipped with roller-way in the above-mentioned parts, the upper surface of roller-way is on a horizontal plane, be connected with circular belt with transmission shaft between above-mentioned four parts, each parts is furnished with driving motor and frequency transformer, it is characterized in that: described body of heater is made up of two portions up and down, and body of heater is provided with gas heating system and flue gas recovery convection system.
2. novel glass tempering stove according to claim 1, it is characterized in that: described gas heating system comprises efficient burner, efficient burner is evenly distributed in the lower furnace body by area.
3. novel glass tempering stove according to claim 1 and 2, it is characterized in that: described flue gas reclaims convection system and mainly partly is made up of heat exchange section, thermal circulation fan, convection tubes, wherein convection tubes is made up of the many stainless-steel pipes that have aperture, and convection tubes evenly is arranged in the upper furnace body.
