Abstract
本实用新型公开了一种双人座儿童推车，包括推车车架，分别设置在推车车架底前部和底后部的前轮组件和后轮组件，设置在推车车架上、分别用于连接婴儿座兜的第一座兜连接部和第二座兜连接部，特别是，所述的第一座兜连接部和第二座兜连接部分别位于推车车架的前侧和后侧，儿童推车还包括设置在推车车架的后侧、可供儿童乘坐的座板和 / 或设置在所述推车车架的后下方可供儿童站立的站板。本实用新型的双人推车，除了可用于同时承载两个婴儿用外，还可以在前面承载一个婴儿，在后面坐一个较大小孩或站一个小孩，非常实用。此外，在本实用新型的结构设计基础上，在保证车架简洁的前提下，较方便地实现推车折叠。
The utility model discloses a double-seat children's pushcart, which comprises a pushcart frame, a front wheel assembly and a rear wheel assembly respectively arranged at the bottom front part and the bottom rear part of the pushcart frame, arranged on the pushcart frame, The first seat connection part and the second seat connection part are respectively used to connect the baby seat, in particular, the first seat connection part and the second seat connection part are respectively located on the front side of the stroller frame and the rear side, the children's stroller also includes a seat panel arranged on the rear side of the stroller frame, a seat for the child to ride on and / or a stand panel for the child to stand on the rear and lower side of the stroller frame. The double pushcart of the utility model can be used for carrying two babies at the same time, and can also carry a baby in the front, and sit a bigger child or stand a child in the back, which is very practical. In addition, on the basis of the structural design of the utility model, the folding of the pushcart can be realized more conveniently under the premise of ensuring the simplicity of the vehicle frame.
Description
Technical field
The utility model relates to the virgin go-cart of a kind of double seat.
Background technology
At present, double seat baby/child go-cart (being called for short double go-cart to call in the following text) is widely used because of its convenience that carries the baby.But, the design of existing double go-cart is the seat go-cart side by side that is formed by simple directly merging of two single perambulators basically, the virgin go-cart of this double seat is comparatively complicated in structure and manufacturing usually, and the degree of difficulty that folds is higher, has improved volume and the usage space of go-cart.In addition, the object that the two-seater of existing double seat go-cart is suitable for or all be less baby, or all be bigger child, and can't allow less baby and bigger child take simultaneously simultaneously, so obviously there is not maximum using.
Summary of the invention
Technical problem to be solved in the utility model is to overcome the deficiencies in the prior art, provides a kind of improved double seat virgin go-cart.
For solving above technical matters, the utility model adopts following technical scheme:
The virgin go-cart of a kind of double seat, comprise the go-cart vehicle frame, be separately positioned on front component and the wheel assembly at anterior and rear portion, the end at the bottom of the go-cart vehicle frame, be arranged on the go-cart vehicle frame, be respectively applied to connect first pocket connecting portion and second pocket connecting portion of babychair pocket, particularly, described first pocket connecting portion and second pocket connecting portion are positioned at front side and the rear side of go-cart vehicle frame respectively, and children trolley also comprises the rear side that is arranged on the go-cart vehicle frame, can and/or be arranged on the station plate that can stand for children in the back lower place of described go-cart vehicle frame for the seat board of children's ride-on.
According to a preferred aspect of the present utility model, described first pocket connecting portion has first general purpose interface and second general purpose interface that removably is connected the babychair pocket respectively with second pocket connecting portion.Can easily the babychair pocket be loaded onto and pull down by interface.
Preferably, the bottom of described station plate is provided with the auxiliary wheel assembly.
According to a concrete and preferred aspect of the present utility model, described go-cart vehicle frame comprises and is positioned at the symmetrical side stand in both sides, each side stand comprises that leading section is provided with the push rod that the front-wheel support of described front component, bottom are provided with described wheel assembly, the rearward end of front-wheel support links to each other with push rod, first pocket connecting portion is arranged on the front portion of front-wheel support, second pocket connecting portion is arranged on the rearward end of front-wheel support, on push rod or the junction of the two, seat board is arranged between two side stands.
Further, described go-cart vehicle frame also comprises and is positioned at the symmetrical after poppet in both sides, and the leading section of after poppet is connected with front-wheel support, and the both sides of the plate of standing are connected with the rearward end of the after poppet of both sides respectively.
Preferably, be collapsible with go-cart Vehicle Frame Design of the present utility model, so, the go-cart vehicle frame has deployed condition and folded state, and children trolley also comprises for the lockout mechanism that the go-cart vehicle frame is locked in deployed condition.This has multiple mode to realize.According to a preferred aspect of the present utility model, be connected with adapter sleeve on the rearward end of front-wheel support, this adapter sleeve can arrange slidably along the bearing of trend of push rod, second pocket connecting portion is arranged on the push rod, and the both sides of seat board rotate with the push rod of both sides or second pocket connecting portion respectively and are connected.Further preferably, the go-cart vehicle frame also comprises and is positioned at the symmetrical after poppet in both sides, and the leading section of after poppet rotates with front-wheel support and is connected, and the both sides of the plate of standing are connected with the rearward end of the after poppet of both sides respectively.Also preferably, when the go-cart vehicle frame is in folded state.Have at least the bottom surface of wheel of the two coplanar among front component, wheel assembly and the auxiliary wheel assembly three, folding go-cart can be supported oneself.
In addition, described go-cart vehicle frame also can further comprise the pulling handle rod that hind axle between the wheel assembly that is connected both sides, both ends are connected with the upper end of the push rod of both sides respectively.
Because the enforcement of above technical scheme, the utility model compared with prior art has following advantage:
Double go-cart of the present utility model, except can be used for carrying simultaneously two for baby, can also carry a baby in front, sit big child or the child that stands in the back, very practical.In addition, on structure design of the present utility model basis, guaranteeing under the succinct prerequisite of vehicle frame, realizing that more conveniently go-cart is folding.
Description of drawings

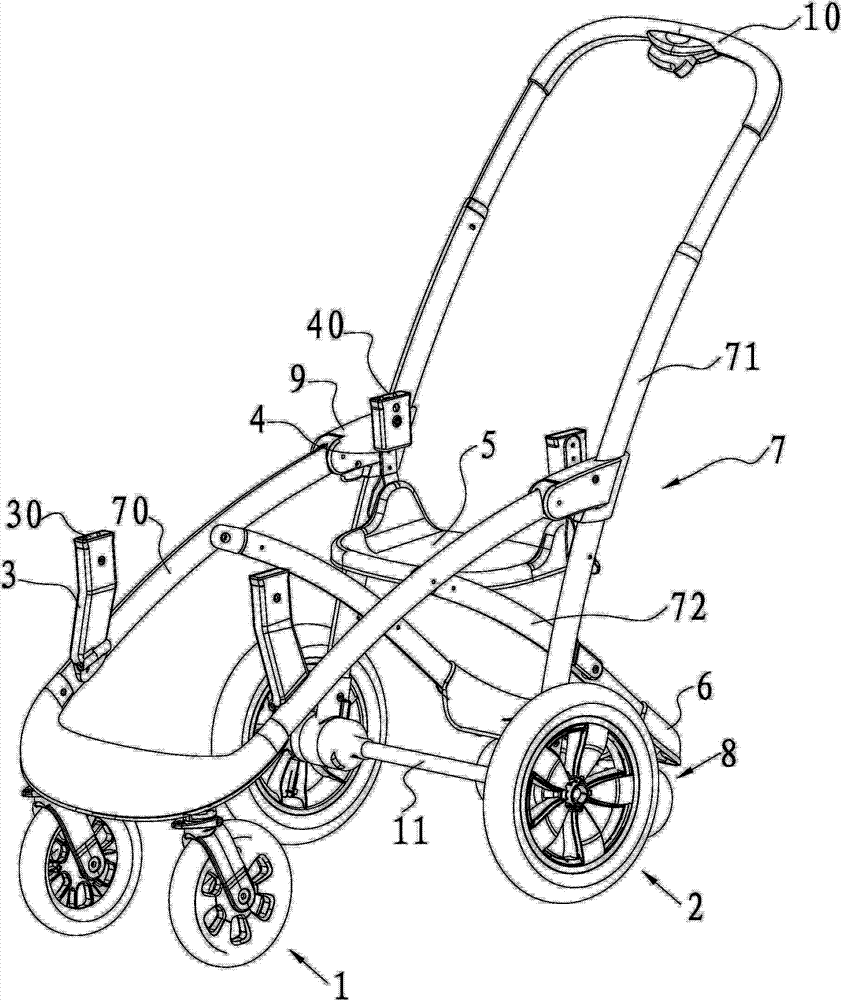

Fig. 1 is the schematic perspective view according to the virgin go-cart of double seat of the present utility model;
Fig. 2 is the schematic rear view of Fig. 1;
Fig. 3 is the front-view schematic diagram of Fig. 1;
Fig. 4 is the schematic side view of Fig. 1;
Fig. 5 is for being in the schematic side view in the folding process according to double seat child of the present utility model go-cart;
Fig. 6 is for virgin go-cart is in the schematic side view of folded state according to double seat of the present utility model
Wherein: 1, front component; 2, wheel assembly; 3, first pocket connecting portion; 30, first general purpose interface; 4, second pocket connecting portion; 40, second general purpose interface; 5, seat board; 6, the plate of standing; 7, side stand; 70, front-wheel support; 71, push rod; 72, after poppet; 8, auxiliary wheel assembly; 9, adapter sleeve; 10, pulling handle rod; 11, hind axle.
The specific embodiment
Shown in Fig. 1 to 6, mainly comprise the go-cart vehicle frame according to the virgin go-cart of the double seat of present embodiment, divide front component 1, wheel assembly 2, be positioned at first pocket connecting portion 3 and second the pocket connecting portion 4 that is positioned at the rear side of go-cart vehicle frame of the front side of go-cart vehicle frame, be arranged on the go-cart vehicle frame rear side, can be for the seat board 5 of children's ride-on, be arranged on the station plate 6 that the back lower place of go-cart vehicle frame can stand for children and the auxiliary wheel assembly 8 that is arranged on plate 6 bottoms, station.First pocket connecting portion 3 and second pocket connecting portion 4 have first general purpose interface 30 and second general purpose interface 40 respectively, and they can be respectively applied to the babychair pocket that removably connects.
In this example, the go-cart vehicle frame has deployed condition and folded state, and children trolley also comprises for the lockout mechanism that the go-cart vehicle frame is locked in deployed condition.This has multiple mode to realize.In this example, the go-cart vehicle frame comprises and is positioned at the symmetrical side stand in both sides 7, and each side stand 7 comprises that further leading section is provided with the front-wheel support 70 of front component 1, extends along the vertical direction and after poppet 72 that push rod 71, leading section that the bottom is provided with wheel assembly 2 and middle part or the rear portion of front-wheel support 70 rotate and be connected.The stand both sides of plate 6 are connected with the after poppet 72 of both sides respectively.Be rotatably connected to an adapter sleeve 9 on the rearward end of front-wheel support 70, this adapter sleeve 9 can arrange slidably along the bearing of trend of push rod 71.First pocket connecting portion 3 is arranged on the front portion of the front-wheel support 70 of both sides, and second pocket connecting portion 4 is arranged on the push rod 71, and the both sides of seat board 5 rotate with second pocket connecting portion 4 of both sides and are connected.The go-cart vehicle frame also comprises the pulling handle rod 10 between the upper end that is arranged on the hind axle 11 between two wheel assemblies 2 and is arranged on two push rods 71.
In the utility model, lockout mechanism can be arbitrary structures form known in the field.Do not describe in detail at this.
Folding process of the present utility model is as follows: mechanism unlocks, the operation after poppet is drawn close towards the direction of front-wheel support, and front-wheel support and sliding sleeve upwards slide along push rod together, and front-wheel support is drawn close towards push rod and packed up simultaneously, to state shown in Figure 6, folding back go-cart can be supported oneself.
The double go-cart of present embodiment possesses following function and characteristics:
1, can simultaneously two babychair pockets be installed, and the seat pocket is capable of reversing;
2, the babychair pocket is installed in the front, and the back child is sitting on the seat board;
3, the babychair pocket is installed in the front, and the back child stands on the plate;
4, go-cart is collapsible, and can support oneself after folding, carries and deposits conveniently.
More than the utility model has been done detailed description; its purpose is to allow the personage that is familiar with this art can understand content of the present utility model and is implemented; can not limit protection domain of the present utility model with this; all equivalences of doing according to spiritual essence of the present utility model change or modify, and all should be encompassed in the protection domain of the present utility model.
Claims (10)
1. virgin go-cart of double seat, comprise the go-cart vehicle frame, be separately positioned on front component (1) and the wheel assembly (2) at anterior and rear portion, the end at the bottom of the described go-cart vehicle frame, be arranged on the described go-cart vehicle frame, be respectively applied to connect first pocket connecting portion (3) and second pocket connecting portion (4) of babychair pocket, it is characterized in that: described first pocket connecting portion (3) and described second pocket connecting portion (4) lay respectively at front side and the rear side of described go-cart vehicle frame, and described children trolley also comprises the rear side that is arranged on described go-cart vehicle frame, can and/or be arranged on the station plate (6) that can stand for children in the back lower place of described go-cart vehicle frame for the seat board (5) of children's ride-on.
2. the virgin go-cart of double seat according to claim 1, it is characterized in that: described first pocket connecting portion (3) has first general purpose interface (30) and second general purpose interface (40) that removably is connected the babychair pocket respectively with second pocket connecting portion (4).
3. the virgin go-cart of double seat according to claim 1, it is characterized in that: the bottom of described station plate (6) is provided with auxiliary wheel assembly (8).
4. the virgin go-cart of double seat according to claim 3, it is characterized in that: described go-cart vehicle frame comprises and is positioned at the symmetrical side stands in both sides (7), each described side stand (7) comprises that leading section is provided with the front-wheel support of described front component (1) (70), the bottom is provided with the push rod (71) of described wheel assembly (2), the rearward end of described front-wheel support (70) links to each other with described push rod (71), described first pocket connecting portion (3) is arranged on the front portion of described front-wheel support (70), described second pocket connecting portion (4) is arranged on the rearward end of described front-wheel support (70), on described push rod (71) or the junction of the two, described seat board (5) is arranged between the two described side stands (7).
5. the virgin go-cart of double seat according to claim 4, it is characterized in that: described go-cart vehicle frame also comprises and is positioned at the symmetrical after poppets in both sides (72), the leading section of described after poppet (72) is connected with described front-wheel support (70), and the both sides of described station plate (6) are connected with the rearward end of the described after poppet (72) of both sides respectively.
6. the virgin go-cart of double seat according to claim 4, it is characterized in that: described go-cart vehicle frame has deployed condition and folded state, and described children trolley also comprises for the lockout mechanism that described go-cart vehicle frame is locked in deployed condition.
7. the virgin go-cart of double seat according to claim 6, it is characterized in that: be connected with adapter sleeve (9) on the rearward end of described front-wheel support (70), this described adapter sleeve (9) can arrange slidably along the bearing of trend of described push rod (71), described second pocket connecting portion (4) is arranged on the described push rod (71), and the both sides of described seat board (5) rotate with the described push rod (71) of both sides or described second pocket connecting portion (4) respectively and are connected.
8. the virgin go-cart of double seat according to claim 7, it is characterized in that: described go-cart vehicle frame also comprises and is positioned at the symmetrical after poppets in both sides (72), the leading section of described after poppet (72) rotates with described front-wheel support (70) and is connected, and the both sides of described station plate (6) are connected with the rearward end of the described after poppet (72) of both sides respectively.
9. the virgin go-cart of double seat according to claim 6, it is characterized in that: when described go-cart vehicle frame is in folded state, have at least the bottom surface of wheel of the two coplanar among described front component (1), wheel assembly (2) and described auxiliary wheel assembly (8) three, folding go-cart can be supported oneself.
10. the virgin go-cart of double seat according to claim 4 is characterized in that: described go-cart vehicle frame also comprises the pulling handle rod (10) that hind axle (11) between the wheel assembly (2) that is connected both sides, both ends are connected with the upper end of the push rod (71) of both sides respectively.
