Abstract

The utility model discloses a release film peeling device, which comprises a board body and a handle arranged on the board body, and the board body is also connected with a fixing port. Fix the object to be fixed through the fixing port, peel off the unnecessary release film, the release film that does not need to be peeled off is not easy to damage, and save materials; at the same time, for different shapes of the object to be fixed, the corresponding shape of the fixed port can be replaced. The utilization rate of the stripping device is improved, the cost is saved and the use is convenient.

Description

Release film peeling device

technical field

The utility model relates to a release film peeling device.

Background technique

Release film is a material commonly used in thermal transfer printing. The substrate is PET, which is coated with silicone oil, so it is also called silicone oil film. The conventional thickness is from 25um to 150um. There are hot and cold tearing and matte surface. Anti-static and anti-scratch treatment, the product has good adsorption and fit. Release film has been widely used in packaging, printing, silk screen printing, pad printing, nameplate, membrane switch, flexible circuit, insulation products, circuit board, laser anti-counterfeiting, lamination, electronics, sealing material film, reflective material, waterproof Materials, medicine (plaster paper), toilet paper, adhesive products, die-cutting and punching processing and other fields. The release film for industrial use is pasted on the release paper, and through industrial processing, the release film has a certain shape, and then the release film with a certain shape needs to be peeled off from the release paper.

The currently commonly used method of peeling off the release film is the method of pulling. This method is easy to destroy the peeled part of the non-specific shape of the release film, resulting in waste of materials; in addition, there are also a few technologies applied to the release film. The peeling tool has an integrated plate structure, and the fixed port cannot be replaced. For different shapes of the release film peeling body, it is necessary to replace the peeling tool with a different shape of the fixed port, which is inconvenient to use.

Contents of the invention

In order to overcome the deficiencies of the prior art, the utility model provides a release film peeling device that can replace fixed ports of different shapes. The device is also provided with a handle for easy holding.

The technical scheme that the utility model solves its technical problem adopts is:

A release film peeling device is characterized in that it includes a plate body and a handle arranged on the plate body, and the plate body is also connected with a fixed port.

There are multiple fixing ports arranged in a comb shape.

The shape of the fixing opening is consistent with the shape of the object to be fixed.

The connection mode between the fixing port and the plate body is bonding or snapping.

The beneficial effects of the utility model are: fixing the body to be fixed through the fixing port, peeling off the unnecessary release film, the release film that does not need to be peeled off is not easy to damage, and saves materials; at the same time, it can be replaced for different shapes of the body to be fixed The corresponding fixed opening improves the utilization rate of the peeling device, saves cost and is convenient to use.

Description of drawings

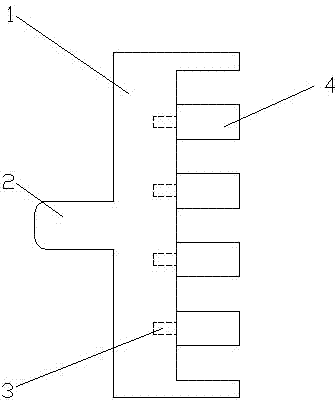

Fig. 1 is a schematic structural view of an embodiment of the utility model.

Fig. 2 is a diagram of a release film pasted on a release paper according to an embodiment of the present invention.

Fig. 3 is a diagram of the use process of the release film peeling device of an embodiment of the present invention.

Detailed ways

Below in conjunction with specific embodiment, further set forth the utility model. It should be understood that these embodiments are only used to illustrate the present utility model and are not intended to limit the scope of the present utility model. In addition, it should be understood that after reading the content taught by the utility model, those skilled in the art can make various changes or modifications to the utility model, and these equivalent forms also fall within the scope defined by the appended claims of the application.

As shown in Figure 1, a release film peeling device includes a plate body 1 and a handle 2 arranged on the plate body 1. The function of the handle 2 is to facilitate holding, and the connector 3 of the fixed port 4 is bonded or stuck. It is connected to the plate body 1, and a plurality of fixing ports 4 are arranged in a comb shape.

As shown in Figure 2, the release film 6 is pasted on the release paper 5. In the present embodiment, the release film 6 is provided with a neatly arranged square body 7 to be fixed. Of course, the fixed body 7 can be circular or polygonal. and other shapes.

Referring to Fig. 1 and Fig. 2, in this embodiment, the shape of the selected fixing port 4 is consistent with the shape of the body 7 to be fixed, which is square. In other embodiments, the shape of the selected fixing opening 4 also needs to be consistent with the shape of the object 7 to be fixed.

Fig. 3 is the use process diagram of the release film peeling device of the above-mentioned embodiment of the present utility model, at first select the fixed port 4 consistent with the shape of the body 7 to be fixed, the fixed port 4 is bonded and snapped on the plate body 1, and the The release film peeling device is arranged on the release film 6, the fixed port 4 is consistent with the position of the fixed body 7, and the release film peeling device is fixed, and then the release film that is not the 7 parts of the fixed body is peeled off.

Claims (4)

1. a mould release membrance stripping off device is characterized in that: comprise the sheet material body, and be arranged on the handle on the sheet material body, also be connected with fixing port on the sheet material body.

2. a kind of mould release membrance stripping off device according to claim 1, it is characterized in that: described fixing port is a plurality of, is arranged as comb shape.

3. a kind of mould release membrance stripping off device according to claim 1, it is characterized in that: the shape of described fixing port is consistent with the shape for the treatment of fixed body.

4. a kind of mould release membrance stripping off device according to claim 1, it is characterized in that: described fixing port is bonding with the connected mode of sheet material body or engages.
