一种计量吸痰器，包括透明的柱状量筒，柱状量筒筒壁上有刻度，柱状量筒上下两端封闭，柱状量筒上端面插入有痰液吸入管，痰液吸入管下端临近柱状量筒下端面，痰液吸入管上端有入口连接头，柱状量筒下端面插入有痰液吸出管，痰液吸出管上端延伸到临近柱状量筒上端面，痰液吸出管下端有出口连接头，痰液吸出管上端末端至少有一个侧孔，预防堵塞，通过实施本实用新型，可以对患者每次吸出的痰液进行准确观察、计量，结构简单，操作方便。
A metering sputum aspirator, comprising a transparent cylindrical measuring cylinder with scales on the wall of the cylindrical measuring cylinder, the upper and lower ends of the cylindrical measuring cylinder are closed, a sputum suction tube is inserted into the upper end of the cylindrical measuring cylinder, the lower end of the sputum suction tube is adjacent to the lower end of the cylindrical measuring cylinder, There is an inlet connector at the upper end of the sputum suction tube, and a sputum suction tube is inserted into the lower end of the cylindrical measuring cylinder. The upper end of the sputum suction tube extends to the upper end of the adjacent cylindrical measuring cylinder. There is at least one side hole at the end to prevent blockage. By implementing the utility model, the sputum sucked out by the patient can be accurately observed and measured each time, and the structure is simple and the operation is convenient.
Description
Technical field
This utility model relates to a kind of medical apparatus and instruments, mainly is a kind of metering sputum aspirator that can measure the sputum of sucking-off.
Background technology
The device of inhaling expectorant to patient that uses in chest hospital normally with by the sputum aspirator tube that inserts the patient respiratory road, the sputum aspirator tube outer end port of export connects negative pressure device, and is by the suction of negative pressure device that the sputum sucking-off in patient respiratory road is external.
Such technology has following deficiency: sputum directly is sucked away, and can't observe, measure the sputum of the each sucking-off of sufferer.
Summary of the invention
The purpose of this utility model is to provide a kind of metering sputum aspirator, to remedy the deficiencies in the prior art.
The purpose of this utility model is achieved in that a kind of metering sputum aspirator, comprise transparent column graduated cylinder, on the column graduated cylinder barrel scale is arranged, the column graduated cylinder is closed at both ends up and down, and column graduated cylinder upper surface is inserted with the sputum suction tube, and column graduated cylinder lower surface is closed in sputum suction tube lower end, there is the entrance union joint sputum suction tube upper end, column graduated cylinder lower surface is inserted with the sputum draft tube, and sputum draft tube upper end extends to closes on column graduated cylinder upper surface, and there is the outlet union joint sputum draft tube lower end.
Has a side opening at least as preferred sputum draft tube end and sputum suction tube end, pre-blockage resisting.
By implementing this utility model, can observe, measure the sputum of the each sucking-off of sufferer, easy to operate, simple in structure, with low cost, disposable use, safe and sanitary.
Description of drawings
Fig. 1 is structural representation of the present utility model.

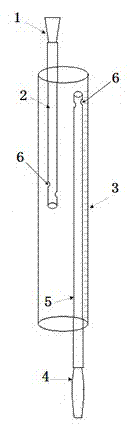

1 is the entrance union joint among the figure, the 2nd, and sputum suction tube, the 3rd, column graduated cylinder, the 4th, outlet union joint, the 5th, sputum draft tube, the 6th, side opening.
The specific embodiment
A kind of metering sputum aspirator, comprise transparent column graduated cylinder 3, on column graduated cylinder 3 barrels scale is arranged, the column graduated cylinder is closed at both ends about in the of 3, column graduated cylinder 3 upper surfaces are inserted with sputum suction tube 2, column graduated cylinder 3 lower surfaces are closed in sputum suction tube 2 lower ends, there is entrance union joint 1 sputum suction tube 2 upper ends, column graduated cylinder 3 lower surfaces are inserted with sputum draft tube 5, sputum draft tube 5 upper ends extend to closes on column graduated cylinder 3 upper surfaces, there is outlet union joint 4 sputum draft tube 5 lower ends, and sputum suction tube 2 ends and sputum draft tube 5 ends have two side openings 6.
During use, entrance union joint 1 is connected with the sputum aspirator tube tail end that inserts the sufferer respiratory tract, outlet union joint 4 is connected with the negative pressure straw of hospital, column graduated cylinder 3 inside are negative pressure state, the sputum of sufferer is through sputum aspirator tube, entrance union joint 1, sputum suction tube 2 enters column graduated cylinder 3 inside, accumulate in column graduated cylinder 3 lower surfaces, because the mouth of pipe of sputum draft tube 5 is positioned at column graduated cylinder 3 upper ends, sputum can be from 5 sucking-offs of sputum draft tube, when each suction expectorant finishes, the negative pressure straw valve of closed hospital, vertical column graduated cylinder 3, the nursing staff reads the sputum amount from the scale on column graduated cylinder 3 barrels, and after the observation sputum color, the nursing staff rotates column graduated cylinder 3 and is the level of state, open negative pressure suction device, suction washing pipe, sputum be namely from the mouth of pipe sucking-off of sputum draft tube 5, standby when two side openings 6 stop up as the mouth of pipe of sputum draft tube 5.
