CN203099469U - Horizontal bidirectional LED light supplementation device for greenhouse cultivation canopies

Info

Publication number: CN203099469U
Application number: CN2013201201013U
Authority: CN
Inventors: 刘文科; 杨其长; 刘喜明
Original assignee: Institute of Environment and Sustainable Development in Agriculturem of CAAS
Current assignee: Institute of Environment and Sustainable Development in Agriculturem of CAAS
Priority date: 2013-03-15
Filing date: 2013-03-15
Publication date: 2013-07-31
Anticipated expiration: 2023-03-15

Abstract

The utility model relates to a horizontal two-way LED supplementary light device for facility cultivation canopies, which comprises a lamp housing, a heat dissipation member arranged in the lamp housing and two opposite substrates with convex surfaces, and the convex surfaces of the substrates are provided with For red and blue LED lamp beads, a lampshade is arranged outside the substrate. The device has a reasonable structure and is suitable for supplementing light on both sides of the crop row at the same time, and can realize supplementing light on the upper and lower layers.

Description

A kind of facility cultivation canopy horizontal bidirectional LED light compensating apparatus

Technical field

The utility model belongs to facilities horticulture plant culture artificial light source technical field, is specially a kind of facility cultivation canopy horizontal bidirectional LED light compensating apparatus.

Background technology

Facilities horticulture is the important form of modern agriculture, can carry out the intensive cultivating anti-season of vegetables, flowers, fruit tree and Chinese medicine in facility (greenhouse, plant factor, hot house etc.) inside produces, but have multiple crop index height, output height, envirment factor is an adjustable advantage such as anniversary production, be the main mode of production that satisfies gardening product demands such as urban and rural residents winter-spring season vegetables, have irreplaceable effect.China is facilities horticulture big producing country, and facilities horticulture cultivated area and output occupy first place in the world.Yet, because the planting form of China's facilities horticulture is based on heliogreenhouse and hot house, illumination in the facility has only about 70% outside the facility, under severe weather conditions such as overcast and rainy snow mist, illumination wretched insufficiency in the facility, the low light level is few according to the formation with yield and quality of growing that is seriously restricting protected crop.In China, the successive cloudy days phenomenon that bad weathers such as overcast and rainy snow mist cause happens occasionally, and the low light level is few according to often causing crop failure even total crop failure under low temperature acts on simultaneously, and economic benefit can't guarantee.Especially at the metropolis periphery, the atmospheric transparency that air pollution causes is hanged down and has also been aggravated the generation and the harm of successive cloudy days phenomenons.

Artificial light filling is to guarantee the few important technical according to facilities horticulture good quality and high output under the condition of the low light level.Yet traditional light filling lamp as high-pressure mercury lamp, exists that energy consumption height, light efficiency are low, spectrum and photosynthesis of plant demand differ defective far away, is difficult to guarantee the demand of the High-efficient Production of protected crop.LED is a kind of semi-conductor solid-state light source, have that volume is little, in light weight, energy-conserving and environment-protective, long-life, spectrum can be by advantages such as plant demand modulation, more traditional light filling light source has incomparable photoelectricity advantage, is to substitute the perfect light source that conventional light source is carried out efficient light filling.What is more important, led light source are cold light source, can press close to the plant leaf blade surface irradiation, have reduced irradiation distance, have improved biological light efficiency.

It is main that present plant culture LED artificial light source technology adopts ceiling light more.Because the problem that led light source ubiquity light is weak,, output, the quality tool of crop had a significant impact so, limited that lower leave is photosynthetic effectively to carry out to tall and big plant light filling poor effect such as tomato, cucumber.In order to address this problem, the utility model has been done further improvement to existing plant culture led light source device.

The utility model content

The utility model provides a kind of simple in structure just at above technical problem, is used for bilateral while light filling between crop row, and can realize a kind of facility cultivation canopy horizontal bidirectional LED light compensating apparatus of levels light filling.

To achieve these goals, the utility model adopts following technical scheme:

A kind of facility cultivation canopy horizontal bidirectional LED light compensating apparatus comprises lamp housing, is located at radiating piece the substrate with convex surface relative with two in the lamp housing, and the convex surface of described substrate is provided with ruddiness and blue LED lamp pearl, and the described substrate outside is provided with lampshade.

Further, the convex surface of described substrate is a curved surface, perhaps is spliced by a plurality of planes.

Further, described radiating piece is close to the inner surface of described substrate, and fill with Heat Conduction Material in the slit therebetween.

Further, the epitaxial part of described radiating piece is a zigzag.

Further, the material of described substrate is an aluminium, is aluminium base.

Further, the ruddiness of described substrate surface and blue LED lamp pearl be arranged in parallel, and many rows can be set.

Further, ruddiness and blue-ray LED optical wavelength are respectively 620～700nm and 420～500nm, and ruddiness and blue-ray LED light intensity ratio are 2～8:1.

Further, described lampshade and substrate is surperficial parallel.

Further, described lampshade edge is provided with and is beneficial to the inclination angle that enlarges the light range of exposures.

Further, described LED light compensating apparatus also comprises the power line that connects described ruddiness and blue LED lamp pearl.

Further, on lamp housing, be provided with suspension member,, be used to hang this LED light compensating apparatus such as suspension ring etc.

Facility cultivation canopy horizontal bidirectional LED light compensating apparatus of the present utility model, can be implemented in while bilateral light filling between crop row, can regulate ratio and wavelength red, the blue LED lamp pearl according to the needs of Different Crop, adopt the substrate of evagination can make light-emitting area (irradiated area) bigger, and irradiation evenly.The utility model can realize canopy in the ranks or the canopy inner near apart from light filling; also can be by a plurality of light fixture polyphones; realize the vertical large span large tracts of land of levels light filling; it is the artificial light filling technology of a practicality and high efficiency; not only reduce the light fixture usage quantity, row is done plant and can be realized abundant light filling, and be convenient to the intensive management of scale.The utility model has changed the artificial light filling of facilities horticulture plant culture, and to adopt ceiling light be main conventional art more, for the application of led light source device in the facilities horticulture light filling provides new way.

Description of drawings

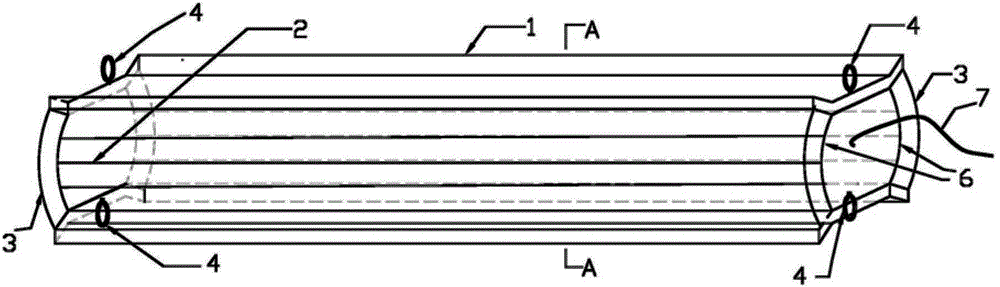

Figure l is the overall structure schematic diagram of horizontal bidirectional LED light compensating apparatus among the embodiment.

Fig. 2 is the side view of device shown in Figure 1.

Fig. 3 is the A-A ' sectional view of device shown in Figure 1.

Fig. 4 is the shape schematic diagram of the substrate that is spliced by a plurality of planes.

Wherein, 1-lamp housing, 2-LED lamp pearl band, 21-red-light LED lamp pearl, 22-blue LED lamp pearl, 3-lampshade, 4-suspension ring, 5-radiating piece, 6-substrate, 7-power line, inclination angle, 8-lampshade edge, 9-heat-conducting silicone grease.

The specific embodiment

Below by specific embodiment, and conjunction with figs., the utility model is described further.

Figure 1 shows that the overall structure figure of the facility cultivation canopy horizontal bidirectional LED light compensating apparatus of present embodiment.This device comprises lamp housing 1, is provided with the arc substrate 6 of two surperficial evaginations of positioned opposite in the lamp housing, and its material is an aluminium.The parallel LED lamp pearl band 2 that is provided with of arc substrate surface comprises that red-light LED lamp pearl 21(is shown in solid dot among Fig. 2), and blue LED lamp pearl 22(is shown in Fig. 2 hollow core circle).The arc aluminium base outside is provided with lampshade (protective cover) 3, and lampshade is the material with high transmission rate.The lamp housing two ends are provided with suspension ring (being suspension member) 4, are used to hang this LED light compensating apparatus.This LED light compensating apparatus also comprises the power line 7 that connects ruddiness and blue LED lamp pearl.

In the present embodiment, lamp housing is the assembly that radiating piece, arc substrate, lampshade, suspension ring etc. is connected to form an integral body, the long 1200mm of whole light fixture, and wide 250mm, high 150mm, the length of LED lamp pearl distribution strip is 1100mm.

In the present embodiment, it is not shown that two arc substrate inside is provided with among radiating piece 5(Fig. 1, please refer to Fig. 3), be close to aluminium base to arrange, please refer to Fig. 3, fill with Heat Conduction Materials such as heat-conducting silicone greases 9 in the slit between radiating piece and aluminium base.The radiating piece epitaxial part can adopt zigzag, promptly comprises the structure of a plurality of radiation tooths, and with the increase area of dissipation, and radiation tooth contacts with air; Specifically can be with reference to LED light fixture heat spreader structure of the prior art, the utility model is not described in detail.The top and bottom of lamp housing are radiating surface among Fig. 3, and opening or slit can be set, and are beneficial to heat radiation.

In the present embodiment, red, the blue LED lamp pearl of the encapsulation of arc aluminium base be arranged in parallel, divide triplex row to arrange, as shown in Figure 2.LED lamp pearl distance is about 10mm, and the light intensity ratio is ruddiness: blue light=8:1, and ruddiness and blue-ray LED optical wavelength are respectively 680nm and 480nm, and the luminous overall strength of led light source is 60 μ molm ^-2S ^-1

In the present embodiment, lampshade 3 fixing on the lamp housing be an arc, and has arc aluminium base red, the blue LED lamp pearl parallel (radian that is lampshade radian and substrate is consistent, makes everywhere apart from equal), spacing 30mm, and this helps making the led light source light efficiency to remain unchanged.The lampshade edge also is provided with inclination angle 8, as shown in Figure 3, is beneficial to light and appears, and enlarges the light range of exposures.

In the above-mentioned LED light compensating apparatus, substrate surface is the arc-shaped curved surface of evagination, but in other embodiments, the convex surface of substrate also can be spliced by a plurality of planes, such as shape of the evagination that constitutes by a plurality of continuous folding faces shown in Figure 4 etc., easier making on technology like this.

Above embodiment is only in order to explanation the technical solution of the utility model but not limit it; those of ordinary skill in the art can make amendment or is equal to replacement the technical solution of the utility model; and not breaking away from spirit and scope of the present utility model, protection domain of the present utility model should be as the criterion so that claim is described.

Claims

1. A facility cultivation canopy level two-way LED supplementary light device, characterized in that it comprises a lamp housing, a heat sink located in the lamp housing and two relative substrates with convex surfaces, the convex surfaces of the substrates Red light and blue light LED lamp beads are provided, and a lampshade is provided outside the substrate.

2. The horizontal two-way LED supplementary light device for protected cultivation canopy according to claim 1, characterized in that: the convex surface of the base plate is a curved surface, or is formed by splicing a plurality of planes.

3. The horizontal two-way LED supplementary lighting device for protected cultivation canopies according to claim 1, characterized in that: the heat sink is in close contact with the inner surface of the substrate, and the gaps therebetween are filled with heat-conducting materials.

4. The horizontal two-way LED supplementary light device for protected cultivation canopy as claimed in claim 3, characterized in that: the extension part of the heat dissipation element is saw-toothed.

5. The protected cultivation canopy horizontal two-way LED light supplement device according to claim 1, characterized in that: the material of the substrate is aluminum.

6. The horizontal two-way LED lighting device for protected cultivation canopy as claimed in claim 1, characterized in that: multiple rows of red and blue LED lamp beads are arranged in parallel on the surface of the substrate.

7. The protected cultivation canopy level two-way LED supplementary light device as claimed in claim 1 or 6, characterized in that: the wavelengths of red and blue LED light are 620~700nm and 420~500nm respectively, and the light of red light and blue LED The strong ratio is 2~8:1.

8. The protected cultivation canopy horizontal two-way LED supplementary light device according to claim 1, characterized in that: the edge of the lampshade is provided with an inclination angle that is conducive to expanding the irradiation range of light.

9. The horizontal two-way LED supplementary light device for facility cultivation canopy according to claim 1, characterized in that: the LED supplementary light device further comprises a power cord connected to the LED lamp beads.

10. The protected cultivation canopy horizontal two-way LED supplementary light device according to claim 1, characterized in that: a pendant is provided on the lamp housing.
