CN203092595U

CN203092595U - Novel cake knife

Info

Publication number: CN203092595U
Application number: CN 201220756047
Authority: CN
Inventors: 王勇; 赵晓江; 周小辉
Original assignee: 王勇
Priority date: 2012-12-31
Filing date: 2012-12-31
Publication date: 2013-07-31
Anticipated expiration: 2022-12-31

Abstract

A new type of cake knife solves the problems that the existing cake knife cannot cut cakes of different sizes according to needs and cannot protect the shape of the cake. This design is made of handle, big bottom block, blade one, rotating shaft, blade two and small bottom block. It is characterized in that: both the large bottom block and the small bottom block are arc-shaped blocks, and the small base is set in the large base and can slide. The left end of the large base is set as a blade one, and the right end of the small base is set as a blade two, and the blade one and the blade two are connected by a rotating shaft. The handle is arranged in the middle of the large base. The design is simple in operation, convenient in production and low in production cost, and is worth popularizing.

Description

A new type of cake knife

技术领域technical field

本实用新型涉及蛋糕辅助用品，特别是一种新型蛋糕刀领域。The utility model relates to cake auxiliary supplies, in particular to the field of a novel cake knife.

技术背景technical background

目前，普通的蛋糕刀在切分蛋糕时，既不能保护蛋糕的整体形状，又不能根据需要切分大小不同的蛋糕。普通的蛋糕刀给人们的生活带来诸多不便，需要及时改进。At present, common cake knives can neither protect the overall shape of the cake nor slice cakes of different sizes as required. Ordinary cake knives bring a lot of inconvenience to people's lives and need to be improved in time.

发明内容Contents of the invention

本设计是为解决现有蛋糕刀，不能根据需要切分大小不同的蛋糕，不能保护蛋糕形状的问题，而提供了一种新型蛋糕刀。This design provides a new type of cake knife to solve the problems that the existing cake knife cannot cut cakes of different sizes according to needs and cannot protect the shape of the cake.

技术方案：Technical solutions:

本设计由手柄、大底块、刀片一、旋转轴、刀片二及小底块构成。大底块与小底块都为弧形块状物，小底座设置于大底座内，且能滑动。大底座的左端设置为刀片一，小底座的右端设置为刀片二，刀片一与刀片二通过旋转轴相连。手柄设置于大底座的中部。This design is made of handle, big bottom block, blade one, rotating shaft, blade two and small bottom block. Both the large base block and the small base block are arc-shaped blocks, and the small base is arranged in the large base and can slide. The left end of the large base is set as a blade one, and the right end of the small base is set as a blade two, and the blade one and the blade two are connected by a rotating shaft. The handle is arranged in the middle of the large base.

有益效果：Beneficial effect:

本设计制作简单，操作方便，当使用一种新型蛋糕刀切蛋糕时，只需根据实际要分多少份蛋糕的要求，调节小底块的长度即可。旋转轴的设置可满足调节的角度，小底块与大底块为弧形块，适应了蛋糕圆形的外观。刀片一与刀片二构成三角形，保护了所切蛋糕的外观。切蛋糕着只需手握手柄，就能方便快捷地切好所需尺寸的蛋糕。本设计生产方便，生产成本也低，值得推广。The design is simple to make and easy to operate. When a new type of cake knife is used to cut the cake, it is only necessary to adjust the length of the small bottom block according to the actual requirements of how many cakes to divide. The setting of the rotation axis can meet the adjustment angle, and the small bottom block and the big bottom block are arc-shaped blocks, which adapt to the circular appearance of the cake. The first blade and the second blade form a triangle, which protects the appearance of the cut cake. The cake cutter only needs to hold the handle in his hand, and he can cut the cake of the required size conveniently and quickly. The design is convenient to produce, and the production cost is also low, so it is worth popularizing.

附图说明Description of drawings

下面结合附图对本实用新型进一步说明。Below in conjunction with accompanying drawing, the utility model is further described.

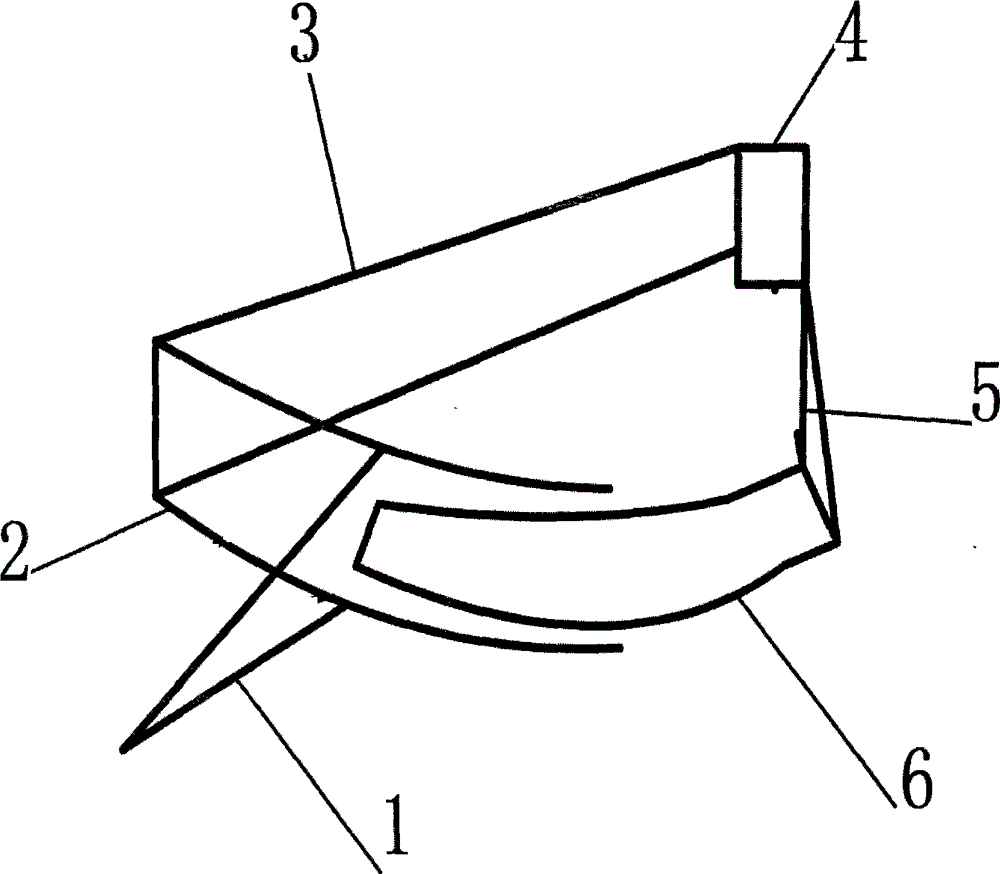

图1是本设计整体结构示意图。Figure 1 is a schematic diagram of the overall structure of the design.

其中，1手柄，2.大底块，3.刀片一，4.旋转轴，5.刀片二，6.小底块。Wherein, 1 handle, 2. big bottom block, 3. blade one, 4. rotating shaft, 5. blade two, 6. small bottom block.

具体实施方式Detailed ways

如图1所示，本设计由手柄1、大底块2、刀片一3、旋转轴4、刀片二5及小底块6构成。As shown in Figure 1, this design is made of handle 1, big bottom block 2, blade one 3, rotating shaft 4, blade two 5 and small bottom block 6.

当使用一种新型蛋糕刀切蛋糕时，只需根据实际要分多少份蛋糕的要求，调节小底块6的长度即可。旋转轴4的设置可满足调节的角度，小底块6与大底块2为弧形块，适应了蛋糕圆形的外观。刀片一3与刀片二5构成三角形，保护了所切蛋糕的外观。切蛋糕着只需手握手柄1，就能方便快捷地切好所需尺寸的蛋糕。When using a new type of cake knife to cut the cake, it is only necessary to adjust the length of the small bottom block 6 according to the actual requirements of how many cakes will be divided. The setting of the rotating shaft 4 can meet the adjustment angle, and the small bottom block 6 and the big bottom block 2 are arc-shaped blocks, adapting to the circular appearance of the cake. The first blade 3 and the second blade 5 form a triangle, which protects the appearance of the cut cake. The cake cutter only needs to hold the handle 1 to cut the cake of the desired size conveniently and quickly.

Claims

1. a novel cake-knife is made of handle, big sole piece, blade one, rotating shaft, blade two and handle piece, and it is characterized in that: small footprint is arranged in the big base; The left end of big base is set to blade one, and the right-hand member of small footprint is set to blade two, and blade one and blade two link to each other by rotating shaft; Handle is arranged at the middle part of big base.
