CN203085947U - Tool for assembling and disassembling ground wire electrically - Google Patents

Abstract

The utility model provides an electric tool for installing and disassembling grounding wires, which is mainly used in the field of dismantling and installing grounding wires, and includes a grounding operation rod. The tail end of the grounding operation rod is provided with a connector that can be fixed on the grounding operation rod , also includes a hand electric drill, the tail end of the connector cooperates with the output end of the hand electric drill and is driven to rotate by the hand electric drill. The utility model adopts a tool connector for electric installation and disassembly of the grounding wire, without refitting the grounding wire and the operating rod, and can realize electric operation of the grounding wire, saving time and effort, and reducing power failure time.

Description

An electric tool for installing and removing grounding wires

technical field

The utility model relates to the field of installing and disassembling grounding wires, in particular to an electric tool for installing and disassembling grounding wires.

Background technique

The top of the existing grounding operation rod is a fixed connector, which is used to connect the clamp of the grounding wire line end; the middle part of the grounding operation rod is an insulating part, the lower part of the hand guard in the middle is the grip part of the grounding operation rod, and the bottom of the grounding operation rod is Rotating the handle requires a lot of effort because the moment arm is short. During large-scale operations, the installation of multiple grounding wires can easily cause excessive fatigue and muscle soreness. When using the grounding rod to install the grounding wire, the tightening force varies from person to person, and there is no uniform standard. If the force is small, the line end clamp may not be tightened tightly, and if the force is too large, the line end clamp may be loose. Risk of becoming loose or deformed. According to the work experience of substation operation, it is found that the grounding wire is tightened by hand during installation, and the handle of the grounding operating lever needs to be rotated 10 times to hang one phase of the ground wire. 1 minute. And in the large-scale operation of the centralized maintenance of the substation, at least 20 pairs of 10kV grounding wires are operated. According to the estimated time above, it takes 20 minutes to hang 20 pairs of grounding wires. It does not include the time for operating other equipment. After the operation, the arm is numb, and the manual operation is time-consuming and laborious. Because the strength of the arm cannot keep up, the operation time is doubled, and the grounding wire may not be clamped. If the wire clamp is not in good contact, it will There are certain potential safety hazards, which may cause the grounding wire to fall off during work, injure workers or electrical equipment, and also violate electrical safety work regulations.

Contents of the invention

The technical problem to be solved by the utility model is to provide an electric tool for installing and disassembling the grounding wire, which adopts an electric tool connector for installing and disassembling the grounding wire, without modifying the grounding wire and the operating rod, and can realize electric operation of the grounding wire, saving time and effort. Can reduce power outage time.

In order to solve the above-mentioned existing technical problems, the utility model adopts the following scheme: an electric tool for installing and disassembling the grounding wire, including a grounding operation rod, and the tail end of the grounding operation rod is provided with a connector that can be fixed on the grounding operation rod , also includes a hand electric drill, the tail end of the connector cooperates with the output end of the hand electric drill and is driven to rotate by the hand electric drill.

Preferably, a connection shaft is provided at the end of the connector mated with the output end of the electric hand drill, and a drill chuck capable of clamping the connection shaft is provided at the output end of the electric hand drill.

Preferably, the connector is detachably connected to the grounding rod.

As a preference, the end of the connector mated with the grounding operation rod is provided with a groove I, and the tail end of the grounding operation rod extends into the groove I, and the connector is provided with a groove for fixing the connector on the grounding operation rod positioning parts.

Preferably, the positioning member is a bolt that protrudes from the outer wall of the connector into the groove I and is threadedly engaged with the connector.

Preferably, it also includes a positioning frame, the connector is positioned on the positioning frame and can rotate circumferentially relative to the positioning frame, the electric hand drill can be positioned on the positioning frame, and the positioning frame is provided with a positioning structure for positioning the electric hand drill .

Preferably, a bearing is provided on the positioning frame, and the connector is sleeved on the bearing.

Preferably, the positioning structure includes at least two clamping feet, the positioning frame is provided with cylinders equal to the number of clamping feet, each cylinder is provided with a groove II, and one clamping foot is set in a concave In the groove II, the clamp feet are provided with sleeves for being sleeved into the groove II, and each groove II is provided with a spring with a tendency to eject the clamp feet sleeved therein. The side part of the cylinder is provided with a positioning bolt that fits with the cylinder thread and passes through the outer wall of the cylinder into the groove II provided on the cylinder.

As a preference, a guide groove is provided on the outer wall of the sleeve, and the positioning bolt extends into the guide groove after passing through the groove II.

Preferably, a guide post is provided at the end of the sleeve, a groove III is provided at the bottom of the groove II, the end of the guide post is sleeved into the groove III, and the spring is sleeved on the guide post.

Beneficial effect:

The utility model adopts an electric tool for installing and disassembling the grounding wire provided by the above-mentioned technical scheme, which can realize electric installation and dismantling of the grounding wire, and can effectively save physical strength. outage time.

Description of drawings

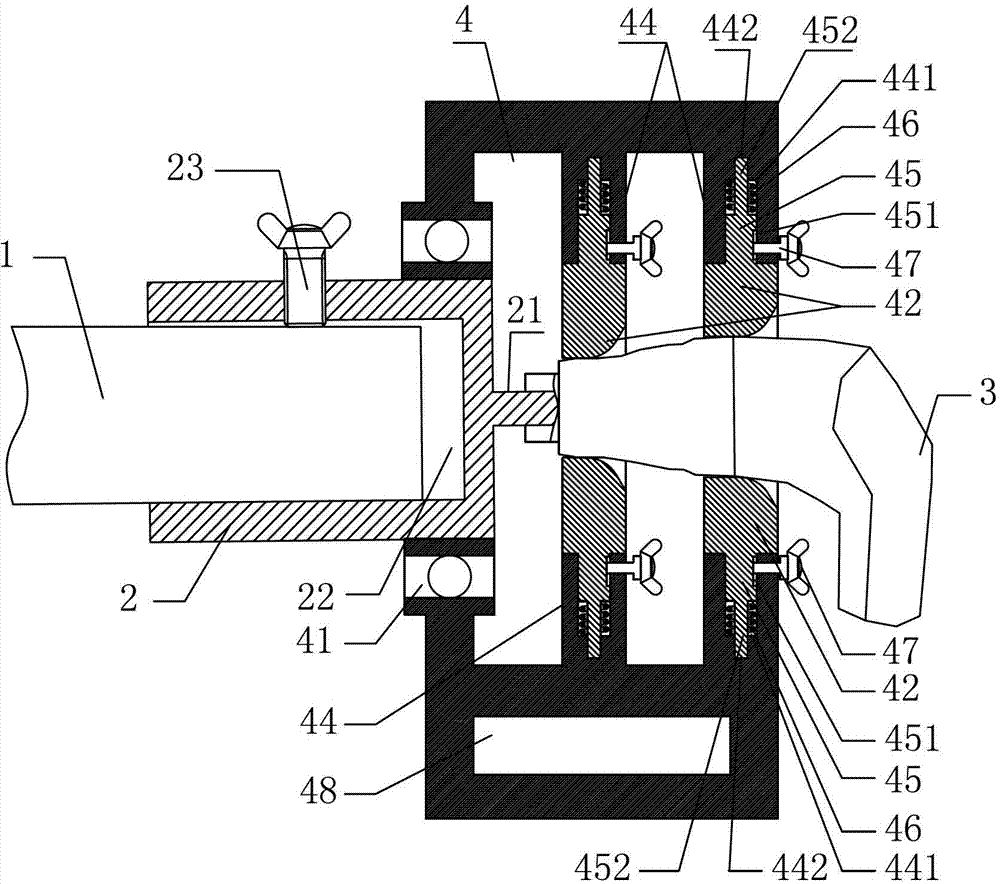

Fig. 1 is the structural representation of the utility model.

Detailed ways

As shown in Figure 1, an electric tool for installing and disassembling the grounding wire includes a grounding operation rod 1, and the tail end of the grounding operation rod 1 is provided with a connector 2 that can be fixed on the grounding operation rod 1, and also includes a hand drill 3 , the tail end of the connector 2 cooperates with the output end of the electric drill 3 and is driven to rotate by the electric drill 3 . The end of the connector 2 that matches the output end of the electric drill 3 is provided with a connecting shaft 21 , and the output end of the electric drill 3 is provided with a drill chuck capable of clamping the connecting shaft 21 . The connector 2 is detachably connected to the grounding rod 1 . The end of the connector 2 that cooperates with the grounding operation rod 1 is provided with a groove I22, and the tail end of the grounding operation rod 1 extends into the groove I22. Positioning piece 23 on rod 1. The locating member 23 is a bolt protruding from the outer wall of the connector 2 into the groove I22 and threadedly engaged with the connector 2 . Also includes a positioning frame 4, the connector 2 is positioned on the positioning frame 4 and can rotate relative to the positioning frame 4, the electric hand drill 3 can be positioned on the positioning frame 4, and the positioning frame 4 is provided with a The positioning structure of the electric hand drill 3. The positioning frame 4 is provided with a bearing 41 , and the connector 2 is sleeved on the bearing 41 . The positioning structure includes at least two clamping feet 42, the positioning frame 4 is provided with cylinders 44 equal in number to the clamping feet, each cylinder 44 is provided with a groove II 441, and one clamping foot 42 is sleeved on the In one groove II 441, the pins 42 are provided with sleeves 45 for being sleeved into the groove II 441, and each groove II 441 is provided with a tendency to eject the pins 42 sleeved therein. The spring 46 of the cylinder 44 is provided with a positioning bolt 47 threadedly engaged with the cylinder 44 and inserted into the groove II 441 provided on the cylinder 44 from the outer wall of the cylinder 44 . A guide groove 451 is provided on the outer wall of the sleeve 45 , and the positioning bolt 47 penetrates into the groove II 441 and then extends into the guide groove 451 . The end of the sleeve 45 is provided with a guide post 452, the bottom of the groove II 441 is provided with a groove III 442, the end of the guide post 452 is sleeved in the groove III 442, and the spring 46 is sleeved on the guide post 452 superior. The positioning frame 4 is provided with a handle 48 .

In this embodiment, when the electric hand drill 3 drives the connector 2 to rotate, the central axis of rotation of the output end of the electric hand drill 3, the central axis of rotation of the connector 2, and the central axis of the grounding rod 1 are all on the same axis; When the connector 2 is matched with the electric drill 3, the drill chuck of the electric drill 3 clamps the connecting shaft 21 to realize the rotation of the connector 2; after the electric drill 3 is positioned on the positioning frame 4, the rotation center axis of the output end of the electric drill 3 and the rotation of the bearing 41 The central axis is on the same axis, and the connector 2 is positioned on the positioning frame 4 by being sleeved on the bearing 41 and can rotate in a circumferential direction relative to the positioning frame 4; Connector 2; bolts and positioning bolts 47 adopt wing bolts; connector 2 adopts a cylinder with an outer diameter of 45mm and a length of 55mm; the groove 22 adopts a cylindrical groove with a depth of 50mm and a diameter of 35mm; the connecting shaft 21 adopts a cylindrical shaft, and the diameter of the cylindrical shaft is 6 mm; the bolt 23 is located at a distance of 20 mm from the opening end of the groove 22; In the middle of the positioning hand drill 3, the positioning is relatively firm; of course, there can be only 1 group, or 3 groups or other groups; each group of positioning structures includes 2 clamping feet 42, the structure is relatively simple, and the cost is low.

In actual operation, put the tail of the grounding operating rod 1 into the groove 22 of the connector 2, then tighten the wing bolts to fix the connector on the tail of the operating rod, set the positioning frame 4 on the connector 2, and position Loosen all the positioning bolts 47 on the frame 4, pass the electric drill 3 through the two sets of positioning structures from the back of the positioning frame 4, so that the two clamping feet 42 of the front set of positioning structures clamp the front end and the back of the electric drill 3 Two clamping feet 42 of a group of positioning structures clamp the middle part of the electric drill 3, and the drill chuck of the electric drill 3 is placed on the connecting shaft 21 to clamp the connecting shaft 21, and then tighten all the positioning bolts 47 to start the manual drilling. The electric drill 3 is electrically operated, and a handle 48 is provided in this embodiment to facilitate grasping the positioning frame.

This embodiment can also be operated without using the positioning frame 4. After the connector 2 is installed on the grounding operation rod 1, the connecting shaft 21 is directly installed on the electric drill 3 and locked, and the electric drill 3 can be started for electric operation. Due to the grounding operation The front end of rod 1 is a grounding wire clamp, which has a fixed support point on the conductor of the electrical equipment, so it will not cause violent swinging during the rotation, and the grounding wire clamp can be clamped during a fairly stable rotation. After the operation of the phase grounding wire is completed, as long as the grounding operation lever is removed, the operation of the next phase can be continued. It is not necessary to remove the hand drill, and it can be disassembled after all operations are completed. The hand drill 3 has forward and reverse rotation functions , so that two operations of installing and disassembling the grounding wire can be realized.

Claims (10)

1. An electric tool for installing and disassembling grounding wires, including a grounding operation rod (1), characterized in that: the tail end of the grounding operation rod (1) is provided with a connector that can be fixed on the grounding operation rod (1). 2), which also includes a hand drill (3), the tail end of the connector (2) cooperates with the output end of the hand drill (3) and is driven to rotate by the hand drill (3). 2. An electric tool for installing and removing grounding wires according to claim 1, characterized in that: the end of the connector (2) that matches the output end of the hand drill (3) is provided with a connecting shaft (21), The output end of the electric hand drill (3) is provided with a drill chuck capable of clamping the connecting shaft (21). 3. An electric tool for installing and removing grounding wires according to claim 1 or 2, characterized in that: the connector (2) is detachably connected to the grounding operation rod (1). 4. An electric tool for installing and removing the grounding wire according to claim 3, characterized in that: the end of the connector (2) that cooperates with the grounding operation rod (1) is provided with a groove I (22), so The tail end of the grounding operation rod (1) extends into the groove I (22), and the connector (2) is provided with a positioning piece (23) to fix the connector (2) on the grounding operation rod (1) . 5. An electric tool for installing and removing the ground wire according to claim 4, characterized in that: the positioning part (23) is a part extending from the outer wall of the connector (2) into the groove I (22) Bolts that mate with the threads of the connector (2). 6. An electric ground wire installation and removal tool according to claim 1 or 2 or 4 or 5, characterized in that it also includes a positioning frame (4), and the connector (2) is positioned on the positioning frame (4 ) and can rotate circumferentially relative to the positioning frame (4), the electric hand drill (3) can be positioned on the positioning frame (4), and the positioning frame (4) is provided with positioning structure. 7. An electric ground wire installation and removal tool according to claim 6, characterized in that: the positioning frame (4) is provided with a bearing (41), and the connector (2) is sleeved on the bearing ( 41) on. 8. An electric tool for installing and removing ground wires according to claim 6, characterized in that: the positioning structure includes at least two clamping feet (42), and the positioning frame (4) is provided with clamping feet There are equal numbers of cylinders (44), each cylinder (44) is provided with a groove II (441), and a clamping foot (42) is sleeved in a groove II (441), and the clamping foot ( 42) are provided with sleeves (45) for being sleeved into the groove II (441), and each groove II (441) is provided with a clamping foot (42) which is sleeved therein to push out Trendy spring (46), the side of the cylinder (44) is provided with a groove II that is threaded with the cylinder (44) and penetrates from the outer wall of the cylinder (44) on the cylinder (44) set bolts (47) in (441). 9. An electric tool for installing and removing grounding wires according to claim 8, characterized in that guide grooves (451) are provided on the outer wall of the sleeve (45), and the positioning bolts (47) pass through Stretch in the guide groove (451) after entering the groove II (441). 10. An electric ground wire installation and removal tool according to claim 8 or 9, characterized in that: the end of the sleeve (45) is provided with a guide post (452), and the groove II (441) The bottom is provided with a groove III (442), the end of the guide post (452) is sleeved into the groove III (442), and the spring (46) is sleeved on the guide post (452).
