本实用新型的目的在于设计一种USB口风扇小夜灯，主要由风扇、灯罩和USB接口构成，其特征在于：USB接口与风扇和灯罩通过可弯曲杆体连接而成，可弯曲杆体在中上部分成两个支流，一个与风扇相连，一个与灯罩相连，通过分流阀门分流供电，可弯曲杆体可以弯曲，灯罩内部有LED灯，风扇由叶片通过固定轴固定构成。本实用新型的优越性：外形美观，可以利用USB接口同时提供吹风和照明的功能。

Figure 201320023910

The purpose of this utility model is to design a USB port fan night light, which is mainly composed of a fan, a lampshade and a USB interface. It is divided into two branches, one is connected with the fan, and the other is connected with the lampshade. The power supply is shunted through the diverter valve. The bendable rod body can be bent. There are LED lights inside the lampshade. The fan is composed of blades fixed by a fixed shaft. The utility model has the advantages that the appearance is beautiful, and the USB interface can be used to provide the functions of blowing and lighting at the same time.

Figure 201320023910

Description

USB口风扇小夜灯USB port fan night light

(一)技术领域(1) Technical field

本实用新型涉及一种USB风扇，特别是涉及一种USB口风扇小夜灯。The utility model relates to a USB fan, in particular to a USB port fan night light.

(二)背景技术(2) Background technology

笔记本已经在人们的生活中普及了，笔记本的USB接口可以提供电，而用笔记本时人们可能有各种各样的需求，比如照明，吹风等，如果能利用笔记本的USB接口实现这些目标，将会非常方便。Notebooks have been popularized in people's lives. The USB interface of notebooks can provide electricity, and people may have various needs when using notebooks, such as lighting, hair dryer, etc. If these goals can be realized by using the USB interface of notebooks, it will be It will be very convenient.

(三)发明内容(3) Contents of the invention

本实用新型的目的在于设计一种USB口风扇小夜灯，可以同时用USB接口提供照明和吹风的功能。The purpose of this utility model is to design a USB port fan night light, which can provide lighting and blowing functions through the USB port at the same time.

本实用新型的技术方案：一种USB口风扇小夜灯，主要由风扇、灯罩和USB接口构成，其特征在于：USB接口与风扇和灯罩通过可弯曲杆体连接而成，可弯曲杆体在中上部分成两个支流，一个与风扇相连，一个与灯罩相连，通过分流阀门分流供电，可弯曲杆体可以弯曲，灯罩内部有LED灯，风扇由叶片通过固定轴固定构成。The technical scheme of the utility model: a small night light for a fan with a USB port, which is mainly composed of a fan, a lampshade and a USB interface. It is divided into two branches, one is connected with the fan, and the other is connected with the lampshade. The power supply is shunted through the diverter valve. The bendable rod body can be bent. There are LED lights inside the lampshade. The fan is composed of blades fixed by a fixed shaft.

本实用新型的优越性：外形美观，可以利用USB接口同时提供吹风和照明的功能。The utility model has the advantages that the appearance is beautiful, and the USB interface can be used to provide the functions of blowing and lighting at the same time.

(四)附图说明(4) Description of drawings

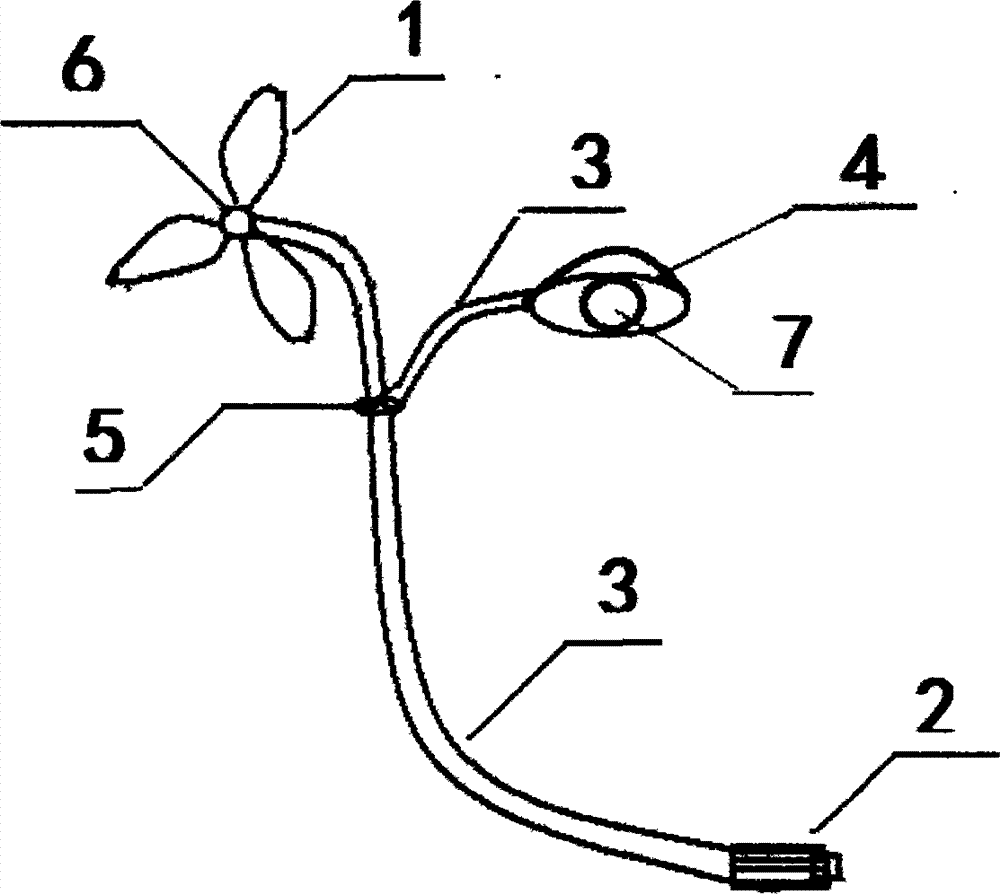

附图1为本实用新型的结构示意图；Accompanying drawing 1 is the structural representation of the utility model;

其中：1是风扇，2是USB接口，3是可弯曲杆体，4是灯罩，5是分流阀门，6是固定轴，7是LED灯。Among them: 1 is a fan, 2 is a USB interface, 3 is a bendable rod body, 4 is a lampshade, 5 is a shunt valve, 6 is a fixed shaft, and 7 is an LED light.

(五)具体实施方式(5) Specific implementation methods

如附图示：一种USB口风扇小夜灯，主要由风扇1、灯罩4和USB接口2构成，其特征在于：USB接口2与风扇1和灯罩4通过可弯曲杆体3连接而成，可弯曲杆体3在中上部分成两个支流，一个与风扇1相连，一个与灯罩4相连，通过分流阀门5分流供电，可弯曲杆体3可以弯曲，灯罩4内部有LED灯7，风扇1由叶片通过固定轴6固定构成。As shown in the attached figure: a night light for fan with USB port, mainly composed of fan 1, lampshade 4 and USB interface 2. The rod body 3 is divided into two branches in the middle and upper part, one is connected to the fan 1, and the other is connected to the lampshade 4, and the power supply is shunted through the diversion valve 5. The bendable rod body 3 can be bent, and there is an LED lamp 7 inside the lampshade 4, and the fan 1 passes through the blades. The fixed shaft 6 is fixedly formed.

Claims (1)

1.一种USB口风扇小夜灯，主要由风扇、灯罩和USB接口构成，其特征在于：USB接口与风扇和灯罩通过可弯曲杆体连接而成，可弯曲杆体在中上部分成两个支流，一个与风扇相连，一个与灯罩相连，通过分流阀门分流供电，可弯曲杆体可以弯曲，灯罩内部有LED灯，风扇由叶片通过固定轴固定构成。1. A USB port fan night light, mainly composed of a fan, a lampshade and a USB interface, characterized in that: the USB interface is connected with the fan and the lampshade through a bendable rod body, and the bendable rod body is divided into two branches in the middle and upper parts, One is connected to the fan, and the other is connected to the lampshade. The power supply is shunted through the shunt valve. The bendable rod body can be bent. There are LED lights inside the lampshade. The fan is composed of blades fixed by a fixed shaft.
