CN203080480U - Upstream blanket structure of concrete face rockfill dam - Google Patents
Upstream blanket structure of concrete face rockfill dam Download PDFInfo
- Publication number
- CN203080480U CN203080480U CN201220718738.8U CN201220718738U CN203080480U CN 203080480 U CN203080480 U CN 203080480U CN 201220718738 U CN201220718738 U CN 201220718738U CN 203080480 U CN203080480 U CN 203080480U
- Authority
- CN
- China
- Prior art keywords
- concrete
- upstream
- face
- silt
- rockfill dam
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 238000011144 upstream manufacturing Methods 0.000 title claims abstract description 22
- 239000010902 straw Substances 0.000 claims abstract description 21
- 239000011435 rock Substances 0.000 claims description 8
- 238000010276 construction Methods 0.000 abstract description 6
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 abstract description 5
- 239000002352 surface water Substances 0.000 abstract 1
- 239000000463 material Substances 0.000 description 8
- 238000007789 sealing Methods 0.000 description 4
- 240000004859 Gamochaeta purpurea Species 0.000 description 1
- 238000009412 basement excavation Methods 0.000 description 1
- 230000009286 beneficial effect Effects 0.000 description 1
- 230000000903 blocking effect Effects 0.000 description 1
- 230000007812 deficiency Effects 0.000 description 1
- 238000006073 displacement reaction Methods 0.000 description 1
- 230000000694 effects Effects 0.000 description 1
- 238000005516 engineering process Methods 0.000 description 1
- 239000011368 organic material Substances 0.000 description 1
- 230000002093 peripheral effect Effects 0.000 description 1
- 239000007787 solid Substances 0.000 description 1
- 230000007704 transition Effects 0.000 description 1
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02A—TECHNOLOGIES FOR ADAPTATION TO CLIMATE CHANGE
- Y02A10/00—TECHNOLOGIES FOR ADAPTATION TO CLIMATE CHANGE at coastal zones; at river basins
- Y02A10/11—Hard structures, e.g. dams, dykes or breakwaters
Landscapes
- Revetment (AREA)
Abstract
本实用新型涉及一种混凝土面板堆石坝的上游铺盖结构。本实用新型的目的是提供一种结构简单、施工方便的混凝土面板堆石坝的上游铺盖结构，以提供一种面板压重，不阻碍面板自由变形，减少对表面止水的损害，同时又能兼顾后期大坝上游粉土铺盖的施工。本实用新型的技术方案是：一种混凝土面板堆石坝的上游铺盖结构，在面板堆石坝上游面浇筑有混凝土面板，该混凝土面板底部筑有混凝土趾板，其特征在于：紧贴混凝土面板垒筑面板压重块，所述面板压重块为内装粉土的草袋，草袋垒成的草袋堆上面覆盖粉土铺盖至设计断面，粉土铺盖上覆盖石渣护面。本实用新型适用于水利水电工程。
The utility model relates to an upstream bedding structure of a concrete face rockfill dam. The purpose of this utility model is to provide an upstream pavement structure of a concrete face rockfill dam with simple structure and convenient construction, so as to provide a face pressure that does not hinder the free deformation of the face plate, reduces damage to the surface water stop, and at the same time can Taking into account the later construction of the silt bedding upstream of the dam. The technical scheme of the utility model is: an upstream pavement structure of a concrete face rockfill dam, a concrete face is poured on the upstream face of the face face rockfill dam, and a concrete toe board is built at the bottom of the concrete face, which is characterized in that it is close to the concrete face The panel weight block is built, and the panel weight block is a straw bag with silt inside. The straw bag stack formed by the straw bag is covered with silt bedding to the designed section, and the silt bedding is covered with gravel for protection. The utility model is suitable for water conservancy and hydropower projects.
Description
Technical field
The utility model relates to a kind of upstream apron structure of Concrete Face Rockfill Dam.Be applicable to Hydraulic and Hydro-Power Engineering.
Background technology
In the construction period of rock, big or the level of tail water is higher when the upstream excavation of foundation pit degree of depth, can form reverse head, act on completed bed course, upstream Gu Po and the concrete slab.For this reason, the reverse drainage pipe is buried at the toe board position of being everlasting in the engineering underground, and the panel concrete saddle weight is set, and to guarantee that reservoir level holds to certain water level the situations such as bed course appears in reverse seepage pressure and solid slope is destroyed, panel crack because of bearing does not take place.
Yet the concrete saddle weight is the rigidity saddle weight, has hindered the Free Transform (all side seams are set between panel and the toe board, and saddle weight strides across all side seams and is pressed on the panel) of panel to a certain extent, and counter plate is stressed unfavorable.Simultaneously, saddle weight is pressed on the surface flexible sealing of all side seams, may destroy the complete surperficial water-stopping system of original sealing.
Summary of the invention
The technical problems to be solved in the utility model is: at the problem of above-mentioned existence, a kind of upstream apron structure of Concrete Face Rockfill Dam of simple in structure, easy construction is provided, so that a kind of panel ballast to be provided, do not hinder the panel Free Transform, minimizing can take into account the construction of later stage dam upstream silt bedding simultaneously again to the infringement of surperficial sealing.
The technical scheme that the utility model adopted is: a kind of upstream apron structure of Concrete Face Rockfill Dam, built concrete slab at the rock upstream face, the concrete toe board has been built in this concrete slab bottom, it is characterized in that: be close to the concrete slab base and build the panel saddle weight, described panel saddle weight is the straw bag of interior dress silt, cover the silt bedding to design section above the straw bag heap that straw bag is built, cover the rock ballast mask on the silt bedding.
The base of described straw bag heap is built and highly is 5m ~ 30m.
Described straw bag heap up stream slope is than being 1:2.0 ~ 1:2.5.
The beneficial effects of the utility model are: the straw bag of dress silt can not hinder the Free Transform of concrete slab as ballast in 1, using, and is less for the infringement of the flexible sealing of peripheral seam surface yet.2, after the shutoff of reverse drainage pipe is finished, straw bag need not be removed, above directly cover the silt bedding to design section, the silt straw bag that has filled is held concurrently and is used as upstream apron, considers that straw bag is an organic material, can rot very soon behind the reservoir filling, under the deadweight effect, the inside and outside silt of bag can fuse, when panel or structural joint etc. is located to produce seepage, the silt material can stop up seepage place, thereby reaches the order of restriction seepage flow.3, simple in structure, easy construction of the utility model and engineering cost are lower.
Description of drawings

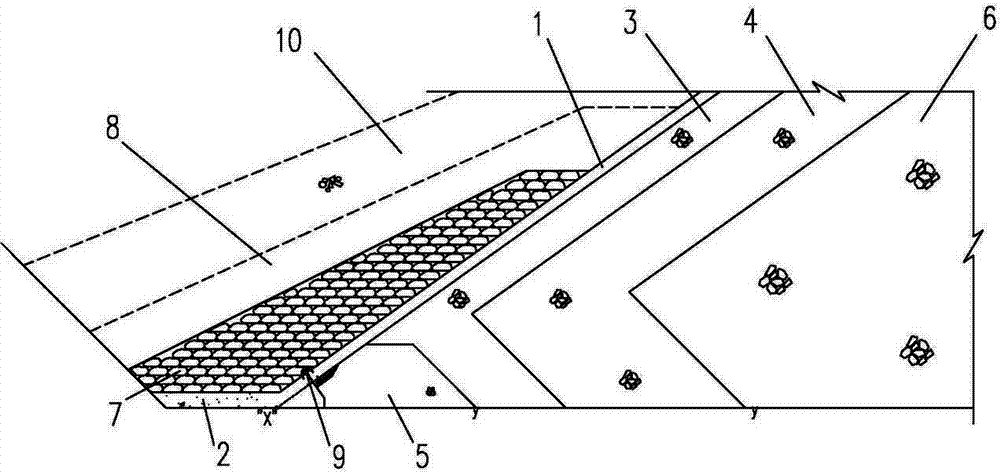

Fig. 1 is a generalized section of the present utility model.
The specific embodiment
As shown in Figure 1, present embodiment is a kind of upstream apron structure of Concrete Face Rockfill Dam, this rock upstream side is piled successively from the inside to the outside and is built the main enrockment bed of material 6, the transition bed of material 4 and the bed course bed of material 3, and wherein the bed course bed of material 3 belows are also piled and built the special bed course bed of material 5.The bed course bed of material 3 and the special bed course bed of material 5 surperficial concreting panels 1, concrete slab lower end concreting toe board 2.In this example, in the riverbed lower position uses the straw bag 7 of dress silt as the panel ballast build build concrete slab 1 and concrete toe board 2 to 5m ~ 30m highly, the up stream slope ratio can adopt 1:2.0 ~ 1:2.5.Height is built at concrete base and the up stream slope ratio can be determined according to possible reverse head estimation.
In the present embodiment, on the straw bag heap that straw bag 7 is built, cover silt bedding layer 8, cover rock ballast mask 10 on the silt bedding layer 8 to design section.
The concrete job practices of present embodiment is as follows:
1, concrete slab 1 is built and is finished, after concrete slab 1 and concrete toe board 2 constructional deficiencies finish dealing with, do not have rainfall in nearly 5 days the suitable opportunity under the reservoir before the lock retaining, and reverse drainage pipe displacement does not have under the situation of increase, implements the shutoff of reverse drainage pipe;
2, draw water and reduce water level in the toe board foundation ditch to the 2 end face exposures of concrete toe board, the straw bag 7 of dress silt is built to certain elevation as concrete slab 1 ballast base in use the gutter both sides then;
3, implement the shutoff of reverse drainage pipe;
4, treat that blocking concrete reaches design strength after, fill concrete slab 1 upstream silt bedding to design section, and cover rock ballast mask 10.
Claims (3)
1. the upstream apron structure of a Concrete Face Rockfill Dam, built concrete slab (1) at the rock upstream face, concrete toe board (2) has been built in this concrete slab bottom, it is characterized in that: be close to concrete slab (1) base and build the panel saddle weight, the straw bag (7) that described panel saddle weight is interior dress silt, cover silt bedding layer (8) to design section above the straw bag heap that straw bag (7) is built, silt bedding layer (8) is gone up and is covered rock ballast mask (10).
2. the upstream apron structure of Concrete Face Rockfill Dam according to claim 1 is characterized in that: build at the base of described straw bag heap highly is 5m ~ 30m.
3. the upstream apron structure of Concrete Face Rockfill Dam according to claim 1 is characterized in that: described straw bag heap up stream slope is than being 1:2.0 ~ 1:2.5.
