Abstract
本实用新型提供一种水杯盖，包括带有瓶嘴的水杯盖，其特征在于：所述水杯盖上与瓶嘴相对的地方开有小孔，小孔处固定设置一个带弹簧的按钮。本实用新型结构简单，可以有效解决使用带瓶嘴的水杯盖喝水时水流不顺畅的问题，使用本实用新型只需在喝水时用指头轻压杯盖上的按钮连通杯内与外界的气压即可。
The utility model provides a water cup cover, which includes a water cup cover with a bottle mouth, and is characterized in that: a small hole is opened on the water cup cover opposite to the bottle mouth, and a button with a spring is fixedly arranged at the small hole. The utility model has a simple structure and can effectively solve the problem of unsmooth water flow when using a water cup cover with a bottle mouth to drink water. When using the utility model, you only need to lightly press the button on the cup cover with your fingers to connect the inside of the cup with the outside when drinking water. air pressure.
Description
技术领域 technical field
本实用新型涉及一种日常生活用品，具体是一种水杯盖。 The utility model relates to a daily necessities, in particular to a water cup cover.
背景技术 Background technique
现有水杯盖的类型很多，有一种是带瓶嘴的，喝水时需将瓶嘴全部含在嘴里。人们在使用这种水杯盖喝水时，通常在喝几口之后，由于内部大气压变小水就会很难再流出来，不得不停下来等内外大气压相同时再次喝水。人们在口渴需要大量进水时使用这种水杯盖时会觉得很不方便。 There are many types of existing water cup lids, one with a bottle mouth, which needs to be completely contained in the mouth when drinking water. When people use this water cup cover to drink water, usually after drinking a few sips, the water will be difficult to flow out again because the internal atmospheric pressure becomes smaller, and they have to stop and wait for the same internal and external atmospheric pressure to drink water again. When people are thirsty and need to drink a lot of water, they will find it very inconvenient to use the water cup cover.
实用新型内容 Utility model content
为解决上述问题，本实用新型提供一种带有按钮的水杯盖，在喝水时只需用指头轻压该按钮即可连通杯内与外界的气压，使杯中的水可以比较顺畅地流出来。 In order to solve the above problems, the utility model provides a water cup cover with a button. When drinking water, you only need to lightly press the button with your finger to connect the air pressure inside the cup and the outside, so that the water in the cup can flow smoothly. come out.
本实用新型提供的技术方案是：一种水杯盖，包括带有瓶嘴的水杯盖，其特征在于：所述水杯盖上与瓶嘴相对的地方开有小孔，小孔处固定设置一个带弹簧的按钮。 The technical solution provided by the utility model is: a water cup cover, including a water cup cover with a bottle mouth, which is characterized in that: a small hole is opened on the water cup cover opposite to the bottle mouth, and a belt is fixed at the small hole. Spring button.
本实用新型的有益效果是：本实用新型结构简单，可以有效解决使用带瓶嘴的水杯盖喝水时水流不顺畅的问题，只需在喝水时用指头轻压杯盖上的按钮连通杯内与外界的气压即可。 The beneficial effects of the utility model are: the utility model is simple in structure, and can effectively solve the problem of unsmooth water flow when using a water cup cover with a bottle mouth to drink water, only need to lightly press the button on the cup cover with a finger to connect the cup when drinking water internal and external air pressure.
附图说明 Description of drawings

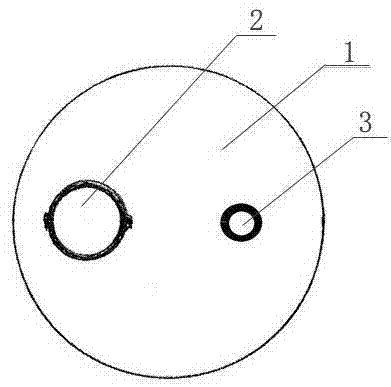

图1为本实用新型的结构示意图。 Fig. 1 is the structural representation of the utility model.
图2为图1的侧视图。 FIG. 2 is a side view of FIG. 1 .
图中：1、水杯盖，2、瓶嘴，3、按钮，4、弹簧，5、小孔。 In the figure: 1. water cup cover, 2. bottle mouth, 3. button, 4. spring, 5. small hole.
具体实施方式 Detailed ways
如图1和图2所示，本实用新型包括带有瓶嘴的水杯盖，水杯盖上与瓶嘴相对的地方开有小孔，小孔处固定设置一个带弹簧的按钮。 As shown in Fig. 1 and Fig. 2, the utility model comprises the water cup lid that has bottle mouth, has aperture on the water cup lid and the place relative to bottle mouth, and the aperture place is fixedly provided with a button with spring.
当人们使用这种带瓶嘴的水杯盖时，瓶嘴全部进入口中，需大量进水时，只需用指头轻按按钮，即可连同水杯内外的大气压.使水顺利流出，非常方便。 When people use this kind of water cup cover with a bottle mouth, the bottle mouth all enters the mouth. When a large amount of water needs to be taken in, the water can flow out smoothly with the atmospheric pressure inside and outside the water cup, which is very convenient.
