Abstract
本实用新型提供一种阻燃防火卷烟，包括烟嘴与烟杆，其特征在于：所述烟嘴与烟杆之间设置有阻燃段，所述阻燃段内部为烟丝，外层由经阻燃剂处理过的烟纸制成，阻燃段的长度涉及为14-16mm。本实用新型结构简单，易于实施，能够在烟头被扔掉之后尽快熄灭，可有效避免因烟头未熄灭而引发的火灾，具有较高的社会价值。
The utility model provides a flame-retardant and fire-resistant cigarette, which includes a cigarette holder and a cigarette rod, and is characterized in that a flame-retardant section is arranged between the cigarette holder and the cigarette rod, the inside of the flame-retardant section is shredded tobacco, and the outer layer is made of warp flame-retardant It is made of cigarette paper treated with chemical agent, and the length of the flame-retardant section is about 14-16mm. The utility model has a simple structure, is easy to implement, can extinguish the cigarette butt as soon as possible after being thrown away, can effectively avoid the fire caused by the cigarette butt not being extinguished, and has high social value.
Description
技术领域 technical field
本实用新型涉及一种卷烟，尤其是一种阻燃防火卷烟。 The utility model relates to a cigarette, in particular to a flame-retardant and fire-resistant cigarette.
背景技术 Background technique
现实生活中，卷烟是较常见的物品之一，在我国甚至世界上其他地区都有着广泛的市场。由于吸烟人数众多，由于烟头未熄灭而引发的火灾屡屡不断，给人们的生命财产造成了无法估计的损失。本实用新型针对此种危险情况，对卷烟的构造进行了一定的改进。 In real life, cigarettes are one of the more common items, and they have a wide market in my country and even other parts of the world. Due to the large number of smokers, the fires caused by the unextinguished cigarette butts continue repeatedly, causing inestimable losses to people's lives and property. The utility model has carried out certain improvement to the structure of the cigarette aiming at this kind of dangerous situation.
实用新型内容 Utility model content
本实用新型提供一种阻燃防火卷烟，在烟头被扔掉之后能够尽快熄灭，从而避免引发火灾。 The utility model provides a flame-retardant and fire-resistant cigarette, which can be extinguished as soon as possible after the cigarette butt is thrown away, so as to avoid fire.
本实用新型采用的技术方案是：一种阻燃防火卷烟，包括烟嘴与烟杆，其特征在于：所述烟嘴与烟杆之间设置有阻燃段，所述阻燃段内部为烟丝，外层由经阻燃剂处理过的烟纸制成。 The technical scheme adopted by the utility model is: a flame-retardant and fire-resistant cigarette, including a cigarette holder and a tobacco rod, characterized in that a flame-retardant section is arranged between the cigarette holder and the tobacco rod, and the inside of the flame-retardant section is shredded tobacco, and the outer The layers are made of flame retardant treated cigarette paper.
优选地，所述阻燃段的长度为14-16mm。 Preferably, the length of the flame retardant section is 14-16mm.
本实用新型的有益效果是：本实用新型结构简单，易于实施，能够在烟头被扔掉之后尽快熄灭，可有效避免因烟头未熄灭而引发的火灾，具有较高的社会价值。 The beneficial effects of the utility model are: the utility model has a simple structure, is easy to implement, can extinguish the cigarette butt as soon as possible after being thrown away, can effectively avoid the fire caused by the cigarette butt not being extinguished, and has high social value.
附图说明 Description of drawings

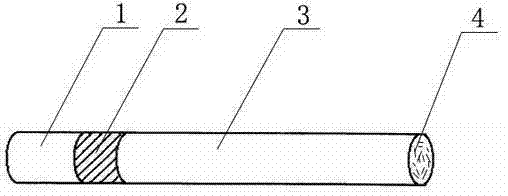

图1为本实用新型的结构示意图。 Fig. 1 is the structural representation of the utility model.
图中：1、烟嘴，2、烟杆，3、阻燃段，4、烟丝。 In the figure: 1. Cigarette holder, 2. Tobacco rod, 3. Flame-retardant section, 4. Shredded tobacco.
具体实施方式 Detailed ways
如图1所示，本实用新型包括烟嘴与烟杆，烟嘴与烟杆之间设置有阻燃段，阻燃段内部为烟丝，外层由经阻燃剂处理过的烟纸制成。 As shown in Figure 1, the utility model includes a cigarette holder and a tobacco rod, a flame-retardant section is arranged between the cigarette holder and the tobacco rod, the inside of the flame-retardant section is shredded tobacco, and the outer layer is made of cigarette paper treated with a flame retardant.
本实用新型阻燃段外层的烟纸由专用阻燃剂处理，该专用阻燃剂为无色透明液体，无嗅、无毒，属于一种新型的环保磷氮系阻燃剂，水溶液PH值5-6，在提供同样的阻燃效果下，吸潮率比同类阻燃剂低，遇火碳化面积小,无残焰,不阴燃，经过该阻燃剂处理后的纸张不易变质、变色和硬化，在使用时可通过喷施法或浸滞法将待处理纸张进行处理。 The cigarette paper on the outer layer of the flame retardant section of the utility model is treated with a special flame retardant, which is a colorless transparent liquid, odorless and non-toxic, and belongs to a new type of environmentally friendly phosphorus-nitrogen flame retardant. Value 5-6, under the same flame retardant effect, the moisture absorption rate is lower than similar flame retardants, the carbonization area is small when exposed to fire, no residual flame, no smoldering, the paper treated with this flame retardant is not easy to deteriorate, Discoloration and hardening, the paper to be treated can be treated by spraying method or dipping method when used.
对大量未燃尽烟头废品的剩余烟身部分进行统计，得到的长度平均值为14mm，因此本实用新型中将阻燃段的长度设计成14-16mm。 Counting the remaining cigarette body parts of a large number of unburned cigarette butt waste products, the average length obtained is 14mm, so the length of the flame-retardant section is designed to be 14-16mm in the utility model.
将本实用新型点燃后，烟丝火芯向里燃烧，在阻燃段之前的烟杆可全部燃烧，阻燃段的烟纸有阻燃效果所以该段烟纸不燃烧，但只要吸烟者继续用嘴吸，里面的烟丝就会继续向烟嘴处燃烧，直到烟丝全部燃尽。即使吸烟者不主动摁灭火芯，而是直接丢到垃圾桶中，由于阻燃段中外层烟纸的保护作用，火芯与其他易燃垃圾也不会接触，当烟丝燃尽后火芯会慢慢自然熄灭，这样就降低了发生火灾的几率。 After the utility model is ignited, the shredded tobacco fire core burns inward, and the tobacco rod before the flame-retardant section can be completely burned. The cigarette paper in the flame-retardant section has a flame-retardant effect, so the cigarette paper in this section does not burn, but as long as the smoker continues to use it If you smoke through your mouth, the shredded tobacco inside will continue to burn toward the cigarette holder until the shredded tobacco is completely burned out. Even if the smoker does not take the initiative to press the fire extinguishing core, but directly throws it into the trash can, due to the protective effect of the outer layer of cigarette paper in the flame-retardant section, the fire core will not contact with other combustible garbage. Slowly and naturally extinguish, thus reducing the chance of fire.
