The utility model discloses a cotton swab box which comprises a box body with the upper end provided with a box cover. A cavity in the box body is separated by a plurality of horizontal and vertical separation plates into a plurality of hidden grids used for storing cotton swabs, an opening at the upper end of each hidden grid is sealed by aluminum foil paper, and a sleeve pipe used for placing the cotton swabs is arranged on the outer side wall of the box body. The cotton swab box is simple and reasonable in structure and convenient to use, the plurality of horizontal and vertical separation plates are used for separating the cavity in the box body into the plurality of hidden grids, when the cotton swab box is used, the hidden grids can be disassembled in sequence into a plurality of single grid to be used, therefore the cotton swabs are effectively saved, unnecessary waste is avoided, the cotton swabs can be placed on the sleeve pipe in the injection or the needle pulling process, and cotton swab pollution caused by carelessness in operation is effectively avoided.

Description

A kind of cotton swab box
Technical field
The utility model relates to a kind of medical cotton stick box.
Background technology
Clinically, after a bag cotton swab is opened, can only in 24 hours, use, and a bag cotton swab often tood many or too much for use in 24 hours in the actual use, therefore relatively waste, and cotton swab takes when using runs into hand or clothes easily because of carelessness, pollutes and can't continue to use.
The utility model content
The purpose of this utility model provides a kind of cotton swab box, often in 24 hours, too many or too much for use to solve in the cotton swab box use traditional in the prior art, therefore relatively waste, and cotton swab takes when using runs into hand or clothes easily because of carelessness, pollutes and the problem that can't continue to use.
For achieving the above object, the technical solution adopted in the utility model is:
A kind of cotton swab box, it is characterized in that: include box body, described box body upper end is provided with lid, described box body is separated into a plurality of dark lattice for the storage cotton swab by several vertically and horizontally arranged dividing plates with the cavity in the box body, the opening of each dark lattice upper end is all by the aluminium foil paper sealing, and described box body lateral wall is provided with for the sleeve pipe of placing cotton swab.
Described a kind of cotton swab box is characterized in that: described sleeve pipe vertically is installed in box body lateral wall upper end.
The beneficial effects of the utility model are:
The utility model is simple and reasonable, easy to use, adopt several vertically and horizontally arranged dividing plates the cavity in the box body to be separated into the design of a plurality of dark lattice, can seal off single dark lattice during use successively uses, therefore saved cotton swab effectively, avoided unnecessary waste, and when injecting or pulling out pin, cotton swab can be placed on the sleeve pipe, because of carelessness cotton swab has been polluted when having prevented operation effectively.
Description of drawings

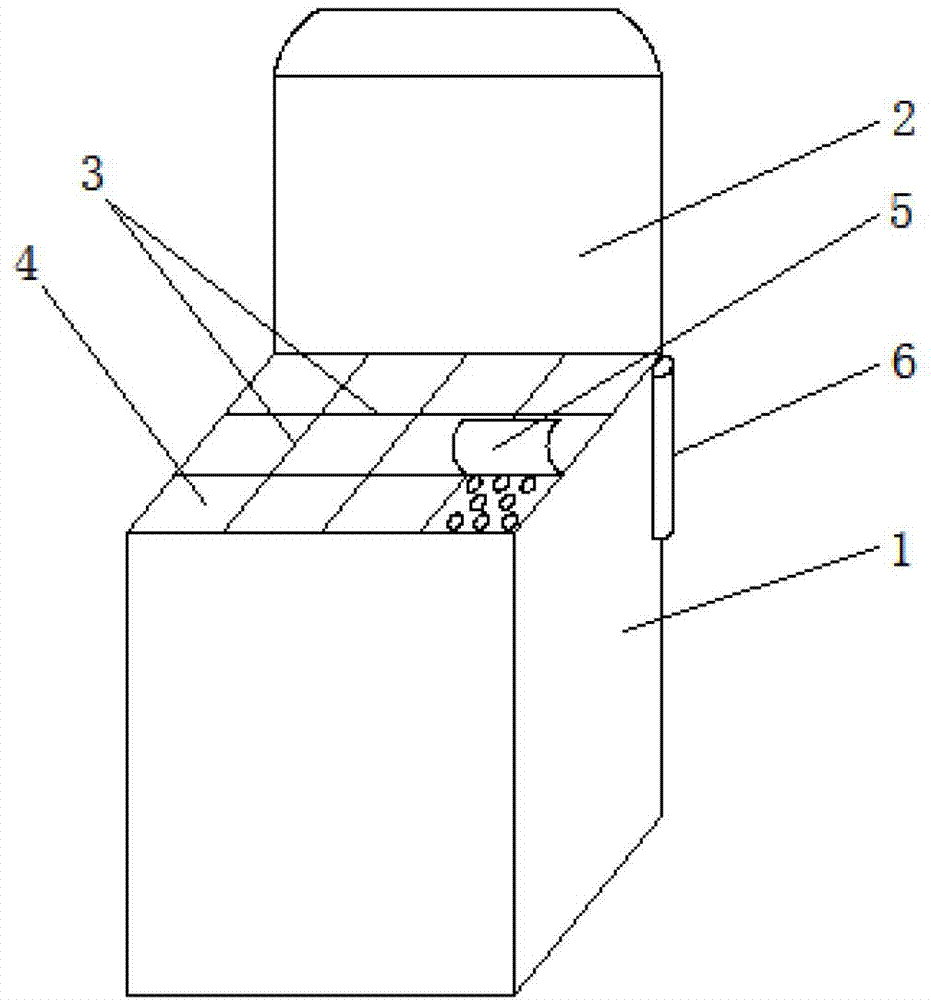

Fig. 1 is structural representation of the present utility model.
The specific embodiment
As shown in Figure 1, a kind of cotton swab box, include box body 1, box body 1 upper end is provided with lid 2, box body 1 is separated into a plurality of dark lattice 4 for the storage cotton swab by several vertically and horizontally arranged dividing plates 3 with the cavity in the box body 1, all by aluminium foil paper 5 sealings, box body 1 lateral wall is provided with for the sleeve pipe 6 of placing cotton swab the opening of each dark lattice 4 upper end.Sleeve pipe 6 vertically is installed in box body 1 lateral wall upper end.

Claims (2)

1. cotton swab box, it is characterized in that: include box body, described box body upper end is provided with lid, described box body is separated into a plurality of dark lattice for the storage cotton swab by several vertically and horizontally arranged dividing plates with the cavity in the box body, the opening of each dark lattice upper end is all by the aluminium foil paper sealing, and described box body lateral wall is provided with for the sleeve pipe of placing cotton swab.
2. a kind of cotton swab box according to claim 1 is characterized in that: described sleeve pipe vertically is installed in box body lateral wall upper end.
