Abstract

The utility model relates to an aquaculture animal excrement collector, which relates to an animal excrement collector. It solves the current complicated and cumbersome operation of collecting aquaculture animal excrement and the problem that the accuracy and integrity of samples cannot be guaranteed. The collector includes a collection pipe, a connecting hose, a collection bag, a working bucket and a screen, the working bucket is composed of a bucket cover and a bucket body, the bucket cover is provided with an exhaust hole and a liquid inlet hole, and the lower end surface of the bucket body is provided with a There is a liquid discharge hole, a ball is set in the collection pipe, the ball moves freely in the collection pipe, the other end of the collection pipe communicates with one end of the connecting hose, and the other end of the connecting hose passes through the liquid inlet hole and is set in the working barrel and connected to the collecting pipe. The bag is connected, and a screen is arranged in the vent hole. The utility model is used for collecting excrement of aquaculture animals.

Description

Aquaculture animal waste collector

technical field

The utility model relates to an animal excrement collector.

Background technique

With the rapid and vigorous development of my country's aquaculture industry, its related industries and research contents are constantly being explored at a rapid pace. Among them, aquatic animal nutrition, aquatic animal diseases and other disciplines are the main factors restricting the development of this industry, and their development momentum is particularly rapid. Excreta, as the main carrier of the nutritional metabolism, physical condition, infection or pathogen transmission and excretion of farmed animals, is one of the necessary research materials for various researches.

Due to the particularity of the breeding environment of aquatic animals, their excrement cannot be collected directly like livestock and poultry and other animals. The traditional collection method mainly relies on a lot of manual labor, replacing the water body or absorbing the bottom water body, and then filtering the collected water body, drying the obtained solid matter and other multi-step operations. Due to the cumbersome and time-consuming operation, the work efficiency is seriously reduced. The samples are easily polluted or lost during the filtration and drying process, and the accuracy and integrity of the collected samples cannot be guaranteed.

Utility model content

The purpose of the utility model is to provide an aquaculture animal excrement collector to solve the current problem of complicated and cumbersome collection of aquaculture animal excrement and the inability to guarantee the accuracy and integrity of samples.

The technical scheme adopted by the utility model for solving the above-mentioned technical problems is: the collector includes a collection pipe, a connecting hose, a collection bag, a working barrel and a screen, the working barrel is composed of a barrel cover and a barrel body, and the barrel cover is provided with Exhaust hole and liquid inlet hole, the lower end of the barrel is provided with a liquid discharge hole, and a ball is provided in the collection pipe, the ball moves freely in the collection pipe, the other end of the collection pipe communicates with one end of the connecting hose, and the other end of the connecting hose One end is set in the working barrel through the liquid inlet hole and communicated with the collection bag, and a screen is arranged in the exhaust hole.

The utility model has the following beneficial effects: the utility model can quickly collect aquaculture animal excrement, complete the collection and filtration process of aquaculture animal excrement at one time, and can ensure the integrity of collected samples; and the collection bag can be used for one time or The repeated use after treatment not only prevents sample contamination, but also serves the purpose of convenience and saving; the collected culture bottom water is uniformly treated to avoid polluting other experimental groups and the culture environment.

Description of drawings

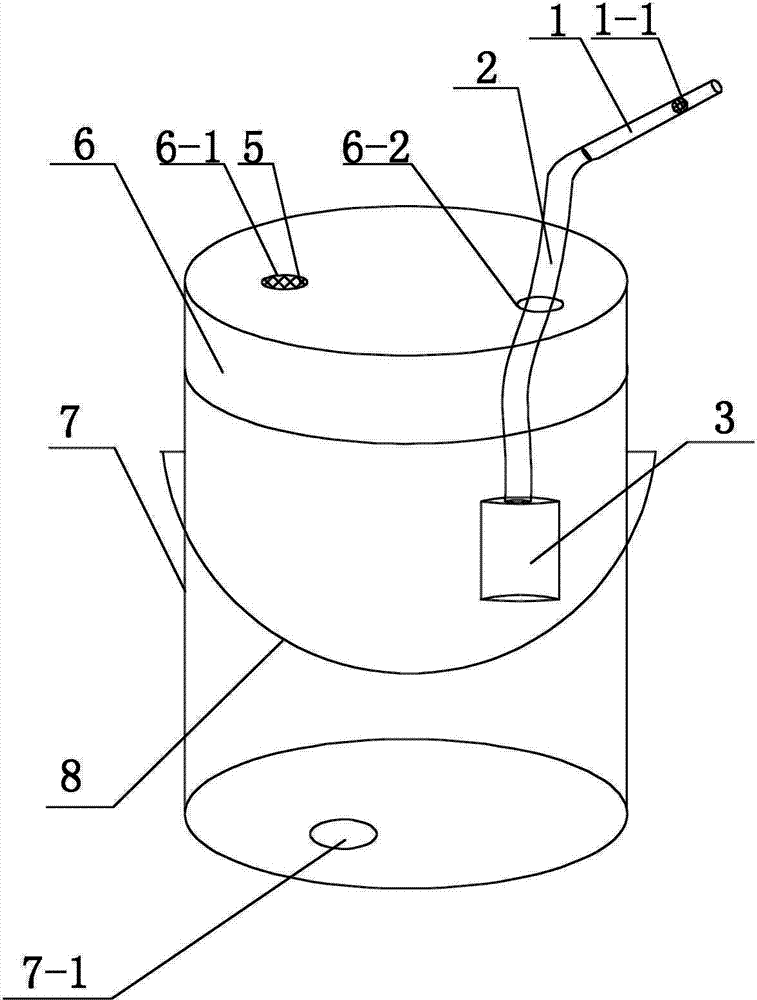

Fig. 1 is a schematic diagram of the overall structure of the utility model.

Detailed ways

Specific embodiment one: this embodiment is described in conjunction with Fig. 1, and the collector of this embodiment comprises collection pipe 1, connecting hose 2, collection bag 3, working bucket and screen cloth 5, and working bucket is made of bung 6 and staving 7 Composition, bung 6 is provided with exhaust hole 6-1 and liquid inlet hole 6-2, and the lower end surface of bucket body 7 is provided with discharge hole 7-1, and collecting pipe 1 is provided with ball 1-1, and ball 1 -1 moves freely in the collection pipe 1, the other end of the collection pipe 1 communicates with one end of the connection hose 2, and the other end of the connection hose 2 passes through the liquid inlet hole 6-2 and is set in the working barrel and communicates with the collection bag 3 , A screen 5 is arranged in the exhaust hole 6-1.

Specific embodiment two: this embodiment is described in conjunction with Fig. 1, and the collector of this embodiment also includes a handle 8, and the two ends of the handle 8 are fixed above the bucket body 7, and this structure is easy to carry. Other components and connections are the same as those in the first embodiment.

Specific Embodiment Three: This embodiment is described with reference to FIG. 1 . The mesh number of the screen 5 in this embodiment is 100, and the screen 5 is used to prevent pollutants from falling into the barrel and causing pollution. Other components and connections are the same as those in the first embodiment.

Working principle: By pumping the collection pipe 1 up and down, the ball 1-1 slides up and down in the collection pipe 1 to produce a siphon effect, so that the water body and substances in contact with the top of the collection pipe 1 are sucked into the connecting hose 2, and then pass through the collection bag 3 , the solid excretion is retained by the collection bag 3, and the remaining water enters the barrel body 7.

The air vent 6-1 ensures that the pressure inside and outside the bucket is consistent, and water can always enter, and due to the blocking effect of the drying net 5, it can effectively reduce the entry of external pollutants into the bucket. After the collection is completed, the collection bag 3 is removed, and the remaining water is discharged through the drain hole 7-1 for disposal or discarded, and the collected matter is poured out from the collection bag 3, which can be used for various tests, and the collection bag 3 can be disposable Reuse multiple times after use or disposal.

Claims (3)

1. A kind of aquaculture animal excrement collector, it is characterized in that said collector comprises collection pipe (1), connecting hose (2), collection bag (3), working bucket and screen cloth (5), working bucket Consists of a barrel cover (6) and a barrel body (7), the barrel cover (6) is provided with an exhaust hole (6-1) and a liquid inlet hole (6-2), and the lower end surface of the barrel body (7) is provided with The drain hole (7-1), the ball (1-1) is arranged in the collection pipe (1), the ball (1-1) moves freely in the collection pipe (1), and the other end of the collection pipe (1) is connected to the connecting soft One end of the pipe (2) is connected, the other end of the connecting hose (2) is set in the working barrel through the liquid inlet hole (6-2) and communicated with the collection bag (3), and the exhaust hole (6-1) is A screen (5) is provided. 2. The excrement collector of aquaculture animals according to claim 1, characterized in that the collector further comprises a handle (8), and the two ends of the handle (8) are fixed above the barrel body (7). 3. The aquaculture animal waste collector according to claim 1 or 2, characterized in that the mesh number of the screen (5) is 100.
