本实用新型公开了一种LED旋转灯，包括单片机，单片机分别与LED灯、传感器和电源连接，电源还与旋转电机连接。本实用新型LED旋转灯，不仅具有照明的功能，且基于人眼的视觉暂留效应，用以一定速度旋转的LED灯，通过单片机控制，显示出文字和图案，可用于广告宣传，其结构简单，使用方便。

Figure 201220721328

The utility model discloses an LED rotating lamp, which comprises a single-chip microcomputer, and the single-chip microcomputer is respectively connected with an LED lamp, a sensor and a power supply, and the power supply is also connected with a rotating motor. The LED revolving lamp of the utility model not only has the function of lighting, but also based on the visual persistence effect of the human eye, the LED lamp rotated at a certain speed is controlled by a single-chip microcomputer to display characters and patterns, which can be used for advertising, and its structure is simple , easy to use.

Figure 201220721328

Description

LED旋转灯LED rotating light

技术领域 technical field

本实用新型涉及一种灯具，具体涉及一种LED旋转灯。The utility model relates to a lamp, in particular to an LED rotating lamp.

背景技术 Background technique

现有的旋转灯主要用于对很多娱乐场所和舞台提供照明，功能比较单一，而且其结构比较复杂，如何制作一种具有多种功能且结构简单的旋转灯是非常有必要的。Existing revolving lamps are mainly used to provide lighting for many entertainment places and stages, and their functions are relatively single, and their structures are relatively complicated. How to make a revolving lamp with multiple functions and simple structure is very necessary.

发明内容 Contents of the invention

本实用新型的目的是提供一种LED旋转灯，解决了现有旋转灯功能单一的问题。The purpose of the utility model is to provide an LED revolving lamp, which solves the problem of single function of the existing revolving lamp.

本实用新型所采用的技术方案是，LED旋转灯，包括单片机，单片机分别与LED灯、传感器和电源连接，电源还与旋转电机连接。The technical scheme adopted in the utility model is that the LED rotating lamp includes a single-chip microcomputer, and the single-chip microcomputer is respectively connected with the LED lamp, a sensor and a power supply, and the power supply is also connected with the rotating motor.

本实用新型的特点还在于，The utility model is also characterized in that,

其中，单片机采用89C58RD芯片。Among them, the one-chip computer adopts 89C58RD chip.

本实用新型的有益效果是，本实用新型LED旋转灯，不仅具有照明的功能，且基于人眼的视觉暂留效应，用以一定速度旋转的LED灯，通过单片机控制，显示出文字和图案，可用于广告宣传，其结构简单，使用方便。The beneficial effect of the utility model is that the LED revolving lamp of the utility model not only has the function of lighting, but also based on the visual persistence effect of the human eye, the LED lamp rotating at a certain speed is controlled by a single-chip microcomputer to display characters and patterns, The utility model can be used for advertising, has a simple structure and is convenient to use.

附图说明 Description of drawings

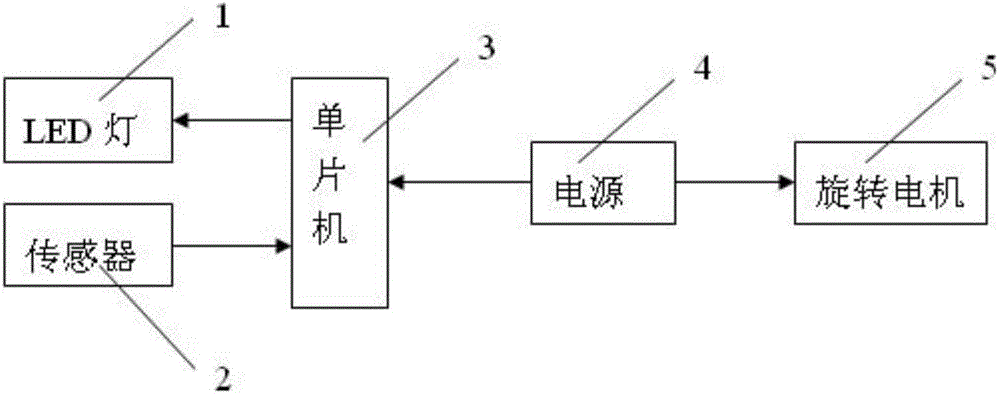

图1是本实用新型LED旋转灯的结构示意图。Fig. 1 is a structural schematic diagram of the LED revolving lamp of the present invention.

图中，1.LED灯，2.传感器，3.单片机，4.电源，5.旋转电机。In the figure, 1. LED light, 2. Sensor, 3. Single chip microcomputer, 4. Power supply, 5. Rotating motor.

具体实施方式 Detailed ways

下面结合附图和具体实施方式对本实用新型进行详细说明。The utility model will be described in detail below in conjunction with the accompanying drawings and specific embodiments.

本实用新型LED旋转灯，参见附图1，包括单片机3，单片机3分别与LED灯1、传感器2和电源4连接，电源4还与旋转电机5连接，单片机3采用89C58RD芯片。The utility model LED rotating lamp, referring to accompanying drawing 1, comprises single-chip microcomputer 3, and single-chip microcomputer 3 is connected with LED lamp 1, sensor 2 and power supply 4 respectively, and power supply 4 is also connected with rotating motor 5, and single-chip microcomputer 3 adopts 89C58RD chip.

传感器2用于感知LED灯1的运动位置，确定显示的起始位置；电源同时给单片机和旋转电机供电，旋转电机5用于旋转轴旋转。The sensor 2 is used to sense the moving position of the LED lamp 1 and determine the starting position of the display; the power supply supplies power to the single-chip microcomputer and the rotating motor at the same time, and the rotating motor 5 is used to rotate the rotating shaft.

本实用新型LED旋转灯，不仅具有照明的功能，且基于人眼的视觉暂留效应，用以一定速度旋转的LED灯，通过单片机控制，显示出文字和图案，可用与广告宣传，其结构简单，使用方便。The LED revolving lamp of the utility model not only has the function of lighting, but also based on the visual persistence effect of the human eye, the LED lamp used to rotate at a certain speed is controlled by a single-chip microcomputer to display characters and patterns, which can be used for advertising and publicity, and its structure is simple , easy to use.

Claims (2)

1.LED revolving light is characterized in that: comprise single-chip microcomputer (3), described single-chip microcomputer (3) is connected with LED lamp (1), sensor (2) and power supply (4) respectively, and described power supply (4) also is connected with electric rotating machine (5).
2. LED revolving light according to claim 1 is characterized in that: described single-chip microcomputer (3) employing 89C58RD chip.
