Abstract
本实用新型公开了一种铝熔体除气设备的充气密封装置，其包括铝熔体除气设备的箱体以及扣合在该箱体上的上盖，所述箱体上部的周边外侧上设有凹槽，凹槽内设有充气密封圈，所述凹槽的下侧壁设有通孔，充气密封圈的气嘴延伸出该通孔，充气密封圈充满气体时，其挤压上盖的扣合边与箱体上的凹槽，密封连接箱体与上盖。本实用新型的充气密封装置因为属于柔性密封，其密封性能好，结构简单，对操作员的操作技术要求低。
The utility model discloses an inflatable sealing device for aluminum melt degassing equipment, which comprises a box body of the aluminum melt degassing equipment and an upper cover fastened on the box body. There is a groove, and an inflatable sealing ring is arranged in the groove, and a through hole is arranged on the lower side wall of the groove, and the gas nozzle of the inflatable sealing ring extends out of the through hole. When the inflatable sealing ring is filled with gas, it squeezes the upper The fastening edge of the cover and the groove on the box body are sealed to connect the box body and the upper cover. Because the inflatable sealing device of the utility model belongs to the flexible seal, it has good sealing performance, simple structure and low requirements on the operator's operation skills.
Description
Technical field
The utility model relates to the tightness system of metallurgical equipment, relates in particular to a kind of air inflation sealing device of aluminum melt degassing equipment.
Background technology
In molten aluminum liquid, liquid aluminium liquid inevitably contains gases such as hydrogen.What of gas directly have influence on the quality of follow-up aluminum products in the aluminium liquid, if contain more gas in the aluminium liquid, follow-up aluminum products will produce a lot of pores, reduce the mechanical property of aluminum products.
Aluminium liquid getter is the visual plant in the refining of aluminium liquid, and present aluminium liquid getter mainly contains vacuum aluminium liquid getter and rare gas element aluminium liquid getter.Described two kinds of aluminium liquid getters all need the casing of getter to keep higher sealing property.The tightness system of the aluminium liquid getter that generally adopts in the prior art is as shown in Figure 1: it comprise aluminium liquid getter casing 04, be fastened on the loam cake 01 on the casing 04, described loam cake 01 is provided with groove 02, is filled with the asbestos packing 02 of the casing 04 of sealing loam cake 01 and aluminium liquid getter in the groove 02.This sealed structure mainly relies on asbestos packing to seal, it depends primarily on the compactness of asbestos packing, and the compactness of asbestos packing depends primarily on preliminary tension when filling and the deadweight of loam cake, after using for some time, the sealing property of this device will reduce greatly, and the gas in the casing is revealed easily.The operator's of the sealing property of this tightness system and installation asbestos packing degree of being skilled in technique has much relations simultaneously, and general new hand is difficult to install asbestos packing, makes loam cake and casing realize sealing.
Summary of the invention
In order to overcome the deficiencies in the prior art, the purpose of this utility model provides the air inflation sealing device of the aluminum melt degassing equipment of a kind of simple in structure, easy handling and good seal performance.
For achieving the above object, the technical solution of the utility model is: a kind of air inflation sealing device of aluminum melt degassing equipment, comprise the casing of aluminum melt degassing equipment and be fastened on loam cake on this casing, the periphery outside on described casing top is provided with groove, be provided with the gas-flow closure circle in the groove, the lower wall of described groove is provided with through hole, the valve of gas-flow closure circle extends this through hole, during gas-flow closure circle aerification, the locking edge of its extruding loam cake and the groove on the casing, casing and loam cake are tightly connected.
Described casing top is provided with flanging, and loam cake is fastened on the flanging, and the outside of flanging is provided with groove, is provided with the gas-flow closure circle in the groove, and the lower wall of described groove is provided with through hole, and the valve of gas-flow closure circle extends this through hole.
The utility model adopts above structure, utilize the outer upper of casing to be provided with groove, be provided with the gas-flow closure circle in the groove, when inflating to the gas-flow closure circle, the airbag inflation of gas-flow closure circle, the locking edge of its flexible extruding loam cake and the groove on the casing, realize the sealing of loam cake and casing, in the time of need opening loam cake, can make the venting of gas-flow closure circle, the air bag of gas-flow closure circle shrinks, and is easy to opening of loam cake.Air inflation sealing device of the present utility model is because belong to flexible sealing, and its good seal performance is simple in structure, and is low to the operations of operators technical requirements.
Description of drawings
Below in conjunction with the drawings and specific embodiments the utility model is described in further detail:
Fig. 1 is the structural representation of the tightness system of aluminium liquid getter of the prior art;

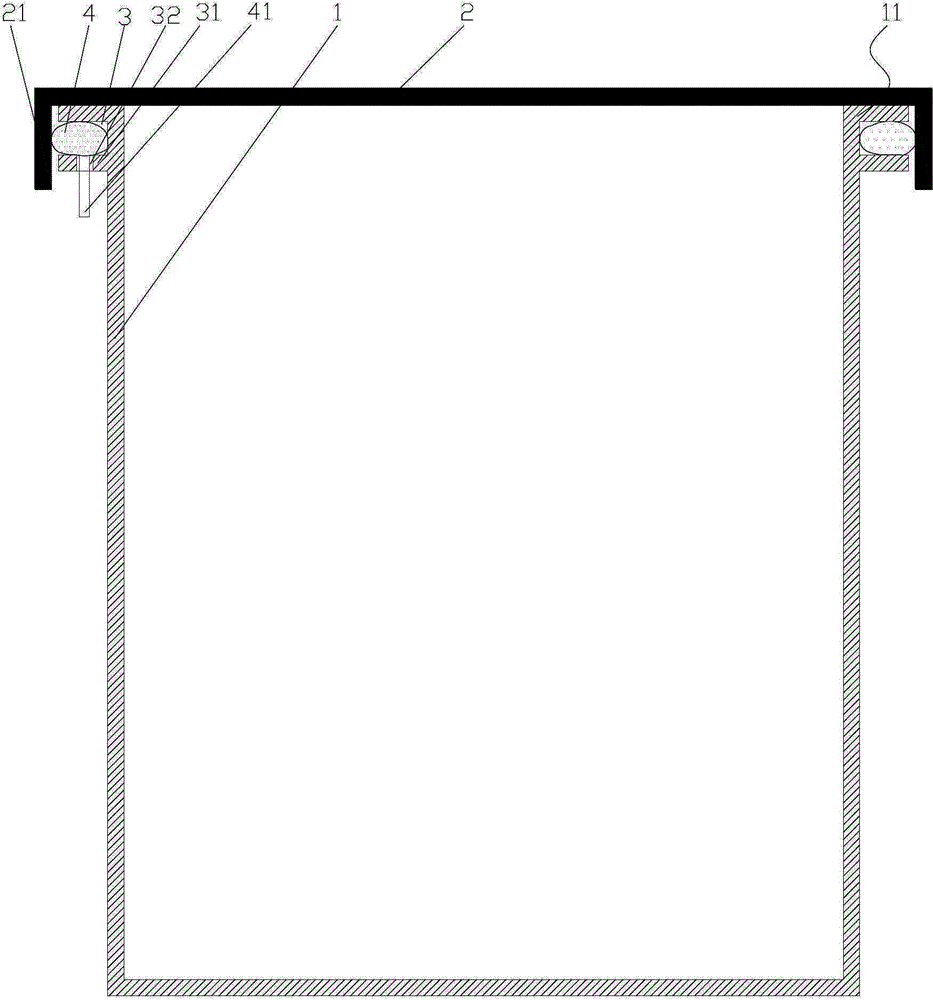

Structural representation when Fig. 2 is air inflation sealing device aerification of the present utility model;
Structural representation when Fig. 3 is air inflation sealing device underfilling gas of the present utility model.
Embodiment
Shown in one of Fig. 1-3, the air inflation sealing device of a kind of aluminum melt degassing equipment of the utility model, comprise the casing 1 of aluminum melt degassing equipment and be fastened on loam cake 2 on this casing 1, the periphery outside on described casing 1 top is provided with groove 3, be provided with gas-flow closure circle 4 in the groove 3, the lower wall 31 of described groove 3 is provided with through hole 32, the valve 41 of gas-flow closure circle 4 extends this through hole 32, during gas-flow closure circle 4 aerificatioies, the locking edge 21 of its extruding loam cake 2 and the groove 3 on the casing 1, casing 1 and loam cake 2 are tightly connected.
Described casing 1 top is provided with flanging 11, loam cake 2 is fastened on the flanging 11, and the outside of flanging 11 is provided with groove 3, is provided with gas-flow closure circle 4 in the groove 3, the lower wall 31 of described groove 3 is provided with through hole 32, and the valve 41 of gas-flow closure circle 4 extends this through hole 32.
Mode of operation of the present utility model is as follows: in the time of need sealing up casing 1 with loam cake 2, just to 4 inflations of gas-flow closure circle, gas-flow closure circle 4 is expanded, the locking edge 21 of flexible extruding casing 1 and loam cake 2, make casing 1 and loam cake 2 keep sealing, in the time of need opening loam cake 2, can make 4 venting of gas-flow closure circle, gas-flow closure circle 4 shrinks, be easy to opening of loam cake 2, in the process of opening loam cake 2, the gas-flow closure circle 4 that do not rub, the long service life of gas-flow closure circle 4.
Claims (2)
1. the air inflation sealing device of an aluminum melt degassing equipment, comprise the casing of aluminum melt degassing equipment and be fastened on loam cake on this casing, it is characterized in that: the periphery outside on described casing top is provided with groove, be provided with the gas-flow closure circle in the groove, the lower wall of described groove is provided with through hole, and the valve of gas-flow closure circle extends this through hole, during gas-flow closure circle aerification, the locking edge of its extruding loam cake and the groove on the casing, casing and loam cake are tightly connected.
2. the air inflation sealing device of a kind of aluminum melt degassing equipment according to claim 1, it is characterized in that: described casing top is provided with flanging, loam cake is fastened on the flanging, the outside of flanging is provided with groove, be provided with the gas-flow closure circle in the groove, the lower wall of described groove is provided with through hole, and the valve of gas-flow closure circle extends this through hole.
