CN203033287U - Automatic transfer bin of production line - Google Patents
Automatic transfer bin of production line Download PDFInfo
- Publication number
- CN203033287U CN203033287U CN201220742086.1U CN201220742086U CN203033287U CN 203033287 U CN203033287 U CN 203033287U CN 201220742086 U CN201220742086 U CN 201220742086U CN 203033287 U CN203033287 U CN 203033287U
- Authority
- CN
- China
- Prior art keywords
- stacker
- track
- warehouse
- carrier
- production line
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Lifetime
Links
- 238000004519 manufacturing process Methods 0.000 title claims abstract description 24
- 230000009184 walking Effects 0.000 claims abstract description 5
- 238000003032 molecular docking Methods 0.000 claims abstract description 3
- 239000000126 substance Substances 0.000 abstract description 2
- 239000000463 material Substances 0.000 description 4
- 238000003860 storage Methods 0.000 description 4
- 238000000034 method Methods 0.000 description 3
- 229910000831 Steel Inorganic materials 0.000 description 1
- 230000009286 beneficial effect Effects 0.000 description 1
- 230000006870 function Effects 0.000 description 1
- 238000003475 lamination Methods 0.000 description 1
- 239000010959 steel Substances 0.000 description 1
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02P—CLIMATE CHANGE MITIGATION TECHNOLOGIES IN THE PRODUCTION OR PROCESSING OF GOODS
- Y02P90/00—Enabling technologies with a potential contribution to greenhouse gas [GHG] emissions mitigation
- Y02P90/02—Total factory control, e.g. smart factories, flexible manufacturing systems [FMS] or integrated manufacturing systems [IMS]
Landscapes
- Warehouses Or Storage Devices (AREA)
Abstract
本实用新型公开了一种生产线自动化中转仓，涉及林产化工技术领域，尤其是一种板材生产线自动化中转仓，包括有行走在生产线通道上的运输车，所述运输车上设有车上堆垛车轨道和车上堆垛车位置传感器，在所述运输车的轨道的至少一侧设有多条用于与所述车上堆垛车轨道对接的仓库堆垛车轨道，在所述车上堆垛车轨道或所述仓库堆垛车轨道上有一辆堆垛车；在所述生产线通道上设有检测所述运输车在轨道上的位置的运输车位置传感器，每条仓库堆垛车轨道均装有检测所述堆垛车在所述仓库堆垛车轨道上的位置的堆垛车位置传感器。本实用新型可以解决生产线中转仓空间利用率不高，生产效率低的问题。
The utility model discloses an automatic transfer warehouse for a production line, which relates to the technical field of forestry chemical industry, in particular to an automatic transfer warehouse for a plate production line, which includes a transport vehicle walking on the production line channel, and the transport vehicle is provided with on-vehicle stacking Vehicle track and on-vehicle stacker position sensor, at least one side of the track of the transport vehicle is provided with a plurality of warehouse stacker tracks for docking with the on-vehicle stacker track, on the vehicle There is a stacker truck on the stacker truck track or the warehouse stacker truck track; a transporter position sensor that detects the position of the transporter on the track is provided on the production line channel, and each warehouse stacker truck track All are equipped with a stacker position sensor that detects the position of the stacker on the track of the warehouse stacker. The utility model can solve the problems of low space utilization rate and low production efficiency of the transfer warehouse of the production line.
Description
Technical field
The utility model relates to the forest chemical technical field, roll-over in especially a kind of panel production line automation.
Background technology
Middle roll-over originally is that because the restriction of fork truck itself, so the interval of two storage locations is wideer, the height that sheet material is stacked is not very high with the main tool of fork truck as transportation and stacking, and this just causes the space availability ratio in warehouse not high.And with artificial memory board material, to the specification of sheet material, management of information such as date manufactured will spend a large amount of time, so just cause the low problem of production efficiency.
The utility model content
The purpose of this utility model provides roll-over in a kind of panel production line automation, can make stacking process realize automation, and it is not high that it can solve the warehouse space degree of utilization, the problem that production efficiency is low.
In order to address the above problem, the technical solution adopted in the utility model is: roll-over in this all production line automation, include the transport trolley of walking on the manufacturing line passage, described transport trolley is provided with on the car carrier-and-stacker position transduser on the carrier-and-stacker track and car, at least one side of the track of described transport trolley be provided with many be used for described car on the warehouse carrier-and-stacker track of carrier-and-stacker orbital docking, carrier-and-stacker track or described warehouse carrier-and-stacker track have a carrier-and-stacker on described car; Be provided with the transport trolley position transduser that detects described transport trolley position in orbit at described manufacturing line passage, every warehouse carrier-and-stacker track all is equipped with the carrier-and-stacker position transduser that detects the position of described carrier-and-stacker on described warehouse carrier-and-stacker track; Carrier-and-stacker position transduser on the described car, the signal of described transport trolley position transduser and described carrier-and-stacker position transduser are fed to the programming controller of a described transport trolley of control and described carrier-and-stacker.
In the technique scheme, more specifically scheme can also be: described transport trolley position transduser is made of the transport trolley beam reflection plate that is located at described transport trolley track one end and the laser rangefinder that is located at the described transport trolley beam reflection plate of aiming on the described transport trolley; Described carrier-and-stacker position transduser is made of the carrier-and-stacker beam reflection plate that is located at described warehouse carrier-and-stacker track one end and the laser rangefinder that is located at the described carrier-and-stacker beam reflection plate of aiming on the described carrier-and-stacker.
Owing to adopted technique scheme, the utility model compared with prior art, the beneficial effect that has is:
1, owing to adopted the transport trolley of automatic control and carrier-and-stacker to load and unload and transport sheet material, the stacking height of each storage location can reach 5 meters, the interval of two storage locations has only 80 centimetres, distance between two row has only 1 meter, so improved the space availability ratio in warehouse and improved production efficiency.
2, roll-over adopts programming controller control transport trolley and carrier-and-stacker to store and extract in this production line automation, compare with the middle roll-over of adopting the forklift carrying, can realize the difference access of many specifications, many kinds, and possess automatic memory and writing function, can be according to the specific requirement of the time requirement of goods storage and different cultivars goods to satisfy the transfer needs on the manufacturing line by arranging of access strategy.
Description of drawings

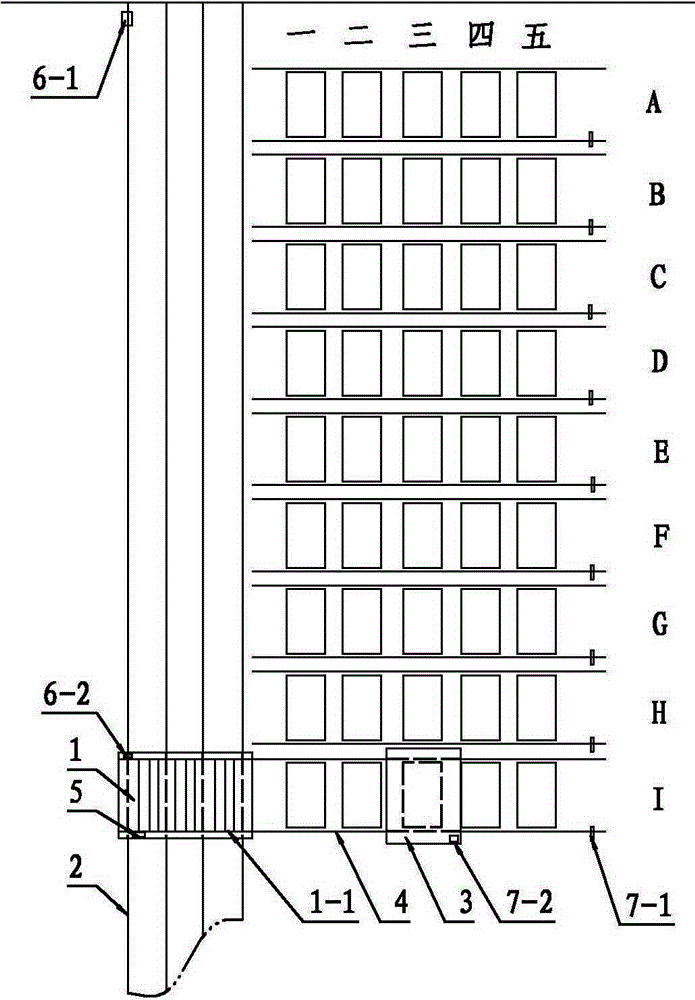

Fig. 1 is the utility model scheme drawing.
The specific embodiment
The utility model is described in further detail below in conjunction with drawings and Examples:
Roll-over in the production line automation of Fig. 1, include the transport trolley 1 of walking on the manufacturing line passage, transport trolley 1 is provided with on the car carrier-and-stacker position transduser 5 on the carrier-and-stacker track 1-1 and car, side at the track 2 of transport trolley 1 is provided with A-I totally 9 firm position positions, each firm position position is provided be made of two one steel rails one and is used for the warehouse carrier-and-stacker track 4 that docks with carrier-and-stacker track 1-1 on the car, every row has one to five totally 5 bin levels, I is capable in the warehouse, a carrier-and-stacker 3 is arranged on the carrier-and-stacker track 4 of the 3rd position in storehouse, be provided with the transport trolley position transduser that detects the position of transport trolley 1 on track 2 at described manufacturing line passage, this transport trolley position transduser is made of the transport trolley beam reflection plate 6-1 that is located at transport trolley track 2 one ends and the laser rangefinder 6-2 that is located at aiming transport trolley beam reflection plate 6-1 on the transport trolley 3; The signal that programming controller provides by these transport trolley position transdusers, can control transport trolley 1 rests on certain carrier-and-stacker track 4 termination, warehouse as required, allow carrier-and-stacker track 1-1 docks with warehouse carrier-and-stacker track 4 on the car on the transport trolley 1, thereby allow carrier-and-stacker 3 travel to and fro between on the car between the carrier-and-stacker track 1-1 and warehouse carrier-and-stacker track 4; Every warehouse carrier-and-stacker track 4 all is equipped with the carrier-and-stacker position transduser that detects the position of carrier-and-stacker 3 on warehouse carrier-and-stacker track 4; These carrier-and-stacker position transdusers are made of the carrier-and-stacker beam reflection plate 7-1 that is located at warehouse carrier-and-stacker track 4 one ends and the laser rangefinder 7-2 that is located at aiming carrier-and-stacker beam reflection plate 7-1 on the carrier-and-stacker 3; Carrier-and-stacker position transduser 5 on the car, the signal of transport trolley position transduser and carrier-and-stacker position transduser are fed to the programming controller of control transport trolley 1 and carrier-and-stacker 3; The signal that programming controller provides by these carrier-and-stacker position transdusers, can control on certain bin level that carrier-and-stacker 3 rests on certain bar warehouse carrier-and-stacker track 4 as required, allow and move between carrier-and-stacker 3 certain bin level in transport trolley 1 and warehouse, with the access goods.
In the time will transporting a lamination to assigned address I three, the programming controller of control transport trolley 1 and carrier-and-stacker 3 receives instruction, receive the feedback signal that is installed in the sensor on transport trolley 1 and the carrier-and-stacker 3 simultaneously, draw the execution signal by the inner intelligent computing of programming controller and judgement, control transport trolley 1 arrives the termination of the house track 4 of I position along track 2 walkings of transport trolley, by the position transduser on the transport trolley 1 signal feedback is arrived controller after arriving assigned address, controller is assigned cutoff command, transport trolley 1 stops, carrier-and-stacker 3 is walked behind three of I from transport trolley 1 track travel to warehouse carrier-and-stacker track 4 and along warehouse carrier-and-stacker track 4, position transduser on the carrier-and-stacker 3 arrives controller to signal feedback, controller is assigned cutoff command, carrier-and-stacker 3 stops, and unloads plate then.
