CN203029473U - Welding mask - Google Patents

Abstract

The utility model provides a welding mask, which protects the head, face and eyes of a welder from being harmed by the strong light of an electric arc. A goggles set is connected to a through hole of a mask, wherein the goggles set is connected to a downwardly inclined partition in a through hole of a frame, and a black lens is arranged above the partition, and a transparent lens is arranged below the partition. When the welder lowers his head to do welding work, his eyeballs can cooperate with the black lens to form a line of sight for viewing and isolate the strong light of the electric arc. If the welder wants to see the welding results, he can raise his head and turn his eyeballs downward to cooperate with the transparent lens to form a line of sight for viewing, and so on, and there is no need to move the entire welding mask, thereby improving the working efficiency of the welding.

Description

Welding mask

technical field

The utility model relates to an electric welding mask, in particular to the structure that the goggles of the electric welding mask have two kinds of transparent lenses with different colors. the

Background technique

Electric welding is a mechanical processing method that uses a large amount of current to pass through two poles at a certain distance, that is, the arc phenomenon generated at the end point generates high heat, and makes the metal parts or materials at the hot spot welded to each other. In the construction process of electric welding, strong arc light damage will be produced, and high-temperature hot solder or metal scraps will be splashed. Therefore, if the welder performs the above-mentioned electric welding construction, he must be equipped with a welding mask. The goggles protect the eyes so that the eyes will not be hurt by strong light, and at the same time, the face will not be scalded by spraying solder and metal shavings, so as to maintain the safety of construction. the

However, the lenses contained in the visor lens group used by the existing commonly used welding masks are all black lenses, so when welding, the welder must cover his face with the welding mask for welding for a while, and remove the welding mask completely for a while. , After seeing the welding result clearly, the welding work is completed repeatedly. However, such a working method is too inefficient, and it is easy to cause fatigue to the welder. Therefore, the industry has developed the prior art disclosed in Taiwan New Patent No. M338648 "Structure Improvement of Welding Mask". When welding, it is necessary to cover the transparent lens with a black lens for a while to isolate the strong light of the arc during welding work, and to turn over the dark lens for a while to see the welding result, and so on to complete the welding work. However, this working method is still quite It is troublesome, and the improvement of work efficiency is still limited and needs to be improved. the

Contents of the invention

In view of the shortcomings of the above-mentioned background technology, the designer of the utility model has developed a new type of electric welding mask through years of research. Therefore, the main purpose of the present invention is: a kind of electric welding mask that can improve welding work efficiency. the

In order to achieve the above object, the technical solution adopted by the utility model is:

An electric welding mask, which is a cover body with a perforation, and a goggle set is connected around the perforation. Place a dark colored lens and a transparent lens, wherein a partition extending forward is provided between the dark colored lens and the transparent lens, and a frame is connected to the partition to form a mirror cover. The shape and position of the mirror cover Corresponding to the mirror base, a fastening device is provided between the mirror base and the mirror cover. the

The electric welding mask, wherein: the mask is provided with wearing parts. the

Said electric welding mask, wherein: the mirror base is set to be uniformly thick in the upper half, and gradually thinner in the lower half. the

Said electric welding mask, wherein: the partition is inclined forward and downward. the

Said electric welding mask, wherein: the partition plate extends upwards with a protrusion, and the protrusion is embedded between the dark colored lens and the transparent lens. the

Said electric welding mask, wherein: two side plates are arranged on both sides below the partition. the

Said electric welding mask, wherein: the dark lens is arranged above the partition, and the transparent lens is arranged below the partition. the

Said electric welding mask, wherein: the dark lens is arranged below the partition, and the transparent lens is arranged above the partition. the

The electric welding mask, wherein: an elastic body is arranged between the dark lens, the transparent lens and the mirror cover. the

Therefore, compared with the background technology, the utility model has the following effects: the goggle set of the utility model is indirectly provided with a partition inclined downward in the through hole of a frame, and the top of the partition is installed There is a black lens, and a transparent lens is installed under the partition. When electric welding work is being performed, the eyeballs can be combined with the dark lens to form a line of sight. If you want to see the welding results or move to other places for welding, you can look up and look at it. Turn its eyeballs downward to form a line of sight with the transparent lens. Or a transparent lens is installed on the top of the partition, and a black lens is installed on the bottom of the partition. When the welding work is performed, the head can be raised and the eyeballs can be lowered to match the black lens to form a line of sight. If you want to see the welding results or move to another place for welding, you can lower your head and turn your eyes to look at the eye level with the transparent lens. Therefore, the utility model has two different modes, which can be used with the lens according to the suitable mode for each person. During its welding work, there is no need to remove the entire electric welding mask, so as to improve the efficiency of electric welding work. the

Description of drawings

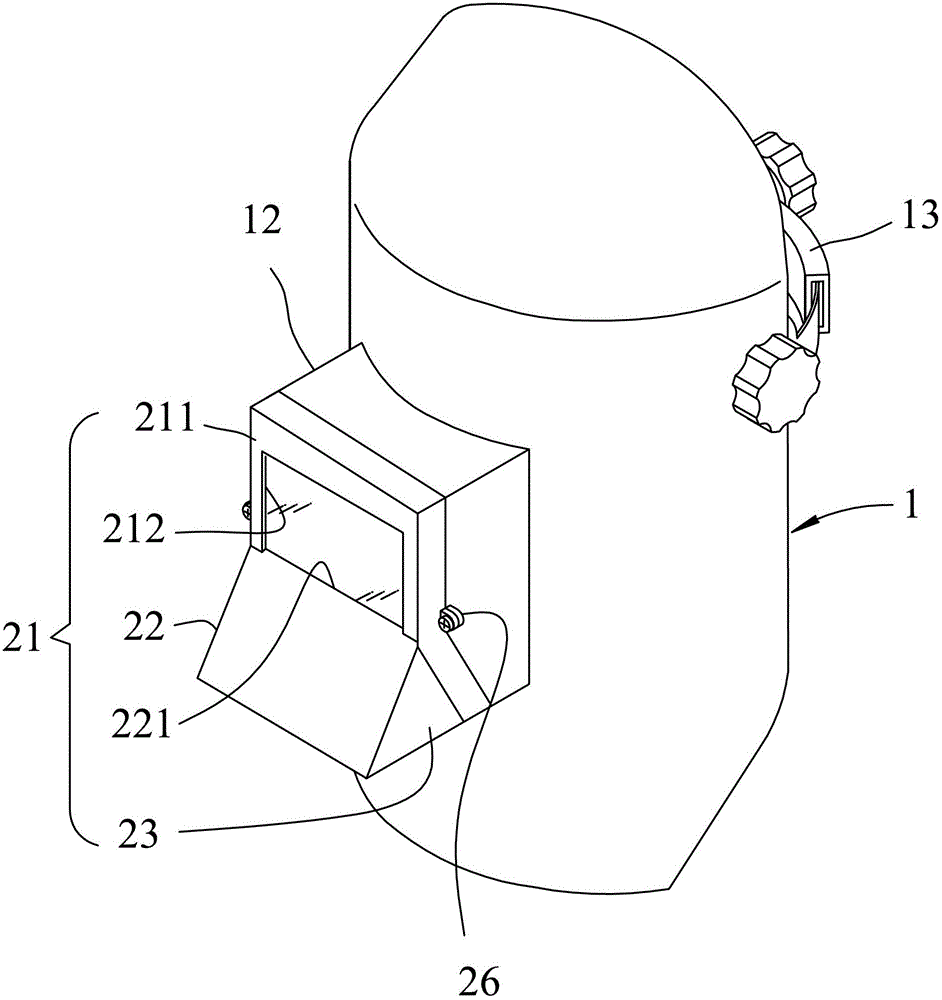

Fig. 1 is the three-dimensional exterior view of preferred embodiment of the present utility model;

Fig. 2 is the exploded view of preferred embodiment of the present utility model;

Fig. 3 is a side sectional view of a preferred embodiment of the present utility model;

Fig. 4 is the schematic diagram of the implementation of bowing electric welding in a preferred embodiment of the utility model;

Fig. 5 is a schematic diagram of looking up the electric welding result of the preferred embodiment of the utility model. the

Explanation of reference signs: 1-cover body; 11-perforation; 12-mirror holder; 121-lens placement; 13-wearing piece; 2-goggle set; ; 22-partition plate; 221-bulge; 23-side plate; the

Detailed ways

In order to achieve the above purpose and effect, the specific technical means used by the utility model are further described in detail. the

First of all, please refer to Fig. 1 to Fig. 3, which is a kind of electric welding mask provided by the utility model, comprising: a cover body 1 and a goggle group 2; wherein,

The cover body 1 is made of flame-resistant and opaque material, and can completely cover the welder's head and face, so that the cover body 1 can cover the strong light generated during electric welding work and the sprayed radiation. High-temperature molten metal and solder, and the upper inner side of the cover 1 is provided with a wearing piece 13 to wear on the head of the electric welder, and the cover 1 is provided with a perforation 11 corresponding to the eyes of the welder, and the perforation 11 A mirror holder 12 is fixed or integrally formed inside, and the mirror holder 12 is hollow in conjunction with the perforation 11 and is provided with a lens placement place 121 for placing a black lens 24, a transparent lens 25 and an elastic body 27. 12 is set to be uniformly thick in the upper half, and gradually thinner in the lower half; and

The goggles set 2 further comprises a mirror cover 21, a black lens 24, a transparent lens 25 and an elastic body 27, wherein the mirror cover 21 is provided with a frame 211, and the frame 211 has a through hole 212 , and the center of the through hole 212 is provided with a partition 22, and the partition 22 extends upwards with a protrusion 221, and the protrusion 221, as shown in Figure 2, can just be embedded in the through hole 211 of the frame body 21 In the middle of the center, especially the partition 22 is inclined downward at an appropriate angle; in addition, the dark colored lens 24 and the transparent lens 25 are respectively placed on the lens placement place 121 of the mirror base 12, and then the elastic body 27 is placed on the dark colored lens 24 , transparent lens 25, and then cover the mirror cover 21 and lock the fastening device 26, then the projection 221 is just between the dark colored lens 24 and the transparent lens 25, especially the fastening device 26 can be bolted or buckled. In addition, two side plates 23 are provided between the partition 22 and the frame body 21 to strengthen the structure of the partition 22, and finally the black lens 24 is installed on the top of the partition 22 and the The transparent lens 25 is installed under the partition 22 . the

Please refer to Fig. 4, when an electric welder wears the electric welding mask of the present utility model for welding work, the inner surface of the cover body 1 will be close to the welder's head and face, and the height of the cover body will be adjusted at the most suitable position. And after putting on the electric welding mask of the present utility model, the dividing plate 22 has an appropriate distance from the eyes and is located at a suitable position below the eyes, so that the dividing plate 22 becomes a straight line visually, so that the welder can match his eyeballs with the ink color Eyeglass 24 constitutes line of sight and looks down, can cut off the arc glare that electric welding work produces like this, as shown in Figure 5, when wanting to see welding result, can raise one's head and rotate its eyeball downward and cooperate the transparent eyeglass 25 of electric welding mask To form a line of sight, so as to clearly see the result of welding, and then prepare for the next welding work or welding elsewhere without having to remove the welding mask completely, so as to improve the working efficiency of welding. the

Certainly, the dark lens 24 can also be arranged below the partition 22 , and the transparent lens 25 is arranged above the partition 22 . the

The above description is only illustrative, rather than restrictive, of the present utility model. Those of ordinary skill in the art understand that many modifications, changes or equivalents can be made without departing from the spirit and scope defined in the claims. But all will fall within the protection scope of the present utility model. the

Claims (9)

1. A welding mask is a mask body with a through hole, and a goggles set is connected around the through hole, which is characterized in that: the goggles set is provided with a lens base connected to the periphery of the through hole of the cover body, an ink lens and a transparent lens are placed on the lens base, a partition board extending forwards is arranged between the ink lens and the transparent lens, a frame body is connected to the partition board to form a lens cover, the shape and the position of the lens cover correspond to the lens base, and a fastening device is arranged between the lens base and the lens cover.

2. The welding mask of claim 1, wherein: the mask is provided with a wearing piece.

3. The welding mask of claim 1, wherein: the lens base is designed to be even thick at the upper half part and gradually thin at the lower half part.

4. The welding mask of claim 1, wherein: the partition is inclined forwardly and downwardly.

5. The welding mask of claim 1, wherein: the partition plate extends upwards to form a lug which is embedded between the ink lens and the transparent lens.

6. The welding mask of claim 1, wherein: two side plates are arranged on two sides of the lower part of the clapboard.

7. The welding mask of claims 1, 2, 3, 4, 5, or 6, wherein: the ink lens is arranged above the clapboard, and the transparent lens is arranged below the clapboard.

8. The welding mask of claims 1, 2, 3, 4, 5, or 6, wherein: the ink lens is arranged below the clapboard, and the transparent lens is arranged above the clapboard.

9. The welding mask of claims 1, 2, 3, 4, 5, or 6, wherein: an elastic body is arranged among the ink lens, the transparent lens and the lens cover.
