本实用新型涉及新型颈椎护理枕，包括枕皮、颈部护理片、肩部护理片，所述枕皮的下部设有颈部护理片，其中，所述颈部护理片上设有磁铁条，所述在颈部护理片的下部设有肩部护理片，肩部护理片上设有按摩点。本实用新型的有益特点是：功能多样、适用范围广，能进行按摩、磁疗等多种医疗或护理。
The utility model relates to a novel cervical vertebra care pillow, comprising a pillow skin, a neck care sheet, and a shoulder care sheet. The lower part of the pillow skin is provided with a neck care sheet, wherein the neck care sheet is provided with a magnet strip, and the lower part of the neck care sheet is provided with a shoulder care sheet, and the shoulder care sheet is provided with massage points. The beneficial features of the utility model are: multiple functions, wide application range, and can perform various medical treatments or care such as massage and magnetic therapy.
Description
技术领域technical field
本实用新型涉及一种医疗护理器械，具体涉及新型颈椎护理枕。The utility model relates to a medical nursing device, in particular to a novel cervical spine nursing pillow.
背景技术Background technique
目前，颈椎病患者与日俱增，大多数人睡眠时使用的枕头，形状一般为长方体的形状，与人体颈部接触的面积比较小，往往会造成人体颈部悬空，会加重患颈椎病人的病情。At present, the number of patients with cervical spondylosis is increasing day by day. The pillows that most people use when sleeping are generally in the shape of a cuboid, and the area in contact with the neck of the human body is relatively small, which often causes the neck of the human body to hang in the air, which will aggravate the condition of patients with cervical spondylosis.
实用新型内容Utility model content
针对现有技术的不足，本实用新型的目的在于提供一种构思巧妙、使用效果好、适用范围广、成本低廉的新型颈椎护理枕。Aiming at the deficiencies of the prior art, the purpose of this utility model is to provide a new cervical spine nursing pillow with ingenious conception, good use effect, wide application range and low cost.
为了实现上述目的，本实用新型所采用的技术方案是：新型颈椎护理枕，包括枕皮、颈部护理片、肩部护理片，所述枕皮的下部设有颈部护理片，其中，所述颈部护理片上设有磁铁条，所述颈部护理片的下部设有肩部护理片，肩部护理片上设有可以按摩的按摩点。In order to achieve the above-mentioned purpose, the technical solution adopted by the utility model is: a new cervical spine nursing pillow, comprising a pillow skin, a neck nursing sheet, and a shoulder nursing sheet, the lower part of the pillow skin is provided with a neck nursing sheet, wherein the The neck care sheet is provided with a magnet strip, the lower part of the neck care sheet is provided with a shoulder care sheet, and the shoulder care sheet is provided with massage points that can be massaged.
本实用新型的有益特点是：构思巧妙新颖、适用范围广、能进行按摩、磁疗多种医疗或护理。The beneficial features of the utility model are: ingenious and novel design, wide application range, massage and magnetic therapy for various medical treatments or nursing.
附图说明Description of drawings

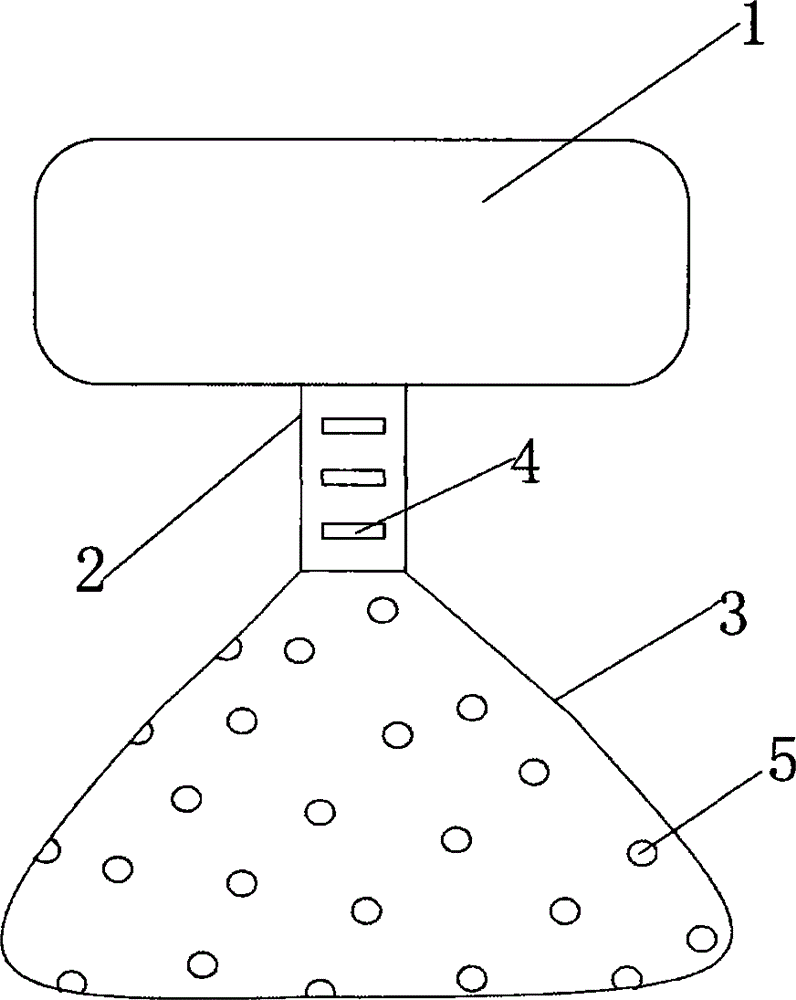

图1为本实用新型的结构示意图。Fig. 1 is the structural representation of the utility model.
图中，1、枕皮，2、颈部护理片，3、肩部护理片，4、磁铁条，5、按摩点。In the figure, 1. Pillow skin, 2. Neck care sheet, 3. Shoulder care sheet, 4. Magnet bar, 5. Massage point.
具体实施方式Detailed ways
如图所示，新型颈椎护理枕，包括枕皮1、颈部护理片2、肩部护理片3，所述枕皮1的下部设有颈部护理片2，其中，所述颈部护理片2上设有磁铁条4，所述在颈部护理片2的下部设有肩部护理片3，肩部护理片3上设有可以按摩的按摩点5。本实用新型构思巧妙、适用范围广，能进行按摩、磁疗等多种医疗或护理。As shown in the figure, the new cervical spine care pillow includes a pillow skin 1, a
