CN203005191U - Solar energy mobile power supply vehicle - Google Patents
Solar energy mobile power supply vehicle Download PDFInfo
- Publication number
- CN203005191U CN203005191U CN 201220674318 CN201220674318U CN203005191U CN 203005191 U CN203005191 U CN 203005191U CN 201220674318 CN201220674318 CN 201220674318 CN 201220674318 U CN201220674318 U CN 201220674318U CN 203005191 U CN203005191 U CN 203005191U
- Authority
- CN
- China
- Prior art keywords
- solar
- power supply
- car body
- battery
- utility
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Charge And Discharge Circuits For Batteries Or The Like (AREA)
Abstract
本实用新型涉及一种小型供电站，特别涉及一种太阳能移动式供电车，其技术方案是：包括车体、太阳能电池板、太阳能充电控制器、蓄电池、UPS电源、LED照明灯、电缆线辊，车体的顶部固定太阳能电池板，所述的太阳能电池板通过太阳能充电控制器连接蓄电池，所述的蓄电池连接UPS电源，车体顶部设有LED照明灯，车体内设有电缆线辊；本实用新型的有益效果是：有效节约了资源，实现了资源的持续利用，低噪音、低污染、清洁、环保，通过太阳能充电控制器控制太阳能充电电源，防止蓄电池过充而造成损害，UPS电源通过将蓄电池直流电转化成交流电实现电力自动切换输出。
The utility model relates to a small power supply station, in particular to a solar mobile power supply vehicle. , the top of the car body is fixed with a solar battery panel, the solar battery panel is connected to a battery through a solar charge controller, the battery is connected to a UPS power supply, the top of the car body is provided with an LED lighting lamp, and the car body is provided with a cable roller; The beneficial effects of the utility model are: effective saving of resources, sustainable utilization of resources, low noise, low pollution, cleanliness, and environmental protection; solar charging power is controlled by a solar charging controller to prevent damage caused by battery overcharging; UPS power supply By converting the direct current of the battery into alternating current, the automatic switching output of electric power is realized.
Description
Technical field
The utility model relates to a kind of small-sized supply station, and particularly a kind of solar power is portable for electric car.
Background technology
At present, outdoor increasing of holding, need large-scale power equipment supply due to large-scale style, amusement, political meeting etc., when guaranteeing need for electricity, also need electric power to provide and to keep low-noise pollution-free, guarantee the continuity of power supply.Domestic electrical generator is the fuel oil type electrical generator at present, and during generating, noise is large, pollutes greatly, and switching mode is manual switching, and switching time is long, is unfavorable for energy-conserving and environment-protective.
Summary of the invention
The purpose of this utility model is exactly in view of the foregoing defects the prior art has, provides a kind of solar power the portable electric car that supplies, and has effectively saved resource, has realized the sustainable utilization of resource.
Its technical scheme is: comprise car body, solar panel, solar charging controller, storage battery, ups power, LED illuminating lamp, cable roller, the top fixed solar cell panel of car body, described solar panel connects storage battery by solar charging controller, described storage battery connects ups power, car body top is provided with the LED illuminating lamp, is provided with the cable roller in car body.
The beneficial effects of the utility model are: effectively saved resource, realized the sustainable utilization of resource, low noise, low pollution, cleaning, environmental protection, control the solar recharging power supply by solar charging controller, prevent accumulator super-charge and cause damage, ups power is realized electric power automatic switchover output by accumulator DC being changed into alternating current.
Description of drawings

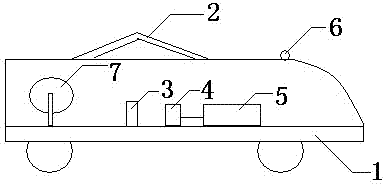

Accompanying drawing 1 is structural representation of the present utility model;
In upper figure: car body 1, solar panel 2, solar charging controller 3, storage battery 4, ups power 5, LED illuminating lamp 6, cable roller 7.
The specific embodiment
By reference to the accompanying drawings 1, the utility model will be further described:
The utility model comprises car body 1, solar panel 2, solar charging controller 3, storage battery 4, ups power 5, LED illuminating lamp 6, cable roller 7, the top fixed solar cell panel 2 of car body 1, described solar panel 2 connects storage battery 4 by solar charging controller 3, described storage battery 4 connects ups power 5, car body 1 top is provided with LED illuminating lamp 6, is provided with cable roller 7 in car body 1.
Control the solar recharging power supply by solar charging controller, prevent accumulator super-charge and cause damage, ups power 5 is realized the electric power output of automaticallying switch by accumulator DC being changed into alternating current.
Claims (1)
1. a solar power is portable for electric car, it is characterized in that: comprise car body (1), solar panel (2), solar charging controller (3), storage battery (4), ups power (5), LED illuminating lamp (6), cable roller (7), the top fixed solar cell panel (2) of car body (1), described solar panel (2) connects storage battery (4) by solar charging controller (3), described storage battery (4) connects ups power (5), car body (1) top is provided with LED illuminating lamp (6), be provided with cable roller (7) in car body (1).
