Abstract
The utility model provides a multifunctional desk, and belongs to the field of furniture manufacture, which can effectively overcome the defect that a user cannot use a power socket for being connected with a power supply through a desk board directly. The multifunctional desk provided by the utility model comprises a rectangular table board (1), wherein a desk body (2), a book cabinet (3) and a drawer (4) are arranged on the lower side of the table board (1). The multifunctional desk is characterized in that a hole is formed in a corner position at the rear part of the upper side of the table board (1); a power socket (5) is mounted in the hole in an embedded manner; a three-way jack and a two-way jack are arranged on the power socket (5); the surface of the power socket (5) and the table board (1) form a plane; and the power socket (5) is connected with a 220V power supply. The multifunctional desk is mainly used for facilitating power supply connection for the user.
Description
Technical field the utility model relates to a kind of multifunction desk.
The present user of background technology is placed in the desk that uses in the study and is formed by combining by desktop, table body, bookcase and drawer, although this desk can be for the user, but it has such shortcoming, be not provided with the supply socket that connects power supply on this exactly desk, the desktop that the user can not directly pass through desk uses supply socket, and is very inconvenient when using notebook computer as the user or connecting power supply as needs such as cell-phone chargings on desk.
The summary of the invention the purpose of this utility model is that a kind of multifunction desk will be provided, it can effectively avoid the user can not be directly desktop by desk connect the shortcoming of power supply with supply socket.
The purpose of this utility model is achieved in that a kind of multifunction desk, include a rectangular desktop, downside at desktop is provided with a body, bookcase and drawer, it is characterized in that the corner, rear portion of side arranges porose on the table, the hole is embedded in a supply socket is installed, be provided with a three-way jack and two line jacks in supply socket, the surface of supply socket and desktop form a plane, and supply socket is connected with the power supply of 220V.
The utility model with supply socket directly on the desktop of desk, when the user uses notebook computer or connects power supply as needs such as cell-phone chargings on desk, can directly be connected with power supply with the supply socket on desktop, connect power supply very convenient, tool is with the advantage such as simple in structure, with low cost, easy to use.
Description of drawings Fig. 1 is the front view of the utility model multifunction desk.
Fig. 2 is the side view of the utility model multifunction desk.

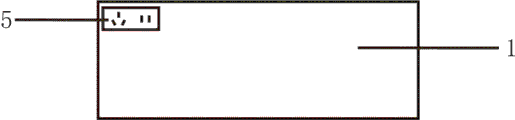

Fig. 3 is the top view of the utility model multifunction desk.
A kind of multifunction desk of specific embodiment the utility model, include a rectangular desktop (1), downside at desktop (1) is provided with a body (2), bookcase (3) and drawer (4), it is characterized in that arranging porose in the corner, rear portion of desktop (1) upside, the hole is embedded in a supply socket (5) is installed, be provided with a three-way jack and two line jacks in supply socket (5), the surface of supply socket (5) and desktop (1) form a plane, and supply socket (5) is connected with the power supply of 220V.
Claims (1)
1. multifunction desk, include a rectangular desktop (1), downside at desktop (1) is provided with a body (2), bookcase (3) and drawer (4), it is characterized in that arranging porose in the corner, rear portion of desktop (1) upside, the hole is embedded in a supply socket (5) is installed, be provided with a three-way jack and two line jacks in supply socket (5), the surface of supply socket (5) and desktop (1) form a plane, and supply socket (5) is connected with the power supply of 220V.
