CN202995229U

CN202995229U - Novel camera support

Info

Publication number: CN202995229U
Application number: CN 201220747797
Authority: CN
Inventors: 阙优善
Original assignee: Individual
Current assignee: China Ting Culture Technology (beijing) Co Ltd
Priority date: 2012-12-29
Filing date: 2012-12-29
Publication date: 2013-06-12
Anticipated expiration: 2022-12-29

Abstract

The utility model discloses a novel camera support, comprising a pan head and a tripod arranged at the center of the bottom of the pan head, and a support device for preventing the pan head from tilting is arranged between one end or both ends of the bottom of the pan head and the tripod. By arranging the support device between the pan head and the legs, the pan head can be kept in a horizontal state at any time, avoiding the camera from being offset due to gravity during movement, making the shooting of three-dimensional stereoscopic photos more stable, improving the clarity and three-dimensional effect of three-dimensional photos, and reinforcing the support of the entire support, so that its adaptability is increased and it can adapt to different environments. Compared with the prior art, this stable support has the advantages of simple structure, easy operation, small size, and easy disassembly and assembly. At the same time, it can adapt to various complex environments, and there is no safety hazard. It is very suitable for commercial applications and home travel for shooting three-dimensional stereoscopic photos.

Description

Novel camera support frame

Technical field

The utility model relates to the camera technique field, relates in particular to a kind of Novel camera support frame.

Background technology

Along with the appearance of three-dimensional stereo photo, people have developed the various platforms that camera is taken 3-d photographs that can be used for controlling.The supporting mechanism of this platform, all adopt at present ordinary stent to support, when camera slides on The Cloud Terrace, due to the Action of Gravity Field of camera itself, make The Cloud Terrace produce skew, namely The Cloud Terrace and ground are not parallel state, horizontality and the stability of this mode to platform, best guarantee all can't be provided, and sharpness and stereoeffect that this has had a strong impact on the 3-d photographs imaging have also increased cost and difficulty that the later stage photo is made.

The utility model content

The purpose of this utility model is to solve the problems of the technologies described above, and a kind of Novel camera support frame is provided, and it has advantages of simple in structure, easy to use, agravic skew, stereographic good imaging quality.

For reaching this purpose, the utility model by the following technical solutions:

A kind of Novel camera support frame comprises the foot rest that The Cloud Terrace and The Cloud Terrace bottom centre arrange, and is provided for preventing the bracing or strutting arrangement of The Cloud Terrace inclination between an end of described The Cloud Terrace bottom or two ends and described foot rest.

A kind of preferred version as Novel camera support frame, described bracing or strutting arrangement comprises two-way bolt, described two-way bolt comprises first end and the second end, described first end is provided with hook portion, described the second end is provided with link section, corresponding described hook portion arranges link in described The Cloud Terrace end, and corresponding described link section arranges hook on described leg.

As a kind of preferred version of Novel camera support frame, described leg comprises the first leg, the second leg and the 3rd leg, is movably hinged described hook on described the first leg or the second leg or the 3rd leg.

A kind of preferred version as Novel camera support frame, described bracing or strutting arrangement comprises spring, described spring comprises first end and the second end, described first end is fixedly installed the first hook, described the second end is fixedly installed the first link, corresponding described the first hook arranges the second link in described The Cloud Terrace end, and corresponding described the first link arranges the second hook on described leg.

As a kind of preferred version of Novel camera support frame, described leg comprises the first leg, the second leg and the 3rd leg, is movably hinged described the second hook on described the first leg or the second leg or the 3rd leg.

A kind of preferred version as Novel camera support frame, described bracing or strutting arrangement comprises rigid rod, the end that described rigid rod contacts with described The Cloud Terrace is movably hinged slide block, corresponding described slide block arranges chute bottom The Cloud Terrace, described rigid rod is movably connected in the middle part of described leg away from an end of described The Cloud Terrace.

A kind of preferred version as Novel camera support frame, described leg comprises the first leg, the second leg and the 3rd leg, be provided on described the first leg or the second leg or the 3rd leg the pegging graft leg jack of described rigid rod is so that the end of described rigid rod can be plugged on leg in activity.

Preferably, described chute is T-shaped chute, and groove insied width and the described slide block of described chute are complementary, and the width of rebate of described chute is less than the size of described slide block, and greater than the size of described rigid rod.

Preferably, described leg is telescopic leg.

Preferably, rounded or rectangle or ellipse or hollow ring of the cross section of described rigid rod.

a kind of preferred version as Novel camera support frame, described bracing or strutting arrangement comprise support tube with and two ends detachable first body of rod and second body of rod that arrange, described first body of rod arranges the The Cloud Terrace coupler body away from an end of described support tube, described The Cloud Terrace one end detachable arranges the second support, described The Cloud Terrace coupler body is movably arranged on described the second internal stent by the second bolt, described second body of rod arranges the first support away from an end of described support tube, described the first support is movably arranged on the end of described second body of rod by the first bolt, described the first support is fixedly installed be used to the abutment ring that connects described foot rest away from an end of described second body of rod.

A kind of preferred version as Novel camera support frame, described foot rest comprises the first leg, the second leg and the 3rd leg, the external diameter of the internal diameter of described abutment ring and described the first leg or the second leg or the 3rd leg is complementary, so that described abutment ring can be socketed in described leg is peripheral.

a kind of preferred version as Novel camera support frame, described first body of rod extends in described support tube near an end of described support tube, and on described first body of rod, the first screw thread is set, the second screw thread that is complementary with described the first screw thread is set in described support tube, described second body of rod extends in described support tube near an end of described support tube, and on described second body of rod, the 3rd screw thread is set, the 4th screw thread that is complementary with described the 3rd screw thread is set in described support tube, and described the first screw thread is opposite with the rotation direction of described the 3rd screw thread, described the second screw thread is opposite with the rotation direction of described the 4th screw thread, so that described support tube when rotated described first body of rod and second body of rod can be simultaneously near or away from described support tube.

The beneficial effects of the utility model are: by between The Cloud Terrace and leg, bracing or strutting arrangement being set, can make The Cloud Terrace all keep at any time state parallel to the ground, avoid camera to be offset because Action of Gravity Field produces in moving process, and then impact is taken a picture or the situation of pickup quality occurs; Be set to two-way bolt by bracing or strutting arrangement, can adjust stay bolt state between The Cloud Terrace and leg according to actual requirement, realize controlling accurately; By two-way bolt two ends are arranged link section and hook portion, correspondingly link is set and hook is set on leg in the The Cloud Terrace bottom, can make the dismounting of whole bracing or strutting arrangement very convenient, reduce operator's labour intensity; Be set to spring by bracing or strutting arrangement, can carry out real-time adjustment by the elastic force of spring, and then simplify the adjustment operation, reduced operator's labour intensity; Be set to rigid rod with slide block by bracing or strutting arrangement, and at the corresponding slide block in The Cloud Terrace bottom, chute is set, can make whole support in use, only just can realize adjusting by promoting slide block, the adjustment operation is simplified very much, the contrast prior art, this Novel camera support frame has advantages of that simple in structure, easy to use, agravic skew, photographic quality are good.

Description of drawings

Fig. 1 is the structural representation of embodiment one described Novel camera support frame;

Fig. 2 is the structural representation of embodiment two described Novel camera support frames;

Fig. 3 is the structural representation of embodiment three described Novel camera support frames;

Fig. 4 be in Fig. 3 A to schematic diagram;

Fig. 5 be in Fig. 3 B to schematic diagram;

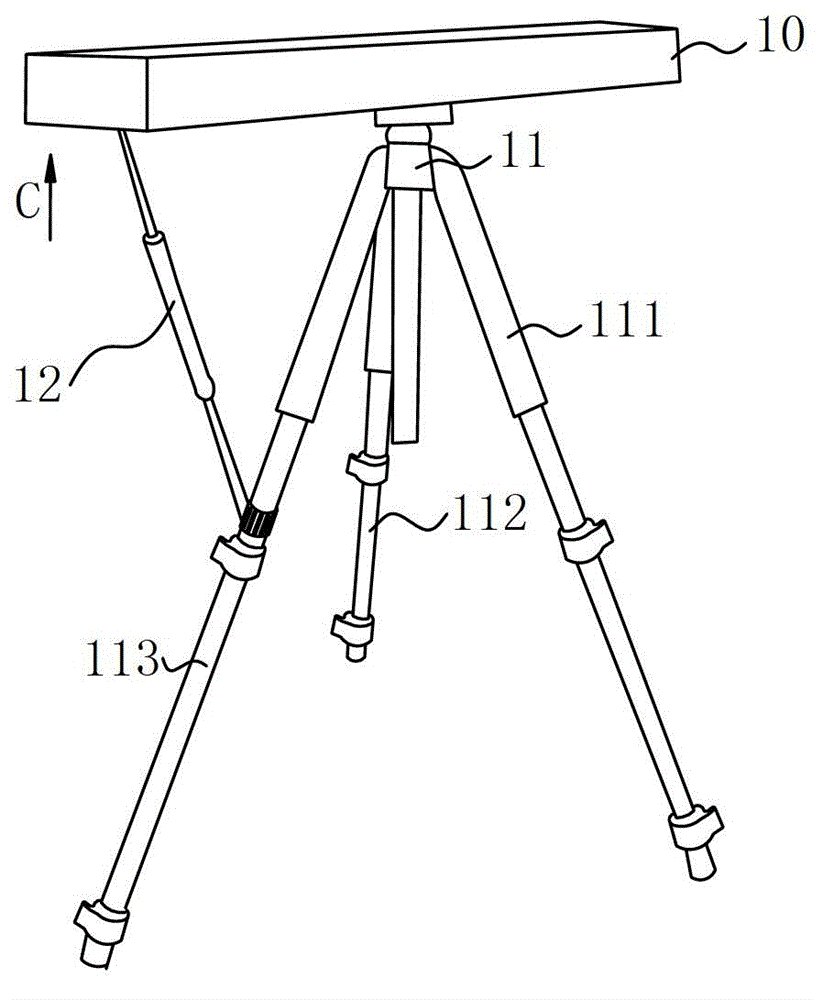

Fig. 6 is the structural representation of embodiment four described Novel camera support frames;

Fig. 7 be in Fig. 6 C to partial schematic diagram;

Fig. 8 is that the D of Fig. 7 is to partial schematic diagram;

Fig. 9 is the structural representation of bracing or strutting arrangement in Fig. 6;

Figure 10 is the structural representation of first body of rod in Fig. 9.

In Fig. 1:

1, The Cloud Terrace; 2, foot rest; 21, the first leg; 22, the second leg; 23, the 3rd leg; 3, bracing or strutting arrangement; 31, two-way bolt; 32, link; 33, hook.

In Fig. 2:

4, The Cloud Terrace; 5, foot rest; 51, the first leg; 52, the second leg; 53, the 3rd leg; 6, bracing or strutting arrangement; 61, spring; 62, the first hook; 63, the first link; 64, the second link; 65, the second hook.

In Fig. 3 to 5:

7, The Cloud Terrace; 71, chute; 8, foot rest; 81, the first leg; 82, the second leg; 83, the 3rd leg; 831, leg jack; 9, bracing or strutting arrangement; 91, rigid rod; 92, slide block.

In Fig. 6 to 10:

10, The Cloud Terrace;

11, foot rest; 111, the first leg; 112, the second leg; 113, the 3rd leg;

12, bracing or strutting arrangement; 121, support tube; 122, first body of rod; 123, second body of rod; 124, The Cloud Terrace coupler body; 125, the first bolt; 126, the first support; 127, abutment ring; 128, the second support; 129, the second bolt.

Embodiment

Embodiment one:

As shown in Figure 1, the Novel camera support frame described in this embodiment comprises the foot rest 2 that The Cloud Terrace 1 and The Cloud Terrace 1 bottom centre arranges, and is provided for preventing the bracing or strutting arrangement 3 of The Cloud Terrace 1 inclination between the left end of The Cloud Terrace 1 bottom and foot rest 2.

In embodiment own, leg 2 is A-frame, and it comprises the first leg 21, the second leg 22 and the 3rd leg 23.

Bracing or strutting arrangement 3 comprises two-way bolt 31, two-way bolt 31 comprises first end and the second end, first end is provided with hook portion, the second end is provided with link section, corresponding hook portion arranges link 32 in The Cloud Terrace 1 left end bottom, correspondence link section arranges hook 33 on the 3rd leg 23, link up with the middle part that 33 ends are movably articulated in the 3rd leg 23.

Embodiment two:

As shown in Figure 2, the Novel camera support frame described in this embodiment comprises the foot rest 5 that The Cloud Terrace 4 and The Cloud Terrace 4 bottom centre arrange, and is provided for preventing the bracing or strutting arrangement 6 of The Cloud Terrace 4 inclinations between the left end of The Cloud Terrace 4 bottoms and foot rest 5.

In embodiment own, leg 5 is A-frame, and it comprises the first leg 51, the second leg 52 and the 3rd leg 53.

Bracing or strutting arrangement 6 comprises spring 61, spring 61 comprises first end and the second end, first end is fixedly installed the first hook 62, the second end is fixedly installed the first link 63, corresponding the first hook 62 arranges the second link 64 bottom The Cloud Terrace 4 left ends, corresponding the first link 63 arranges the second hook 65, the second and links up with the middle part that 65 ends are movably articulated in the 3rd leg 53 on the 3rd leg 53.

Embodiment three:

As shown in Fig. 3 to 5, the Novel camera support frame described in this embodiment comprises the foot rest 8 that The Cloud Terrace 7 and The Cloud Terrace 7 bottom centre arrange, and is provided for preventing the bracing or strutting arrangement 9 of The Cloud Terrace 7 inclinations between the left end of The Cloud Terrace 7 bottoms and foot rest 8.

In embodiment own, leg 8 is A-frame, and it comprises the first leg 81, the second leg 82 and the 3rd leg 83, and the first leg 81, the second leg 82 and the 3rd leg 83 are telescopic leg.

Bracing or strutting arrangement 9 comprises rigid rod 91, and the end that rigid rod 91 contacts with The Cloud Terrace 7 is movably hinged slide block 92, and corresponding slide block 92 arranges chute 71 in The Cloud Terrace 7 bottom left, and rigid rod 91 is plugged on the middle part of the 3rd leg 83 away from an end of The Cloud Terrace 7.

Be provided at the 3rd leg 83 middle parts the pegging graft leg jack 831 of rigid rod 91 is so that the end of rigid rod 91 can be plugged on the 3rd leg 83 in activity.

Chute 71 is T-shaped chute, and groove insied width and the slide block 92 of chute 71 are complementary, and the width of rebate of chute 71 is less than the size of slide block 92, and greater than the size of rigid rod 91.

The cross section of rigid rod 91 is rounded.

Embodiment four:

As shown in Fig. 6 to 10, the Novel camera support frame described in this embodiment comprises the foot rest 11 that The Cloud Terrace 10 and The Cloud Terrace 10 bottom centre arrange, and is provided for preventing the bracing or strutting arrangement 12 of The Cloud Terrace 10 inclinations between the left end of The Cloud Terrace 10 bottoms and foot rest 11.

In embodiment own, leg 11 is A-frame, and it comprises the first leg 111, the second leg 112 and the 3rd leg 113, and the first leg 111, the second leg 112 and the 3rd leg 113 are telescopic leg.

bracing or strutting arrangement 12 comprise support tube 121 with and two ends detachable first body of rod 122 and second body of rod 123 that arrange, first body of rod 122 arranges The Cloud Terrace coupler body 124 away from an end of support tube 121, The Cloud Terrace 10 1 ends have been bolted the second support 128, The Cloud Terrace coupler body 124 is movably arranged on the second support 128 inside by the second bolt 129, second body of rod 123 arranges the first support 126 away from an end of support tube 121, the first support 126 is movably arranged on the end of second body of rod 123 by the first bolt 125, the first support 126 is fixedly installed for connecting the 3rd leg 113 abutment rings 127 away from an end of second body of rod 123.In the present embodiment, the external diameter of the internal diameter of abutment ring 127 and the 3rd leg 113 is complementary, so that abutment ring 127 can be socketed in the periphery of the 3rd leg 113.

first body of rod 122 extends in support tube 121 near an end of support tube 121, and on first body of rod 122, the first screw thread is set, the second screw thread that is complementary at the interior setting of support tube 121 and the first screw thread, second body of rod 123 extends in support tube 121 near an end of support tube 121, and on second body of rod 123, the 3rd screw thread is set, the 4th screw thread that is complementary at the interior setting of support tube 121 and the 3rd screw thread, and it is opposite with the rotation direction of the 3rd screw thread to state the first screw thread, the second screw thread is opposite with the rotation direction of the 4th screw thread, so that support tube 121 when rotated first body of rod 122 and second body of rod 123 can be simultaneously near or away from support tube 121.

Know-why of the present utility model has below been described in conjunction with specific embodiments.These are described just in order to explain principle of the present utility model, and can not be interpreted as by any way the restriction to the utility model protection domain.Based on explanation herein, those skilled in the art does not need to pay performing creative labour can associate other embodiment of the present utility model, within these modes all will fall into protection domain of the present utility model.

Claims

1. a novel camera support, comprising the tripod that the center of the cloud platform and the bottom of the platform is provided with, it is characterized in that, one end or both ends of the bottom of the platform and the tripod are provided with a bracket for preventing the tilt of the platform support device.

2. The novel camera support according to claim 1, wherein the supporting device comprises a two-way bolt, the two-way bolt comprises a first end and a second end, the first end is provided with a hook portion, and the The second end is provided with a hanging ring part, corresponding to the hook part, a hanging ring is provided at the end of the platform, and corresponding to the hanging ring part, a hook is provided on the tripod.

3. The novel camera support according to claim 2, wherein the tripod comprises a first leg, a second leg and a third leg, and is movable on the first leg or the second leg or the third leg Hinge the hook.

4. The novel camera support according to claim 1, wherein the support device comprises a spring, the spring comprises a first end and a second end, the first end is fixedly provided with a first hook, and the A first hanging ring is fixedly arranged at the second end, a second hanging ring is arranged at the end of the pan-tilt corresponding to the first hook, and a second hook is arranged on the tripod corresponding to the first hanging ring.

5. The novel camera support according to claim 4, wherein the tripod comprises a first leg, a second leg and a third leg, and the first leg or the second leg or the third leg is hinged the second hook.

6. The novel camera support according to claim 1, wherein the supporting device comprises a rigid rod, and one end of the rigid rod in contact with the cloud platform is articulated with a sliding block, corresponding to the sliding block on the cloud platform. A chute is arranged at the bottom, and the end of the rigid rod away from the platform is movably connected to the middle part of the tripod.

7. The novel camera support according to claim 6, wherein the tripod includes a first leg, a second leg and a third leg, and the first leg or the second leg or the third leg is provided with a The foot socket of the rigid rod is plugged in so that the end of the rigid rod can be movably inserted into the leg.

8. The new camera bracket according to claim 1, wherein the support device comprises a support cylinder and a first rod body and a second rod body detachably arranged at both ends thereof, and the first rod body is far away from the support cylinder One end of the pan-tilt is provided with a hook body, and one end of the pan-tilt is detachably provided with a second bracket, and the pan-tilt hook is movably arranged inside the second bracket through a second bolt, and the second rod is far away from the support cylinder One end of the first bracket is provided with a first bracket, and the first bracket is movably arranged at the end of the second rod body through a first bolt, and the end of the first bracket away from the second rod body is fixedly arranged for connecting the tripod connection ring.

9. The novel camera support according to claim 8, wherein the tripod comprises a first leg, a second leg and a third leg, and the inner diameter of the connecting ring is the same as that of the first leg or the second leg. Or the outer diameters of the third legs match, so that the connecting ring can be sleeved on the periphery of the legs.

10. The new camera bracket according to claim 8 or 9, wherein the end of the first rod close to the support cylinder extends into the support cylinder, and the first rod is provided with a first thread , a second thread matching the first thread is provided in the support cylinder, the end of the second rod close to the support cylinder extends into the support cylinder, and the second rod is provided with a first Three threads, a fourth thread matched with the third thread is set in the support cylinder, and the first thread and the third thread are opposite in direction, and the second thread is opposite to the fourth thread. The direction of rotation of the threads is opposite, so that the first rod body and the second rod body can approach or move away from the support cylinder at the same time when the support cylinder rotates.
