CN202992863U - Multi-head movable floor lamp - Google Patents

Abstract

The utility model discloses a multi-head movable floor lamp, which comprises two hollow lamp poles arranged on both sides of a sofa, a lamp holder, a bulb, a lamp holder, a plug and a power cord, and the power cord passes through the lamp pole and One end is connected to the plug, and the other end is connected to the light bulb; the light pole is arranged on the lamp holder, the light holder is detachably arranged on the top of the light pole, and the light bulb is arranged on the light holder On the other hand, a connection line is provided between the two light poles, and the light stand can be erected on the connection line to meet the lighting requirements of different positions on the sofa. The utility model combines adjustable and movable multiple light sources with the vertical floor lamp, allowing users to independently adjust the partition interval according to the required interval and position, so as to meet the lighting requirements of different positions.

Description

Multi head movable floor lamp

technical field

The utility model relates to a multi-head movable floor lamp.

Background technique

Now the floor lamps are rich in variety and novel in style, but most of them are designed with a single light source fixed in one place. This results in the floor lamp next to the sofa in the living room, which can only be used in a very narrow area by nearby users. The domestic sofa is basically a long sofa for 2-3 people, which makes the traditional floor lamp unable to meet the lighting needs of different seats.

Contents of the invention

In order to overcome the problem that existing floor lamps cannot meet the needs of different positions on the sofa for light sources, the utility model provides a multi-head movable floor lamp.

The technical scheme that the utility model adopts is:

The multi-head movable floor lamp includes two hollow light poles arranged on both sides of the sofa, a lamp holder, a light bulb, a light stand, a plug and a power cord, the power cord passes through the light pole and one end is connected to the plug, The other end is connected to the light bulb; the light pole is set on the lamp holder, and it is characterized in that: the light frame is detachably set on the top of the light pole, and the light bulb is set on the light frame. A connection line is provided between the two light poles, and the light stand can be erected on the connection line to meet the lighting requirements of different positions on the sofa.

Further, the lamp holder is configured as a tree branch structure, and multiple light bulbs can be installed on the lamp holder of the tree branch structure.

Further, the middle part of the light pole is provided with a socket for placing the lamp holder, and the lamp holder is detachably arranged in the socket.

Further, the lamp holder adopts a tripod structure.

The light frame of the utility model with a tree branch structure is stuck on the connecting line, and can move back and forth on the connecting line to adjust the position at will, which increases flexibility and allows the user to solve the problem of sitting on the sofa in time no matter which position the user is on. The problem of uneven light reception caused by different positions on the sofa, no longer need to worry about the weak light. The lamp base adopts a tripod bracket to strengthen the stability of the floor lamp.

The beneficial effect of the utility model is reflected in that: the combination of adjustable and movable multiple light sources and the vertical floor lamp allows the user to independently adjust the partition interval according to the required interval and position, so as to meet the lighting requirements of different positions.

Description of drawings

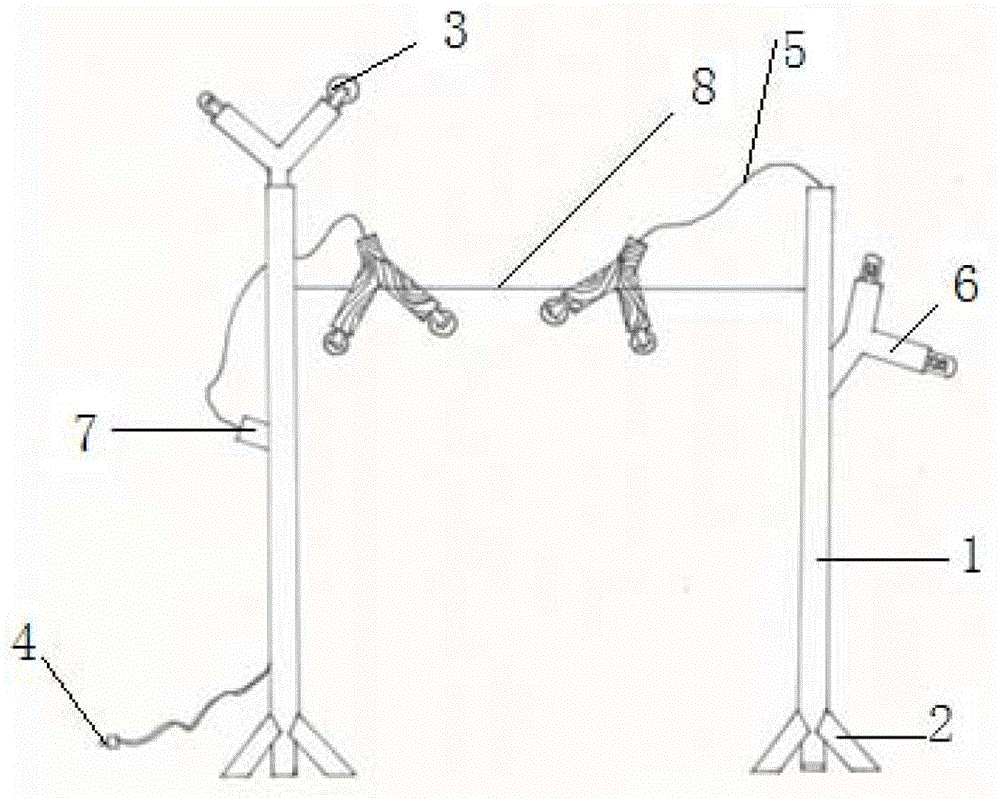

Fig. 1 is a schematic diagram of the overall structure of the utility model.

Detailed ways

Referring to Fig. 1 , the multi-head movable floor lamp includes two hollow light poles 1, a lamp holder 2, a light bulb 3, a lamp holder 6, a plug 4 and a power cord 5 arranged on both sides of the sofa, and the power cord 5 passes through the The light pole 1 is connected to the plug 4 at one end and the light bulb 3 at the other end; the light pole 1 is arranged on the lamp holder 2, and the light holder 6 is detachably arranged on the light pole 1 At the top, the light bulb 3 is arranged on the light frame 6, and a connection line 8 is provided between the two light poles 1, and the light frame 6 can be erected on the connection line 8 to realize alignment between different positions on the sofa. lighting needs.

Further, the lamp holder 6 is configured as a tree branch structure, and multiple light bulbs 3 can be installed on the lamp holder 6 of the tree branch structure.

Further, the middle part of the light pole 1 is provided with a socket 7 where the lamp holder can be placed, and the lamp holder 1 is detachably arranged in the socket 7 .

Further, the lamp holder 2 adopts a tripod structure.

The light frame 1 of the tree branch structure of the utility model is stuck on the connecting line 8, and can move back and forth on the connecting line 8 to adjust the position at will, increasing flexibility, so that the user can be in time no matter which position on the sofa. Solve the problem of uneven light reception caused by sitting in different positions on the sofa, no need to worry about weak light anymore. And the lamp holder 2 adopts the triangle bracket type to strengthen the stability of the floor lamp.

The content described in the embodiments of this specification is only an enumeration of the implementation forms of the inventive concept, and the protection scope of the present utility model should not be regarded as limited to the specific forms stated in the embodiments, and the protection scope of the present utility model also extends to this invention. Equivalent technical means that those skilled in the art can think of according to the concept of the utility model.

Claims (4)

1. the removable floor lamp of bull comprises lamp stand, lamp socket, bulb, lamp bracket, plug and the power line of two hollows that are located at sofa both sides, and described power line passes described lamp stand and an end is connected with described plug, and the other end connects described bulb; Described lamp stand is arranged on described lamp socket, it is characterized in that: described lamp bracket removably is located at described lamp stand top, described bulb is located on described lamp bracket, be provided with a connecting line between two described lamp stands, described lamp bracket can be set up in and realize the demand of diverse location to illumination on sofa on described connecting line.

2. the removable floor lamp of bull as claimed in claim 1, it is characterized in that: described lamp bracket is made as the fork-shaped structure, on the lamp bracket of described fork-shaped structure, a plurality of bulbs can be installed.

3. the removable floor lamp of bull as claimed in claim 2 is characterized in that: described lamp stand middle part is provided with the jack that can place described lamp bracket and described lamp bracket is dismountable is located in described jack.

4. the removable floor lamp of bull as claimed in claim 3, is characterized in that: described lamp socket employing triangle support type structure.
