Abstract
The utility model provides a rotating horizontal protection tool for a climbing scaffold. The rotating horizontal protection tool comprises a climbing scaffold, wherein adjustable supports are sheathed on an inner row of upright posts of the climbing scaffold, the adjustable supports are connected through drawknot steel stranded wires, hanging hooks are arranged at the two ends of the drawknot steel stranded wires, and the hanging hooks are connected with the climbing scaffold to form a protective net. The rotating horizontal protection tool provided by the utility model has the advantages of simplicity in manufacturing, repeated turnover and utilization, strong applicability and high efficacy; and the fire resistance of the tool is better than that of a traditional wood reprint or a blanket net, and the rotating horizontal protection tool is energy-saving and environment-friendly.
Description
Technical field
The utility model relates to technical field of buildings, is specifically related to the attaching climbing scaffold.
Background technology
Along with the builing industry fast development, various forms of high levels, super highrise building get more and more.In the construction of highrise building outrigger, from use double, builder's jack so that develop into hanger and all kinds of outrigger construction equipments of climbing type scaffold (abbreviation climbing frame), climbing type scaffold is because of its less investment, the characteristics such as easy to use, simple to operate, practical, make it more and more be subject to the attention of unit in charge of construction and general employing, and classified as one of ten emphasis disseminate technologies by the Ministry of Construction.
Climbing type scaffold mainly is comprised of framework, support body bottom truss, support body framework, attached support structure, falling proof device, jacking equipment etc.Its operating principle is first to be fixed on architecturally with travelling carriage, and fixed mount is unclamped, and then fixed mount is fixed on building with fixed mount toward rising, and travelling carriage is attached on fixed mount toward rising, and rises successively, fixing.
But the popularization along with high-building construction outer climbing frame technique, while is along with increasingly sophisticated, the diversification of facade shape-designing, this has just increased, and climbing frame is three-dimensional, difficulty and the risk of horizontal protective, and the standardization of protection form, tool, operability, economy have been the extremely urgent research topics of construction enterprises.
The utility model content
The utility model provides a kind of rotation horizontal protective instrument of climbing type scaffold for Problems Existing, realizes variable netted horizontal protective instrument how much, has guaranteed the construction safety of climbing type scaffold, and improves efficiency of construction.
The technical solution of the utility model is:
A kind of rotation horizontal protective instrument of climbing type scaffold, comprise climbing type scaffold, be arranged with adjustable support in interior row's vertical rod of described climbing type scaffold, connect by the drawknot steel strand between described adjustable support, the two ends of described drawknot steel strand are provided with hook, and described hook and climbing type scaffold are connected to form protective screening.
Described adjustable support is comprised of horizontal support and vertical telescoping tube, and described horizontal support is heavily being faced 180 degree angle rotations directly around vertical telescoping tube, and the both sides of horizontal support are provided with the link for interspersed drawknot steel strand.
Be provided with diagonal brace between described horizontal support and vertical telescoping tube.
The climbing type scaffold assembled height is generally 7.5 step framves high (step 1.8m), consider form removal and top work layer personal security, adjustable support should be set up to the 3rd step and the 6th step during frame at support body, and extremely in interior row's vertical rod, horizontal support rod height can be according to on-the-spot needs adjustment for cover.According to the vertical rod longitudinal pitch, select the drawknot steel strand of equivalent length again, link drawknot horizontal support rod with the hook at its two ends.And floor height high according to frame adjusted adjustable support sleeve pipe height, and the lower end utilizes fastener to be fixed on interior row's standpipe according to height requirement, and antiskid moves positioning supporting point use as adjustable support.When promoting climbing type scaffold, utilize the end rope, with the adjustable support 90-degree rotation, press close to support body, in case obstacle scratch support body is arranged, treat that support body gets over overhanging component, then adjustable support is utilized drawknot steel strand drawknot, not only handled easily but also save time.After climbing type scaffold promotes and to put in place, with the adjustable support pull-up, make horizontal support bar become 90 to spend with support body, horizontal drawknot steel strand and then form horizontal protective net between support body and building.Same facade support body two ends utilize fixedly both ends adjustable support of rope or steel pipe, in case the horizontal protective net rotational deformation that forms.
The utlity model has following beneficial effect:
1, utility model is made simply, can repeat turnover utilization, and long-term economic is effective, and applicability is strong, effect is high.
2, the protective screening that forms of utility model is compared with conventional turnover panel, and support body up and down perspectivity is good, can effectively avoid up and down square crossing operation, occur in case object strike accident occurs, and its to have a protection deadweight little, and fragile, maintenance cost is not low.
3, before support body promotes, adjust interlayer adjustable support angle, make that between support body and building, horizontal protective net tightens up, keep the 200mm spacing with building, can guarantee the continuity that climbing frame protects like this in lifting process, avoid protection vacuum stages to occur.
4, adjustable support and level connection joint steel strand are steel material, and are better than conventional wooden reprint or blanket net fireproof performance, energy-conserving and environment-protective.
Description of drawings
The utility model is described in further detail below in conjunction with the drawings and specific embodiments.
Fig. 1 is the structural representation of adjustable support in the utility model.
Fig. 2 is the structural representation of drawknot steel strand in the utility model.

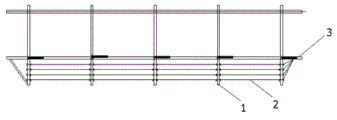

Fig. 3 is that the utility model is arranged on the first situation schematic diagram on climbing type scaffold.
Fig. 4 is that the utility model is arranged on the second situation schematic diagram on climbing type scaffold.
In figure, 1-adjustable support, 11-horizontal support, the vertical telescoping tube of 12-, 13-diagonal brace, 14-link, 2-drawknot steel strand, 3-climbing type scaffold, 4-hook.
The specific embodiment
As shown in Figure 1, adjustable support 1 is comprised of horizontal support 11 and vertical telescoping tube 12, described horizontal support 11 is heavily being faced 180 degree angle rotations directly around vertical telescoping tube 12, the both sides of horizontal support 11 are provided with the link 14 for interspersed drawknot steel strand, are provided with diagonal brace 13 between horizontal support 11 and vertical telescoping tube 12.
As shown in Figure 2, drawknot steel strand 2 two ends are provided with hook 4.
As shown in Figure 3, a kind of rotation horizontal protective instrument of climbing type scaffold comprises climbing type scaffold 3, is arranged with adjustable support 1 in interior row's vertical rod of described climbing type scaffold 3, connects by drawknot steel strand 2 between described adjustable support 1.
After climbing type scaffold promotes and puts in place, with the adjustable support pull-up, make its horizontal support bar become 90 degree with climbing type scaffold, the drawknot steel strand of connection are horizontal, form horizontal protective net between climbing type scaffold and building.The support body two ends of same facade utilize the fixedly adjustable support at both ends of rope or steel pipe, in case the horizontal protective net rotational deformation that forms.
As shown in Figure 4, a kind of rotation horizontal protective instrument of climbing type scaffold comprises climbing type scaffold 3, is arranged with adjustable support 1 in interior row's vertical rod of described climbing type scaffold 3, connects by drawknot steel strand 2 between described adjustable support 1.
When promoting climbing type scaffold, the frame member of encorbelmenting as outstanding in building can be extractd these position drawknot steel strand, adjustable support is rotated to the support body of climbing type scaffold, treat that it gets over overhanging component, then adjustable support is utilized drawknot steel strand drawknot, not only handled easily but also save time.
Above-described embodiment is not limited only to protection domain of the present utility model, and all are based on basic thought of the present utility model and all belonging in protection domain of the present utility model of modifying or change.
Claims (3)
1. the rotation horizontal protective instrument of a climbing type scaffold, it is characterized in that: comprise climbing type scaffold, be arranged with adjustable support in interior row's vertical rod of described climbing type scaffold, connect by the drawknot steel strand between described adjustable support, the two ends of described drawknot steel strand are provided with hook, and described hook and climbing type scaffold are connected to form protective screening.
2. the rotation horizontal protective instrument of a kind of climbing type scaffold according to claim 1 is characterized in that: described adjustable support is comprised of horizontal support and vertical telescoping tube, and described horizontal support rotates heavily facing 180 degree angles directly around vertical telescoping tube; The both sides of horizontal support are provided with the link for interspersed drawknot steel strand.
3. the rotation horizontal protective instrument of a kind of climbing type scaffold according to claim 2, is characterized in that: be provided with diagonal brace between described horizontal support and vertical telescoping tube.
