Abstract

The utility model discloses a domestic wastewater recycling system which comprises water outlet pipes, water inlet pipes, wastewater storage tanks, domestic wastewater collection tanks, a rainwater collection tank and control valves, wherein the rainwater collection tank is arranged at the top floor of a building; the bottom of the rainwater collection tank is connected with the wastewater storage tank at the top floor through a pipe; the bottom of the wastewater storage tank at the top floor is connected with the wastewater storage tank at the lower floor through a pipe; the wastewater storage tank at each floor is connected with a water inlet pipe through a pipe; water inlet control valves are arranged between the wastewater storage tanks and the water inlet pipes; a toilet and a domestic wastewater collection tank are arranged at each floor of the building; the domestic wastewater collection tank at each floor is connected with the domestic wastewater collection tank at the lower floor through a pipe; the domestic wastewater collection tank at each floor is connected with the toilet at the floor through a pipe; and the bottom of the toilets are connected with the water outlet pipes through pipes. According to the domestic wastewater recycling system, the domestically discharged wastewater which is less polluted can be discharged after recycle, so that the utilization rate of the wastewater can be greatly improved, the unnecessary waste can be avoided and then water resource can be greatly saved.

Description

Domestic sewage recycling system
Technical field
The utility model relates to field of waste water treatment, particularly the one way of life reuse system.
Background technology
In life, a lot of waste water can utilize again, if with its direct discharging, can cause very large waste, if with its collection, and process, cost again can be too high, discharge again after utilization if therefore it can be collected again, can greatly improve the utilization rate of waste water, avoid unnecessary waste, therefore saving water resource meets present life to green, environmental protection, energy-conservation requirement.
The utility model content
for above problem, the utility model is by design one way of life reuse system, it can be to discharging again after in life, sewage of reduced contamination utilizes again, therefore can greatly improve the utilization rate of waste water, avoid unnecessary waste, the utility model provides the one way of life reuse system, Domestic sewage recycling system comprises outlet pipe, water inlet pipe, wastewater tank, the household waste water collecting pond, rainwater-collecting pond and by-pass valve control, described Domestic sewage recycling system is arranged in building, described building top layer rain collecting pit, bottom, described rainwater-collecting pond has pipeline to be connected with the top layer wastewater tank, described top layer wastewater tank bottom has pipeline to be connected with the lower floor wastewater tank, described wastewater tank from the rainwater-collecting pond or the inlet channel of upper strata wastewater tank water inlet the first valve is arranged, described wastewater tank water outlet has the 3rd valve to the outlet conduit of lower floor's wastewater tank, described wastewater tank has second valve with corresponding wastewater tank water outlet between the outlet conduit of lower floor's wastewater tank from the inlet channel of rainwater-collecting pond and the water inlet of upper strata wastewater tank, described every layer of wastewater tank is connected with water inlet pipe by pipeline, the water inlet control valve door is arranged between described wastewater tank and water inlet pipe, every layer, described building has lavatory and household waste water collecting pond, described every layer of household waste water collecting pond is connected with the lower floor wastewater tank by pipeline, described every layer of wastewater tank has pipeline to be connected with this layer lavatory, between described every layer of wastewater tank lavatory connecting pipe and wastewater tank water inlet pipe connecting pipe, the valve of connection is arranged, bottom, described lavatory has pipeline to be connected with outlet pipe.
As further improvement of the utility model, described wastewater tank top has overflow pipe to be connected with outlet pipe, can flow in outlet pipe by overflow pipe when wastewater tank water is many by overflow pipe is set, to prevent dilutional hyponatremia in the water case.
The utility model is the one way of life reuse system, this system is arranged between each floor, can make sewage recycle, can automatically use living water use to carry out supply by water inlet pipe in the time can utilizing sewage to use not, in addition its each floor by valve switch separate carrying out, therefore can not affect other floor waters, it can also directly use living water use in addition, therefore can not make troubles to life not because of the water yield.
Description of drawings

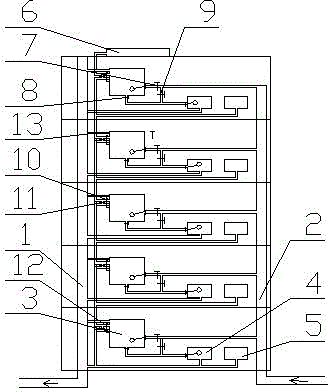

Fig. 1 is the utility model schematic diagram;
Member in figure is:
1, outlet pipe; 2, water inlet pipe; 3, wastewater tank;
4, lavatory; 5, household waste water collecting pond; 6, rainwater-collecting pond;
7, water inlet control valve door; 8, wastewater effluent by-pass valve control; 9, connect valve;
10, the first valve; 11, the second valve; 12, the 3rd valve;
13, overflow pipe.
The specific embodiment
Below in conjunction with drawings and Examples, utility model is described in detail:
The utility model is by design one way of life reuse system, and therefore it can improve the utilization rate of waste water greatly to discharging again after in life, sewage of reduced contamination utilizes again, avoids unnecessary waste.
as a kind of specific embodiment of the utility model, the utility model provides structural representation such as Fig. 1 Domestic sewage recycling system, comprise outlet pipe 1, water inlet pipe 2, wastewater tank 3, household waste water collecting pond 5, rainwater-collecting pond 6 and by-pass valve control, described Domestic sewage recycling system is arranged in building, described building top layer rain collecting pit 6, 6 bottoms, described rainwater-collecting pond have pipeline to be connected with top layer wastewater tank 3, described top layer wastewater tank 3 bottoms have pipeline to be connected with lower floor wastewater tank 3, described wastewater tank 3 from rainwater-collecting pond 6 or the inlet channel of upper strata wastewater tank 3 water inlet the first valve 10 is arranged to control wastewater tank 3 water inlets, described wastewater tank 3 water outlets have the 3rd valve 12 to control wastewater tank 3 water outlets to the outlet conduit of lower floor's wastewater tank 3, described wastewater tank 3 from the inlet channel of rainwater-collecting pond 6 and upper strata wastewater tank 3 water inlets with corresponding wastewater tank 3 water outlets to the second valve 11 is arranged between the outlet conduit of lower floor's wastewater tank 3, when the interior dilutional hyponatremia of wastewater tank 3 can be closed the first valve 10 and the second valve 11 makes waste water directly flow out without wastewater tank 3, described every layer of wastewater tank 3 is connected with water inlet pipe 2 by pipeline, between described wastewater tank 3 and water inlet pipe 2, water inlet control valve door 7 is arranged, every layer, described building has lavatory 4 and household waste water collecting pond 5, described every layer of household waste water collecting pond 5 is connected with lower floor wastewater tank 3 by pipeline, described every layer of wastewater tank 3 has pipeline to be connected with this layer lavatory 4, between described every layer of wastewater tank 3 lavatory 4 connecting pipes and wastewater tank 3 water inlet pipe 2 connecting pipes, the valve of connection 9 is arranged, can open not when waste water and connect the directly water of use water inlet pipe 2 of valve 9, 4 bottoms, described lavatory have pipeline to be connected with outlet pipe 1, described wastewater tank 3 tops have overflow pipe 13 to be connected with outlet pipe 1, by being set, overflow pipe 13 can flow in outlet pipe 1 by overflow pipe 13 when wastewater tank 3 water are many, to prevent dilutional hyponatremia in the water case.
The above; it is only preferred embodiment of the present utility model; be not to be the utility model to be done the restriction of any other form, and according to any modification or equivalent variations that technical spirit of the present utility model is done, still belong to the utility model scope required for protection.

Claims (2)

1. Domestic sewage recycling system, comprise outlet pipe (1), water inlet pipe (2), wastewater tank (3), household waste water collecting pond (5), rainwater-collecting pond (6) and by-pass valve control, described Domestic sewage recycling system is arranged in building, it is characterized in that: described building top layer rain collecting pit (6), bottom, described rainwater-collecting pond (6) has pipeline to be connected with top layer wastewater tank (3), described top layer wastewater tank (3) bottom has pipeline to be connected with lower floor's wastewater tank (3), described wastewater tank (3) from rainwater-collecting pond (6) or the inlet channel of upper strata wastewater tank (3) water inlet the first valve (10) is arranged, described wastewater tank (3) water outlet has the 3rd valve (12) to the outlet conduit of lower floor's wastewater tank (3), described wastewater tank (3) from the inlet channel of rainwater-collecting pond (6) and upper strata wastewater tank (3) water inlet with corresponding wastewater tank (3) water outlet to the second valve (11) is arranged between the outlet conduit of lower floor's wastewater tank (3), described every layer of wastewater tank (3) is connected with water inlet pipe (2) by pipeline, between described wastewater tank (3) and water inlet pipe (2), water inlet control valve door (7) is arranged, every layer, described building has lavatory (4) and household waste water collecting pond (5), described every layer of household waste water collecting pond (5) is connected with lower floor's wastewater tank (3) by pipeline, described every layer of wastewater tank (3) has pipeline to be connected with this layer lavatory (4), between described every layer of wastewater tank (3) lavatory (4) connecting pipe and wastewater tank (3) water inlet pipe (2) connecting pipe, the valve of connection (9) is arranged, bottom, described lavatory (4) has pipeline to be connected with outlet pipe (1).
2. Domestic sewage recycling system according to claim 1 is characterized in that: described wastewater tank (3) top has overflow pipe (13) to be connected with outlet pipe (1).
