Abstract

This utility model discloses an automatic mold palletizing machine, relating to the field of transportation or storage device technology. It includes a lifting assembly, a lifting and traveling power output unit, an electrical cabinet, an operator's cab, and a traveling track and support assembly. The lifting assembly is located above the traveling track and support assembly. The electrical cabinet controls the lifting and traveling power output unit to output power, and the lifting and traveling power output unit controls the movement of the lifting assembly. The electrical cabinet is located to the right of the traveling track and support assembly, and the operator's cab is located to the left of the traveling track and support assembly. This automatic palletizing machine lifts two molds at a time, doubling its work efficiency. The cylinder drives the hook opening and closing, eliminating the need for manual intervention. The entire process—lifting the mold, moving it to the curing pit, lowering the mold, and opening the hook—is fully automated, requiring no human intervention and significantly improving production efficiency.

Description

A mold automatic palletizer

technical field

The utility model relates to the technical field of transportation or storage devices, in particular to an automatic mold palletizer.

Background technique

At present, the hoisting of short molds in the domestic market is mainly realized by manually operating the crane. The hoisting of the crane is simple in the form of a hook. Manual hooking and unhooking are required, and only one mold can be palletized at a time, which is low in efficiency. In the past stacking operation of the crane used in the form of a tunnel curing kiln, after hoisting and stacking the molds, the whole stack (stacked by several molds) is pushed into the kiln by the pushing device. When leaving the kiln, it is pulled out by the traction mechanism as a whole, and then removed from the stack by a simple spreader for demoulding. With the extensive use of tunnel-type maintenance work, more and more production lines adopt pit-type maintenance. The original hoisting method cannot meet the current requirements. The specific disadvantage is that the efficiency is too low, and the operator cannot enter the pit to remove the hook. wait.

Utility model content

The technical problem to be solved by the utility model is to provide an automatic mold palletizer, which has the advantages of high working efficiency without manual operation of hooks and unhooks.

In order to solve the above technical problems, the technical solution adopted by the utility model is: an automatic mold palletizer, which is characterized in that it includes a spreader assembly, a lifting and walking power output unit, an electrical cabinet, an operating room, a walking track and a supporting assembly , the spreader assembly is located on the upper side of the walking track and support assembly, the electrical cabinet controls the output power of the lifting and traveling power output unit, and the lifting and traveling power output unit controls the movement of the spreader assembly, and the electrical cabinet is located on the The right side of the walking track and the supporting assembly, and the operating room is located on the left side of the walking track and supporting assembly.

The spreader assembly includes a hook, a driving cylinder, a front and rear hook synchronous movement shaft, a pull rod, a synchronous frame for synchronously rotating the left and right synchronous shafts, a mold guide, a steel wire rope connected with the lifting and traveling power output unit, and a lifting and traveling power output unit. The guide column connected to the output unit, the hooks are located on the front and rear sides of the frame, the two sets of hooks on the front side or the rear side are connected to the synchronous movement shaft of the front and rear hooks through a pull rod, and the driving cylinder and the pull rod Fixed connection, the left and right synchronous movement shafts are connected through the synchronous frame, the steel wire rope and the guide column are located on the four corners of the spreader frame, the mold guide is located on the outer edge of the frame, and the driving cylinder controlled by the electrical cabinet.

The lifting and walking power output unit includes a traveling reducer installation beam, a spanning main beam, a positioning guide assembly, a traveling reducer, a lifting power distribution mechanism, and a lifting reducer assembly. The traveling reducer installation beam is connected to the spanning The main beams are connected to form a frame structure, the travel reducer is fixed on the installation beam of the travel reducer, the lifting power distribution mechanism and the lifting reducer assembly are fixed on the spanning main beam, and the positioning guide The components are fixed on the outer side of the spanning main girder by bolts, and the travel reducer and the lifting reducer components are controlled by the electrical cabinet.

The beneficial effect produced by adopting the above technical solution is that: the automatic palletizer lifts two molds at a time, the work efficiency is doubled, and the cylinder drives the hook to open and close without manual intervention. Go to the maintenance pit, drop the mold, open the hook, the whole action is automatically controlled, no human intervention is required in the middle, the production efficiency is greatly improved, and it saves a crane for the user, reduces equipment costs, and has better promotion and Use foreground. the

Description of drawings

Below in conjunction with accompanying drawing and specific embodiment, the utility model is described in further detail.

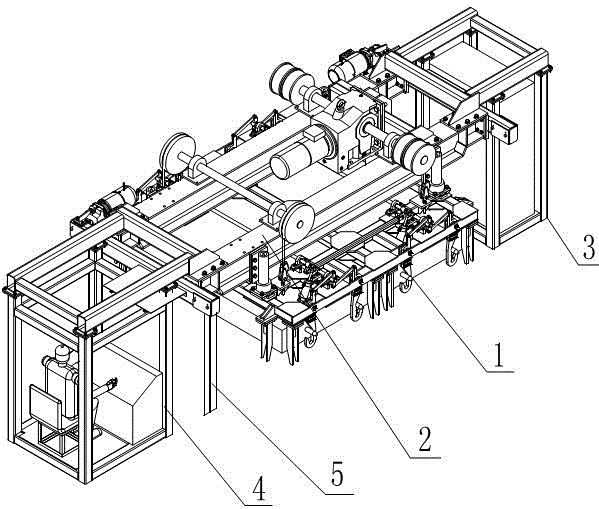

Fig. 1 is a structural representation of the utility model;

Fig. 2 is a schematic structural view of the spreader assembly in Fig. 1;

Fig. 3 is a schematic structural view of the lifting and traveling power output unit in Fig. 1;

Among them: 1. Spreader component 11, hook 12, driving cylinder 13, synchronous motion shaft 14, pull rod 15, synchronous frame 16, mold 17, mold guide 18, wire rope 19, guide column 2, lifting and walking power output unit 21 , Traveling reducer mounting beam 22, spanning main beam 23, positioning guide assembly 24, traveling reducer 25, lifting power distribution mechanism 26, lifting reducer assembly 3, electrical cabinet 4, operating room 5, traveling track and supporting components. the

Detailed ways

As shown in Figure 1. An automatic mold palletizer, comprising a spreader assembly 1, a lifting and traveling power output unit 2, an electrical cabinet 3, an operating room 4, and a traveling rail and support assembly 5. The spreader assembly 1 is located on the upper side of the walking track and support assembly 5, the electrical cabinet 3 controls the lifting and traveling power output unit 2 to output power, and the lifting and traveling power output unit 2 controls the movement of the spreader assembly 1. The electrical cabinet 3 is located on the right side of the walking track and supporting assembly 5 , and the operating room 4 is located on the left side of the walking track and supporting assembly 5 .

As shown in Figure 2, the hanger assembly can lift two molds at the same time, including a hook 11, a drive cylinder 12, a front and rear hook synchronous movement shaft 13, a pull rod 14, a synchronous frame 15 for synchronously rotating the left and right synchronous shafts, and a mould. Guide 17, a steel wire rope 18 connected with the lifting and walking power output unit and a guide post 19 connected with the lifting and walking power output unit. The hooks 11 are located on the front and rear sides of the frame, and the two sets of hooks 11 on the front or rear side are connected to the synchronous movement shaft 13 of the front and rear hooks through a pull rod 14, and the driving cylinder 12 is fixed to the pull rod 14 connection, the left and right two synchronous movement shafts 13 are connected through the synchronization frame 15, the steel wire rope 18 and the guide column 19 are located on the four corners of the spreader frame, and the mold guide 17 is located on the outer edge of the frame, The driving cylinder 12 is controlled by the electrical cabinet 3 .

As shown in FIG. 3 , the lifting and traveling power output unit 2 is used to control the left and right movement of the hook, and realize the control of the ascent, descent and horizontal movement of the mold by controlling the hanger assembly. It includes a traveling reducer mounting beam 21, a spanning main beam 22, a positioning guide assembly 23, a traveling reducer 24, a lifting power distribution mechanism 25, and a lifting reducer assembly 26. The traveling reducer installation beam 21 is connected with the crossing main beam 22 to form a frame structure, the traveling reducer 24 is fixed on the traveling reducer installing beam 21, the lifting power distribution mechanism 25 and the lifting The speed reducer assembly 26 is fixed on the described spanning main beam 22, and the positioning guide assembly 23 is fixed on the outer side of the spanning main beam 22 by bolts, and the walking speed reducer 24 and the lifting speed reducer assembly 26 are controlled by Controlled in the electrical cabinet 3.

The automatic palletizer lifts two molds each time, and the work efficiency is doubled. The cylinder drives the hook to open and close without manual intervention. The mold is hoisted, the mold is lifted, the mold is walked to the maintenance pit, the mold is dropped, and the hook is opened. , the whole action is automatically controlled, without human intervention in the middle, the production efficiency is greatly improved, and it saves a crane for the user, reduces the cost of equipment, and has a good prospect for promotion and use. the

In this paper, specific examples are used to illustrate the principle of the utility model and its implementation. The description of the above embodiments is only used to help understand the method of the utility model and its core idea. It should be pointed out that for those of ordinary skill in the art, some improvements and modifications can also be made to the utility model without departing from the principle of the utility model, and these improvements and modifications also fall within the protection scope of the claims of the utility model .
