CN202982393U - Wound contraction healing promoting patch - Google Patents

Abstract

The utility model discloses a wound tightening plaster for promoting healing, which comprises a dressing layer, a medical elastic air-permeable adhesive tape and a non-elastic self-adhesive tape. The air-permeable adhesive tape is provided with sticky feet, and a group of non-elastic self-adhesive tapes are fixed on the back of the medical elastic air-permeable adhesive tape. Air holes are arranged on the non-elastic self-adhesive tape. The utility model adopts the cooperative use of medical elastic air-permeable adhesive tape and non-elastic self-adhesive tape, which can not only tighten the wound, promote wound healing, but also increase the comfort of the patient when the wound is tightened. The medical elastic air-permeable adhesive tape is the muscle around the wound. The movement of the wound provides a buffer space, and the non-elastic self-adhesive tape can limit the movement of the muscles on both sides of the wound within a certain range, ensuring that the wound will not burst easily. The entire wound tightening and healing patch has a good ventilation design, which can reduce the damage of the adhesive tape to the skin.

Description

wound tightening patch

technical field

The utility model belongs to the field of medical supplies and relates to a wound patch, in particular to a wound tightening and healing patch.

Background technique

In surgery, it is often necessary to compress the wound to make the skin on both sides of the wound close to each other, to prevent the wound from being in direct contact with the external environment, thereby speeding up the healing of the wound.

Most of the wound patches currently used are non-elastic wound patches. The wound can only be healed by the medicine on the patch in a natural state, and when the patient moves, it is easy to cause the wound to burst. Some wound closures that can promote wound tightening and healing are equipped with a bow-shaped closure device with a certain hardness. It is suitable for human limbs and other parts, but has poor applicability for wounds in other parts, and this kind of wound closure has many hard parts and large volume, and has a small application range and is not beautiful.

Contents of the invention

Aiming at the deficiencies in the prior art, the purpose of this utility model is to provide a wound healing plaster which is easy to use and can accelerate wound healing.

In order to realize above-mentioned task, the utility model adopts following technical scheme to realize:

A wound tightening and healing plaster, comprising a dressing layer, a medical elastic air-permeable adhesive tape and a non-elastic self-adhesive tape, the dressing layer is pasted in the middle of the front of the medical elastic air-permeable adhesive tape, and the medical elastic air-permeable adhesive tape on both sides of the dressing layer is provided with Sticky feet, a set of non-elastic self-adhesive tapes are fixed on the back of the medical elastic breathable adhesive tape.

The utility model also has the following technical characteristics:

Air holes are arranged on the non-elastic self-adhesive tape.

The utility model is easy to use and can promote the healing of the wound as soon as possible. The medical elastic air-permeable adhesive tape and the non-elastic self-adhesive tape are used in conjunction with each other, which can not only make the wound tighten, promote wound healing, but also increase the comfort of the patient when the wound is tightened. The medical elastic breathable adhesive tape provides a buffer space for the movement of the muscles around the wound, while the non-elastic self-adhesive tape can restrict the movement of the muscles on both sides of the wound within a certain range, ensuring that the wound will not easily burst. The entire wound tightening and healing patch has a good ventilation design, which can reduce the damage of the adhesive tape to the skin.

Description of drawings

Fig. 1 is a schematic diagram of the front structure of the utility model.

Fig. 2 is a schematic diagram of the back structure of the utility model.

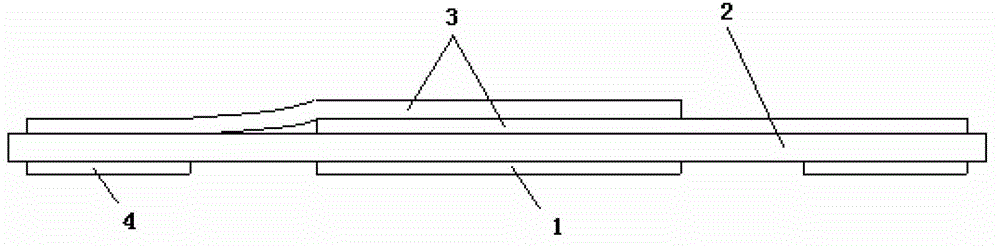

Fig. 3 is a schematic view of the side structure of the utility model.

The meanings of each label in the figure are: 1-medication layer, 2-medical elastic breathable adhesive tape, 3-non-elastic self-adhesive tape, 4-sticky feet, 5-air holes.

Below in conjunction with accompanying drawing and embodiment the concrete content of the present utility model is described in further detail.

Detailed ways

The specific embodiments of the present utility model are provided below, and it should be noted that the present utility model is not limited to the following specific embodiments, and all equivalent transformations done on the basis of the technical solution of the application all fall into the protection scope of the present utility model.

According to the above technical scheme, as shown in accompanying drawings 1 to 3, a wound tightening and healing plaster comprises a dressing layer 1, a medical elastic air-permeable adhesive tape 2 and a non-elastic self-adhesive tape 3, and the dressing layer 1 is pasted on a medical elastic breathable adhesive tape. In the middle of the front of the adhesive plaster 2, the medical elastic air-permeable adhesive tape 2 on both sides of the application layer 1 is provided with sticky feet 4, and a group of non-elastic self-adhesive tapes 3 are fixed on the back of the medical elastic air-permeable adhesive tape 2. The non-elastic self-adhesive tape 3 Air holes 5 are provided on the belt 3 .

When the patient's wound needs to be healed, take out a piece of the wound tightening and healing patch described in the present utility model, unpack it, put the middle position of the dressing layer 1 in contact with the wound, and stretch the medical elastic air-permeable adhesive tape 2 with an appropriate force , paste the sticky feet 4 on the skin on both sides of the wound, under the contraction force of the medical elastic breathable adhesive tape 2, the muscles on both sides of the wound are tightened towards the wound, so that the wound can be tightly closed, and then set on the medical elastic A group of self-adhesive tapes 3 on the back of the air-permeable adhesive tape 2 stick together, so that the medical elastic air-permeable adhesive tape 2 maintains continuous elasticity. In this way, when the patient moves, the wound will generally not be cracked due to the driving of the patient's muscles, which can effectively improve the healing speed of the wound.

Claims (2)

1. a wound tightens short more subsides, it is characterized in that, comprise drug of topical application layer (1), medical elastic Breathable adhesive tape (2) and non-resilient self-adhesive tape (3), drug of topical application layer (1) sticks on the centre position in medical elastic Breathable adhesive tape (2) front, be provided with sticking foot (4) on the medical elastic Breathable adhesive tape (2) on drug of topical application layer (1) both sides, be fixed with one group of non-resilient self-adhesive tape (3) at the back side of medical elastic Breathable adhesive tape (2).

2. wound according to claim 1 tightens short more subsides, it is characterized in that, is provided with pore (5) on described non-resilient self-adhesive tape (3).
