Abstract
The utility model relates to a domestic vertical type soilless culture device. The domestic vertical type soilless culture device comprises a liquid storage box, a liquid supply pump, a pipeline, a frame-shaped bracket and a filler, wherein a culture groove is formed in the middle of the front side of the frame-shaped bracket; the filler is filled in the frame-shaped bracket; the filler consists of two sheets of which the interface is superposed with the central line of the culture groove; the lower end of the frame-shaped bracket and the liquid supply pump are placed in the liquid storage box; nutritional liquid in the liquid supply pump is connected into the filler through the pipeline and liquid inlet holes at the upper end of the frame-shaped bracket; and a plurality of cultivated plants are clamped in the interface of the filler. The domestic vertical type soilless culture device solves the problems that soil culture is susceptible to breeding of bacteria and insects, inconvenient in soil maintenance and susceptible to environmental pollution, saves the purchase cost, reduces the space occupation and realizes three-dimensional planting. The bracket is attractive and element and can be integrated with indoor furniture, so a good decorative effect is achieved. The domestic vertical type soilless culture device is applicable to balcony, indoor and roof soilless culture devices.
Description
Technical field
The utility model relates to a kind of cultivation apparatus without soil, particularly relates to a kind of Household vertical cultivation apparatus without soil.
Background technology
Soilless culture refers to utilize non-soil-medium to cultivate the method for plant, mainly comprises water planting, mist training, substrate culture.Soilless culture have good quality and high output, product damage by disease and insect few, be not subjected to the land resources restriction, be convenient to the advantage such as large-scale production, the problems such as existing cultivation apparatus without soil can fine solution plant root adheres to, breathing, moisture supply, nutrition supply.At present, traditional balcony or indoor growing vegetables are all by flowerpot, the soil cultivation to be arranged, and exist easy breed bacteria, insect, soil maintenance inconvenience, the problems such as easy contaminated environment, the especially winter in the north, except balcony and indoor pot flowers, some months be can not see green plant basically.
At present, introduce existing the delivering of patent of cultivation apparatus without soil, as the Chinese utility model patent of patent No. ZL201120184114.8---it is high that a kind of Simple vegetable soilless culture device of household balcony exists price; The Chinese utility model patent of patent No. ZL201020143348.3---balcony or indoor soilless culture device exist complex structure, poor operability; The Chinese invention patent of patent No. ZL200910232740.7---a kind of wall type soilless culture method for vegetables is applicable to plant layout production, is not suitable for the family expenses cultivation.
Summary of the invention
The purpose of this utility model is to provide a kind of Household vertical cultivation apparatus without soil, and solving family has the easy breed bacteria of soil cultivation, insect, soil maintenance inconvenience, the problems such as easy contaminated environment.
In order to achieve the above object, the technical solution adopted in the utility model is:
Comprise fluid storage tank, solution feed pump, pipeline, frame support and filler; Have a cultivating groove in the middle of the frame support front, be filled with filler in frame support, filler consists of by two, its interface overlaps with the center line of cultivating groove, the lower end of frame support and solution feed pump are all put into fluid storage tank, nutrient solution in solution feed pump is through the inlet opening access filler of the upper end of pipeline and frame support, and a plurality of cultivated plants are clamped in the interface of filler.
Described frame support is that PVC sheet material surrounds, and it is shaped as square cylinder, rectangular cylinder or cylindrical.
All there is inlet opening both sides, described frame support upper end, and pipeline can be in arbitrary inlet opening access of both sides.
Have fixing hole in the middle of described frame support upper end.
Compare with background technology, the beneficial effect that the utlity model has is:
1, solution has the easy breed bacteria of soil cultivation, insect, soil maintenance inconvenience, the problems such as easy contaminated environment.
2, save purchase cost, reduce floor space, realize the three-dimensional plantation.
3, support Design is elegant in appearance, and selection is various, can combine together with indoor furniture, plays good decoration function.
The utility model is applicable to the cultivation apparatus without soil on balcony, indoor, roof.
Description of drawings

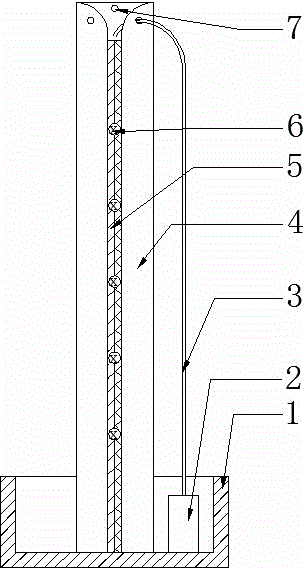

Fig. 1 is front view of the present utility model.
Fig. 2 is the vertical view of Fig. 1.
In figure: 1. fluid storage tank, 2. solution feed pump, 3. pipeline, 4. frame support, 5. filler, 6. cultivated plant, 7. fixing hole.
Embodiment
Below in conjunction with drawings and embodiments, the utility model is further described.
As shown in Figure 1 and Figure 2, the utility model comprises fluid storage tank 1, solution feed pump 2, pipeline 3, frame support 4 and filler 5; Have a cultivating groove in the middle of frame support 4 is positive, be filled with filler 5 in frame support 4, filler 5 consists of by two, its interface overlaps with the center line of cultivating groove, the lower end of frame support 4 and solution feed pump 2 are all put into fluid storage tank 1, nutrient solution in solution feed pump 2 is through the inlet opening access filler 5 of the upper end of pipeline 3 and frame support 4, and a plurality of cultivated plants 6 are clamped in the interface of filler 5.
Frame support 4 surrounds for PVC sheet material, and it is shaped as square cylinder, rectangular cylinder or cylindrical.
All there is inlet opening frame support 4 both sides, upper end, and pipeline 3 can be in arbitrary inlet opening access of both sides.
Operation principle of the present utility model is:
The interior nutritious liquid of fluid storage tank 1 utilizes solution feed pump 2 by pipeline 3 pouring cultivated plants 6.
Above-described embodiment is only giving an example of the utility model embodiment, and protection domain of the present utility model is as the criterion with claims.Any according to the utility model equivalent substitute that claim is done and variation, all belong to the protection domain of the utility model patent.
Claims (4)
1. a Household vertical cultivation apparatus without soil, is characterized in that: comprise fluid storage tank (1), solution feed pump (2), pipeline (3), frame support (4) and filler (5); Have a cultivating groove in the middle of frame support (4) is positive, be filled with filler (5) in frame support (4), filler (5) consists of by two, its interface overlaps with the center line of cultivating groove, the lower end of frame support (4) and solution feed pump (2) are all put into fluid storage tank (1), nutrient solution in solution feed pump (2) is through the inlet opening access filler (5) of the upper end of pipeline (3) and frame support (4), and a plurality of cultivated plants (6) are clamped in the interface of filler (5).
2. a kind of Household vertical cultivation apparatus without soil described according to claims 1, it is characterized in that: described frame support (4) surrounds for PVC sheet material, and it is shaped as square cylinder, rectangular cylinder or cylindrical.
3. a kind of Household vertical cultivation apparatus without soil described according to claims 1 is characterized in that: all there is inlet opening described frame support (4) both sides, upper end, and pipeline (3) can be in arbitrary inlet opening access of both sides.
4. a kind of Household vertical cultivation apparatus without soil described according to claims 1, is characterized in that: the middle fixing hole that has in described frame support (4) upper end.
