Abstract
本实用新型提供了一种显示板盒总成及采用该显示板盒总成的冰箱，可以解决现有技术存在的因采用螺钉装配造成生产效率低、生产成本较高且自动化程度较低的问题。技术方案是，一种显示板盒总成，包括饰条、显示板盖、显示板盒和显示板载体，所述显示板盒和显示板载体之间、饰条与显示板盒之间、以及饰条与显示板盖之间均通过卡接结构装配连接。本实用新型还提供了采用上述显示板盒总成的冰箱。本实用新型的显示板盒总成，整个装配结构实现无螺钉化，均通过卡接结构装配连接，解决了工厂生产制造效率低、无法实现生产自动化、零部件成本较高的问题，而且工厂现场管理实现模块控制，大大提升生产效率。
The utility model provides a display panel box assembly and a refrigerator using the display panel box assembly, which can solve the problems of low production efficiency, high production cost and low degree of automation caused by screw assembly in the prior art . The technical solution is a display panel box assembly, including a decorative strip, a display panel cover, a display panel box and a display panel carrier, between the display panel box and the display panel carrier, between the decorative strip and the display panel box, and Both the trim strip and the display panel cover are assembled and connected by a snap-fit structure. The utility model also provides a refrigerator adopting the above-mentioned display panel box assembly. In the display panel box assembly of the present utility model, the entire assembly structure is screw-free, and all are assembled and connected through a clamping structure, which solves the problems of low manufacturing efficiency in the factory, inability to realize production automation, and high cost of parts and components. Management realizes module control, greatly improving production efficiency.
Description
Technical field
The utility model belongs to the refrigerator technical field, specifically, relates to a kind of display board cartridge and refrigerator, is mainly the detachable assembly structure of display board cartridge.
Background technology
Usually the display board cartridge on refrigerator and other need to be fixed or the assembling of dismountable parts is fixed by screw, make the field management of efficient, production automation factory, parts cost and module controls thereof for plant produced like this and bring considerable influence, for satisfying the manufacturing, management and cost demand, consider need one or more fix or demountable structure realize the assembling, satisfy the each side demand.This kind demountable structure can instead of screws, realizes the assembly structure without screw.
How to solve the problems of the technologies described above, be the problem that the utility model faces.
Summary of the invention
The utility model provides a kind of display board cartridge and has adopted the refrigerator of this display board cartridge, can solve that prior art exists because adopting the screw assembling to cause the problem that production efficiency is low, production cost is higher and automaticity is lower.
In order to solve the problems of the technologies described above, the technical solution of the utility model is,
On the one hand, the utility model provides a kind of display board cartridge, comprise panel, display board lid, display board box and display board carrier, between described display board box and display board carrier, between panel and display board box and panel and display board cover between all by the interface arrangment assembly connection.
Further, the interface arrangment between described display board box and display board carrier is as follows:
The both sides, top of described display board box and display board carrier phase-contact surface are provided with buckle, the outside of described upper buckle is provided with the pin groove, described display board carrier corresponding section is provided with lower buckle and pin, when display board box and display board carrier clamp, described upper buckle and lower buckle clamping, described pin are inserted and are realized in described pin groove fixing.
Display board box and display board carrier are realized firm fixing by above-mentioned interface arrangment, be convenient to simultaneously maintenance, can directly apply external force and take out.
Further, the interface arrangment between described panel and display board box is as follows:
The top of described display board box and described panel clamping assembling, both sides, top at described display board box are respectively equipped with claw and pin, the opposite position of described panel is provided with draw-in groove and pin groove, when display board box and panel clamp, described claw inserts in described draw-in groove, and described pin inserts to be realized in described pin groove fixing.
Panel is realized firm the connection with the display board box by above-mentioned interface arrangment, can be by assembling under instrument or External Force Acting, and for avoiding entering of foamed material, panel and display board box cannot be dismantled.
Further, the interface arrangment between described panel and display board lid is as follows:
The both sides that described display board covers the face that matches with described panel are respectively equipped with upper grab and reinforcement groove, the opposite position of described panel is provided with lower grab and reinforcement, when described display board lid and panel clamp, described reinforcement inserts in described reinforcement groove, and described upper grab and lower grab connect and fix.
The display board lid directly retrains assembling by above-mentioned interface arrangment with panel, only has by relevant instrument and just can effectively dismantle.
On the other hand, the utility model also provides a kind of refrigerator, adopts above-mentioned display board cartridge.
The utility model compared with prior art has the following advantages and good effect:
It is a kind of for the box-packed assembly of joining of the display board on refrigerator that the utility model provides, particularly the display board cartridge fixes and demountable structure, whole assembly structure is realized without screw, all by the interface arrangment assembly connection, solved plant produced make efficient low, can't realize the production automation, the problem that the parts cost is higher, and factory's field management realizes module controls, greatly improving production efficiency.
Description of drawings

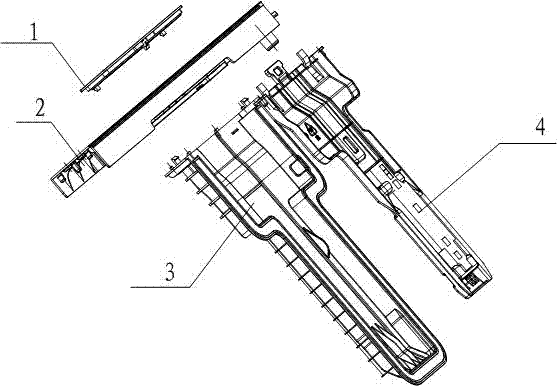

Fig. 1 is the blast structural representation of display board cartridge described in the utility model;
Fig. 2-1st, the box-packed distribution structure schematic diagram of display board carrier and display board;
Fig. 2-2nd, the A-A cutaway view of Fig. 2-1;
Fig. 2-3rd, the B-B cutaway view of Fig. 2-1;
Fig. 3-1st, the box-packed distribution structure schematic diagram of panel and display board;
Fig. 3-2nd, the C-C cutaway view Amplified image of Fig. 3-1;
Fig. 3-3rd, the D-D cutaway view of Fig. 3-1;
Fig. 4-1st, panel and display board mount cover the distribution structure schematic diagram;
Fig. 4-2nd, the E-E cutaway view of Fig. 4-1;
Fig. 4-3rd, the partial enlarged drawing at the I place of Fig. 4-2;
Fig. 4-4th, the partial enlarged drawing at the II place of Fig. 4-2.
The specific embodiment
Below in conjunction with drawings and Examples, the utility model is described in further detail.
The utility model all adopts screw fixedly to cause for the assembling of all parts in the display board cartridge on present refrigerator and manufactures inefficiency, cost of parts is higher and the problem of field management trouble, and a kind of clamping assembly structure of instead of screws has been proposed, realize fully without screw, satisfy the demand of production, management and cost each side.Concrete, a kind of display board cartridge comprises panel, display board lid, display board box and display board carrier, between display board box and display board carrier, between panel and display board box and panel and display board cover between all by the interface arrangment assembly connection.
With reference to shown in Figure 1, a kind of display board cartridge, comprise display board lid 1, panel 2, display board box 3 and display board carrier 4, between display board box 3 and display board carrier 4, between panel 2 and display board box 3 and panel 2 and display board cover 1 between all by the interface arrangment assembly connection.
To as shown in Fig. 2-3, between display board box 3 and display board carrier 4, concrete interface arrangment is as follows as Fig. 2-1:
To as shown in Fig. 3-3, the concrete interface arrangment between panel 2 and display board box 3 is as follows as Fig. 3-1:
The top of display board box 3 and panel 2 clamping assemblings, be respectively equipped with claw 33 and pin 34 in the both sides, top of display board box 3, the opposite position of panel 2 is provided with draw-in groove 21 and pin groove 22, when the top of display board box 3 and panel 2 clamp, claw 33 inserts in draw-in groove 21, and pin 34 inserts the interior assembling that connects and fixes that realizes panel 2 and display board box 3 of pin groove 22.
To as shown in Fig. 4-4, the concrete interface arrangment between panel 2 and display board lid 1 is as follows as Fig. 4-1:
On the other hand, the utility model also provides a kind of refrigerator that adopts above-mentioned display board cartridge.
The above, it is only preferred embodiment of the present utility model, be not to be the utility model to be done the restriction of other form, any those skilled in the art may utilize the technology contents of above-mentioned announcement to be changed or be modified as the equivalent embodiment of equivalent variations.But every technical solutions of the utility model content that do not break away to any simple modification, equivalent variations and remodeling that above embodiment does, still belongs to the protection domain of technical solutions of the utility model according to technical spirit of the present utility model.
