Abstract

本实用新型涉及一种旋转式多功能笔灯，包括壳体和灯架，所述灯架通过转轴一与壳体活动连接，灯架上设有若干灯；壳体上位于灯架一侧的位置上设有弹簧夹，壳体的另一侧设有一凹槽，凹槽内设置有若干串联的电池，凹槽顶部覆盖有笔灯盖，壳体底部设有伸缩式连接杆。本实用新型的有益效果为：笔灯的灯架和灯可绕转轴一和转轴二旋转一定的角度，从而扩大笔灯的照明区域，方便使用者工作，壳体底部的磁铁或螺丝刀等实用性工具，增加了笔灯的使用范围；在携带时，笔灯可以通过弹簧夹结构悬挂于口袋中，从而便于使用者携带。

Figure 201220717474

The utility model relates to a rotary multifunctional penlight, which comprises a housing and a lamp holder. The lamp holder is movably connected with the housing through a rotating shaft. A number of lamps are arranged on the lamp holder; There is a spring clip on the position, and a groove is arranged on the other side of the casing, and a number of batteries connected in series are arranged in the groove, the top of the groove is covered with a penlight cover, and a telescopic connecting rod is arranged at the bottom of the casing. The beneficial effects of the utility model are: the lamp holder and the lamp of the penlight can rotate around the first and second rotating shafts at a certain angle, thereby enlarging the lighting area of the penlight and making it convenient for users to work. The utility model increases the scope of use of the pen light; when carrying, the pen light can be hung in the pocket through a spring clip structure, so that it is convenient for the user to carry.

Figure 201220717474

Description

A kind of rotary multifunctional lamp
Technical field
The utility model relates to a kind of rotary multifunctional lamp.
Background technology
light fixture has brought light to people at black night evening, that people work night, the instrument that walking is indispensable, development along with science and technology, it is varied that light fixture becomes, though now be convenient for carrying, economic and practical light fixture, be CN201020203517.8 as the patent No., patent name is the illuminations of a lamp, the illumination zone of this lamp is smaller, can only illuminating lamp the zone in the place ahead, when people need to be thrown light on other regional, can only move a lamp, and the function ratio of this lamp is more single, can only throw light on, can't be when illumination be provided, bring the facility of other side to people.Therefore, be necessary to develop a kind ofly be convenient for carrying, the field of illumination is wide, function is many light fixture.
The utility model content
The purpose of this utility model is to provide a kind of rotary multifunctional lamp, the deficiency of, function singleness little with the lamp lighting scope that overcomes present prior art.
The purpose of this utility model is to be achieved through the following technical solutions:
A kind of rotary multifunctional lamp comprises housing and lamp bracket, and described lamp bracket is flexibly connected by rotating shaft one and housing, and lamp bracket is provided with some lamps; The position that is positioned at lamp bracket one side on housing is provided with spring clip, and the opposite side of housing is provided with a groove, is provided with the battery of some series connection in groove, and groove top is coated with a light cover, and housing bottom is provided with telescopic connection rod.
Further, the bottom of described lamp bracket is provided with illumination holes, is provided with illuminating lamp in illumination holes.
Further, the top of described housing is provided with gauge tap.
Further, described connecting rod top is magnet one.
Further, described housing bottom is provided with repair outfit, and repair outfit comprises screwdriver.
Further, described spring clip is positioned at the below of lamp bracket.
Further, be provided with magnet two on described light cover.
Further, described lamp bracket comprises Connection Block and the lamp socket that is connected with Connection Block by rotating shaft two.
Preferably, described rotating shaft two is perpendicular to rotating shaft one.
Preferably, described lamp and illuminating lamp are the LED lamp.
The beneficial effects of the utility model are: the lamp bracket of a lamp and lamp can be around the shaft one and rotating shaft two rotate a certain angle, thereby enlarge the field of illumination of a lamp, facilitate the user to work, the practical tools such as the magnet of housing bottom or screwdriver have increased the scope of application of a lamp; When carrying, a lamp can hang in pocket by the spring clip structure, carries thereby be convenient to the user.
Description of drawings
The below is described in further detail the utility model with reference to the accompanying drawings.

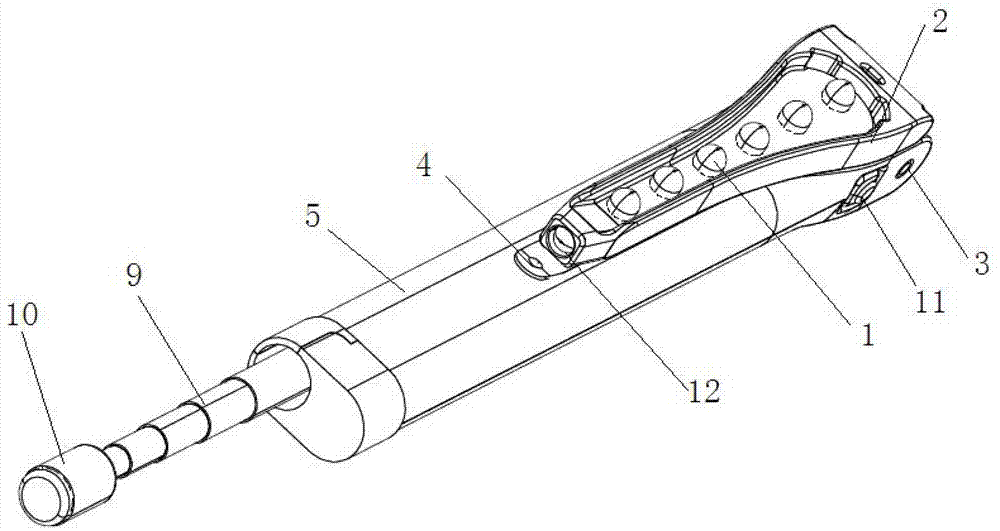

Fig. 1 is the structural representation of the described rotary multifunctional of a utility model embodiment lamp;
Fig. 2 is the cutaway view of the described rotary multifunctional of a utility model embodiment lamp;
Fig. 3 is the structural representation of the described rotary multifunctional of a utility model embodiment lamp housing bottom connection repair outfit;
Fig. 4 is the state reference map of the described rotary multifunctional of the utility model embodiment lamp when using magnet two;
Fig. 5 is one of use state reference map of the described rotary multifunctional of a utility model embodiment lamp;
Fig. 6 be the described rotary multifunctional of a utility model embodiment lamp the use state reference map two.
In figure:
1, lamp; 2, lamp bracket; 3, rotating shaft one; 4, spring clip; 5, housing; 6, groove; 7, battery; 8, a light cover; 9, connecting rod; 10, magnet one; 11, gauge tap; 12, illumination holes; 13, magnet two; 14, Connection Block; 15, rotating shaft two; 16, lamp socket; 17, screwdriver.
The specific embodiment
as shown in Fig. 1-6, the described a kind of rotary multifunctional lamp of the utility model embodiment, comprise housing 5 and lamp bracket 2, the bottom of lamp bracket 2 is provided with illumination holes 12, be provided with illuminating lamp in illumination holes 12, described lamp bracket 2 is flexibly connected by rotating shaft 1 and housing 5, lamp bracket 2 comprises Connection Block 14 and the lamp socket 16 that is connected with Connection Block 14 by rotating shaft 2 15, described rotating shaft 2 15 is perpendicular to rotating shaft 1, lamp bracket 2 is provided with some lamps 1, lamp 1 and illuminating lamp are the LED lamp, housing 5 bottoms are provided with telescopic connection rod 9, the position that is positioned at lamp bracket 2 one sides on housing 5 is provided with spring clip 4, spring clip 4 is positioned at the below of lamp bracket 2, the opposite side of housing 5 is provided with a groove 6, be provided with the battery 7 of some series connection in groove 6, groove 6 tops are coated with a light cover 8, be provided with magnet 2 13 on light cover 8, described connecting rod 9 tops are magnet 1.
As shown in Figure 3, described housing 5 bottoms are provided with screwdriver 17.
During concrete the use, this Portable pen lamp can be used for camping illumination, and illumination repairs, the demand occasions such as barbecue lighting are when using illumination functions, as shown in Figure 4, can a lamp be adsorbed by the magnet 2 13 on a light cover 8, the convenient placement is when needs are adjusted illumination direction, as shown in Fig. 5-6, can be by regulating rotating shaft 1 and rotating shaft 2 13, the illumination direction of lamp 1 is changed, need not to change placement location and the placement direction of a lamp, convenient and practical.When function was picked up in use, lamp bracket 2 heads were equipped with illuminating lamp, all can use at light place and the unintelligible occasion of sight line, and picking up can be by part and the product of magnet one 10 absorption.
As shown in Figure 4, lamp bracket 2 one 3 rotations around the shaft need the more deficiency of change-fountain pen lamp position thereby overcome because illumination zone is limited, improved operating efficiency.
Spring clip 4 is elastic construction, and certain elastic deformation can occur, and spring clip 4 is fixed on housing 5, is positioned at the below of lamp bracket 2; When spring clip 4 was stressed, spring clip 4, can hang over a lamp on user's pocket or knapsack angulation with housing 5, has facilitated user's Portable pen lamp.
The lamp power supply of illuminating lamp and lamp 1 is to adopt 3 AAA batteries.The bottom of housing 5 can be the device that picks up of magnet 1, be also can the time tool heads such as screwdriver 17, during use, can make its work by the LED lamp that 11 of gauge taps are turned on lamp bracket 2 heads, other LED lamp is in off working state.During the illumination functions of remaining the LED lamp on using lamp bracket 2, turn on remaining LED lamp by gauge tap 11.By this mode circulatory function, can effectively save electric energy, make a lamp under identical cost, longer service life, energy savings more.
The utility model is not limited to above-mentioned preferred forms; anyone can draw other various forms of products under enlightenment of the present utility model; no matter but do any variation on its shape or structure; every have identical with a application or akin technical scheme, within all dropping on protection domain of the present utility model.

Claims (10)

1.一种旋转式多功能笔灯，包括壳体（5）和灯架（2），其特征在于：所述灯架（2）通过转轴一（3）与壳体（5）活动连接，灯架（2）上设有若干灯（1）；壳体（5）上位于灯架（2）一侧的位置上设有弹簧夹（4），壳体（5）的另一侧设有凹槽（6），凹槽（6）内设置有若干串联的电池（7），凹槽（6）顶部覆盖有笔灯盖（8），壳体（5）底部设有伸缩式连接杆（9）。 1. A rotating multifunctional penlight, comprising a housing (5) and a lamp holder (2), characterized in that: the lamp holder (2) is movably connected to the housing (5) through a rotating shaft one (3), A number of lamps (1) are arranged on the lamp holder (2); a spring clip (4) is provided on the side of the lamp holder (2) on the housing (5), and a spring clip (4) is provided on the other side of the housing (5). Groove (6), a number of batteries (7) connected in series are arranged in the groove (6), the top of the groove (6) is covered with a penlight cover (8), and the bottom of the housing (5) is provided with a telescopic connecting rod ( 9). 2.根据权利要求1所述的旋转式多功能笔灯，其特征在于：所述灯架（2）的底端设有照明孔（12），照明孔（12）内设有照明灯。 2. The rotary multifunctional penlight according to claim 1, characterized in that: the bottom end of the lamp holder (2) is provided with a lighting hole (12), and a lighting lamp is arranged in the lighting hole (12). 3.根据权利要求2所述的旋转式多功能笔灯，其特征在于：所述灯（1）和照明灯均为LED灯。 3. The rotary multifunctional penlight according to claim 2, characterized in that: the lamp (1) and the lighting lamp are both LED lamps. 4.根据权利要求3所述的旋转式多功能笔灯，其特征在于：所述壳体（5）的顶部设有控制开关（11）。 4. The rotary multifunctional penlight according to claim 3, characterized in that: a control switch (11) is provided on the top of the casing (5). 5.根据权利要求4所述的旋转式多功能笔灯，其特征在于：所述连接杆（9）顶端为磁铁一（10）。 5. The rotating multifunctional penlight according to claim 4, characterized in that: the top of the connecting rod (9) is a magnet one (10). 6.根据权利要求5所述的旋转式多功能笔灯，其特征在于：所述壳体（5）底部设有修理工具，修理工具包括螺丝刀（17）。 6. The rotary multifunctional penlight according to claim 5, characterized in that: a repair tool is provided at the bottom of the casing (5), and the repair tool includes a screwdriver (17). 7.根据权利要求6所述的旋转式多功能笔灯，其特征在于：所述弹簧夹（4）位于灯架（2）的下方。 7. The rotary multifunctional penlight according to claim 6, characterized in that: the spring clip (4) is located under the lamp holder (2). 8.根据权利要求1-7任一项所述的旋转式多功能笔灯，其特征在于：所述笔灯盖（8）上设置有磁铁二（13）。 8. The rotary multifunctional penlight according to any one of claims 1-7, characterized in that: the penlight cover (8) is provided with a second magnet (13). 9.根据权利要求8所述的旋转式多功能笔灯，其特征在于：所述灯架（2）包括连接座（14）和灯座（16），灯座（16）通过转轴二（15）与连接座（14）连接。 9. The rotating multifunctional penlight according to claim 8, characterized in that: the lamp holder (2) includes a connecting seat (14) and a lamp holder (16), and the lamp holder (16) passes through the second rotating shaft (15 ) is connected with the connecting seat (14). 10.根据权利要求9所述的旋转式多功能笔灯，其特征在于：所述转轴二（15）垂直于转轴一（3）。 10. The rotating multifunctional penlight according to claim 9, characterized in that: the second rotating shaft (15) is perpendicular to the first rotating shaft (3).
