CN202959511U

CN202959511U - kitchen pull basket

Info

Publication number: CN202959511U
Application number: CN201220444730.7U
Authority: CN
Inventors: 高琪; 杨章革
Original assignee: Zhongshan Xinshanchuan Industry Co ltd
Current assignee: Guangdong Piano Customized Furniture Co ltd
Priority date: 2012-08-31
Filing date: 2012-08-31
Publication date: 2013-06-05
Anticipated expiration: 2022-08-31

Abstract

The utility model relates to a kitchen device, in particular to a kitchen pull-out basket. It comprises a pull-out basket frame and at least two containers for placing things, the pull-out basket frame has two opposite side surfaces, the two side surfaces are respectively provided with a first cross bar, the upper edge of the container is provided with a hook part, the container is hung on the first cross bar through the hook part and is respectively placed on both sides of the pull-out basket frame. The utility model has the following beneficial effects: the container of the pull-out basket is easy to disassemble and assemble, when cooking, the container can be taken off the pull-out basket, hung on the wall or placed on the workbench, cooking utensils and the like can be placed in the container, after use, the container can be put back into the pull-out basket frame for easy storage.

Description

The basket that draws for kitchen use

Technical field

The utility model relates to a kind of equipment for kitchen use, particularly a kind of basket that draws for kitchen use.

Background technology

The kitchen is the place that people cook culinary art, equipment (as: refrigerator), tableware and mess kit miscellaneous that the equipment that modern kitchen has usually and articles for use comprise cabinet, stove and accessory (gas furnace, electromagnetic oven, micro-wave oven or baking box), scullery basin, dish-washing machine, storage food.Therefore, always there are a lot of things in the kitchen to people's sensation, and the article of the inside, kitchen are always very mixed and disorderly, and pots and pans, spoon, scoop, kitchen knife are difficult for placing.For this reason, a lot of people draw these kitchen utensils incomes in basket, cause and take inconvenience.

Summary of the invention

For the deficiency that prior art exists, the utility model provides a kind of basket that draws for kitchen use easy to use.

The technical solution of the utility model is achieved in that

A kind of basket that draws for kitchen use, comprise and draw basket support and at least two containers that are used for putting thing, it is characterized in that: the described basket support that draws has two relative sides, two sides are respectively equipped with the first cross bar, the upper edge of described container is provided with hook portion, and container hangs on the first cross bar by hook portion and is placed in respectively and draws basket support both sides.

Technique scheme can also be further improved by following technical measures.

The described basket support that draws comprises four root posts and three frames, and four jiaos of each frame arrange respectively a column, and the two ends of each column and middle part arrange respectively a frame.

The described basket support that draws is provided with vertical shelf to take in chopping block or slotting tool plate or chopsticks cylinder, and the opening of vertical shelf is positioned at and draws the basket support end face.

Kept flat the slotting tool plate to take in cutter on the described frame that draws the basket support end face.

Described container is furnished with a fixed mount that is fixed in metope or cabinet sidewall, and fixed mount is provided with the second cross bar, and described container hangs on the second cross bar of fixed mount by hook portion.

Described fixed mount comprises that one is fixed in the fixed head of metope or cabinet sidewall, the upper edge of fixed head has a horizontally extending platform, platform is provided with a upwardly extending abutment wall, and the bottom of cylindric the second cross bar is connected with the abutment wall upper end, and abutment wall thickness is less than the second cross bar diameter.

Described hook portion opening down, the inboard of hook portion has two relative projections, when this hook portion hangs on the second cross bar, two projections lay respectively at the abutment wall both sides and near abutment wall with clamping the second cross bar.

Described container upper shed has a long limit, and this length limit is provided with two hook portion.

Described container is Hanging Basket or a cup of a hollow out.

Above-mentioned each technical measures can be selected a use, also use capable of being combined.

Compared to existing technology, the utlity model has following beneficial effect: originally draw the container easy accessibility of basket, during culinary art, can hang on the wall or put on workbench with container from drawing basket to take off, can put mess kit etc. in container, use, container can be reinstalled and draw basket support, be convenient to collection.

Description of drawings

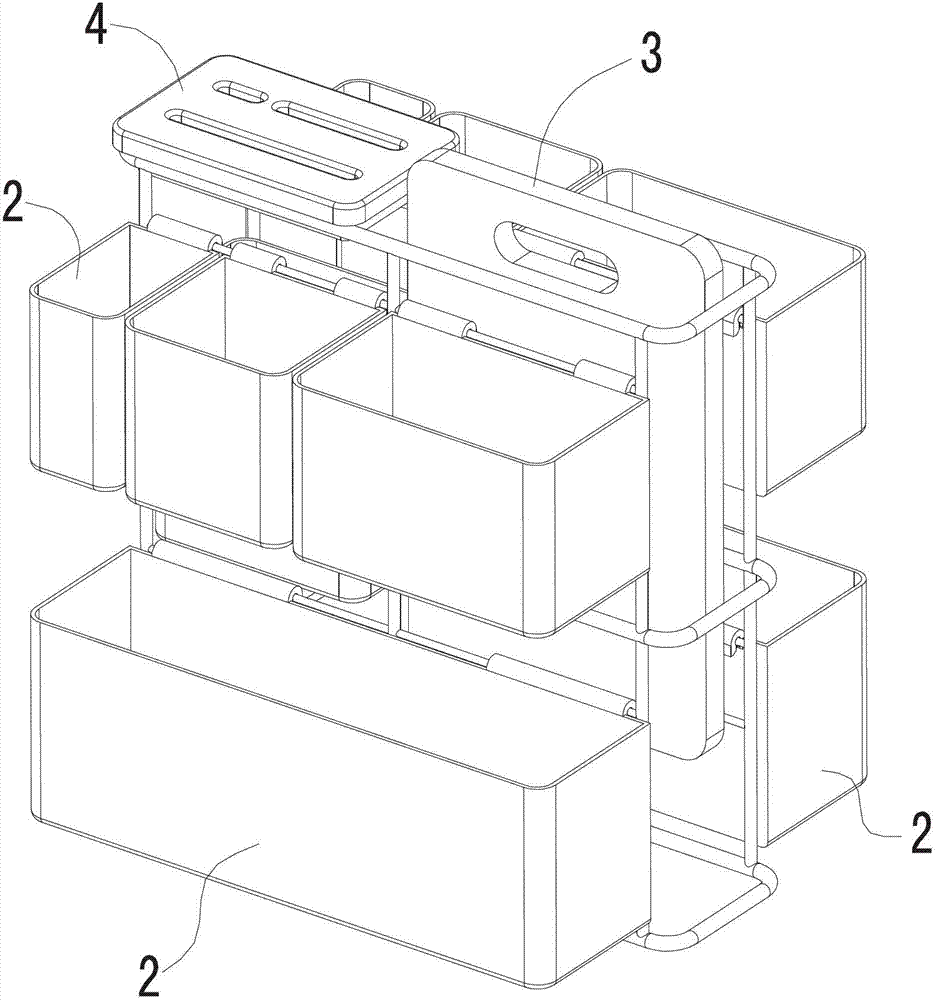

Fig. 1 is the schematic perspective view that draws basket support and container of the present utility model;

Fig. 2 is the schematic perspective view that draws basket support;

Fig. 3 is the cross-sectional schematic of drawing basket support and container;

Fig. 4 is the A section enlarged diagram of Fig. 3;

Fig. 5 is the schematic perspective view of container;

Fig. 6 is the schematic perspective view of fixed mount of the present utility model and container;

Fig. 7 is another angle schematic perspective view of fixed mount and container;

Fig. 8 is the perspective exploded view of fixed mount and container;

Fig. 9 is the cross-sectional schematic of fixed mount and container;

Figure 10 is the B section enlarged diagram of Fig. 9.

The specific embodiment

The utility model is described in further detail below in conjunction with accompanying drawing.

Referring to Fig. 1 to Fig. 5, a kind of basket that draws for kitchen use, comprise and draw basket support 1 and four containers 2 that are used for putting thing, the described basket support 1 that draws has relative two sides (1a, 1b), two sides (1a, 1b) are respectively equipped with two the first cross bars 11, totally four the first cross bars 11, the upper edge of described container 2 is provided with hook portion 21, and container 2 hangs over to be placed on the first cross bar 11 by hook portion 21 and draws basket support 1 both sides.Hang a container 2 on every the first cross bar 11.

The described basket support 1 that draws comprises four root posts 12 and three frames 13, and four jiaos of each frame 13 arrange respectively a column 12, and the two ends of each column 12 and middle part arrange respectively a frame 13.

The described basket support 1 that draws is provided with vertical shelf 14 to take in chopping block 3 or slotting tool plate 4 or chopsticks cylinder, and the opening of vertical shelf 14 is positioned at and draws basket support 1 end face.

Kept flat slotting tool plate 4 to take in cutter on the described frame 13 that draws basket support 1 end face.

To shown in Figure 10, described container 2 is furnished with a fixed mount 5 that is fixed in metope or cabinet sidewall as Fig. 6, and fixed mount 5 is provided with the second cross bar 51, and described container 2 hangs on the second cross bar 51 of fixed mount by hook portion 21.

Described fixed mount 5 comprises that one is fixed in the fixed head 52 of metope or cabinet sidewall, the upper edge of fixed head 52 has a horizontally extending platform 53, platform 53 is provided with a upwardly extending abutment wall 54, the bottom of cylindric the second cross bar 51 is connected with abutment wall 54 upper ends, and abutment wall 54 thickness are less than the second cross bar 51 diameters.

Described hook portion 21 opening down, the inboard of hook portion 21 has two relative projections 211, when this hook portion 21 hangs on the second cross bar 51, two projections 211 lay respectively at abutment wall 54 both sides and near abutment wall 54 with clamping the second cross bar 51.

Described container 2 upper sheds are basically rectangular and have a long limit 22, and this length limit 22 is provided with two hook portion 21.

Described container 2 is a cup.It can be also the Hanging Basket of a hollow out.

Be only below that the specific embodiment in the utility model is illustrated, every equivalent transformation or modification of making according to the design concept in the utility model all should be thought to fall into protection domain of the present utility model.

Claims

1. A pull basket for kitchen, comprising a pull basket frame and at least two containers for holding objects, characterized in that: the pull basket frame has two opposite sides, and the two sides are respectively provided with first cross bars , The upper edge of the container is provided with a hook portion, and the container is hung on the first cross bar through the hook portion and placed on both sides of the basket frame respectively.

2. The pull basket for kitchen according to claim 1, characterized in that: the pull basket frame includes four uprights and three frames, one upright is set at the four corners of each frame, and the two ends and the middle of each upright are respectively set a border.

3. The kitchen basket according to claim 1, characterized in that: the basket frame is provided with a vertical shelf for storing chopping boards, knife inserting boards or chopstick barrels, and the opening of the vertical shelf is located on the top of the basket frame noodle.

4 . The kitchen basket according to claim 2 , wherein a knife inserting plate is laid flat on the frame of the top surface of the basket frame to store knives. 5 .

5. The kitchen pull basket according to claim 1, characterized in that: the container is equipped with a fixing frame fixed on the wall or the side wall of the cabinet, and the fixing frame is provided with a second cross bar, and the container passes through the hook Hang on the second crossbar of the fixed frame.

6. The kitchen pull basket according to claim 5, characterized in that: the fixing frame includes a fixing plate fixed on the wall or the side wall of the cabinet, and the upper edge of the fixing plate has a platform extending horizontally, on which An upwardly extending support wall is provided, the bottom of the cylindrical second cross bar is connected with the upper end of the support wall, and the thickness of the support wall is smaller than the diameter of the second cross bar.

7. The kitchen pull basket according to claim 6, characterized in that: the opening of the hook portion faces downward, and the inside of the hook portion has two opposite protrusions, when the hook portion is hung on the second cross bar, the two The protrusions are respectively located on both sides of the supporting wall and close to the supporting wall to clamp the second cross bar.

8. The kitchen basket according to claim 7, wherein the upper opening of the container has a long side, and two hooks are arranged on the long side.

9. The kitchen pull basket according to claim 1, wherein the container is a hollow hanging basket or a hanging tube. the
