Abstract
The utility model discloses a multifunctional towel frame. The multifunctional towel frame comprises a commodity shelf, two connecting rods are connected on the lower portion of the commodity shelf, and a towel hanging rod and a multifunctional rod are arranged between the two connecting rods. A micro motor and a transverse flow wind wheel form a draught fan which is arranged in the middle of the functional rod, an air outlet is formed in the upper portion of the draught fan, and an ultraviolet ray germicidal lamp is arranged in the air outlet. A negative ion generator is arranged in the inner portion of one end of the multifunctional rod, a control circuit is arranged at the other end of the multifunctional rod, the control circuit comprises a control switch, a transformer and a timer, and the control circuit is connected with the draught fan, the negative ion generator and the ultraviolet ray germicidal lamp. The multifunctional towel frame can rapidly and comprehensively dry a towel, and meanwhile conducts ultraviolet sterilization and negative ion off-odour removal and enables the towel to be healthy.
Description
Technical field
The utility model is related to daily necessities, is specifically related to a kind of multi-functional towel rail.
Background technology
Towel rack is one of people's daily living article, and it is typically mounted on the wall of toilet, people wash one's face and rinse one's mouth finish after dry towel by moist towel is placed on it.Most of towel rack in existing technology hangs without drying function and is difficult to parch in the moist towel on towel rack, particularly at moist season, the easy breed bacteria of towel, and serious meeting influence people's is healthy.
In addition, in the market has smaller part of electric heating towel rack, and its principle is usually that heating element is installed in the support body of towel rack, and heating element is typically using resistance wire, heating wire, carbon fiber etc., cause that towel is dried by the heating of heating element, this electrothermal method heating temp is high, is difficult to control heating temp, not energy-conservation, on the one hand, temperature is too high to bake bad towel, and on the other hand, the towel body positioned at support body bottom but can not be by heated drying.So, hang and generally occur that top is dried even by roasting bad, the phenomenon of bottom still humidity in the towel on electric heating towel rack.
Towel rack in the market, can not provide the function that ultraviolet is killed virus, anion eliminates the unusual smell, and function is more single.
The content of the invention
To overcome the deficiencies in the prior art, the utility model provides a kind of energy-conservation, towel is not injured and can extend the towel life-span, easily parches towel comprehensively, and killed virus with ultraviolet, anion eliminates the unusual smell the multi-functional towel rail of function.
The utility model solves the technical scheme that its technical problem used：
A kind of multi-functional towel rail, comprising rack, it is characterized in that：It is connected with the rack between two connecting rods, two connecting rods and is provided with towel peg and Multifunctional rod.
The towel peg is provided with towel identification label.
It is micromachine and the blower fan of crossing current wind wheel composition in the middle part of the Multifunctional rod, blower fan top is air outlet, air outlet is provided with ultraviolet germicidal lamp, anion generator is provided with inside Multifunctional rod one end, the other end is provided with control circuit, controlling circuit includes controlling switch, transformer, timer, control circuit connecting fan, anion generator and ultraviolet germicidal lamp.
Described control circuit includes controlling switch, transformer, moisture probe controller.
The air outlet is netted air outlet.
The air outlet is provided with electric heating device.
The Multifunctional rod is tubulose or column.
The beneficial effects of the utility model are：
1st, moist towel airing is placed on the peg of towel rack, and two corresponding sides of towel are located at air-dry apparatus both sides respectively, and the support body of such towel rack, the air outlet of air-dry apparatus, towel constitute the inner space of an encirclement.After transformer switches on power, working power is provided for blower fan, blower fan rated power very little, relative energy-saving, the effect of timer is that the working time of blower fan is timed, and the dry wind that blower fan is produced behind air channel by air outlet by blowing out, and dry wind blows over inner space from bottom to up, so, moist towel is air cured from bottom to up successively.The utility model can also be provided with electric heating device in air outlet, and what it is so from air outlet blowout is hot blast, and moist towel is easier to parch；
2nd, anion generator is provided with inside Multifunctional rod one end, blower fan is while work, and anion generator also discharges anion, removes the peculiar smell on towel so that towel is more pure and fresh；
3rd, while blower fan work, ultraviolet germicidal lamp is also lit, and passes through ultraviolet irradiation, destroy and change the DNA structure of microorganism on towel, make the bacterium on towel dead at once or irreproducible offspring, the purpose of sterilization is reached, so that towel is more healthy；
4th, the utility model has the advantages that simple in construction, energy-conserving and environment-protective, and the utility model also has the advantages that not damage towel, is not in the phenomenon of roasting bad towel, can also effectively extend the towel life-span.
Brief description of the drawings
Fig. 1 is front view structure figure of the present utility model.
Fig. 2 is side block diagram of the present utility model.

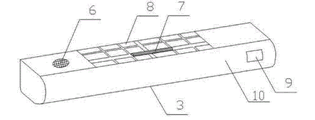

Fig. 3 is Multifunctional rod structural representation of the present utility model.
Fig. 4 is electrical structure schematic diagram of the present utility model.
Fig. 5 is the front view structure figure of another embodiment of the present utility model.
Embodiment
With reference to specific embodiment, the utility model is expanded on further.It should be understood that these embodiments are merely to illustrate the utility model rather than limit scope of the present utility model.In addition, it is to be understood that after the content of the utility model instruction has been read, those skilled in the art can make various changes or modifications to the utility model, these equivalent form of values also fall within application appended claims limited range.
As shown in Figure 1, Figure 2, Figure 3 and Figure 4, a kind of multi-functional towel rail, comprising rack 1, is connected between two connecting rods 2, two connecting rods 2 under rack 1 and is provided with towel peg 4 and Multifunctional rod 3.Towel peg 4 is provided with towel identification label 5, and " father ", " mother " can be marked on identification label 5 also or the printed words such as " baby ", is so easy to mark the owner of towel, in order to avoid obscure.
The middle part of Multifunctional rod 3 is micromachine 10 and the blower fan of crossing current wind wheel composition, blower fan top is air outlet 8, air outlet 8 is provided with ultraviolet germicidal lamp 7, anion generator 6 is provided with inside the one end of Multifunctional rod 3, the other end includes controlling switch, transformer, timer provided with control circuit 9, control circuit 9.Control the connecting fan of circuit 9, anion generator 6 and ultraviolet germicidal lamp 7.Air outlet 8 is network structure.Multifunctional rod 3 is tubulose or column.Electric heating device can also be set at air outlet 8, and the wind that such air outlet comes out is hot blast, and moist towel is easier to parch.The timer of control circuit 9 of the present utility model also can be replaced moisture probe controller, and the effect of moisture probe controller is identical with the effect of timer, be timing controlled effect.
Power supply is 220V civil power.Close after controlling switch, transformer switches on power, operating voltage is provided for blower fan, power of fan is 1~2W, and power is smaller, and less energy intensive, the effect of timer is that the working time of blower fan, anion generator and ultraviolet germicidal lamp is timed.While blower fan work, anion generator and ultraviolet germicidal lamp are also worked, and peculiar smell and sterilization are removed to towel.
As shown in figure 5, being provided with multiple towel pegs 4 and multiple Multifunctional rods 3 between another embodiment of the present utility model, two connecting rods 2.So towel rack can hang more towels, the same above-described embodiment of its operation principle.
The installation site of Multifunctional rod 3 of the present utility model can be interchangeable with any one connecting rod in connecting rod 2; so as to reach the purpose that towel is dried up from left-hand or dextrad; obviously, the structure of this left-hand or dextrad drying towel is fallen within protection domain of the present utility model.
Claims (7)
1. a kind of multi-functional towel rail, comprising rack, it is characterized in that：It is connected with the rack between two connecting rods, two connecting rods and is provided with towel peg and Multifunctional rod.
2. a kind of multi-functional towel rail according to claim 1, it is characterized in that：The towel peg is provided with towel identification label.
3. a kind of multi-functional towel rail according to claim 1, it is characterized in that：It is micromachine and the blower fan of crossing current wind wheel composition in the middle part of the Multifunctional rod, blower fan top is air outlet, and air outlet is provided with ultraviolet germicidal lamp, anion generator is provided with inside Multifunctional rod one end, the other end includes controlling switch, transformer, timer provided with control circuit, control circuit
Control circuit connecting fan, anion generator and ultraviolet germicidal lamp.
4. a kind of multi-functional towel rail according to claim 1, it is characterized in that：Described control circuit includes controlling switch, transformer, moisture probe controller.
5. a kind of multi-functional towel rail according to claim 3, it is characterized in that：The air outlet is netted air outlet.
6. a kind of multi-functional towel rail according to claim 3, it is characterized in that：The air outlet is provided with electric heating device.
7. a kind of multi-functional towel rail according to claim 1, it is characterized in that：The Multifunctional rod is tubulose or column.
