Abstract

A multi-angle measuring level includes an airtight casing, the casing is marked with angle scribes, the casing forms a relative rotation with the base, and there is a raised angle "△" indicator on the base, and the base The seat is fixed with the transparent vial, the transparent vial is on the same horizontal line as the "△" indicator, and the transparent vial is filled with enough liquid to make a bubble form in the vial, when the bubble stays in the vial When the predetermined indicator line on the tube is between, it means that the measured surface conforms to the predetermined angle, and the surface of the casing in contact with the measured surface is embedded with a permanent magnet, so that the level can be adsorbed to the measured metal surface. Compared with similar products, the utility model has the advantages of high work efficiency, simple manufacture, low cost, small size, easy to carry, and can measure or correct the angle of products with any angle parameters.

Description

A spirit level capable of multi-angle measurement

technical field

The utility model relates to a level meter for multi-angle measurement, which belongs to a common engineering tool and is suitable for various fields such as decoration industry and structure manufacturing industry. the

Background technique

In the prior art, a general cylinder-shaped liquid-filled vial level aligns the air bubbles in the vial with the marks marked on the vial to indicate whether the measured surface reaches a predetermined inclination angle. However, the spirit level generally can only measure less special angles, such as 0°, 45°, 90°, etc., or can only measure the levelness and verticality of the measured surface, which cannot meet the needs of engineering measurement. the

Utility model content

The purpose of the utility model is to provide a multi-angle measuring level with a large measuring range and more convenient use. the

In order to solve the above problems, the technical solution adopted by the utility model is: a multi-angle measuring level includes an airtight casing, the casing is marked with angle scribe lines, the casing and the base form a relative rotation, and the base There is a raised angle "△" indicator, the base is fixed with the transparent vial, the transparent vial is on the same horizontal line as the "△" indicator, and the transparent vial is filled with enough liquid , so that a bubble is formed in the vial, when the bubble stays between the predetermined indicator lines on the vial, it means that the measured surface conforms to a predetermined angle, and the surface of the housing in contact with the measured surface is embedded with a permanent magnet, so that The level can be adsorbed on the metal surface to be measured. the

Preferably, the housing and the base form a relative rotation; use its rotatability to set the angle arbitrarily, and then measure or calibrate any angle of any engineering product. the

Preferably, permanent magnets are embedded on the surface of the housing in contact with the measured surface; the level can be adsorbed to the measuring metal surface to increase the accuracy of measurement. the

Compared with similar products, the utility model has the advantages of high work efficiency, simple manufacture, low cost, small volume, easy to carry, and can measure or correct the angle of products with any angle parameters. the

Description of drawings

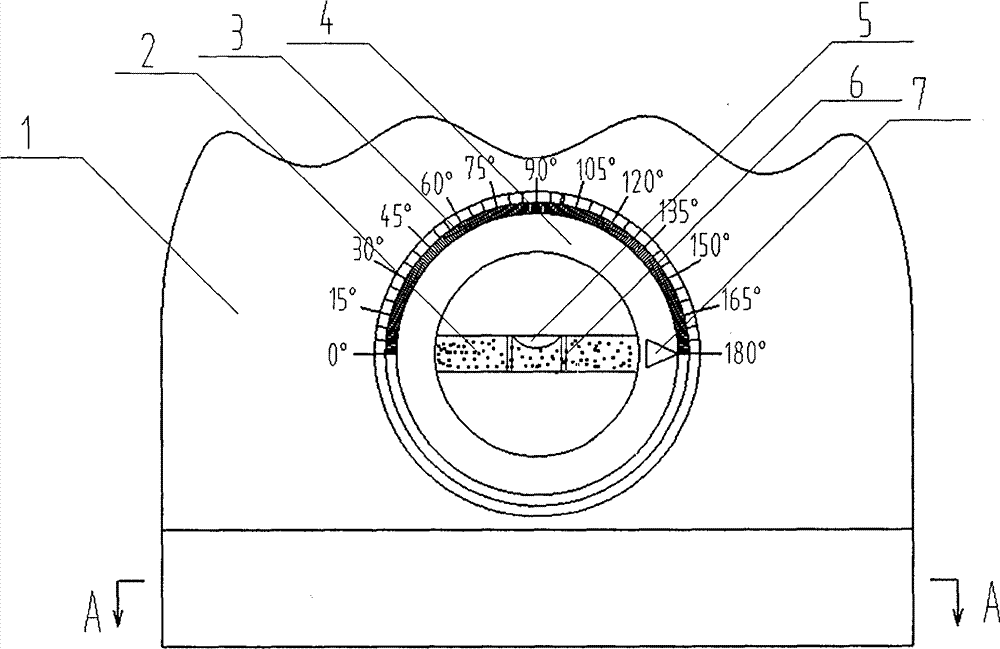

Fig. 1 is the front view of a level instrument capable of multi-angle measurement of the utility model. the

Fig. 2 is the A-A sectional view of Fig. 1. the

Detailed ways

The specific embodiments of the utility model are described in detail below in conjunction with the accompanying drawings, including the detailed implementation and specific operations of the utility model, but the technical characteristics of the utility model are not limited to the following embodiments. the

A spirit level capable of multi-angle measurement, comprising an airtight housing (1), the housing (1) is marked with an angle scale (3), and the housing (1) and a base (4) form a relative rotation, so There is a raised angle "△" indicator (7) on the base (4), the base (4) is fixed with the transparent finger tube (2), and the transparent finger tube (2) and "△" indicate Symbols (7) are on the same horizontal line, and the transparent vial (2) is filled with enough liquid so that a bubble (5) is formed in the vial, when the bubble stays on the predetermined indicator line (6) on the vial ) means that the measured surface conforms to a predetermined angle, and the surface of the housing (1) in contact with the measured surface is embedded with a permanent magnet (8), so that the level can be adsorbed to the measured metal surface. the

The above is only a specific embodiment of the utility model, but the technical characteristics of the utility model are not limited thereto, and any changes or modifications made by those skilled in the art within the scope of the utility model are covered by this utility model Within the scope of utility model patents. the

Claims (1)

1. A spirit level capable of multi-angle measurement, comprising an airtight housing (1), the housing (1) is marked with angled lines (3), and the housing (1) is opposite to the base (4) Rotate, there is a raised angle "△" indicator (7) on the base (4), the base (4) is fixed with the transparent finger tube (2), and the transparent finger tube (2) is fixed with the " The △" indicator (7) is on the same horizontal line, and the transparent vial (2) is filled with enough liquid so that a bubble (5) is formed in the vial. When the bubble stays on the vial, the predetermined indication When between the lines (6), it means that the measured surface conforms to a predetermined angle, and the surface of the housing (1) in contact with the measured surface is embedded with a permanent magnet (8), so that the level can be adsorbed to the measured metal surface. the
