本实用新型公开了一种移动式挂液轮椅,包括一轮椅,其特征是在轮椅手柄处垂直固定有一升降挂液架,通过挂液架调节螺栓调节其高度。所述轮椅两侧扶手处还各有一加宽的扶手垫,用于输液病人将输液手臂放在上面。所述轮椅靠背处还设有一小型急救箱,用于放置急救药品和设备。本实用新型的优点是截瘫等需要借助轮椅行动的输液病人,可以在输液时方便地外出活动,减少了陪护人员,同时也减少了院内交叉感染的几率,极大地方便了病人。

Figure 201220714561

The utility model discloses a movable liquid-hanging wheelchair, which comprises a wheelchair, and is characterized in that a lifting liquid-hanging frame is vertically fixed at the handle of the wheelchair, and its height is adjusted by adjusting bolts of the liquid-hanging frame. There is also a widened armrest pad at the armrests on both sides of the wheelchair, which is used for infusion patients to put their infusion arms on it. A small first-aid box is also provided at the back of the wheelchair for placing first-aid medicine and equipment. The utility model has the advantage that transfusion patients such as paraplegia who need to rely on wheelchairs can conveniently go out for activities during transfusion, which reduces the number of escorts and the probability of cross-infection in the hospital, which greatly facilitates the patients.

Figure 201220714561

Description

移动式挂液轮椅Mobile liquid wheelchair

技术领域 technical field

本实用新型涉及一种医疗器具,特别涉及一种移动式挂液轮椅。 The utility model relates to a medical appliance, in particular to a mobile liquid-hanging wheelchair.

背景技术 Background technique

挂液架是医院常见的医疗器具,但临床应用的挂液架基本都是固定在床架、椅子或墙上,移动不方便,病人在输液时必须躺坐在床上或者坐在椅子上,从而限制了病人的外出活动。特别对于截瘫等需要借助轮椅行动的输液病人,在活动时(如上厕所),一方面需要有人协助推轮椅,同时可能还必须有专人帮忙举着输液袋或吊瓶,非常不方便。 The liquid rack is a common medical device in the hospital, but the liquid rack for clinical application is basically fixed on the bed frame, chair or wall, and it is inconvenient to move. The patient must lie on the bed or sit on the chair during the infusion, thereby The patient's outing activities are restricted. Especially for paraplegia and other infusion patients who need to use a wheelchair to move around, they need someone to help push the wheelchair when they are active (such as going to the toilet), and at the same time, they may have to have a special person to help hold the infusion bag or bottle, which is very inconvenient.

发明内容 Contents of the invention

针对上述问题,本实用新型的目的是提供一种移动式挂液轮椅,可以使无法自主行动的输液病人在家属陪同下到户外适当活动,减少了院内交叉感染的几率,也减少了陪护人员。 In view of the above problems, the purpose of this utility model is to provide a mobile infusion wheelchair, which can enable infusion patients who cannot act autonomously to go outdoors with the company of their family members, reducing the chance of cross-infection in the hospital and reducing the number of accompanying personnel.

本实用新型包括一轮椅,其特征是在轮椅手柄处垂直固定有一升降挂液架,通过挂液架调节螺栓调节其高度。 The utility model includes a wheelchair, which is characterized in that a lifting liquid hanger is vertically fixed at the handle of the wheelchair, and its height is adjusted by adjusting bolts of the liquid hanger.

所述轮椅两侧扶手处还各有一加宽的扶手垫,用于输液病人将输液手臂放在上面。 There is also a widened armrest pad at the armrests on both sides of the wheelchair, which is used for infusion patients to put their infusion arms on it.

所述轮椅靠背处还设有一小型急救箱,用于放置急救药品和设备。 A small first-aid box is also provided at the back of the wheelchair for placing first-aid medicine and equipment.

本实用新型的优点是截瘫等需要借助轮椅行动的输液病人,可以在输液时方便地外出活动,减少了陪护人员,同时也减少了院内交叉感染的几率,极大地方便了病人。具有显著的社会效益和经济效益,成本低廉,便于推广。 The utility model has the advantage that transfusion patients such as paraplegia who need to rely on wheelchairs can conveniently go out for activities during infusion, which reduces the number of escorts and the probability of cross-infection in the hospital, which greatly facilitates the patients. The invention has remarkable social and economic benefits, is low in cost, and is easy to popularize.

附图说明 Description of drawings

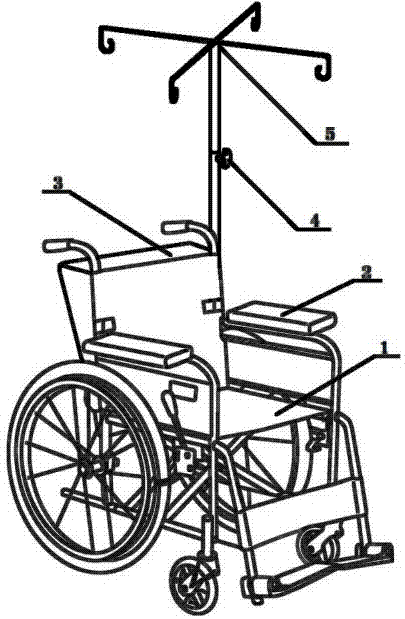

图1 是本实用新型的结构示意图。 Fig. 1 is a structural representation of the utility model.

1. 轮椅;2. 加宽扶手垫;3. 急救箱;4. 挂液架调节螺栓;5. 升降挂液架。 1. Wheelchair; 2. Extended armrest pad; 3. First aid kit; 4. Adjusting bolt of the liquid rack; 5. Lifting liquid rack.

具体实施方式 Detailed ways

下面结合附图并通过具体实施例来进一步说明本实用新型。 The utility model will be further described below in conjunction with the accompanying drawings and through specific embodiments.

如图1所示,本实用新型包括一轮椅1,在轮椅手柄处垂直固定有一升降挂液架5,通过挂液架调节螺栓4调节其高度。 As shown in Figure 1, the utility model comprises a wheelchair 1, and a lifting liquid rack 5 is vertically fixed at the wheelchair handle, and its height is regulated by the liquid rack adjusting bolt 4.

所述轮椅1两侧扶手处还各有一加宽的扶手垫2,用于输液病人将输液手臂放在上面。 There is also a widened armrest pad 2 at the armrests on both sides of the wheelchair 1, which is used for infusion patients to put their infusion arms on it.

所述轮椅靠背处还设有一小型急救箱3,用于放置常用的急救药品和设备。 The backrest of the wheelchair is also provided with a small first aid kit 3 for placing commonly used first aid medicines and equipment.

当病人特别是截瘫病人在普通输液时要自由移动时,可先将输液的手放在扶手垫2上,由家属通过调节螺栓4调节升降挂液架5到适当高度,再推截瘫病人自由移动。 When the patient, especially the paraplegic patient, wants to move freely during ordinary infusion, the hand of the infusion can be placed on the armrest pad 2 first, and the family member can adjust the lifting liquid rack 5 to an appropriate height through the adjusting bolt 4, and then push the paraplegic patient to move freely .

Claims (3)
