Abstract

A cup with anti-scalding function, including a cup body, a hollow cylinder with internal thread is arranged in the cup body, and the hollow cylinder and the bolt on the cup base are matched to form a spiral structure, so that the cup body can move up and down through the spiral, The body of the cup can be moved up and down through the screw, which is easy to take, not easy to burn, simple and elegant.

Description

A cup with anti-scald function

技术领域 technical field

本实用新型涉及一种杯子，特别涉及一种具有防烫功能的杯子。 The utility model relates to a cup, in particular to a cup with anti-scald function.

背景技术 Background technique

目前市场上的杯子可谓是多种多样，各有千秋，但多倾向在各种不同的式样，也有部分考虑到了杯子的功能部分，但却很少。本项发明主要针对的是对防烫功能杯子的发明。从生活的实际问题出发，主要是根据在生活中人们常会被热水，咖啡等烫伤情况而设计。另外，外形采取了高脚杯形式，在解决人们防烫时也给人一种高贵时尚，优雅活泼之感，螺栓体上的螺纹同时也有防滑功用。 There are many kinds of cups on the market, each with its own advantages and disadvantages, but most of them tend to be in various styles, and some of them take into account the functions of the cups, but very few. This invention is mainly aimed at the invention of the anti-scald function cup. Starting from the actual problems of life, it is mainly designed according to the situation that people are often scalded by hot water, coffee, etc. in life. In addition, the shape adopts the form of a goblet, which also gives people a noble, fashionable, elegant and lively feeling when solving people's anti-scalding. The thread on the bolt body also has an anti-slip function.

发明内容 Contents of the invention

为了克服上述现有功能技术的不足，本实用新型的目的在于提供了一种具有防烫功能的杯子，能给人一种优雅活泼之感，适时减少人们被热水等烫伤的情况，简洁高贵的特点。 In order to overcome the shortcomings of the above-mentioned existing functional technologies, the purpose of this utility model is to provide a cup with anti-scalding function, which can give people a sense of elegance and liveliness, and reduce the situation of people being scalded by hot water in a timely manner. It is simple and noble. specialty.

为了实现上述目的，本实用新型采用的技术方案是：一种具有防烫功能的杯子，包括有杯身,在杯身内设有带内螺纹的空心柱体，空心柱体与杯座上的螺栓配套组成螺旋结构，使杯身可以通过螺旋上下移动。 In order to achieve the above object, the technical solution adopted by the utility model is: a cup with anti-scalding function, including a cup body, a hollow cylinder with internal thread is arranged in the cup body, and the bolts on the hollow cylinder and the cup holder Matched to form a spiral structure, so that the cup body can move up and down through the spiral.

所述的空心柱体里有内置螺纹，内置螺纹不超过杯口高度。 There are built-in threads in the hollow cylinder, and the built-in threads do not exceed the height of the cup mouth.

所述的螺栓体需与有空心柱体的内螺纹组成螺旋结构。 The bolt body needs to form a helical structure with the internal thread of the hollow cylinder.

本实用新型具有以下优点： The utility model has the following advantages:

本实用新型由于在杯身内设有内螺纹的空心柱体与另一组杯座和螺栓配套组成螺旋结构，使杯身可以通过螺旋上下移动，具有方便拿取，不易烫伤，简洁高雅的特点。 The utility model is provided with a hollow cylinder with an internal thread in the cup body and another set of cup holders and bolts to form a spiral structure, so that the cup body can move up and down through the spiral, which is convenient to take, not easy to burn, simple and elegant.

附图说明 Description of drawings

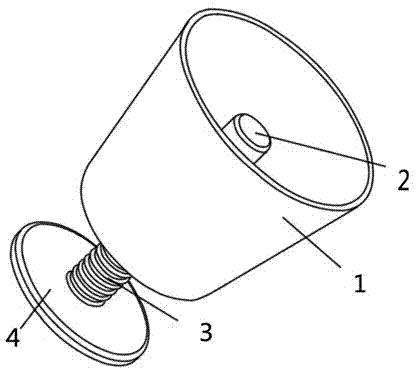

图1为本实用新型结构示意图。 Fig. 1 is the structural representation of the utility model.

图2为图1的局部放大图。 FIG. 2 is a partially enlarged view of FIG. 1 .

具体实施方式 Detailed ways

下面结合附图对本实用新型的结构原理和工作原理作进一步详细说明。 Below in conjunction with accompanying drawing, structural principle and working principle of the present utility model are described in further detail.

参见图1、2，一种具有防烫功能的杯子，包括有杯身1,在杯身1内设有带内螺纹的空心柱体2，空心柱体2与杯座4上的螺栓体3配套组成螺旋结构，使杯身可以通过螺旋上下移动。 Referring to Figures 1 and 2, a cup with anti-scalding function includes a cup body 1, a hollow cylinder 2 with internal threads is arranged in the cup body 1, a bolt body 3 on the hollow cylinder 2 and the cup holder 4 Matched to form a spiral structure, so that the cup body can move up and down through the spiral.

所述的空心柱体2里有内置螺纹，内置螺纹不超过杯口高度。 The hollow cylinder 2 has built-in threads, and the built-in threads do not exceed the height of the cup mouth.

所述的螺栓体3需与有空心柱体2的内螺纹组成螺旋结构。 The bolt body 3 needs to form a helical structure with the internal thread with the hollow cylinder 2 .

本实用新型的工作原理是： The working principle of the utility model is:

杯身1内设有内螺纹的空心柱体2与另一组杯座4和螺栓体3配套组成螺旋结构，使杯身可以通过螺旋上下移动，具有方便拿取，不易烫伤，简洁高雅的特点。 The hollow cylinder 2 with internal thread in the cup body 1 is matched with another set of cup holder 4 and bolt body 3 to form a spiral structure, so that the cup body can move up and down through the spiral, which is easy to take, not easy to burn, simple and elegant .

Claims

1. the cup with anti-scald function, include a glass body (1), it is characterized in that, is provided with tapped hollow cylinder (2) in cup body (1), the supporting composition helical structure of the body of bolt (3) on hollow cylinder (2) and cup (4).

2. a kind of cup with anti-scald function according to claim 1, is characterized in that, described hollow cylinder (2) is inner built-in screw thread, and built-in screw thread is no more than the rim of a cup height.
