Abstract

The utility model relates to a keyboard with a rotatable bracket for use with a plate-type electronic device. The plate-type electronic device has a first magnetic group inside. The keyboard includes: a plate-shaped keyboard body with a plurality of keys, the keyboard body defines an edge and The appropriate position of the keyboard body has an insertion mechanism; the bracket is rotatably connected with the edge, and can be in a supporting state and a retracted state; wherein, when the flat keyboard body is seated on a plane and the bracket presents the supporting state, the flat plate An angle greater than zero is formed between the keyboard body and the plane, so that there is a space between the two, and the insertion mechanism can be used for insertion of the board type electronic device. The bracket of the utility model can present a supporting state and a shrinking state. When the external keyboard needs to be used, the bracket is in the supporting state, and the insertion mechanism on the keyboard can be inserted into a tablet computer; when the external keyboard is not needed, The bracket is in a retracted state, and the keyboard can accommodate the tablet computer.

Description

Keyboard with swivel stand

technical field

The utility model relates to a keyboard, in particular to a keyboard with a rotatable bracket, which can be used in conjunction with a board-type electronic device.

Background technique

Portable touch-type computer devices are currently the most popular consumer products, such as recent tablet computers (such as iPad, etc.). However, the keyboard interface on the tablet computer still does not conform to the user's input habits, especially the virtual keys have no tactile sensation, so the user's input (such as Chinese input method) speed is slowed down.

In response to this demand, recently, manufacturers have begun to equip tablet computers with external keyboards.

However, how to match the external keyboard with the tablet is also a problem to be solved when not in use or in use.

Utility model content

In order to solve the above problems, the utility model provides a keyboard with a rotatable bracket. By setting a bracket with a supporting state and a contracted state, the external keyboard and the tablet computer are respectively in the supported state and contracted state when in use and not in use. status purpose.

In order to achieve the above purpose, the utility model proposes a keyboard with a rotatable bracket for use with a plate-type electronic device. The plate-type electronic device has a first magnetic group. The keyboard includes: a plate-shaped keyboard body with a plurality of keys, The flat-shaped keyboard body defines an edge, and an appropriate position of the flat-shaped keyboard body has an insertion mechanism; the bracket is rotatably connected to the edge; wherein, when the flat-shaped keyboard body is seated on a plane and the bracket presents the supporting state An angle greater than zero is formed between the flat keyboard body and the plane, so that there is a space between the two, and the insertion mechanism can be used for the insertion of the flat electronic device.

As an optional technical solution, a second magnetic group is arranged in the bracket. When the bracket assumes the retracted state, the flat keyboard body is parallel to the plane, and the flat electronic device is placed parallel to the flat keyboard body. On the flat-shaped keyboard body, the second magnetic group is used to attract the first magnetic group.

As an optional technical solution, the board-type electronic device is a tablet computer.

As an optional technical solution, the board-type electronic device has a touch screen, and when the keyboard is attached to the board-type electronic device, the flat-shaped keyboard body covers the touch screen of the board-type electronic device.

As an optional technical solution, the periphery of the tablet-shaped keyboard body has at least one hook for engaging the tablet computer when the tablet computer is placed thereon.

As an optional technical solution, the angle between the cross section of the insertion mechanism and the plane of the flat keyboard body is in the range of 90 degrees to 120 degrees.

As an optional technical solution, the section of the insertion mechanism is 90 degrees or 120 degrees from the plane of the flat keyboard body.

As an optional technical solution, the insertion mechanism is an opening, and the opening runs through the keyboard.

As an optional technical solution, the insertion mechanism is a groove, the depth of which is smaller than the thickness of the keyboard, and does not penetrate through the keyboard.

Compared with the traditional technology, the keyboard of the utility model has a rotatable bracket, and the bracket can show a support state and a contracted state. When the external keyboard needs to be used, the bracket is in the support state, and the insertion mechanism on the keyboard can be used The tablet computer is inserted; when the external keyboard is not needed, the bracket is in a retracted state, and the keyboard can accommodate the tablet computer.

The advantages and spirit of the present utility model can be further understood through the following detailed description of the utility model and the accompanying drawings.

Description of drawings

Fig. 1A is the keyboard of the utility model embodiment;

Fig. 1B is a side view of the keyboard of the present invention with a tablet computer in use;

Fig. 2A is a side view of the state where the keyboard accommodates the tablet computer according to the embodiment of the present invention;

Fig. 2B is a perspective view of the state where the keyboard accommodates the tablet computer according to the embodiment of the present invention;

Fig. 3A is a perspective view of the use state (horizontal) of a tablet computer on the keyboard of the present invention;

FIG. 3B is a perspective view of the use state (vertical direction) of the keyboard of the present invention with the board-type electronic device.

Detailed ways

With reference to Fig. 1A, the keyboard of the utility model embodiment comprises: flat-shaped keyboard body 100, has a plurality of keys, keyboard body 100 defines edge 101 and the appropriate position of keyboard body 100 has insertion mechanism 124; Bracket 13, rotatably with The edges 101 are connected, and the bracket 13 can be in a supported state and a contracted state. Referring to Fig. 1B and Fig. 2A, Fig. 1B is a side view of the use state of a tablet computer on the keyboard of the present invention, Fig. 2A is a side view of the state of the keyboard containing a tablet computer according to the embodiment of the present invention, and the bracket 13 in Fig. 1B In the supported state, the stent 13 in FIG. 2A is in the contracted state. As shown in FIG. 1B , when the flat-shaped keyboard body 100 is seated on the plane 20, and the angle between the flat-shaped keyboard body 100 and the plane 20 is greater than zero, so that there is a space 126 between the two, the bracket 13 presents the supporting state. , at this moment, the insertion mechanism 124 can be used for insertion of the board type electronic device. Wherein, the board type electronic device can be a tablet computer 11 . As shown in FIG. 2A , when the flat keyboard body 100 is seated on the plane 20 and the flat keyboard body 100 is parallel to the plane 20 , the bracket 13 is in the contracted state. The insertion mechanism 124 can be an opening, when the board-shaped electronic device is inserted into the opening, the board-shaped electronic device passes through the opening, and the lower end of the board-shaped electronic device protrudes from the lower surface of the keyboard body and enters the space 126 , as shown in Figure 1B. In addition, the inserting mechanism 124 can be a slot, the depth of which is less than the thickness of the keyboard, but does not penetrate through the keyboard.

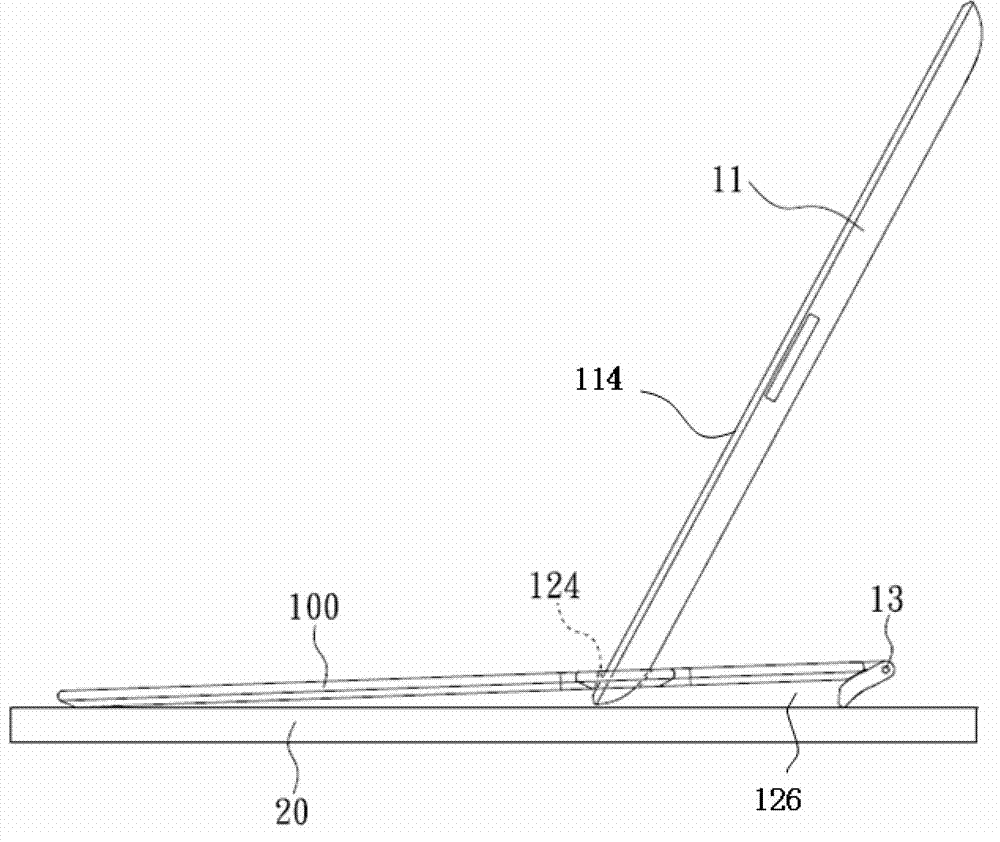

FIG. 1B discloses the use state of the keyboard body 100 of the present invention with a tablet computer in a side view.

The tablet computer 11 has a screen 114, and there is a first magnetic group (not shown) inside the tablet computer 11 casing. When it is down, the cover can cover the screen 114, and the cover can be adsorbed thereon. The first magnetic group may include magnets, iron pieces or a combination of both.

Referring to FIG. 2A, a second magnetic group (not shown) is arranged in the bracket 13. When the bracket 13 presents the contracted state and the board-type electronic device is placed on the flat-shaped keyboard body 100, the second magnetic group is used to absorb the second magnetic group. a magnetic group.

Fig. 2A is a side view of the state where the keyboard accommodates the tablet computer according to the embodiment of the present invention; Fig. 2B is a perspective view of the state where the keyboard accommodates the tablet computer according to the embodiment of the present invention.

According to an embodiment, when the keyboard is attached to the tablet electronic device, the keyboard body 100 covers the touch screen 114 of the tablet electronic device.

According to an embodiment, the periphery of the keyboard body 100 has at least one hook 102 for engaging the tablet computer 11 when the tablet computer 11 is placed thereon.

The included angle between the cross section of the insertion mechanism and the plane of the flat keyboard body is 90° to 120°. According to an embodiment, the cross-sectional shape of the insertion mechanism 124 is 90 degrees to the plane of the keyboard body 100 , as shown in FIG. 2A , or 120 degrees, as shown in FIG. 3A .

According to an embodiment, the depth of the insertion mechanism 124 runs through the entire thickness of the keyboard body 100 , as shown in FIG. 1B , or is not penetrated.

According to an embodiment, the keyboard body 100 may be a wired or wireless keyboard.

Referring to FIG. 3A , it is a perspective view of the keyboard body of the present invention in use (horizontal) with a tablet computer.

FIG. 3B is a perspective view of the use state (vertical direction) of the keyboard body of the present invention collocated with the board-type electronic device.

The keyboard of the utility model has a rotatable bracket, and the bracket can be in a supporting state and a shrinking state. When the external keyboard needs to be used, the bracket is in a supporting state, and the insertion mechanism on the keyboard can be inserted into a tablet computer; When the external keyboard is not needed, the bracket is in a retracted state, and the keyboard can accommodate the tablet computer.

It can be understood from the above description combined with the illustrations that the utility model can indeed achieve the purpose set by the utility model, and therefore has practicality.

The above descriptions are only preferred embodiments of the present utility model, and all equivalent changes and modifications made according to the patent scope of the present utility model shall fall within the scope of the present utility model.

Claims (9)

1. A keyboard with a rotatable bracket for use with a board-type electronic device, the board-type electronic device has a first magnetic group, characterized in that the keyboard comprises: A flat-shaped keyboard body has a plurality of keys, the flat-shaped keyboard body defines edges and an insertion mechanism is provided at an appropriate position of the flat-shaped keyboard body; a bracket rotatably connected to the edge; Wherein, when the flat-shaped keyboard body is seated on a plane and the bracket is in a supporting state, an angle greater than zero is formed between the flat-shaped keyboard body and the plane, so that there is a space between the two, and the insertion mechanism can provide for the plate-shaped Insertion of electronic devices. 2. The keyboard with a rotatable bracket according to claim 1, characterized in that: a second magnetic group is arranged in the bracket, when the bracket is contracted, the flat keyboard body is parallel to the plane, the The board-type electronic device is parallel to the flat keyboard body and placed on the flat keyboard body, and the second magnetic group is used to attract the first magnetic group. 3. The keyboard with a rotatable stand according to claim 1, wherein the board-type electronic device is a tablet computer. 4. The keyboard with a rotatable bracket according to claim 2, characterized in that: the board-type electronic device has a touch screen, when the keyboard and the board-type electronic device are adsorbed, the flat-shaped keyboard body covers the board-type electronic device The touchscreen. 5 . The keyboard with a rotatable stand according to claim 3 , wherein at least one hook is provided on the peripheral edge of the tablet-shaped keyboard body for engaging the tablet computer when the tablet computer is placed thereon. 6 . 6 . The keyboard with a rotatable bracket according to claim 1 , wherein the included angle between the section of the inserting mechanism and the plane of the flat keyboard body is 90° to 120°. 7. The keyboard with rotatable bracket according to claim 6, characterized in that: the cross section of the inserting mechanism is 90 degrees or 120 degrees from the plane of the flat keyboard body. 8. The keyboard with a rotatable bracket according to claim 1, wherein the insertion mechanism is an opening, and the opening passes through the keyboard. 9 . The keyboard with a rotatable bracket according to claim 1 , wherein the inserting mechanism is a groove, the depth of which is smaller than the thickness of the keyboard, and does not penetrate through the keyboard.
