Abstract
本实用新型涉及一种砖的结构，特别是涉及一种通孔砖结构。由下述结构构成：平行六面体内沿横向中心线至少设有两个纵向的通孔；平行六面体两个对称的外表面沿所述的横向中心线对称设有沟槽，该对称的沟槽均穿过所述的通孔。本实用新型具有节约原材料、节能环保、施工简单、干缩变形小等优点，在建筑中使用本实用新型可以提高墙体的抗剪切破坏能力、抗震抗剪性能，并具有良好的抗裂性、抗渗能力和隔热性能。
The utility model relates to a brick structure, in particular to a through-hole brick structure. It is composed of the following structure: at least two longitudinal through holes are arranged in the parallelepiped along the transverse centerline; the two symmetrical outer surfaces of the parallelepiped are symmetrically provided with grooves along the transverse centerline, and the symmetrical grooves are through the through hole. The utility model has the advantages of saving raw materials, energy saving and environmental protection, simple construction, and small drying shrinkage deformation. The utility model can be used in buildings to improve the shear damage resistance, earthquake resistance and shear resistance of the wall, and has good crack resistance. , impermeability and heat insulation performance.
Description
Technical field
The utility model relates to a kind of structure of brick, particularly relates to a kind of through hole brick structure.
Background technology
At present, building brick commonly used mostly is solid sintered clay brick.Traditional sintered clay brick not only consumes a large amount of cultivated land resources, expends a large amount of energy, and causes environment pollution, soil erosion.Meanwhile, porous brick and small-sized hollow building block that in current building, use amount increases increasingly, these porous bricks and building-block pass are different, volume is larger, in building process, be not easy to realize the mechanical property of masonry structure total tune, anti-seismic performance is low, and constructing operation is complicated, and constructor's practical skill is had relatively high expectations; Secondly, common small-sized hollow building block, porous brick intensity are lower, Lack of support own, and anti-shearing damage capability is poor, and then causes its masonry structure shock resistance poor, and body of wall easily ftractures, seeps water, and the problems such as moistureproof ability affect construction engineering quality.
Summary of the invention
The utility model is for the technical problem of above-mentioned existence, purpose is to provide a kind of production that is widely used in energy-saving and environmental protection class constructional materials, make dry-shrinkage deformed little, the bearing capacity raising of the product body of wall of producing, the Hollow Block Masonry Structure Anti-seismic effect improves, constructing operation is easy, applicable to a kind of through hole brick structure of modern multistory building with the building with high anti-seismic performance requirement.
The technical scheme of the utility model technical solution problem is to achieve these goals:
A kind of through hole brick structure is made of following structure: be provided with at least two through holes that vertically connect along cross central line in parallelepiped; The external surface of two symmetries of parallelepiped is arranged with groove along described cross central line, and this symmetrical groove all passes described through hole.
Described parallelepiped is one of cuboid or square.
The utility model compared with prior art has following advantages and effect: the utlity model has save material, simple, the dry-shrinkage deformed advantage such as little of energy-conserving and environment-protective, construction, use under construction the utility model can improve anti-shearing damage capability, the antidetonation shear behavior of body of wall, and have good crack resistance, impermeability and heat-proof quality.Brick type structure of the present utility model is applicable to utilize the production materials for wall of various brick-making raw materials, especially taking full advantage of building castoff for producing aspect raw material, not only save natural resource, and energy consumption is lower, of reduced contamination in process of production; Utilize simultaneously its body of wall of building by laying bricks or stones, group is built various informative, builds by laying bricks or stones conveniently, and has certain shock resistance, realizes simultaneously the insulation of body of wall, impervious function, will produce obvious economic benefit and social benefit.
Description of drawings

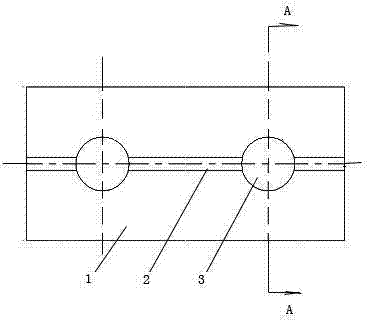

Fig. 1 is the main TV structure schematic diagram of a kind of embodiment of the utility model;
Fig. 2 is the A-A sectional structure schematic diagram of a kind of embodiment of the utility model.
Fig. 3 is the plan structure schematic diagram of a kind of embodiment of the utility model.
Part in figure: parallelepiped 1; Groove 2; Through hole 3.
The specific embodiment
Below in conjunction with specific embodiment, the utility model is further elaborated, but protection domain of the present utility model is not limited by specific embodiment, is as the criterion with claims.In addition, with under the prerequisite of technical solutions of the utility model, within any change that those of ordinary skills that the utility model is done easily realize or change all will fall into claim scope of the present utility model.
Embodiment 1:
A kind of through hole brick structure as shown in Figure 1, 2, 3, parallelepiped 1 is interior is provided with two through holes 3 that vertically connect along cross central line; The external surface of 1 two symmetries of parallelepiped is arranged with groove 2 along described cross central line, and this symmetrical groove 2 all passes described through hole 3.Described parallelepiped is cuboid.
Specific embodiment:
Utilizing inventor of the present utility model is 201210441551.2 at number of patent application, name is called the material of regeneration concrete brick and preparation method thereof, namely adopt villages and small towns building castoff, the machined regeneration aggregate for preparing of industrial residue, according to structure design transition of the present utility model, produce a kind of Regenerated anti-seismic brick with double through holes by name.The brick body is cuboid, its size: 240mm * 115mm * 53mm, and the aperture is 40mm, two hole center to center distance are 125mm, open width along brick face two through hole cross central line and are the groove that 10mm, the degree of depth are 5mm.Use under construction the utility model can improve anti-shearing damage capability, the antidetonation shear behavior of body of wall, and have good crack resistance, impermeability and heat-proof quality.
When the utility model specifically uses, can be at the horizontal steel tie of the interior laying of groove 2, at the wrong raft of laying bricks, through hole 3 is taken simultaneously and adopted the through hole grouting technique when building, improve vertical and horizontal globality of body of wall, strengthened the ability of the anti-shearing destruction of masonry panel, and then improved the shock resistance of body of wall, improved again antiseepage, the heat-insulating property of masonry panel simultaneously.
Claims (2)
1. a through hole brick structure, is characterized in that being made of following structure: be provided with at least two through holes (3) that vertically connect along cross central line in parallelepiped (1); The external surface of (1) two symmetry of parallelepiped is arranged with groove (2) along described cross central line, and this symmetrical groove (2) all passes described through hole (3).
2. a kind of through hole brick structure according to claim 1, is characterized in that described parallelepiped (1) is one of cuboid or square.
