Abstract

The utility model relates to a drawer-type combined condiment container. The utility model comprises a box body, a drawer box is arranged in the box body, the drawer box is divided into several squares, the box body is divided into upper and lower layers of boxes, the upper box body is provided with a drawer box, and the partition board set in the middle of the drawer box is adjacent to the front and back There are two grooves between the squares, the lower end of the drawer cover is provided with a boss, and the boss is embedded in the groove at the upper end of the drawer box; the rear of the lower box is provided with a storage box, and the front is provided with a Several liquid shakers. The storage of solid condiments in the utility model can not only realize the collective storage of different types of condiments, but also realize the independent sealing of each type of condiments, effectively avoiding the problems of moisture deterioration and mutual odor of condiments, and different types of liquids. Condiments are stored in separate seasoning bottles.

Description

A kind of condiment container of drawer type combination

Technical field

The utility model belongs to the daily chemical products packaging field, is specifically related to a kind of condiment container of drawer type combination.

Technical background

Flavouring is indispensable important auxiliary material in the food and drink culinary art, and arranged dividing of solid-state (as: salt, monosodium glutamate, pepper powder) and liquid (as soy sauce, vinegar, cooking wine).

Usually the container that holds flavouring in family has bottle, tank, box etc., and mostly adopts independent packaging, disperses, is positioned in the kitchen mussily, not only use inconvenience, and big and small condiment container can take more storage area, and easy to clean, do not had a strong impact on the attractive in appearance, clean and tidy of kitchen.Existing Combined condiment container on market in addition, only can realize the combination of solid-state seasoning product or the combination of liquid seasonings, and the taking-up mode of flavouring be generally the Dumpage type of uncapping, liquid from elastic bottle osculum extruded type, uncapping takes formula, handlance extrusion type etc., not only poorly sealed, easily cause between flavouring taint of odour mutually or become damp and rotten, and existing and uncap, topple over, closing lid, take trouble and be difficult for the series of problems such as metering.

The utility model content

The technical problem that the utility model solves be to provide a kind of can deposit simultaneously solid-state and liquid seasonings, clean and tidy health, easy to use, be convenient to clear up and the condiment container of reusable drawer type combination.

For solving above-mentioned technical problem, the technical scheme that the utility model is taked:

A kind of condiment container of drawer type combination, comprise casing, drawer box is set in casing, drawer box is divided into several grids, its special character is: casing is divided into up and down two layer box bodies, and upper layer box body arranges drawer box, and the dividing plate that arranges in the middle of drawer box is provided with two grooves between the adjacent grid in front and back, the lower end of drawer lid is provided with boss, and boss is embedded in the groove of drawer box upper end; The rear portion of lower layer box body is provided with parcel tray, and the front portion arranges several liquid seasoning bottles.

Above-mentioned liquid seasoning bottle comprises bottle cap and bottle, bottle cap comprises Capsule and glass dropper, Capsule is arranged on glass dropper top, bottle one side is provided with annular groove, the upper end is respectively arranged with rectangle outlet and round exit, the rectangle outlet coordinates buckle to be tightly connected, and round exit coordinates the bottle cap sealing link.

The centre position of the end face of above-mentioned drawer box is provided with an oval handle.

Above-mentioned parcel tray is left low right high structure, and the high face on right side is adjacent with several castors, and the centre position of the high face in right side is provided with an oval handle.

compared with prior art, the storage of the utility model to solid seasoning, not only can realize the set local of variety classes flavouring, can realize the independent sealed of every class flavouring again, effectively avoided flavouring to become damp and rotten, the problem of mutual taint of odour, adopt independently castor to store to different types of liquid flavoring, especially the taking-up mode of liquid flavoring is improved, not only can directly pour out certain quantity of fluid, realize quick taken amount, can also realize quantitatively picking up by the burette type bottle cap, the utlity model has elegant in appearance, save the space, clean and tidy health, easy to use, be convenient to cleaning and reusable characteristics.

Description of drawings

Fig. 1 is structural representation of the present utility model;

Fig. 2 is the left view of Fig. 1;

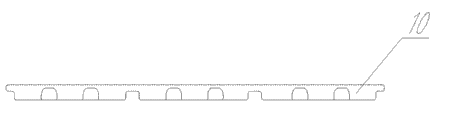

Fig. 3 is the structural representation of drawer lid;

Fig. 4 is the structural representation of drawer box;

Fig. 5 is the structural representation of parcel tray;

Fig. 6 is the structural representation of bottle cap;

Fig. 7 is the structural representation of bottle;

Fig. 8 is the top view of Fig. 7;

Fig. 9 is the side view of Fig. 7.

The specific embodiment

Below in conjunction with the drawings and specific embodiments, the utility model is elaborated.

Referring to Fig. 1 ~ 9, the utility model comprises casing 1, the interior drawer box 3 that arranges of casing 1, drawer box 3 is divided into several grids, casing 1 is divided into up and down two layer box bodies, and upper layer box body is used for placing the solid seasoning container, and lower layer box body is used for placing parcel tray and liquid seasoning bottle; Upper layer box body arranges drawer box 3, the dividing plate 7 that arranges in the middle of drawer box 3 is provided with two grooves 8 between the adjacent grid in front and back, be used for fixing respectively the little spoon that takes flavouring of being furnished with in each grid, the lower end of drawer lid 2 is provided with boss 10, and boss 10 is embedded in the groove 11 of drawer box 3 upper ends; The rear portion of lower layer box body is provided with parcel tray 4, and the front portion arranges several liquid seasoning bottles.

Above-mentioned liquid seasoning bottle comprises bottle cap 5 and bottle 6, bottle cap 5 comprises Capsule 13 and glass dropper 14, Capsule 13 is arranged on glass dropper 14 tops, and bottle 6 one sides are provided with annular groove 15, conveniently to hold bottle, the upper end is respectively arranged with rectangle outlet 16 and round exit 17, rectangle outlet 16 coordinates buckle 18 to be tightly connected, and can directly pour out certain quantity of fluid, realizes quick taken amount, round exit 17 is threaded with bottle cap 5, realizes quantitatively picking up.

The centre position of the end face of above-mentioned drawer box 3 is provided with an oval handle 9, facilitates the access of drawer box 3.

Above-mentioned parcel tray 4 is left low right high structure, and the high face on right side is adjacent with several castors, and the centre position of the high face in right side is provided with an oval handle 12, the access of convenient storage box 4.

When using the utility model, drawer box 3 is taken out from upper layer box body, open drawer lid 2, can take solid seasoning with little spoon any grid in drawer box 3; Liquid seasoning bottle is taken out from lower layer box body, both can open buckle 18, directly pour out a certain amount of liquid flavoring from rectangle outlet 16, also can press the Capsule 13 on bottle cap 5, quantitatively pick up liquid flavoring.

Claims (4)

1. A drawer-type combination condiment container, including a box body (1), a drawer box (3) is arranged inside the box body (1), and the drawer box (3) is divided into several squares, characterized in that: the box body (1) It is divided into upper and lower cabinets, the upper cabinet is equipped with a drawer box (3), and the partition (7) set in the middle of the drawer box (3) is provided with two grooves between the front and rear adjacent squares (8), the lower end of the drawer cover (2) is provided with a boss (10), and the boss (10) is embedded in the groove (11) at the upper end of the drawer box (3); the rear of the lower box is provided with a storage Object box (4), the front part is provided with several liquid seasoning bottles. 2. A drawer-type combined condiment container according to claim 1, characterized in that: the liquid seasoning bottle includes a bottle cap (5) and a bottle body (6), and the bottle cap (5) includes a rubber cap (13) and glass dropper (14), the rubber cap (13) is set on the top of the glass dropper (14), the side of the bottle body (6) is provided with an annular groove (15), and the upper end is respectively provided with a rectangular outlet (16 ) and the circular outlet (17), the rectangular outlet (16) cooperates with the buckle (18) to seal the connection, and the circular outlet (17) cooperates with the bottle cap (5) to seal the connection. 3. A drawer-type combined condiment container according to claim 1 or 2, characterized in that: an oval handle (9) is provided in the middle of the end surface of the drawer box (3). 4. A drawer-type combined condiment container according to claim 3, characterized in that: the storage box (4) has a low left and right high structure, and the high surface on the right corresponds to several seasoning bottles Adjacent, an oval handle (12) is arranged at the middle position of the right high surface.
