Abstract

The utility model belongs to the field of office furniture, and particularly relates to an office table which can solve the problem that an existing office table is inconvenient to store. The office table comprises a table top, table feet and a cabinet. One side of the cabinet is provided with a main engine cabinet, the other side of the cabinet is provided with a drawer set, and each drawer is provided with a handle. The office table is characterized in that a book groove is formed outside the table top in a matching mode, a wiring channel is formed in the book groove, a wiring channel cover is arranged on the upper surface of the wiring channel, the book groove is connected with the table top in a three-in-one mode, and the table top is fixedly connected with the table feet. The office table has the advantages that the books and objects placed on the office table are clear at a glance, placing and fetching are convenient, various wires and sockets can be hidden by the office table, and the office table is beautiful and neat.

Description

Desk
Technical field
The utility model belongs to field of office furniture, is specifically related to a kind of desk.
Background technology
The function of taking in of traditional desk embodies by locker, but locker can not satisfy people to the requirement of the quick access of books.Therefore for the quick accessed document books of energy, people can directly be placed in data on desk.This just makes limited desk seem disorderly and unsystematic because putting various books or file, not only affects the attractive in appearance of office, sometimes also can affect employee's operating efficiency.
Summary of the invention
Technical problem to be solved in the utility model is to provide a kind of desk of taking in simple in structure, open.
The technical scheme that the utility model solves the problems of the technologies described above is the desk of the following structure of design: comprise desktop, table pin and locker, locker one side is provided with the main frame cupboard, opposite side is provided with the drawer group, single drawer is provided with handle, it is characterized in that being equipped with book-groove outside desktop, be equipped with trough in book-groove, the trough upper surface is provided with the trough lid, book-groove is three-in-one the connection with desktop, desktop with the table pin for being fixedly connected with.
The beneficial effects of the utility model are: open book-groove structure, can make books and the article put very clear, not only attractive in appearance but also pick and place convenient.The design of trough simultaneously can be hidden various electric wires, socket, makes desk more clean and tidy.
Description of drawings

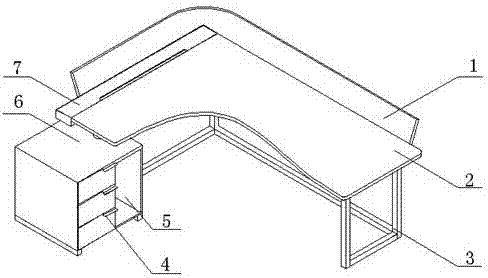

Fig. 1 is the office desk structure schematic diagram.
Fig. 2 is desktop, book-groove and trough structural representation.
The specific embodiment
Below in conjunction with accompanying drawing, the utility model desk is described further.
As shown in Figure 1, desk is comprised of desktop 2, table pin 3 and locker 6.Desktop 2 is fixedly connected with table pin 3, for example Type of Welding.Locker 6 one sides are provided with main frame cupboard 5, and opposite side is provided with 3 drawers.Drawer is provided with handle 4, and handle 4 is provided with color, and handle 4 colors on the drawer of diverse location are different, and the user can classify to drawer according to the difference of color.Desktop 2 outsides are provided with book-groove 1, and book-groove 1 is three-in-one the connection with desktop 2.The form fit setting of book-groove 1 and desktop 2 is all " L " shape.The right side of book-groove 1 is equipped with trough 7, and trough 7 upper surfaces are provided with " recessed " font trough lid 8, are convenient to the user and open.As Fig. 2, the width of trough 7 and length are all less than book-groove 1, and height highly equates with book-groove inwall 10, makes trough 7 can be hidden in book-groove 1.Book-groove outer wall 9 is convenient to place the long object of books data equal length higher than desktop.The upper surface of book-groove inwall 10 is fixedly connected with table 2.

Claims (4)

1. desk, comprise desktop (2), table pin (3) and locker (6), locker (6) one sides are provided with main frame cupboard (5), opposite side is provided with the drawer group, and single drawer is provided with handle (4), it is characterized in that being equipped with book-groove (1) outside desktop (2), be equipped with trough (7) in book-groove (1), trough (7) upper surface is provided with trough lid (8), and book-groove (1) is three-in-one the connection with desktop (2), desktop (2) with a pin (3) for being fixedly connected with.
2. desk according to claim 1, is characterized in that table is " L " shape, and book-groove (1) is " L " shape.
3. desk according to claim 1, is characterized in that handle (4) is provided with color.
4. desk according to claim 1, is characterized in that trough lid (8) is " recessed " font.
