Abstract
The utility model discloses a solder wetting mechanism, and pertains to the field of wire machining and production. The solder wetting mechanism comprises a first air cylinder, a wire pressing connecting rod, a wire pressing platform, a soldering flux furnace and a solder wetting furnace. The wire pressing connecting rod is arranged in parallel on the upper end of the wire pressing platform, the lower end of the wire pressing connecting rod is provided with a wire pressing head, the wire pressing head is protruded relative to the inner side surface of the wire pressing platform so as to perform the soldering flux wetting operation or the solder wetting operation on the bended portion of a wire in the downward pressing process of the wire pressing head; the wire pressing connecting rod is driven by the first air cylinder to undergo vertical movement to cause the downward pressing movement of the wire pressing head so as to perform the soldering flux wetting operation or the solder wetting operation; the soldering flux furnace and the solder wetting furnace are arranged under the wire pressing platform. According to the solder wetting mechanism, the soldering flux wetting operation can be performed automatically, and then the solder wetting operation is performed automatically.
Description
Technical field
The utility model relates to electric wire processing field, particularly relates to tin mechanism.
Background technology
After electric wire being turned round the line processing, need to carry out upper tin to electric wire and process, tin not only can be protected electric wire, also is easy to welding.Traditional technique first with upper scaling powder, goes up tin again, but traditional technique can only manual operation, causes tin efficient low, the labor intensive material resources.
The utility model content
For addressing the above problem, the utility model provides upper tin mechanism, can automatically go up scaling powder, again automatic tin operation.
Technical solution adopted in the utility model is: upper tin mechanism comprises the first cylinder, line pressing connecting rod, line ball platform, scaling powder stove and upper tin stove; Line pressing connecting rod arranges line ball platform upper end, and the line pressing connecting rod lower end is provided with the line ball head, and the line ball head is outstanding with respect to line ball platform medial surface, can be with scaling powder in the electric wire bending or upper tin when the line ball head is pressed down; Line pressing connecting rod is vertically mobile by the first air cylinder driven, drives and presses scaling powder or upper tin under the line ball head; Scaling powder stove and upper tin stove are located at line ball platform below.
In technique scheme, line pressing connecting rod be arranged in parallel on the line ball platform.
In technique scheme, upper tin mechanism also comprises the second cylinder; The second air cylinder driven scaling powder stove is vertical with upper tin stove mobile, makes scaling powder stove and upper tin stove can not stop mobile electric wire.
In technique scheme, upper tin mechanism also comprises vertical guide rail and slide block; Scaling powder stove and upper tin stove are fixed on the slide block, and slide block is connected on the vertical guide rail, and the second air cylinder driven slide block is mobile in vertical guide rail, and it is vertical with upper tin stove mobile to drive the scaling powder stove.
The beneficial effects of the utility model are: the upper tin mechanism of above-mentioned structure, and by the mode bending electric wire of line ball, contact scaling powder stove and upper tin stove are gone up scaling powder, again automatic tin automatically; The scaling powder stove can vertically move with upper tin stove, does not stop loading and unloading to be beneficial to automation; Can go up respectively scaling powder and upper tin to two electric wires, working (machining) efficiency is high.
Description of drawings

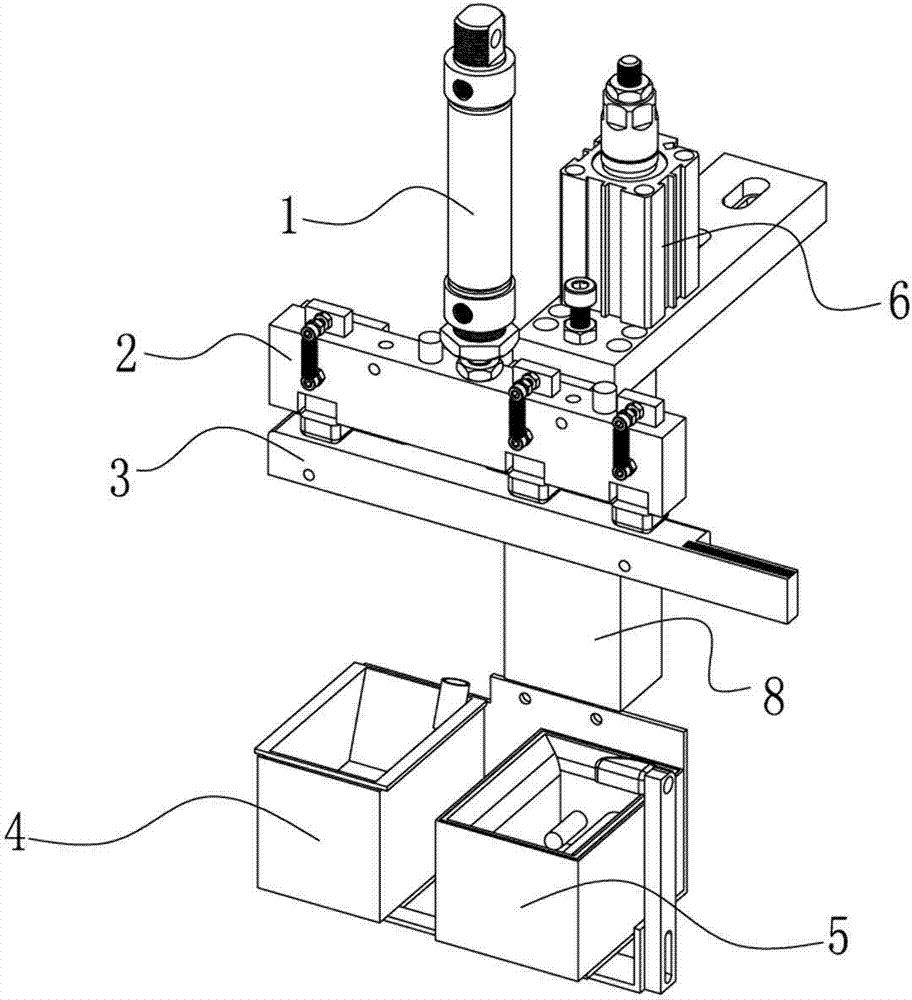

Fig. 1 is overall structure figure of the present utility model;
Fig. 2 is exploded view of the present utility model;
Fig. 3 is line ball head front view of the present utility model.
Among the figure, the 1, first cylinder; 2, line pressing connecting rod; 21, line ball head; 3, line ball platform; 4, scaling powder stove; 5, upper tin stove; 6, the second cylinder; 7, vertical guide rail; 8, slide block.
Embodiment
Below in conjunction with accompanying drawing the utility model is described in further detail.
Fig. 1 to Fig. 3 has schematically shown the upper tin mechanism according to a kind of execution mode of the present utility model.
Upward tin mechanism comprises the first cylinder 1, line pressing connecting rod 2, line ball platform 3, scaling powder stove 4, upper tin stove 5, the second cylinder 6, vertical guide rail 7 and slide block 8; Line pressing connecting rod 2 line ball platform 3 upper ends that be arranged in parallel, line pressing connecting rod 2 lower ends are provided with line ball head 21, line ball head 21 is outstanding with respect to line ball platform 3 medial surfaces, can be with scaling powder in the electric wire bending or upper tin when line ball head 21 is pressed down, and line ball head 21 front ends are a draw-in groove, line ball does not better allow electric wire walks when pressing down electric wire; Line pressing connecting rod 2 drives vertical mobile by the first cylinder 1, drive the line ball head and press scaling powder or upper tin for 21 times; Scaling powder stove 4 and upper tin stove 5 are located at line ball platform 3 belows; Scaling powder stove 4 and upper tin stove 5 are fixed on the slide block 8, scaling powder stove 4 is in upper tin stove 5 left sides, slide block 8 is connected on the vertical guide rail 7, the second cylinder 6 drives slide block 8 in vertical guide rail 7 interior movements and drives scaling powder stove 4 and upper tin stove 5 vertical moving, and makes scaling powder stove 4 and upper tin stove 5 can not stop mobile electric wire.
Above-mentioned, upper tin mechanism is by the blanking of stepper motor conveyer belt material loading.
When using the utility model, electric wire is by stepper motor conveyer belt material loading; First electric wire is sent to line ball platform 3 positions of scaling powder stove 4 tops, and relative line ball platform 3 medial surfaces of electric wire front end are outstanding; Line ball head 21 presses down electric wire, with the electric wire bending down; Scaling powder stove 4 rises, with scaling powder on the end in contact before the electric wire; After finishing scaling powder, scaling powder stove 4 descends; The electric wire of upper scaling powder is sent to line ball platform 3 positions of upper tin stove 5 tops, upper tin stove 5 rises again, tin on the end in contact before upper tin stove 5 and the electric wire; After finishing tin, electric wire is by the blanking of stepper motor conveyer belt.The utility model can be to the electric wire of not going up scaling powder and upper scaling powder but the electric wire of not going up tin operate simultaneously, working (machining) efficiency is high.
Above embodiment just is explanation rather than restriction the utility model, so all equivalences of doing according to the described method of the utility model patent claim change or modify, is included in the utility model patent claim.
Claims (4)
1. go up tin mechanism, it is characterized in that, comprise the first cylinder, line pressing connecting rod, line ball platform, scaling powder stove and upper tin stove; Described line pressing connecting rod arranges described line ball platform upper end, and described line pressing connecting rod lower end is provided with the line ball head, and described line ball head is outstanding with respect to described line ball platform medial surface; Described line pressing connecting rod is vertically mobile by described the first air cylinder driven, drives and presses scaling powder or upper tin under the described line ball head; Described scaling powder stove and described upper tin stove are located at described line ball platform below.
2. upper tin according to claim 1 mechanism is characterized in that: the described line pressing connecting rod described line ball platform upper end that be arranged in parallel.
3. upper tin according to claim 1 mechanism is characterized in that: described upper tin mechanism also comprises the second cylinder; The described scaling powder stove of described the second air cylinder driven is vertical with described upper tin stove mobile.
4. upper tin according to claim 3 mechanism, it is characterized in that: upper tin mechanism also comprises vertical guide rail and slide block; Described scaling powder stove and described upper tin stove are fixed on the described slide block, and described slide block is connected on the described vertical guide rail, and the described slide block of described the second air cylinder driven is mobile in described vertical guide rail, and it is vertical with described upper tin stove mobile to drive described scaling powder stove.
