本实用新型公开一种储水式开水器，包括一个外壳及设置在该外壳内的顶部开水箱、底部保温箱、侧部控制器，所述开水箱及保温箱内设置加热器、高水位传感器、低水位传感器。本实用新型智能控制，全能杀菌，结构独特，美观耐用，节能环保。
The utility model discloses a water storage type water boiler, comprising a shell and a top water boiler, a bottom heat preservation box and a side controller arranged in the shell, wherein a heater, a high water level sensor and a low water level sensor are arranged in the water boiler and the heat preservation box. The utility model has intelligent control, all-round sterilization, unique structure, beautiful and durable appearance, energy saving and environmental protection.
Description
Technical field
The utility model relates to a kind of electric-heating water boiling device.
Background technology
Modern society's boiler is more and more extensive, it is more and more general that people pay attention to healthy consciousness, boiler on the market is long start-up time, the boiling water temperature is inadequate, leaving water temperature only has 75 degrees centigrade to 80 degrees centigrade, can not be directly as water for infusion of tea, and power consumption is large, do not meet the national energy-saving standard, can not satisfy the requirement of people's using electricity wisely.
The utility model content
The purpose of this utility model is in order to overcome above-mentioned shortcoming and defect of the prior art, a kind of automatic water supplement, heating, constant temperature of Based Intelligent Control are provided, it is stronger to rise to 103 degrees centigrade effect after 3 minutes by automatic time delay behind the cool water heating to 100 degree centigrade in all can sterilization, three casees integral type designs of structure uniqueness, 100% stops water, thousand boiling water, thousand boiling water, attractive and durable all steel is made, energy-conserving and environment-protective.
For achieving the above object, the technical solution of the utility model is:
A kind of storage-type boiler comprises a shell and is arranged on this shell interior top boiled water tank, bottom incubator, sidepiece controller, and heater, high water level sensor, low water level sensor are set in described boiled water tank and the incubator.
Described heater comprises heating tube, heater strip, temp probe.
Described incubator middle part arranges the middle water level sensor.
The boiling water downcomer is set and the pipe that becomes flat in the described boiled water tank.
Described boiling water downcomer arranges water battery valve under the boiling water.
In the described incubator cold water inlet is set.
Described cold water upper hose arranges cold water water inlet battery valve.
Described incubator bottom arranges become flat pipe and purge tube.
Described shell, boiled water tank, bottom incubator, sidepiece controller consist of with stainless steel material.
Below in conjunction with drawings and the embodiments the utility model is further described.
Description of drawings

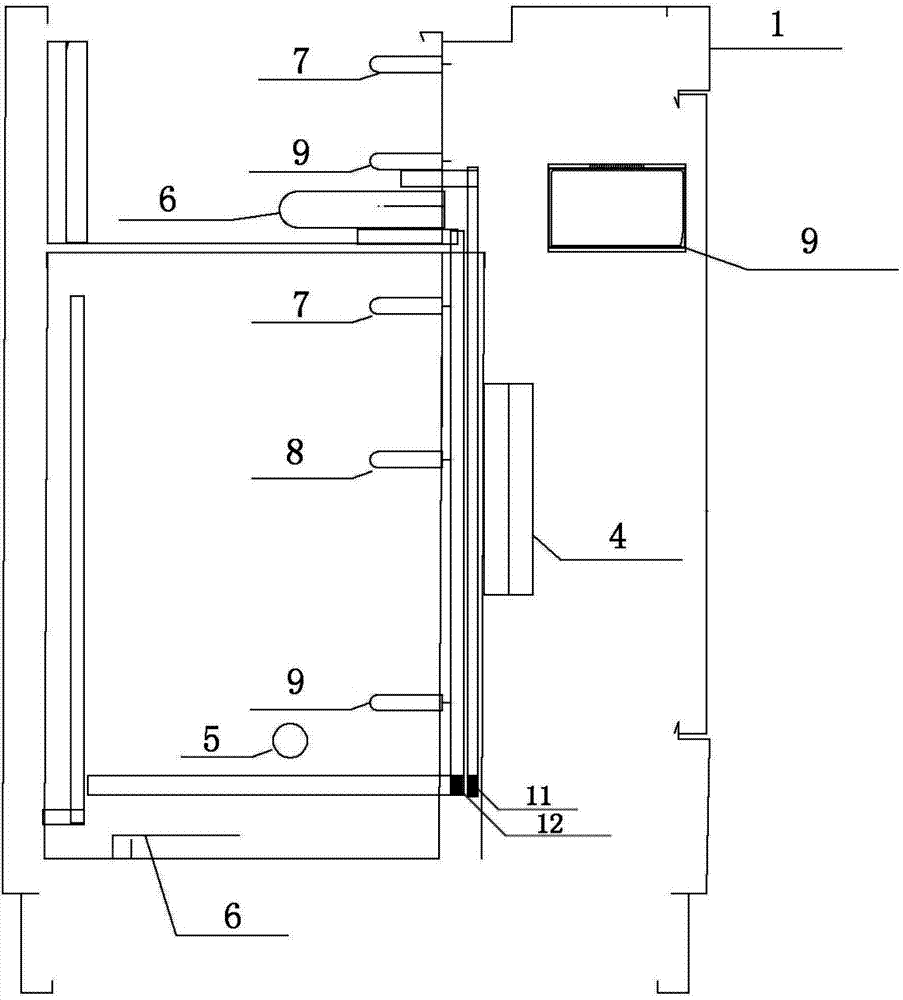

Accompanying drawing 1 is the structural representation of a kind of storage-type boiler of the utility model.
Among the figure:
1, shell
2, boiled water tank
3, incubator
4, controller
5, tap
6, heater
7, high water level sensor
8, middle water level sensor
9, low water level sensor
10, display
11, water battery valve under the boiling water
12, cold water water inlet battery valve
The specific embodiment
Referring to accompanying drawing 1,
A kind of storage-type boiler comprises a shell 1 and is arranged on top boiled water tank 2, bottom incubator 3, sidepiece controller 4, described boiled water tank 2 and incubator 3 interior heater 6, high water level sensor 7, the low water level sensors 9 of arranging in this shell 1.
Described heater 6 comprises heating tube, heater strip, temp probe.
Described incubator 3 middle parts arrange middle water level sensor 8.
Described boiled water tank 2 interior boiling water downcomer and the deflation pipes of arranging.
Described boiling water downcomer arranges water battery valve 11 under the boiling water.
The described incubator 3 interior cold water inlets that arrange.
Described cold water upper hose arranges cold water water inlet battery valve 12.
Described incubator 3 bottoms arrange become flat pipe and purge tube.
Described shell 1, boiled water tank 2, bottom incubator 3, sidepiece controller 4 consist of with stainless steel material.
By the heater at boiled water tank carry out primary heating reach 100 degrees centigrade by carry water pipe to finish to carry water again postpone to the incubator the inside heating reach 103 degrees centigrade of effect recycling cold water inlet cold water of finishing the ultra-high temperature sterilization again back boiled water tank the inside conveying reach 100% and stop water.
Above-listed detailed description system specifying for one of the utility model possible embodiments; only this embodiment limits claim of the present utility model; all do not break away from technical characterictic of the present utility model institute for it equivalence implement or change, all should be contained in the scope of patent protection of the present utility model.
Claims (9)
1. storage-type boiler, comprise a shell and be arranged on this shell interior top boiled water tank, bottom incubator, sidepiece controller, display, tap, it is characterized in that, heater, high water level sensor, low water level sensor are set in described boiled water tank and the incubator.
2. storage-type boiler according to claim 1 is characterized in that, described heater comprises heating tube, heater strip, temp probe.
3. storage-type boiler according to claim 1 is characterized in that, described incubator middle part arranges the middle water level sensor.
4. storage-type boiler according to claim 1 is characterized in that, the boiling water downcomer is set and the pipe that becomes flat in the described boiled water tank.
5. storage-type boiler according to claim 4 is characterized in that, described boiling water downcomer arranges water battery valve under the boiling water.
6. storage-type boiler according to claim 1 is characterized in that, in the described incubator cold water inlet is set.
7. storage-type boiler according to claim 6 is characterized in that, described cold water upper hose arranges cold water water inlet battery valve.
8. storage-type boiler according to claim 1 is characterized in that, described incubator bottom arranges become flat pipe and purge tube.
9. storage-type boiler according to claim 1 is characterized in that, described shell, boiled water tank, bottom incubator, sidepiece controller consist of with stainless steel material.
