Abstract
The utility model discloses a physical exercise device used for exercising strength of upper limbs and legs and relates to a physical exercise device. The physical exercise device used for exercising the strength of the upper limbs and the legs aims at solving the problem that an existing physical exercise device is single in training function and inconvenience is brought to an exerciser. According to the physical exercise device used for exercising the strength of the upper limbs and the legs, a beam is arranged at the upper end of a support capable of lifting, a rotation disc is fixed in the middle of the beam, the outer diameter of the rotation disc is 40-50 centimeters, two adjusting chains are respectively arranged at two ends of the rotation disc, a handle is arranged at the lower end of each adjusting chain, a waist limiting component is fixed on the middle-lower portion of the support capable of lifting, and a foot limiting rod is arranged below the waist limiting component and is arranged on the support capable of lifting in a rotatable mode. The physical exercise device used for exercising the strength of the upper limbs and the legs can exercise the strength of the upper limbs and the legs simultaneously and bring convenience for the exerciser, and is used for exercising the strength of the upper limbs and the legs.
Description
Technical field
The utility model relates to a kind of physical exerciser, is specifically related to a kind of physical exerciser for training upper limbs and leg power, belongs to the sports apparatus field.
Background technology
Sports equipment and sports interdependence are mutually promoted.Sports popularize and the variation of sports events makes the kind, specification etc. of sports equipment all developed, strength quality is one of basic quality of performing physical exercises of human body, it is the basis that obtains technical performance and obtain excellent sports achievement, also be the key factor of other developing the qualities simultaneously, for this reason, people have invented the physical exerciser of a lot of exercise strength qualities, but all there is the single problem of training function in existing many physical exercisers, have brought inconvenience for the athletic training person.
The utility model content
The purpose of this utility model is all to have the single problem of training function in order to solve existing physical exerciser, has brought inconvenience for the athletic training person, and then a kind of physical exerciser for training upper limbs and leg power is provided.
The technical solution of the utility model is: a kind of physical exerciser for training upper limbs and leg power comprises liftable support, described physical exerciser also comprises crossbeam, rotating disk, two adjusting chains, two handles, waist limit assembly and foot's gag lever post, crossbeam is arranged on the upper end of liftable support, rotating disk is packed in the middle part of crossbeam, and the overall diameter of rotating disk is 40cm-50cm, two adjusting chains are separately positioned on the two ends of rotating disk, the lower end of each adjusting chain is equipped with a handle, the waist limit assembly is packed in the middle and lower part of liftable support, and foot's gag lever post is arranged on the below of waist limit assembly and rotatably is arranged on the liftable support.
Described liftable support is manual liftable support.
Described waist limit assembly comprises gag lever post and limiting plate, and an end of gag lever post is packed on the liftable support, and the other end of gag lever post is provided with limiting plate.
The lower edge of described waist limit assembly is apart from ground 1m-1.3m.
The lower edge of described foot gag lever post is apart from ground 8cm-15cm.
The utility model compared with prior art has following effect:
1. liftable support of the present utility model is convenient to height and the upper limbs force state according to different athletic training persons, selects the support of proper height, so that more hommization of physical exerciser.
2. when waist limit assembly of the present utility model and rotating foot gag lever post can be for athletic training person leg exercising strength, provide a fulcrum, leg strength training is effective.
3. the utility model can be trained upper limbs force and leg power simultaneously, brings convenience for the athletic training person.
4. the utility model is simple in structure, is easy to realize, and is with low cost.
Description of drawings

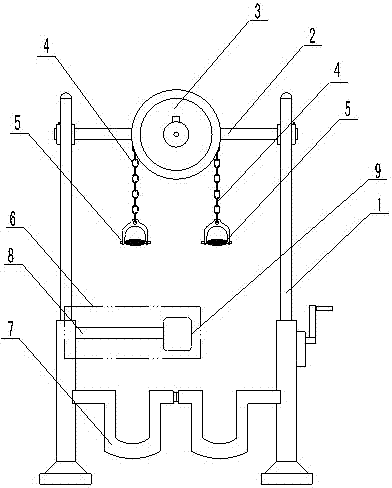

Fig. 1 is structural representation of the present utility model.
The specific embodiment
The specific embodiment one: present embodiment is described in conjunction with Fig. 1, present embodiment comprises liftable support 1, described physical exerciser also comprises crossbeam 2, rotating disk 3, two adjusting chains 4, two handles 5, waist limit assembly 6 and foot's gag lever post 7, crossbeam 2 is arranged on the upper end of liftable support 1, rotating disk 3 is packed in the middle part of crossbeam 2, and the overall diameter of rotating disk 3 is 40cm-50cm, two adjusting chains 4 are separately positioned on the two ends of rotating disk 3, the lower end of each adjusting chain 4 is equipped with a handle 5, waist limit assembly 6 is packed in the middle and lower part of liftable support 1, and foot's gag lever post 7 is arranged on the below of waist limit assembly 6 and rotatably is arranged on the liftable support 1.
As a kind of optimal way, the liftable support 1 of present embodiment is manual liftable support.So arrange, be convenient to height and upper limbs force state according to different athletic training persons, select the support of proper height, so that more hommization of physical exerciser.
As a kind of optimal way, the waist limit assembly 6 of present embodiment comprises gag lever post 8 and limiting plate 9, and an end of gag lever post 8 is packed on the liftable support 1, and the other end of gag lever post 8 is provided with limiting plate 9.So arrange, for athletic training person's waist provides more comfortable training environment.
As a kind of optimal way, the lower edge of the waist limit assembly 6 of present embodiment is apart from ground 1m-1.3m.So arrange, be convenient to be complementary with athletic training person's waist location.
As a kind of optimal way, the lower edge of foot's gag lever post 7 of present embodiment is apart from ground 8cm-15cm.So arrange, be convenient to be complementary with athletic training person's foot position.
The course of work of the present utility model is:
When training during upper limbs force, only need liftable support 1 is adjusted to suitable height, both hands are held the motion that two handles 5 do back and forth to make progress and are got final product.
When the training leg power, only need liftable support 1 is adjusted to suitable height, both hands are held two handles 5 and are done when back and forth moving upward, both legs close up, upwards firmly, at this moment, waist is resisted against on the waist limit assembly 6 waist, both feet are overlapped on foot's gag lever post 7, carry out the training of reciprocal leg power.
Claims (5)
1. physical exerciser that is used for training upper limbs and leg power, it comprises liftable support (1), it is characterized in that: described physical exerciser also comprises crossbeam (2), rotating disk (3), two adjusting chains (4), two handles (5), waist limit assembly (6) and foot's gag lever post (7), crossbeam (2) is arranged on the upper end of liftable support (1), rotating disk (3) is packed in the middle part of crossbeam (2), and the overall diameter of rotating disk (3) is 40cm-50cm, two adjusting chains (4) are separately positioned on the two ends of rotating disk (3), the lower end of each adjusting chain (4) is equipped with a handle (5), waist limit assembly (6) is packed in the middle and lower part of liftable support (1), and foot's gag lever post (7) is arranged on the below of waist limit assembly (6) and rotatably is arranged on the liftable support (1).
2. a kind of physical exerciser for training upper limbs and leg power according to claim 1, it is characterized in that: described liftable support (1) is manual liftable support.
3. a kind of physical exerciser for training upper limbs and leg power according to claim 2, it is characterized in that: described waist limit assembly (6) comprises gag lever post (8) and limiting plate (9), one end of gag lever post (8) is packed on the liftable support (1), and the other end of gag lever post (8) is provided with limiting plate (9).
4. a kind of physical exerciser for training upper limbs and leg power according to claim 3, it is characterized in that: the lower edge of described waist limit assembly (6) is apart from ground 1m-1.3m.
5. according to claim 1,2,3 or 4 described a kind of physical exercisers for training upper limbs and leg power, it is characterized in that: the lower edge of described foot gag lever post (7) is apart from ground 8cm-15cm.
