CN202904931U - Piano-performance finger-touch training device - Google Patents

Abstract

The utility model discloses a finger-touch trainer for playing piano, in which a liquid crystal display is fixed in a through hole on the casing, and a microprocessor, an A/D converter, a clock circuit, a power supply, a clock circuit and a liquid crystal display are fixed in the casing. The displays are all connected with the microprocessor, and the power supply is connected with the microprocessor through a power switch. Fourteen piano key blocks and ten chromatic key blocks are fixed on the bottom of the case according to the sequence of piano keyboard arrangement. Pressure sensors are fixed in the through holes at the front ends of each piano key block and chromatic key blocks. The pressure sensors pass through the holes respectively. The A/D converter is connected with the microprocessor. The outer surfaces of the piano key block and the chromatic key block are all connected with a polyurethane film. The structure is simple and easy to use. It can display the intuitive numbers of the finger's touch on the keyboard. Through general practice and targeted practice, the effect can be quickly practiced, laying a good foundation for further piano practice.

Description

Piano playing finger touch trainer

technical field

The utility model relates to a training device, in particular to a finger-touch training device for piano playing, which belongs to the technical field of music.

Background technique

Learning to play the piano is not easy, and it is even more difficult to play the piano well. After years of teaching, it has been found that among many influencing factors, the strength of the fingertips touching the keyboard is the key. Proper control of the fingertips touching the keyboard during the process is the basis for improving the playing effect. Therefore, in the technical training stage, especially for children and teenagers who are new to the piano, they should first practice finger touch control, which can be used for further practicing piano playing. Lay a good foundation.

Contents of the invention

In order to solve the above-mentioned problems, the purpose of this utility model is to provide a kind of piano playing finger touch trainer, by arranging the pressure sensor on the original tone key on the simulated piano keyboard, the finger touches the keyboard force through digital-to-analog conversion and microprocessor processing. Displayed on the liquid crystal display, you can intuitively see the strength of each key, so that you can have a skilled fingertip control feeling through repeated practice, and lay a good foundation for better piano performance.

The technical solution adopted by the utility model to solve the technical problems is: a piano playing finger touch trainer, which is composed of a chassis, a bottom cover, a liquid crystal display, a microprocessor, an A/D converter, a clock circuit, a piano key, and a chromatic key , pressure sensor, power supply, polyurethane film, power switch. A liquid crystal display is fixed in the through hole on the top of the case. A microprocessor, an A/D converter, a clock circuit, and a power supply are fixed in the chassis, and the clock circuit and the liquid crystal display are connected to the microprocessor, and the power supply is connected to the microprocessor through a power switch. Fourteen piano key blocks and ten chromatic key blocks are fixed on the bottom of the case according to the arrangement order of the piano keyboard. Pressure sensors are fixed in the through holes at the front ends of each piano key block and chromatic key block, and the pressure sensors pass through the The A/D converter is connected to the microprocessor. The bottom surface of the chassis is connected with the bottom cover. The outer surfaces of the piano key blocks and the chromatic key blocks are connected with polyurethane films.

The beneficial effect of the utility model is that the structure is simple and easy to use, and the number of finger touches on the keyboard can be displayed intuitively. Through general practice and targeted practice, the effect can be quickly practiced, laying a good foundation for further practicing the piano. Base.

Description of drawings

The utility model will be further described below in conjunction with the accompanying drawings and specific embodiments.

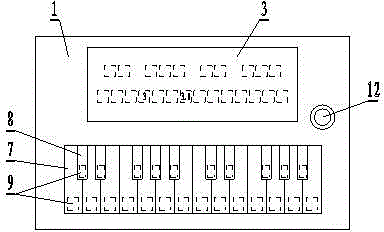

Fig. 1 is the structure diagram of the utility model piano playing finger touch trainer.

FIG. 2 is a schematic side view of the structure of FIG. 1 .

Label in the figure

1. Chassis 2. Bottom cover 3. LCD display 4. Microprocessor 5. A/D converter

6. Clock circuit 7. Piano key block 8. Chromatic key block 9. Pressure sensor 10. Power supply

11. Polyurethane film 12. Power switch. the

Detailed ways

Referring to Fig. 1 and Fig. 2, the piano performance finger-touch training device is composed of a chassis, a bottom cover, a liquid crystal display, a microprocessor, an A/D converter, a clock circuit, a piano key, a chromatic key, a pressure sensor, a power supply, Composed of polyurethane film and power switch. A liquid crystal display 3 is fixed in the through hole on the casing 1 . In case 1, microprocessor 4, A/D converter 5, clock circuit 6, power supply 10 are fixed, clock circuit 6 and liquid crystal display 3 are all connected with microprocessor 4, and power supply 10 is connected with microprocessor by power switch 12 4 connections. Fourteen piano key blocks 7 and ten chromatic key blocks 8 are sequentially fixed on the bottom of the cabinet 1 according to the arrangement order of the piano keyboard, and pressure sensors are fixed in the through holes at the front ends of each piano key block 7 and chromatic key block 8 9, the pressure sensor 9 is connected with the microprocessor 4 through the A/D converter 5 respectively. The bottom surface of the case 1 is connected with the bottom cover 2 . The outer surfaces of the piano key block 7 and the chromatic key block 8 are all connected with a polyurethane film 11 .

Claims (2)

1. A piano playing finger touch training device, which is composed of a chassis, a bottom cover, a liquid crystal display, a microprocessor, an A/D converter, a clock circuit, a piano key, a half-tone key, a pressure sensor, a power supply, a polyurethane film, a power supply Composed of switches, it is characterized in that: a liquid crystal display (3) is fixed in the through hole above the chassis (1); a microprocessor (4), an A/D converter (5), and a clock are fixed in the chassis (1). Circuit (6), power supply (10), clock circuit (6) and liquid crystal display (3) are all connected with microprocessor (4), and power supply (10) is connected with microprocessor (4) through power switch (12); Fourteen piano key blocks (7) and ten chromatic key blocks (8) are successively fixed on the bottom of the casing (1) according to the arrangement order of the piano keyboard, each piano key block (7) and the chromatic key block (8) Pressure sensors (9) are fixed in the through holes at the front end, and the pressure sensors (9) are respectively connected to the microprocessor (4) through the A/D converter (5); the bottom surface of the chassis (1) is connected to the bottom cover (2) . 2. The finger-touch training device for piano playing according to claim 1, characterized in that: the outer surfaces of the piano key block (7) and the chromatic key block (8) are connected with a polyurethane film (11).
