Abstract
The utility model discloses a sealing gasket for a metal combination cylinder. The sealing gasket for the metal combination cylinder is characterized by comprising a stainless steel metal core plate and rubber coating layers arranged on two sides of the stainless steel metal core plate. Thickness of the stainless steel metal core plate is 0.19 mm to 0.21 mm, and thickness of each rubber coating layer is 0.02 mm to 0.04 mm. The rubber coating layers are made of fluororubber, nitrile rubber or chloroprene rubber. Thickness of the sealing gasket is 0.24 mm to 0.28 mm. The metal combination cylinder has the advantages of being good in rigidity, resistant to high temperature, not prone to puncture or leakage, good in compression springback ratio of a material surface, capable of overcoming defects of manufacture accuracy of the surface of a flange, good in ability to adapt to the working environment, resistant to high temperature, low temperature, high pressure, oil, water and the like and good in corrosion resisting effect.
Description
Technical field
The utility model relates to a kind of gasket seal, is specifically related to a kind of metallic combination cylinder gasket seal.
Background technique
Gasket seal plays an important role in the metallic combination cylinder, existing gasket seal poor rigidity, and resistance to high temperature is poor, and easily breakdown leakage is perishable.
According to the deficiencies in the prior art, the utility model proposes another kind of solution.
The model utility content
Technical problem to be solved in the utility model is: according to the deficiencies in the prior art, a kind of metallic combination cylinder gasket seal is provided, this metallic combination cylinder with gasket seal have good rigidly, high temperature resistant, be difficult for breakdown leakage, material surface has preferably compression rebound rate, and effectively filled up the defective of flange surface accuracy of manufacturing, it is strong to adapt to the working environment ability, can be high temperature resistant, low temperature, high pressure, oil, water etc. and fabulous corrosion-resistant effect is arranged.
To achieve the above object of the invention, the technological scheme that the utility model adopts is: a kind of metallic combination cylinder gasket seal is provided, has it is characterized in that: comprise stainless steel metal central layer and the rubber coating that is positioned at stainless steel metal central layer two sides.
Further, the thickness of described stainless steel metal central layer is 0.19-0.21mm.
Further, described rubber coating thickness is 0.02-0.04mm.
Further, described rubber coating adopts fluorine rubber, nitrile butadiene rubber or neoprene.
Further, described gasket seal thickness is 0.24-0.28mm.
In sum, metallic combination cylinder provided by the utility model with gasket seal have good rigidly, high temperature resistant, be difficult for breakdown leakage, material surface has preferably compression rebound rate, and effectively filled up the defective of flange surface accuracy of manufacturing, it is strong to adapt to the working environment ability, can be high temperature resistant, low temperature, high pressure, oil, water etc. and fabulous corrosion-resistant effect is arranged.
Description of drawings

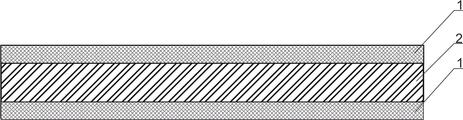

Fig. 1 is metallic combination cylinder sheet gasket structure schematic representation;
Wherein: 1, rubber coating; 2, stainless steel metal central layer.
Embodiment
Below in conjunction with accompanying drawing embodiment of the present utility model is described in detail.
-as shown in Figure 1, this metallic combination cylinder gasket seal comprises stainless steel metal central layer 2 and the rubber coating 1 that is positioned at stainless steel metal central layer 2 two sides.
The thickness of described stainless steel metal central layer 2 is 0.19-0.21mm.Described rubber coating 1 thickness is 0.02-0.04mm.Described rubber coating 1 adopts fluorine rubber, nitrile butadiene rubber or neoprene.Described gasket seal thickness is 0.24-0.28mm.
This pad is through the cold stamping Blanking Shaping, and extrude sealed muscle and form gasket seal at the product sealing surface, follow dynamics in order to strengthen sealing strip at the line of flanged surface, two gasket seals that are pressed with sealed muscle are overlaped, need to form a gasket seal to two recessed faces to poststack through rivet when overlapping.
In sum, metallic combination cylinder provided by the utility model with gasket seal have good rigidly, high temperature resistant, be difficult for breakdown leakage, material surface has preferably compression rebound rate, and effectively filled up the defective of flange surface accuracy of manufacturing, it is strong to adapt to the working environment ability, can be high temperature resistant, low temperature, high pressure, oil, water etc. and fabulous corrosion-resistant effect is arranged.
Although by reference to the accompanying drawings embodiment of the present utility model is described in detail, should not be construed as the restriction to the protection domain of this patent.In the described scope of claims, the various modifications that those skilled in the art can make without creative work and distortion still belong to the protection domain of this patent.
Claims (5)
1. metallic combination cylinder gasket seal is characterized in that: comprise stainless steel metal central layer (2) and be positioned at the rubber coating (1) on stainless steel metal central layer (2) two sides.
2. metallic combination cylinder gasket seal according to claim 1, it is characterized in that: the thickness of described stainless steel metal central layer (2) is 0.19-0.21mm.
3. metallic combination cylinder gasket seal according to claim 1, it is characterized in that: described rubber coating (1) thickness is 0.02-0.04mm.
4. metallic combination cylinder gasket seal according to claim 1 is characterized in that: described rubber coating (1) employing fluorine rubber, nitrile butadiene rubber or neoprene.
5. metallic combination cylinder gasket seal according to claim 1, it is characterized in that: described gasket seal thickness is 0.24-0.28mm.
