CN202896604U - Novel mineral water barrel rack - Google Patents
Novel mineral water barrel rack Download PDFInfo
- Publication number
- CN202896604U CN202896604U CN 201220584357 CN201220584357U CN202896604U CN 202896604 U CN202896604 U CN 202896604U CN 201220584357 CN201220584357 CN 201220584357 CN 201220584357 U CN201220584357 U CN 201220584357U CN 202896604 U CN202896604 U CN 202896604U
- Authority
- CN
- China
- Prior art keywords
- plate
- fastening
- fixed
- handle
- side plate
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 title claims abstract description 12
- 229910052500 inorganic mineral Inorganic materials 0.000 title claims abstract description 7
- 239000011707 mineral Substances 0.000 title claims abstract description 7
- 206010030113 Oedema Diseases 0.000 description 1
- 230000009286 beneficial effect Effects 0.000 description 1
- 230000002354 daily effect Effects 0.000 description 1
- 230000000694 effects Effects 0.000 description 1
- 230000003203 everyday effect Effects 0.000 description 1
Images
Landscapes
- Details Of Rigid Or Semi-Rigid Containers (AREA)
Abstract
本实用新型公开了一种新型矿泉水桶架，它涉及日常生活用具领域；它包含底板(1)、侧板(2)、顶板(3)、拉手(4)、提手(5)、滚轮(6)、支撑脚(7)、紧固带(8)和紧固扣(9)；底板(1)为一个四方的框体结构，并在其侧面固定有侧板(2)，顶板(3)固定在侧板(2)的上端，拉手(4)安装在顶板(3)上端的一侧，提手(5)安装在顶板(3)上端的中部，滚轮(6)安装在侧板(2)的下端，支撑脚(7)安装在底板(1)的下端，紧固带(8)固定在侧板(2)的一侧，紧固扣(9)安装在与紧固带(8)相对的一侧的侧板(2)上；它结构简单，构思巧妙，使用方便，大大的降低了送水工的劳动强度，并有效的增加了工作效率。
The utility model discloses a novel mineral water barrel stand, which relates to the field of daily life appliances; 6), support feet (7), fastening straps (8) and fastening buckles (9); the base plate (1) is a square frame structure, and side plates (2) are fixed on its sides, and the top plate (3 ) is fixed on the upper end of the side plate (2), the handle (4) is installed on one side of the upper end of the top plate (3), the handle (5) is installed in the middle of the upper end of the top plate (3), and the roller (6) is installed on the side plate ( 2), the supporting feet (7) are installed at the lower end of the bottom plate (1), the fastening belt (8) is fixed on one side of the side plate (2), and the fastening buckle (9) is installed on the bottom of the fastening belt (8). ) on the side plate (2) on the opposite side; it is simple in structure, ingenious in design, easy to use, greatly reduces the labor intensity of the water delivery worker, and effectively increases work efficiency.
Description
Technical field
The utility model relates to the daily life tools field, is specifically related to a kind of novel mineral water gantry.
Background technology
Send water conservancy project all will deliver to huge numbers of families to water every day, and at present common mineral water bottle is because weight very, get up very painstaking of carrying, and now along with the building in city is more and more higher, send the labour intensity of water conservancy project also increasing, usually arm can be ached very much at the end of the day, and serious even phenomenon that oedema can occur is felt bad very much.
The utility model content
The utility model purpose provides a kind of novel mineral water gantry, and it can solve existing problem in the background technology effectively.
In order to solve existing problem in the background technology, it comprises base plate 1, side plate 2, top board 3, handle 4, handle 5, roller 6, feet 7, restraint zone 8 and tightening buckle 9; Base plate 1 is the frame structure in a four directions, and be fixed with side plate 2 in its side, top board 3 is fixed on the upper end of side plate 2, handle 4 is installed in a side of top board 3 upper ends, handle 5 is installed in the middle part of top board 3 upper ends, and roller 6 is installed in the lower end of side plate 2, and feet 7 is installed in the lower end of base plate 1, restraint zone 8 is fixed on a side of side plate 2, and tightening buckle 9 is installed on the side plate 2 of a side relative with restraint zone 8.
Owing to adopted above technical scheme, the utlity model has following beneficial effect: simple in structure, be skillfully constructed, easy to use, reduced greatly the labour intensity that send water conservancy project, and actv. increased work efficiency, and cheap, higher market outlook are arranged.
Description of drawings
In order to be illustrated more clearly in the utility model, below in conjunction with accompanying drawing embodiment is done simple introduction.

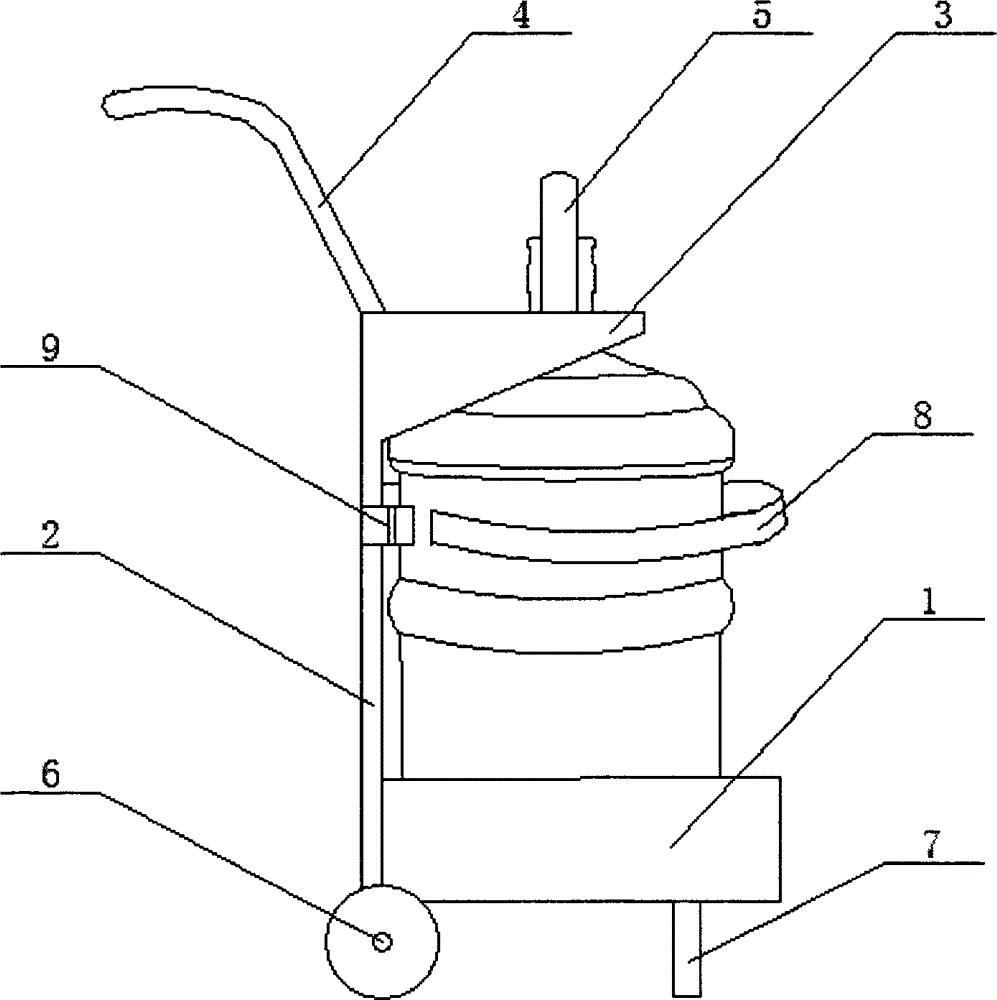

Fig. 1 is structural representation of the present utility model.
The specific embodiment
For technological means, creation characteristic that the utility model is realized, reach purpose and effect is easy to understand, the accompanying drawing below in conjunction with among the utility model embodiment is clearly and completely described the technical scheme among the utility model embodiment.
Referring to Fig. 1, this specific embodiment is to be achieved by the following technical solutions, and it comprises base plate 1, side plate 2, top board 3, handle 4, handle 5, roller 6, feet 7, restraint zone 8 and tightening buckle 9; Base plate 1 is the frame structure in a four directions, and be fixed with side plate 2 in its side, top board 3 is fixed on the upper end of side plate 2, handle 4 is installed in a side of top board 3 upper ends, handle 5 is installed in the middle part of top board 3 upper ends, and roller 6 is installed in the lower end of side plate 2, and feet 7 is installed in the lower end of base plate 1, restraint zone 8 is fixed on a side of side plate 2, and tightening buckle 9 is installed on the side plate 2 of a side relative with restraint zone 8.
