Abstract
The utility model discloses an electrocardio body temperature sensing strip which comprises a piece of lining fabric, a piece of shell fabric, pieces of conductive fabric, a body temperature sensor and a plurality of conductive wires. The piece of the lining fabric and the piece of the shell fabric are both long-strip-shaped and attached to and sewn with each other to form a strip body, both the pieces of conductive fabric and the body temperature sensor are sewn on the outer surface of the lining fabric, the conductive wires are embedded between the lining fabric and the shell fabric, and both the conductive fabric and the body temperature sensor are connected with the conductive wires. The strip body is enabled to surround the chest and the back of a user, and worn on the pit of the stomach, the pieces of the conductive fabric are attached on a measuring position, and the body temperature sensor is also closely contacted with the body of a user. The strip body can be fixed in a Velcro method or a fastener method or other methods. The conductive fabric is soft in quality, and can be in good contact with the body without requirements for conductive paste, and electrocardio signals can be accurately collected. The conductive wires are embedded between the lining fabric and the shell fabric, and not prone to being pulled or affected by actions of the user. The electrocardio body temperature sensing strip is applicable to situations where long-term monitoring is required.
Description
Technical field
This utility model relates to a kind of human parameters collecting device, especially relates to a kind of electrocardio body temperature sensing zone for gathering electrocardiosignal and temperature data.
Background technology
Various monitors are the very important professional precision instruments of medical health field, also are to get complementary diagnostic device in current social.And gradually to controlling simply, monitor the trend developments such as accurate, portable.Also the constraint that tradition is led must be broken away from this simultaneously corresponding sensing equipment, the trend that comfort level is high, contact is reliable, simple to operate, sensing is highly sensitive will be developed into.
Monitor is transported in the equipment or system of appointment by leading and electrode slice device picked up signal, compares with known medical treatment ﹠ health information parameter threshold values, can give the alarm when exceeding standard.Monitor requires the physiological parameter that equipment can long-time continuous monitoring human body, holds variation tendency, points out facing death or deadly peril situation, for doctor's emergency processing and the foundation for the treatment of, complication is minimized reach and alleviates and the purpose of the elimination state of an illness.
Existing scheme generally be by will lead and collection point that the electrode slice device is fixed on standard code obtaining physiology signal, but in order to guarantee and the contact reliability of skin, need before use crosslinking electrode is coated conductive paste.Thereby and the standing up, stand up, lift the actions such as bedding and may affect the ecg cable line to cause ecg wave form mixed and disorderly of monitored people.
State Intellectual Property Office of the People's Republic of China discloses Granted publication and number has been the patent documentation of CN2021198588U on 04 25th, 2012, title is a kind of ECG Acquisition Device, and it comprises: power supply; A plurality of electrode slices; Link to each other with described a plurality of electrode slices, for the device that leads of the electrocardiosignal that transmits a plurality of electrode slice collections; For the electrocardiosignal that receives the device transmission of leading, electrocardiosignal is carried out bandpass filtering, the wave filter of the noise in the filtering electrocardiosignal; Be used for the electrocardiosignal behind the filtering noise being amplified the amplifier of the electrocardiosignal after obtaining amplifying; Electrocardiosignal after being used for amplifying is converted to the analog-digital converter of digital electrocardiosignal; Be used for digital electrocardiosignal is sent to wireless mode the radio-frequency (RF) transmitter of electrocardio-monitor.This scheme has still adopted electrode slice, needs to smear conductive paste at electrode before use, and may be because of made electrode and Body contact bad by standing up, standing up of proctor in long-time monitoring occasion.This scheme also can only be measured EGC parameter, and can't monitor body temperature information.
Summary of the invention
Thereby this utility model mainly is to solve to need coating conductive paste on the crosslinking electrode before the existing use of prior art again, may affect the ecg cable line to cause the mixed and disorderly technical problem of ecg wave form owing to actions such as standing up, stand up, lift bedding, provide a kind of do not need coating conductive paste, and Body contact reliable and stable, need not external cable and lead, can monitor simultaneously the electrocardio body temperature sensing zone of electrocardio and body temperature signal.
This utility model is mainly solved by following technical proposals for above-mentioned technical problem: a kind of electrocardio body temperature sensing zone, comprise lining, fabric, conductive fabric, body temperature trans and some wires, described lining and fabric all are strip, described lining and the fabric formation belt carcass that is sewed together of fitting, described conductive fabric and body temperature trans are all made at the lining outer surface, described wire is embedded between lining and the fabric, and described conductive fabric and described body temperature trans all are connected with wire.
The user belt carcass is worn on the chest around shirtfront back, and conductive fabric is fitted in the measured place, body temperature trans also with the health close contact.Belt carcass is made by cloth, can fix with modes such as VELCRO or buttons.Sensing is with elasticity preferably.The soft comfort level of conductive fabric quality is high, need not conductive paste just can with the health good contact, accurately collect electrocardiosignal.Wire is embedded between lining and the fabric, can not affected because of the action of user.
As preferably, described electrocardio body temperature sensing zone also comprises the sticking and VELCRO of magic, and described magic is sticking makes at belt carcass left end lining outer surface, and described VELCRO is made at belt carcass right-hand member fabric outer surface.Belt carcass is around mutually pasting fixingly by VELCRO and magic are sticking after the health, and user can freely be adjusted tightness, guarantees that namely reliability that sensor contacts with human body can not allow again user feel the stress and feels bad the raising comfortable wearing.
As preferably, described electrocardio body temperature sensing zone also comprises sponge, and described sponge is arranged between conductive fabric and the lining.Sponge can further be improved the contact of conductive fabric and health and the comfortableness of wearing.
As preferably, described wire is the silica gel wire.The silica gel wire is softness, environmental protection, good insulating and long service life comparatively.
As preferably, described electrocardio body temperature sensing zone also comprises base, and described base through screws is fixed on it the band, and described base is provided with interface module, and described wire is connected with described interface module.Base is square, can be used for installing display terminal or wireless transmitter module.Display terminal or wireless transmitter module are connected with interface module.Display terminal can directly show and record the physiological parameter that detects, and wireless transmitter module can send to outside receiving terminal by wireless signal with the physiological signal that detects.Can thoroughly exempt like this restriction of cable.
The beneficial effect that this utility model brings is, do not need to smear conductive paste before the use, can take temperature by Real-time Measuring, sensor contacts with human body well, be not easy to come off, need not external cable and leading, tightness can free adjustment, comfortable wearing, the stable and reliability of the physiological parameter that assurance detects.
Description of drawings

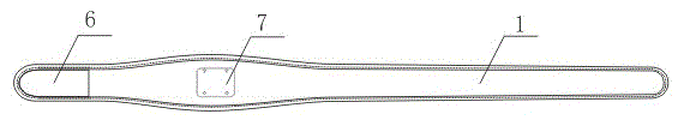

Fig. 1 is a kind of front view of the present utility model;
Fig. 2 is a kind of rearview of the present utility model;
Among the figure: 1, fabric, 2, lining, 3, conductive fabric, 4, body temperature trans, 5, magic is sticking, 6, VELCRO, 7, base.
The specific embodiment
Below by embodiment, and by reference to the accompanying drawings, the technical solution of the utility model is described in further detail.
Embodiment: a kind of electrocardio body temperature sensing zone of the present embodiment, as depicted in figs. 1 and 2, comprise that lining 2, fabric 1, conductive fabric 3, body temperature trans 4, magic are sticking 5, VELCRO 6 and base 7, lining 2 and fabric 1 all are strip, lining 2 and the fabric 1 formation belt carcass that is sewed together of fitting, conductive fabric 3 and body temperature trans 4 are all made at lining 2 outer surfaces, and magic sticking 5 is made at belt carcass left end lining 2 outer surfaces, and VELCRO 6 is made at belt carcass right-hand member fabric 1 outer surface.Conduction is furnished with 3, can the Measurement accuracy EGC parameter.
Electrocardio body temperature sensing zone also comprises sponge, wire and base.Wire is embedded between lining and the fabric, and conductive fabric and body temperature trans all are connected with wire.Wire is the silica gel wire.Sponge is arranged between conductive fabric and the lining.Base through screws is fixed on it the band.Base is square, can be used for installing display terminal or wireless transmitter module.Base is provided with interface module, and wire is connected with described interface module.Display terminal or wireless transmitter module all are connected with interface module.Display terminal can directly show and record the physiological parameter that detects, and wireless transmitter module can send to outside receiving terminal by wireless signal with the parameter that detects.Can thoroughly exempt like this restriction of cable.
Only the sensor belt need to be worn on the position of chest appointment during measurement, the wearer gets final product magic is sticking and VELCRO is bonding after need not in the outer human-aided situation according to own frame size adjustments elasticity.
The present embodiment (such as hospital, family, individual, athlete, rehabilitative sanatorium care, nursing house etc.) of many uses, high reliability, simple to operate, comfort level is high, be convenient to promote.
Specific embodiment described herein only is to the explanation for example of this utility model spirit.This utility model person of ordinary skill in the field can make various modifications or replenishes or adopt similar mode to substitute described specific embodiment, but can't depart from spirit of the present utility model or surmount the defined scope of appended claims.
Although this paper has more used the terms such as conductive fabric, body temperature trans, do not get rid of the probability of using other term.Using these terms only is in order to describe more easily and explain essence of the present utility model; They are construed to any additional restriction all is contrary with this utility model spirit.
Claims (5)
1. electrocardio body temperature sensing zone, it is characterized in that, comprise lining, fabric, conductive fabric, body temperature trans and some wires, described lining and fabric all are strip, described lining and the fabric formation belt carcass that is sewed together of fitting, described conductive fabric and body temperature trans are all made at the lining outer surface, and described wire is embedded between lining and the fabric, and described conductive fabric and described body temperature trans all are connected with wire.
2. electrocardio body temperature sensing zone according to claim 1 is characterized in that, also comprises the sticking and VELCRO of magic, and described magic is sticking makes at belt carcass left end lining outer surface, and described VELCRO is made at belt carcass right-hand member fabric outer surface.
3. electrocardio body temperature sensing zone according to claim 1 and 2 is characterized in that, also comprise sponge, described sponge is arranged between conductive fabric and the lining.
4. electrocardio body temperature sensing zone according to claim 3 is characterized in that, described wire is the silica gel wire.
5. electrocardio body temperature sensing zone according to claim 4 is characterized in that, also comprise base, described base through screws is fixed on it the band, and described base is provided with interface module, and described wire is connected with described interface module.
