CN202887566U - Maintenance training device for mobile power disconnecting switch operating mechanism - Google Patents
Maintenance training device for mobile power disconnecting switch operating mechanism Download PDFInfo
- Publication number
- CN202887566U CN202887566U CN 201220596018 CN201220596018U CN202887566U CN 202887566 U CN202887566 U CN 202887566U CN 201220596018 CN201220596018 CN 201220596018 CN 201220596018 U CN201220596018 U CN 201220596018U CN 202887566 U CN202887566 U CN 202887566U
- Authority
- CN
- China
- Prior art keywords
- operating mechanism
- switch operating
- isolating switch
- support
- training device
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Lifetime
Links
Images
Landscapes
- Casings For Electric Apparatus (AREA)
Abstract
本实用新型公开了一种移动式电力隔离开关操作机构检修培训装置，包括电力隔离开关操作机构，电力隔离开关操作机构安装在一箱体内，箱体上设有一扇门，门和箱体之间装配有锁，箱体安放在一支架上，该支架由立柱、横梁和纵梁构成立体矩形框架，支架下方安装有滚轮。在支架的一侧固定有支撑板，在箱体的背面固定有连接板，支撑板和连接板之间用螺栓连接，支撑板和连接板上的螺栓过孔为条形孔。采用本实用新型的技术方案，使电力隔离开关操作机构的搬运和安装更加方便，实训操作更加省力、方便和快速。
The utility model discloses a mobile power isolating switch operating mechanism inspection and training device, which comprises a power isolating switch operating mechanism. The power isolating switch operating mechanism is installed in a box body. A door is arranged on the box body. Equipped with a lock, the box is placed on a support, which is composed of columns, beams and longitudinal beams to form a three-dimensional rectangular frame, and rollers are installed under the support. A supporting plate is fixed on one side of the bracket, and a connecting plate is fixed on the back of the box body. The supporting plate and the connecting plate are connected by bolts, and the bolt holes on the supporting plate and the connecting plate are strip holes. The adoption of the technical solution of the utility model makes the handling and installation of the operating mechanism of the electric isolating switch more convenient, and the practical training operation is more labor-saving, convenient and fast.
Description
Technical field
The utility model belongs to electrical overhaul skills training technical field, specifically, relates to a kind of device for isolator operating mechanism maintenance training.
Background technology
Electrical overhaul is an important process that guarantees the electrical equipment safe and reliable operation.Because the requirement of the singularity of electrical equipment and maintenance technique need to be overhauled skills training to the electrical overhaul personnel.The maintenance skills training of electrical equipment has two kinds of situations usually, and the one, on-site training namely gives training in the equipment installation place; The 2nd, carry out electrical overhaul skill training and the training of maintenance technique at training base.In the maintenance skills training of training base, the equipment of maintenance training need to be fixed on a rational position, and need to according to different maintenance training contentss, change the equipment of different model.
In existing isolator operating mechanism maintenance training, isolator operating mechanism normally adopts hang to be fixed on the important actor side, since heavier, bring the deuce to pay for dismounting, carrying and installation, be unfavorable for effectively carrying out fast of real training work.
The utility model content
The purpose of this utility model provides a kind of convenience at the portable power isolator operating mechanism maintenance training set of the carrying of real training place and use.
The technical scheme that the utility model is taked is: a kind of portable power isolator operating mechanism maintenance training set, comprise power isolator operating mechanism, power isolator operating mechanism is installed in the casing, casing is provided with Yishanmen, be equipped with lock between door and the casing, casing is placed on the support, and this support consists of the solid rectangle framework by column, crossbeam and longeron, and the support below is equipped with roller.
During real training, shift the utility model onto the examining and repairing power disconnecting switch station, casing is opened and the power isolator operating mechanism in the casing is linked to each other with disconnector, just can carry out corresponding real training operation.Not the time spent, the disconnection power isolator operating mechanism is connected with disconnector, the utility model is shifted onto other local back up in real training place.Since adopted the structure of go-cart, more laborsaving when carrying and installation, use also convenient, rapid.
Side at support is fixed with back up pad, the back side at casing is fixed with web joint, connects with bolt between back up pad and the web joint, and the bolt through-hole on back up pad and the web joint is bar hole, the such height of adjustable case body, with adapt to real training on-the-spot with being linked and packed of disconnector.
End face at casing is equipped with ring flange, utilizes this ring flange, after the utility model being carried out corresponding real training station, casing can be hung up usefulness together with the power isolator operating mechanism in the casing, to adapt to the needs of some station special space structure.
Adopt the technical solution of the utility model, make the carrying of power isolator operating mechanism and easier for installation, the real training operation is more laborsaving, convenient and fast.
Description of drawings

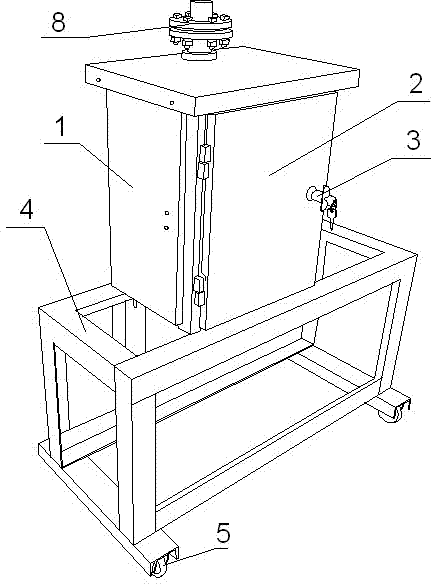

Fig. 1 is structural representation of the present utility model.
Fig. 2 is side direction synoptic diagram of the present utility model.
Embodiment
Below in conjunction with the drawings and specific embodiments the utility model is further described.
As shown in Figure 1 and Figure 2, a kind of portable power isolator operating mechanism maintenance training set, contain power isolator operating mechanism, power isolator operating mechanism is installed in the casing 1, casing 1 is provided with Yishanmen 2, is equipped with lock 3 between door 2 and the casing 1, and casing 1 is placed on the support 4, this support 4 consists of the solid rectangle framework by column, crossbeam and longeron, and support 4 belows are equipped with roller 5.Power isolator operating mechanism still adopts traditional structure, and is not shown in FIG..
During real training, shift the utility model onto the examining and repairing power disconnecting switch station, casing 1 is opened and the power isolator operating mechanism in the casing 1 is linked to each other with disconnector, just can carry out corresponding real training and operate.Not the time spent, the disconnection power isolator operating mechanism is connected with disconnector, the utility model is shifted onto other local back up in real training place.Since adopted the structure of go-cart, more laborsaving when carrying and installation, use also convenient, rapid.
Referring to Fig. 2, side at support 4 is fixed with back up pad 6, be fixed with web joint 7 at the back side of casing 1, connect with bolt between back up pad 6 and the web joint 7, bolt through-hole on back up pad 6 and the web joint 7 is bar hole, the such height of adjustable case body, with adapt to real training on-the-spot with being linked and packed of disconnector.
Referring to Fig. 1, Fig. 2, end face at casing 1 is equipped with ring flange 8, utilizes this ring flange 8, after the utility model being carried out corresponding real training station, casing 1 can be hung up usefulness together with the power isolator operating mechanism in the casing 1, to adapt to the needs of some station special space structure.
