Abstract

The utility model relates to a brick box introduction plate. It includes an introduction bottom plate, which is characterized in that a bearing is arranged on the upper surface of the introduction bottom plate; and a slope is arranged at the left end of the introduction bottom plate. By arranging the bearing on the upper surface of the introduction bottom plate, the brick box will not swing when entering the machine equipment along the upper surface of the introduction bottom plate, thereby improving the working efficiency. The structure is simple and practical.

Description

A kind of brick case imports plate

Technical field

The utility model relates to a kind of importing plate, and specifically a kind of brick case when being applied in the brick case and entering machine imports plate.

Background technology

When the brick case enters machine, usually can use the importing plate, enter the efficient of machinery and equipment to improve the brick case., because the brick case is larger with the friction that imports the plate upper surface, swing in the time of can making the brick case enter machinery and equipment, have a strong impact on the efficient of work.

The utility model content

The utility model provides a kind of brick case that makes easily the brick case enter machine to import plate, to increase work efficiency for the deficiencies in the prior art.

The utility model is achieved through the following technical solutions:

A kind of brick case imports plate, comprises that one imports base plate, and the upper surface of described importing base plate is provided with bearing.

As further improvement in the technical proposal, the left end of described importing base plate is provided with a slope.

The beneficial effects of the utility model are: nationality can not swing the brick case, thereby has improved work efficiency by being provided with bearing at the upper surface that imports base plate when the upper surface that imports base plate enters machinery and equipment.This is simple and practical.

Description of drawings

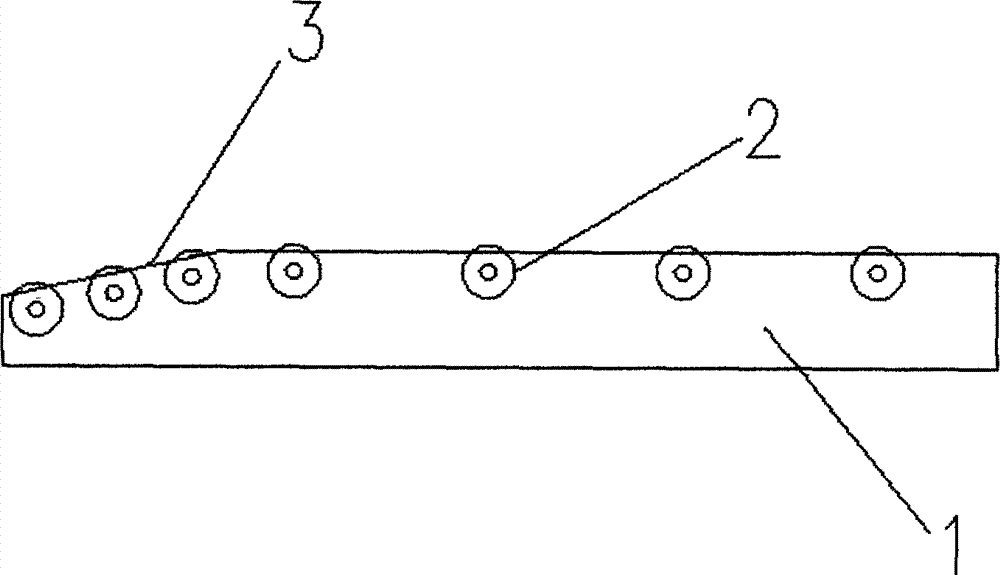

Fig. 1 is structural representation of the present utility model;

Fig. 2 is that the utility model is implemented view.

Wherein, 1 for importing base plate, and 2 is bearing, and 3 is the slope, and 4 is the brick case.

The specific embodiment

Below in conjunction with the drawings and specific embodiments the utility model is described in detail, but not as to restriction of the present utility model.

Can find out that from Fig. 1 and Fig. 2 a kind of brick case of the utility model imports plate, comprise that one imports base plate 1, the upper surface of described importing base plate 1 is provided with bearing 2; Be provided with a slope 3 at the left end that imports base plate 1.

Nationality can not swing brick case 4, thereby has improved work efficiency by being provided with bearing 2 at the upper surface that imports base plate 1 when the upper surface that imports base plate 1 enters machinery and equipment.This is simple and practical.

Below the utility model is described in detail, but apparent, those skilled in the art can carry out various changes and improvements, and does not deviate from the scope of the present utility model that appended claims limits.

Claims (2)

1. a brick case imports plate, comprises that one imports base plate, and it is characterized in that: the upper surface of described importing base plate is provided with bearing.

2. a kind of brick case according to claim 1 imports plate, and it is characterized in that: the left end of described importing base plate is provided with a slope.
