Abstract

The utility model discloses a detachable screw heating ring, which belongs to the technical field of plastic machinery, and comprises an arch ring, a connector plate, a screw hole, a connector plug and a retaining ring. A connector board is installed, and a plurality of plugs are arranged on the connector board, and screw holes are arranged on both sides of the connector board. Both the arch ring and the retaining ring are semicircular. The arch ring is made of titanium alloy material. The heating ring is composed of upper and lower parts, which can be easily combined or disassembled by screws, which greatly facilitates the replacement of the heating ring.

Description

A detachable screw heating ring

technical field

The utility model relates to a detachable screw heating ring, which belongs to the technical field of plastic machinery.

Background technique

At present, the extruders in use in our country basically use a closed ring heater, which is inserted into the barrel through one end of the screw. Once such a heater is broken, it is difficult to remove it and replace it, because it is a closed ring. Ring type, how to improve the existing heater for easy replacement is an urgent problem to be solved.

Contents of the invention

The purpose of the utility model is to provide a detachable screw heating ring.

The problem to be solved by the utility model is that the existing screw heating ring is difficult to replace.

For realizing the purpose of the utility model, the technical scheme that the utility model adopts is:

A detachable screw heating ring, including an arch ring, a connector board, a screw hole, a connector plug and a retaining ring, retaining rings are installed on both sides of the arch ring, a connector board is installed at the bottom of the arch ring, and a There are a plurality of connectors, and screw holes are arranged on both sides of the connector board.

Both the arch ring and the retaining ring are semicircular.

The arch ring is made of titanium alloy material.

The utility model has the advantages that: the heating ring is composed of upper and lower parts, which can be easily combined or disassembled by screws, which greatly facilitates the replacement of the heating ring and should have a broad market space.

Description of drawings

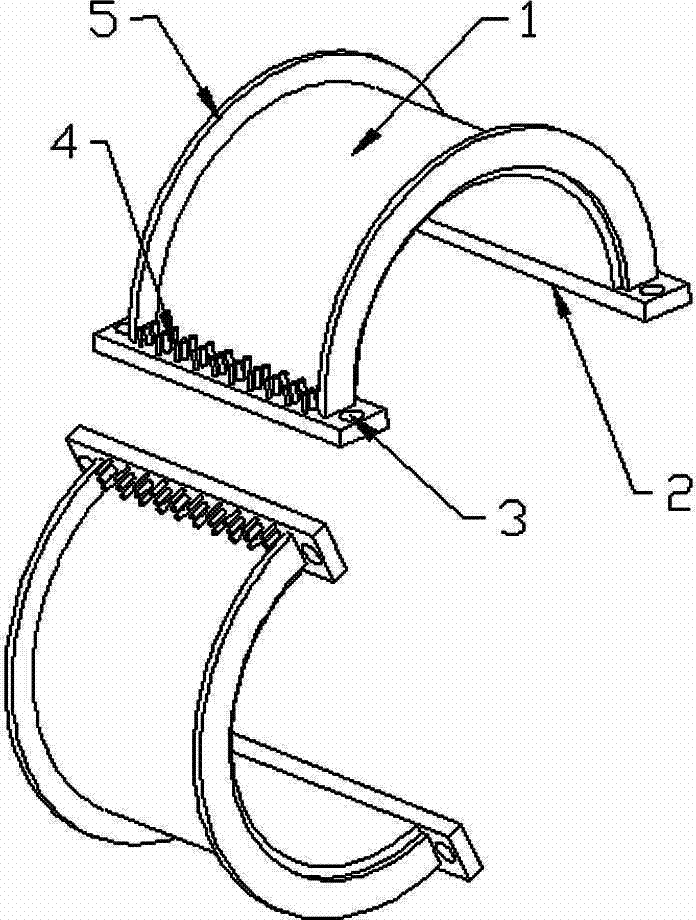

Fig. 1 is a schematic diagram of a detachable screw heating ring of the present invention;

In the figure: 1. Arch ring 2. Connector board 3. Screw hole 4. Connector 5. Retaining ring.

Detailed ways

Below in conjunction with accompanying drawing and embodiment the utility model is described further.

As shown in the figure, a detachable screw heating ring includes an arch ring 1, a connector board 2, a screw hole 3, a connector plug 4 and a retaining ring 5, retaining rings 5 are installed on both sides of the arch ring 1, and the arch ring 1 is used for arranging wires, and the bottom of arch ring 1 is provided with a connector board 2, which is provided with a plurality of plugs 4 for connecting multiple heating wires, so that when the upper and lower arch rings 1 are closed, through Connector board 2 connects the wires up and down and heats the screw rod; both sides of connector board 2 have screw holes 3 for fixing when up and down are combined.

Both the arch ring 1 and the retaining ring 5 are semicircular.

The arch ring 1 is made of titanium alloy.

How to use this device: Fix the upper and lower arch rings 1 on the screw rod through the screw hole 3. When the heating ring is broken after a long time of use, you can directly remove the upper and lower arch rings 1 and replace them with new ones. The entire barrel and screw are disassembled to replace the heating ring, which is simple and convenient.

Claims (3)

1. A detachable screw heating ring, including arch ring (1), connector board (2), screw hole (3), connector plug (4) and retaining ring (5), characterized by: arch ring (1) The retaining rings (5) are installed on both sides, and the connector board (2) is installed at the bottom of the arch ring (1). There are multiple connectors (4) on the connector board (2), and the connector board (2) ) with screw holes (3) on both sides. 2. A detachable screw heating ring according to claim 1, characterized in that: both the arch ring (1) and the retaining ring (5) are semicircular. 3. A detachable screw heating ring according to claim 1, characterized in that: the arch ring (1) is made of titanium alloy.
