本实用新型提供一种实验室用测量烧杯：包括烧杯杯体以及设置于烧杯杯体内壁上的若干个用于放置测量器具的凹槽，实验室用测量烧杯结构简单、使用方便，在量取液体时可以同时测量液体的温度、比重等参数，简化了操作程序，减少了测量器具的损坏频率，节约了时间，适合大专院校和研究室使用。
The utility model provides a measuring beaker for a laboratory, which includes a beaker body and several grooves for placing measuring instruments arranged on the inner wall of the beaker. The measuring beaker for the laboratory is simple in structure and easy to use. When it is liquid, it can measure the temperature, specific gravity and other parameters of the liquid at the same time, which simplifies the operation procedure, reduces the damage frequency of measuring instruments, saves time, and is suitable for colleges and universities and research laboratories.
Description
Technical field
The utility model relates to the beaker with many kinds of parameters measurement function that uses in a kind of large-scale universities and colleges laboratory or the research department.
Background technology
The used beaker in existing laboratory can only measure liquid, be a kind of measurer, also will use respectively measuring appliance to measure operation during the parameters such as measurement temperature and proportion, program is complicated, also easily smash the measuring appliances such as thermometer, densimeter in the measurement, bring larger cost loss to the laboratory.
The utility model content
The purpose of this utility model is to provide a kind of use for laboratory to measure beaker, and this measurement beaker can be realized simultaneously many kinds of parameters being measured safely, easily.
For achieving the above object, the utility model has adopted following technical scheme:
Comprise cup of beaker and be arranged on the cup of beaker inwall several and be used for to place grooves of measuring appliance.
Described measuring appliance is one or both in thermometer or the densimeter.
Described groove is tubulose.
Described groove vertically arranges along the inwall of cup of beaker.
Offer the opening that communicates with groove on the upper surface of described cup of beaker.
Be provided with dismountable card cap in the described opening.
One end of described card cap links to each other with the link on being arranged at opening.
Be provided with handle on the outer wall of described cup of beaker.
It is simple in structure, easy to use that use for laboratory described in the utility model is measured beaker, when measuring liquid, can measure simultaneously the parameter such as temperature, proportion of liquid, simplify operation sequence, reduce the damage frequency of measuring appliance, saved the time, be fit to universities and colleges and research department and use.
Further, the utility model arranges handle at cup, can overcome, the volume excessive problem that cause cup easily fall, damage smooth because of cup.
Description of drawings

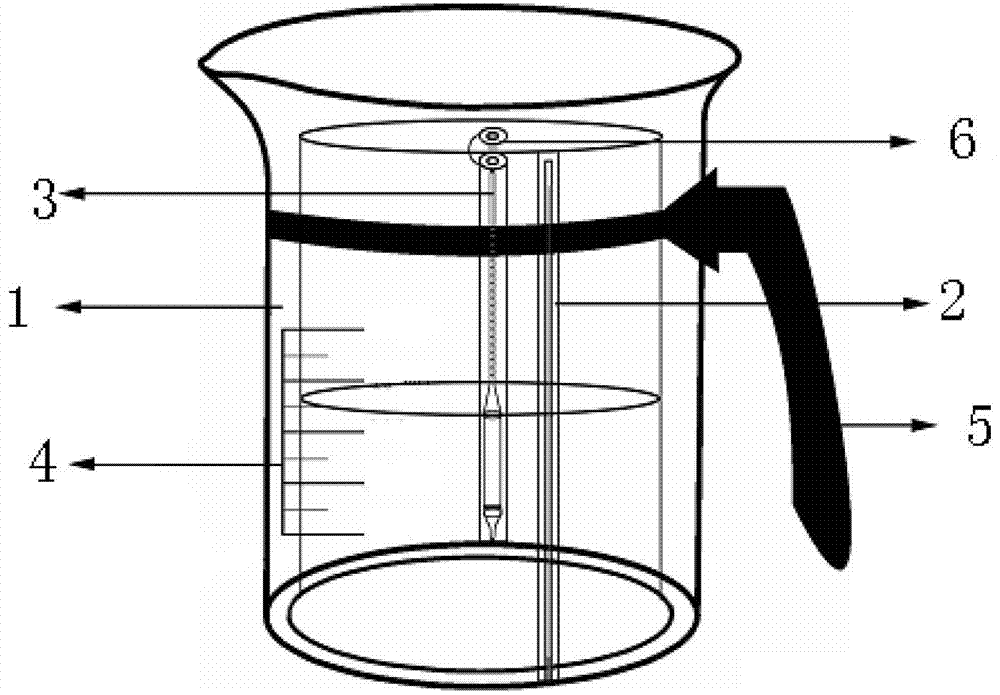

Fig. 1 is structural representation of the present utility model;
Among the figure: cup of beaker 1, thermometer 2, densimeter 3, scale 4, handle 5, card cap 6.
The specific embodiment
The utility model is described in further detail below in conjunction with drawings and Examples.
Referring to Fig. 1, the utility model comprises cup of beaker 1 and is arranged on the cup of beaker inwall several be used for to place grooves of measuring appliance, described measuring appliance is one or both in thermometer 2 or the densimeter 3, and groove is used for the measuring appliances such as laying temperature meter, prevents that measuring appliance from toppling over; Described groove is tubulose, described groove vertically arranges along the inwall of cup of beaker 1, offer the opening that communicates with groove on the upper surface of described cup of beaker 1, be provided with dismountable card cap 6 in the described opening, an end of described card cap 6 links to each other with the link on being arranged at opening; Be provided with handle 5 on the outer wall of described cup of beaker 1, handle makes beaker, and particularly large capacity beaker is not easy landing and damage.
Using method of the present utility model is as follows:
Utilize the groove that arranges on the cup of beaker 1 that the measuring appliances such as thermometer 2 and densimeter 3 can be installed at the cup of beaker inwall respectively, during installation, as long as thermometer 2 or densimeter 3 are inserted groove from the opening of cup of beaker upper surface, then to cup of beaker 1 interior adding liquid to the scale that needs, simultaneously, the measurement result of observed temperature meter 2 and densimeter 3, after measuring end liquid is poured out beaker, because measuring appliance can be up and down along groove, in order to prevent that measuring appliance from skidding off from cup of beaker 1 when the pouring liquids, need to opening be blocked with card cap 6.
Characteristics of the present utility model are as follows:
1. when measuring liquid, can measure temperature and proportion as required simultaneously, or needed parameter, simplified operation sequence, saved the time.
2. utilize the structures such as groove and card cap, smash measuring appliance when avoiding doing experiment, scratch finger, reduced experimental cost, improved the security of experiment.
Embodiment
A kind of Multifunctional laboratory is with measuring beaker; comprise cup of beaker; thermometer; densimeter; the card cap; groove; handle on the cup; the difference of this beaker is to offer respectively two unsettled grooves on the cup of beaker inwall on the certain position; thermometer and densimeter are housed respectively; the groove upper end is respectively equipped with a link; the protection card cap links to each other with link; when getting certain quantity of fluid; can measure the parameters such as the temperature of liquid and proportion; also can measure other parameter, as long as thermometer and densimeter are changed into the measuring appliance that needs, simple in structure; easy to use, can not damage thermometer and densimeter because of operate miss when doing experiment.
The utility model not only is fit to the liquid that the laboratory measures smaller size smaller, and the liquid measuring of the large volume beaker more than the suitable 400ml, simultaneously, the utility model can be realized the measurement to many kinds of parameters such as fluid temperature, proportions simultaneously, can measure simultaneously, also can measure respectively as required, experimental arrangement is simplified, save the time.
Claims (8)
1. a use for laboratory is measured beaker, it is characterized in that: comprise cup of beaker (1) and be arranged on the cup of beaker inwall several being used for placing grooves of measuring appliance.
2. described a kind of use for laboratory is measured beaker according to claim 1, and it is characterized in that: described measuring appliance is one or both in thermometer (2) or the densimeter (3).
3. described a kind of use for laboratory is measured beaker according to claim 1, and it is characterized in that: described groove is tubulose.
4. described a kind of use for laboratory is measured beaker according to claim 1, and it is characterized in that: described groove vertically arranges along the inwall of cup of beaker (1).
5. described a kind of use for laboratory is measured beaker according to claim 1, it is characterized in that: offer the opening that communicates with groove on the upper surface of described cup of beaker (1).
6. described a kind of use for laboratory is measured beaker according to claim 5, it is characterized in that: be provided with dismountable card cap (6) in the described opening.
7. described a kind of use for laboratory is measured beaker according to claim 6, and it is characterized in that: an end of described card cap (6) links to each other with the link on being arranged at opening.
8. described a kind of use for laboratory is measured beaker according to claim 1, it is characterized in that: be provided with handle (5) on the outer wall of described cup of beaker (1).
