Abstract
本实用新型提供一种羽毛球拾球器，包括手柄、合页、挡板、收集布和小挂钩，手柄与挡板的上端连接，挡板的下端通过合页与收集布连接，收集布上设有多个小挂钩。本实用新型结构简单、设计合理、使用方便，在羽毛球训练时拾球省时省力。
The utility model provides a badminton picker, which comprises a handle, a hinge, a baffle, a collection cloth and a small hook, the handle is connected to the upper end of the baffle, the lower end of the baffle is connected to the collection cloth through the hinge, and the collection cloth is provided with a There are multiple small hooks. The utility model has the advantages of simple structure, reasonable design and convenient use, and saves time and effort when picking up the ball during badminton training.
Description
Technical field
The utility model relates to the sports goods field, is specifically related to a kind of shuttlecock ball picker.
Background technology
Badminton is one and is suitable for each stratum and the motion that is loved by the people at age.At present, along with improving constantly of people's living standard, the participant of badminton increases day by day, has increasing teenager to accept the professional training of shuttlecock.But this motion has also brought some problems to them simultaneously, and one of them picks up ball exactly.Existing shuttlecock ball picker part is more, make difficulty, and cost is higher, and it is larger to take up room, and therefore is difficult to be popularized.
The utility model content
The purpose of this utility model is the defective that exists in the prior art in order to solve, provide a kind of simple in structure, take up room the shuttlecock ball picker little.
The purpose of this utility model is achieved in that a kind of shuttlecock ball picker, comprise handle, hinge, baffle plate, collection cloth and little hook, handle is connected with the upper end of baffle plate, and the lower end of baffle plate is connected with collection cloth by hinge, collects cloth and is provided with a plurality of little hooks.
The utility model is simple in structure, reasonable in design, easy to use, and it is time saving and energy saving to pick up ball when the shuttlecock training.
Description of drawings

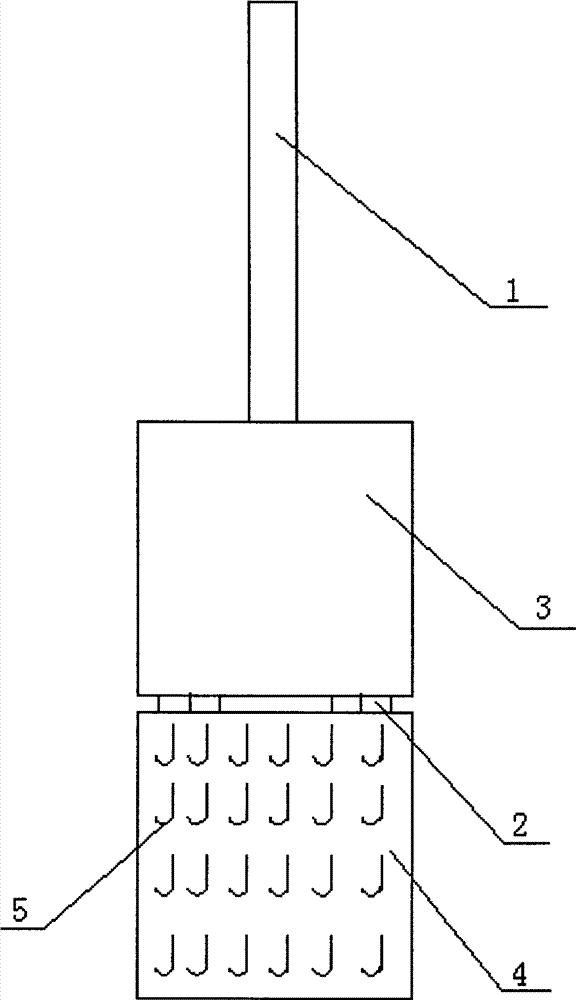

Fig. 1 is structural representation of the present utility model.
The specific embodiment
The utility model is described in further detail below in conjunction with Figure of description:
As shown in Figure 1, a kind of shuttlecock ball picker comprises handle 1, hinge 2, baffle plate 3, collects cloth 4 and little hook 5, and handle 1 is connected with the upper end of baffle plate 3, and the lower end of baffle plate 3 is connected with collection cloth 4 by hinge 2, collects cloth 4 and is provided with a plurality of little hooks 5.
The utility model is simple in structure, reasonable in design, easy to use, and it is time saving and energy saving to pick up ball when the shuttlecock training.
Claims (1)
1. shuttlecock ball picker, comprise handle (1), hinge (2), baffle plate (3), collect cloth (4) and little hook (5), it is characterized in that: handle (1) is connected with the upper end of baffle plate (3), the lower end of baffle plate (3) is connected with collection cloth (4) by hinge (2), collects cloth (4) and is provided with a plurality of little hooks (5).
